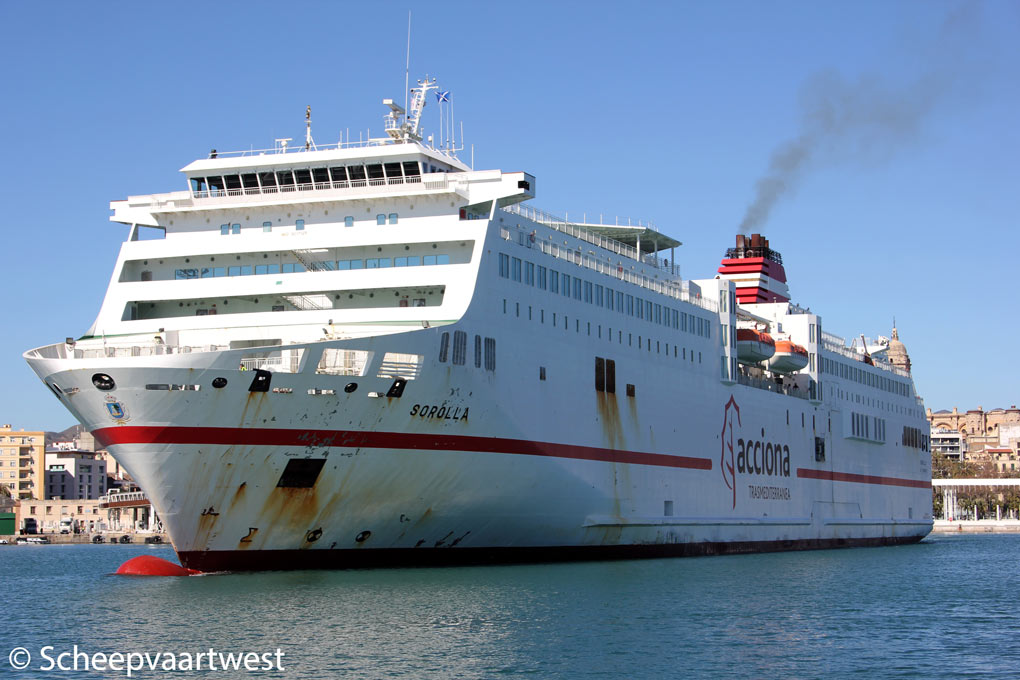

Sorolla 01
Malaga, Spain 07 February 2013

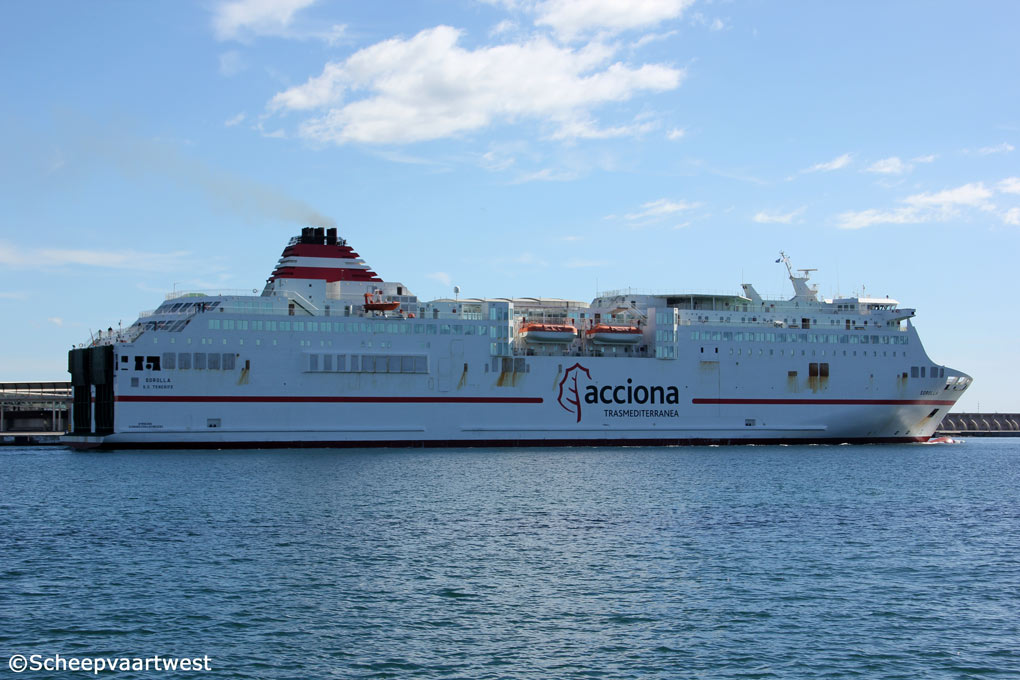

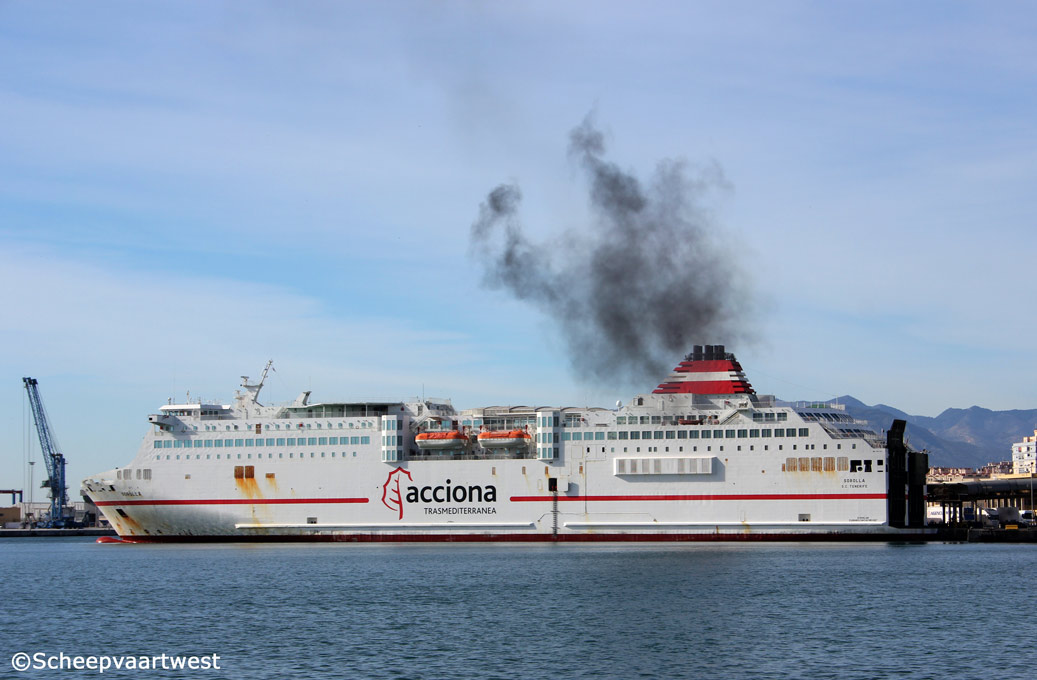

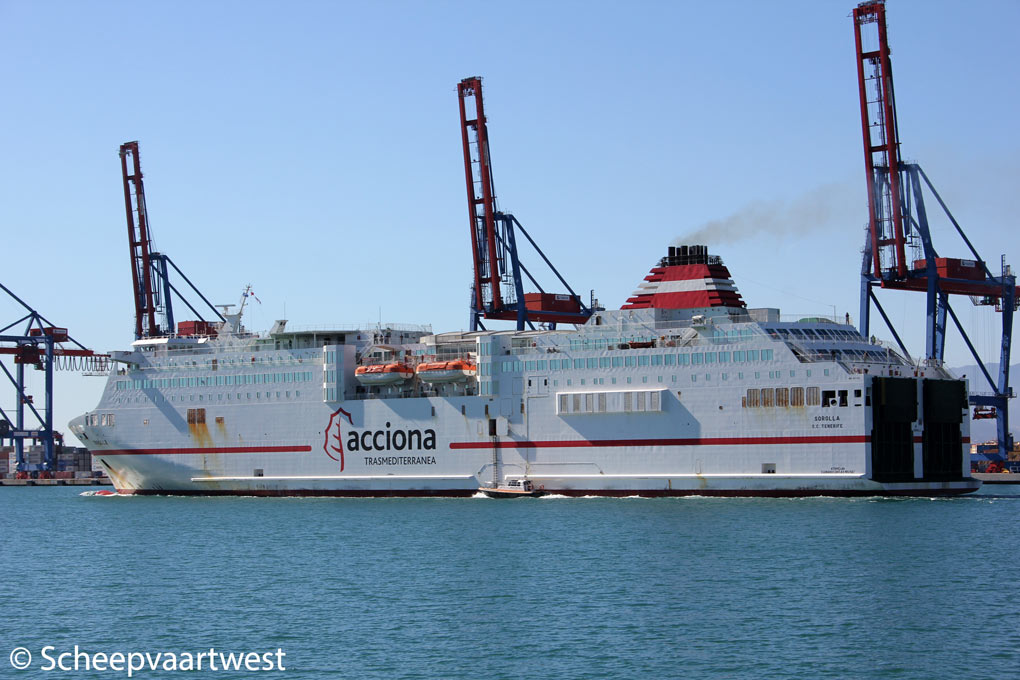

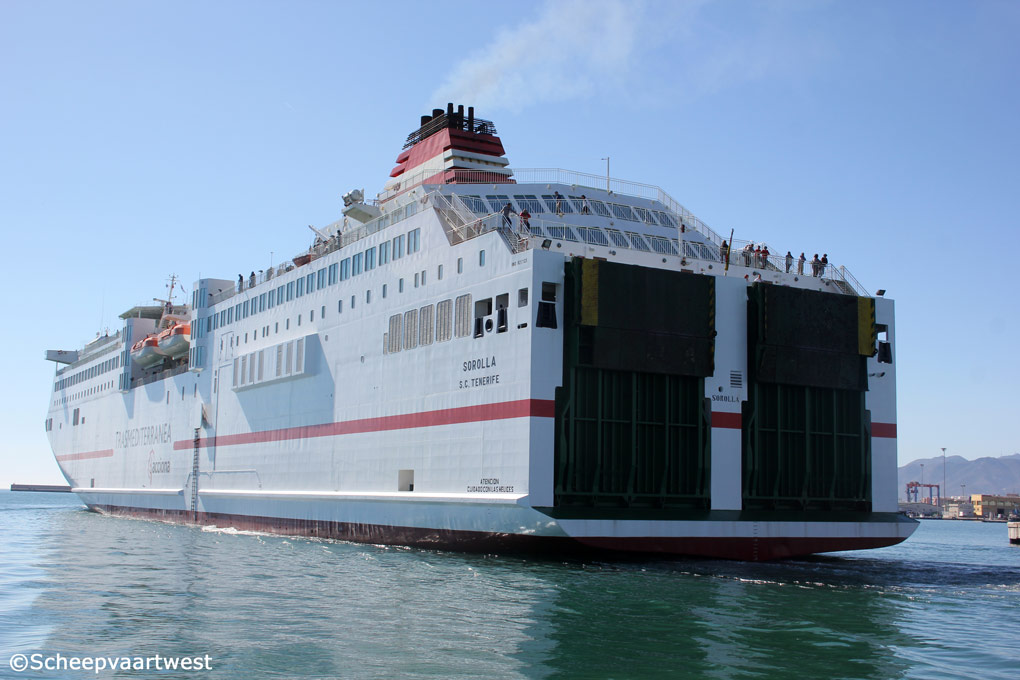

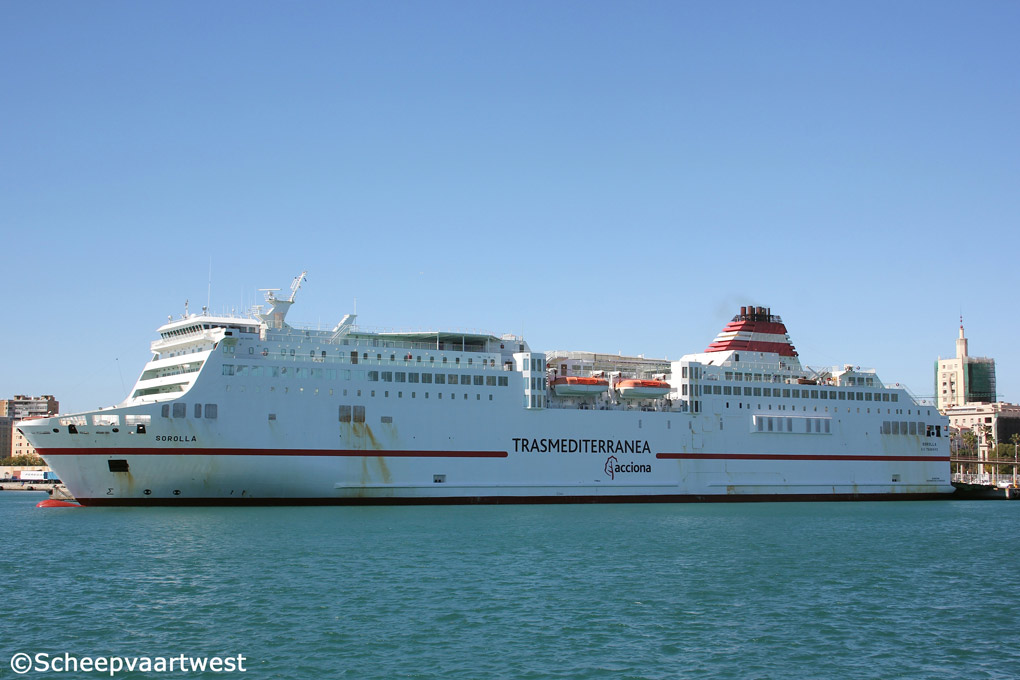

Sorolla 02   Sorolla 03   Sorolla 04   Sorolla 06   Sorolla 08
Malaga, Spain 07/02/13 Malaga, Spain 09/02/13 Malaga, Spain 07/02/13 Malaga, Spain 14/02/14   Malaga, Spain 24/02/15



Name

SOROLLA

Type

Roll-On / Roll-Off vessel - Ferry

IMO-number

9217125

Call sign

EBRI

Flag

Spain

Port of registry

Santa Cruz De Tenerife

GT

26.916 t

DWT

Summer: 5.000 t

NT

14.608 t

Light displacement

11.568 t

Displacement at full load

16.555 t

Number of 20ft containers

1.500

Length

172,00 m overall

157,00 m between perpendiculars

Breadth

26,20 m moulded

Draught

Max: 6,21 m

Lane metres

1.809

Freeboard

3.012 mm

Depth

14,84 m to upperdeck

9,20 m to main deck

Speed

23,0 knots

Normally route

Cadiz - Arrecife - Las Palmas - Tenerife - Las Palmas - Puerto del Rosario - Arrecife

Built

2001

Launch date

25.10.2000

Date of completion

09.05.2001

Builder

Hijos De J. Barreras S.A.
Vigo (Pontevedra)
Spain

Yard number

C-1580

Hull material

Steel

Hull type

Single hull

Watertight compartments

10

Continuous decks

10
Machinery aft

Main engine

4x Wärtsilä 8L46A - 4 stroke single action 8 cylinder 460×580 mm diesel engines - each 7.240 kW total 28.960 kW / 39.348 hp at 500 rpm

Built: 2000

Builder: Wartsila Iberica S.A., Bermeo (Vizcaya) - Spain

Note: Coupled in pairs, by a flexible coupling, a gear shaft and its corresponding queue

Propellers

2x Lips screw propeller controllable pitch LB 10.00 at 183 rpm

Diameter 4.600 mm - 4 blades

Boilers

2x CHO Mission type OS 269,00 m² - 9,0 bar
2x CHR AQ-7 type 271,00 m² - 9,0 bar

Builder:Aalborg Industries

Electric installations

Power voltage: 400 V

Lighting voltage: 230 V

Frequency: 50 Hz

Shaft generator

2x Leroy Somer LSAM53M85 C6 / 6 AREP generator each 1.962 kVA / 1.570 kW - 380 Volt / 50 Hz

Generators

3x Wärtsilä 20 - 9 cylinder diesel engines each 1.620 kW at 1.000 rpm with 3 Leroy Somer LSAM53M85 C6 / 6 AREP generators each 1.962 kVA - 380 V / 50 Hz

1x MAN Demp D2842LE301 - 12 cylinder diesel generatorset 514 kW at 1.500 rpm

Emergency generator

1x MAN D2866 LXE diesel generatorset 313 kVA - 250 kW - 367 hp at 1.500 rpm

Bow thruster

2x Rolls-Royce Marine 250 TV type controllable pitch thrusters at the bow 1.000 kW at 320 rpm

Diameter 1.880 mm

Access to the garage

Two doors / ramps aft

Length: 18,00 m (16,00 m and 2,00 m ramp nail)

Width: 8,50 m

Tank capacities

Fuel oil: 804 m³

Diesel oil: 167 m³

Lubricating oil: 110 m³

Fresh water: 421 m³

Boiler feed water: 25 m³

Ballast water: 1,930 m³

Anti-heeling tanks: 673 m³

Number of passengers

1.100

Number of beds

744

Vehicle Capacity

80 trucks and 336 cars

Crew

202

Manager

Acciona Trasmediterranea
Madrid
Spain

Operator

Acciona Tansmediterranea

Owner

Acciona Trasmediterranea
Madrid
Spain

Previous owners

2001 - 2005 Compañía Trasmediterránea

Registered owner

Trasmediterranea (CIA) S.A.

Last update

28.02.2013
