| Zeebrugge 23 April 2004 |
|
Name |

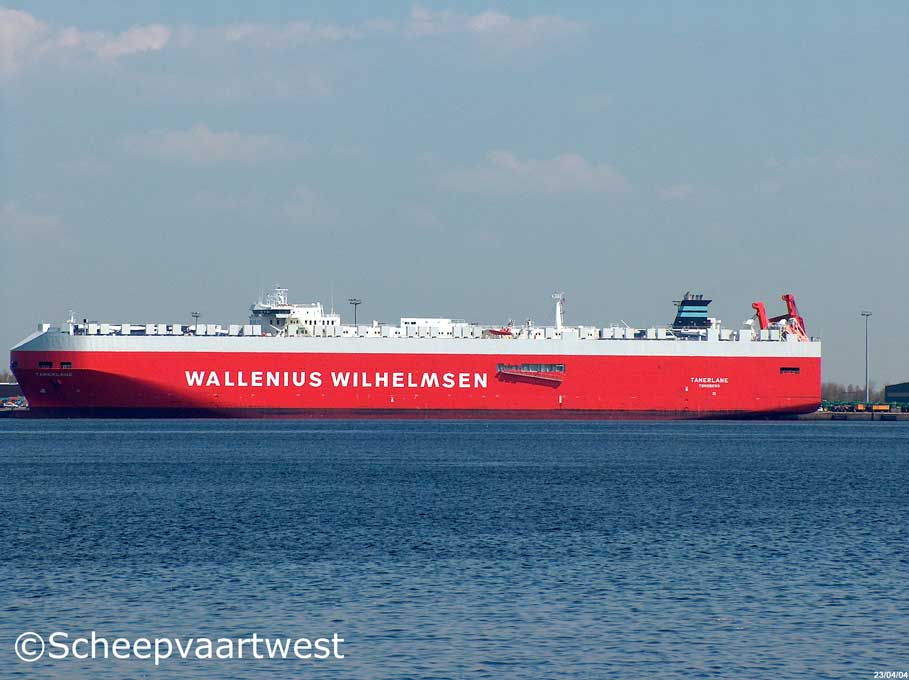

TAMERLANE |
|
Type |
Roll-On/Roll-Off vehicles Carrier |
|
IMO-number |
9218648 |
|
Call sign |
LAQU5 |
|
Flag |
Norway |
|
Port of registry |
Tønsberg |
|
GT |
67.140 t |
|
DWT |
38.486 t at maximum draft |
|
NT |
23.674 t |
|
Number of 20ft containers |
1.935 |
|
Length |
240,60 m overall |
|
Breadth |
32,26 m over all |
|
Draught |
Summer: 11,75 m |
|
Air draft |
46,00 m |
|
Freeboard |
3.850 mm |
|
Depth |
32,45 m to upperdeck |
|
Speed |
20,0 knots |
|
Built |
2001 |
|
Keel laid |
24.07.2000 |
|
Launch date |
04.11.2000 |
|
Date of completion |
02.2001 |
|
Builder |
Daewoo Shipbuilding & Marine Engineering Co. Ltd. |
|
Yard number |
4430 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x MAN Burmeister &Wain 8L70MC (MK5) marine diesel with constant pressure supercharging and maximum output of 28.480 bhp / 20.960 kW |
|
Propeller |
1x Fixed pitch propeller - 4 blades, diameter 7,40 m Builder: Hyundai Heavy Ind. Co. |
|
Electrical power |
5x 4-stroke MAN B&W Holeby main diesel generatorsets units 2x each 1.710 bhp, 3x each 2.280 bhp |
|
Emergency generator |
1x Ssanyong-Commins cap abt. 200 kW at 1.800 rpm diesel generatorset |
|
Bow thruster |
1.800 KW bow thruster with about 26 t thrust |
|
Stern ramp |
Height: 8,00 m Width: 12,00 m Capacity: 320 t |
|
Number of decks |
8, of which 4 are hoist able |
|
Capacity deck area |
46.350 m² |
|
Capacity volume |
125.620 m³ |
|
Capacity car units |
5.495 |
|
Basic complement |
22 |
|
Manager |
Wilhelmsen Ship Management (Norway) AS Strandveien 20 |
|
Previous manager |
Barber Ship Management AS |
|
Operator |
WWL - Wilh. Wilhelmsen Lines Group |
|
Owner |
Wilhelmsen Lines Shipowning AS |
