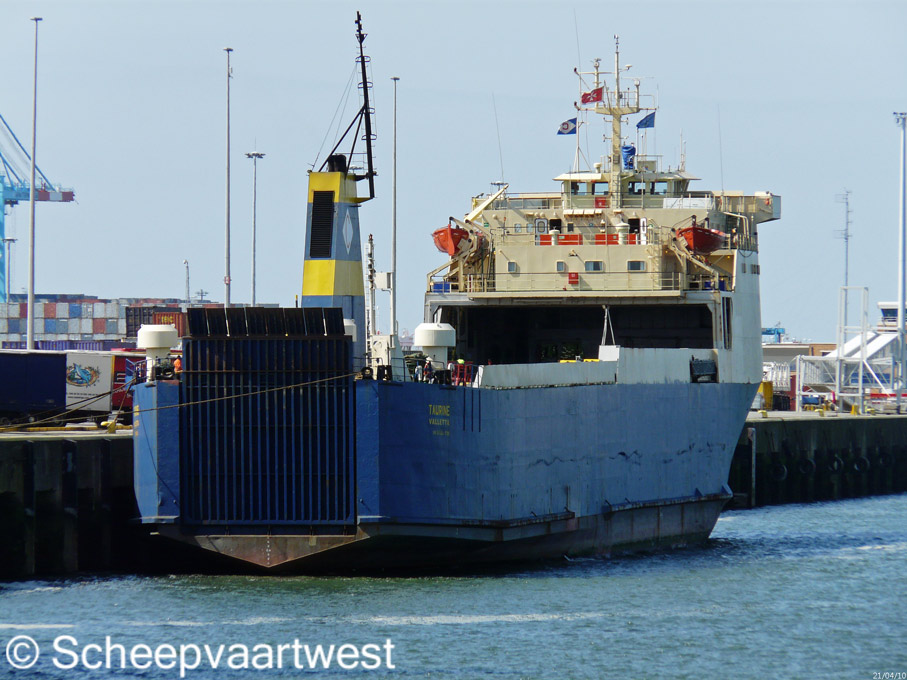

| Zeebrugge 21 April 2010 |
|
Name |
TAURINE |
|
Previous names |
1977 Thomas Wehr 1977-1978 Warco Express 1978-1982 Thomas Wehr 1982-1985 Tor Neerlandia 1985 Dana Germania 1986-1992 Thomas Wehr 1993 Mana 1993 Santa Maria 1993-1994 Fuldatal 1994 Hornlink 1994-2001 Thomas Wehr 2001-2009 Anglian Way |
|
Type |
Roll-Off/Roll-On vessel |
|
IMO-number |
7613404 |
|
Call sign |
9HIB9 |
|
Flag |
Malta |
|
Previous flag |
Republic of Panama |
|
Port of registry |
Valletta |
|
Previous port of registry |
Panama City |
|
GT |
7.628 t |
|
DWT |
4.322 t |
|
NT |
2.288 t |
|
Number of 20ft containers |
180 |
|
Length |
141,07 m overall 133,20 m registered |
|
Breadth |
17,43 m registered |
|
Draught |
Summer: 5,22 m |
|
Lane metres |
1.148 |
|
Forecastle |
9,20 m |
|
Depth |
12,20 m |
|
Speed |
15,0 knots |
|
Built |
1977 |
|
Keel laid |
30.08.1976 |
|
Launch date |
01.1977 |
|
Date of completion |
04.1977 |
|
Ship lengthened |
08.1982 |
|
Builder |
Rickmers Reederei GmbH Rickmers Werft |
|
Yard number |
388 |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
7 |
|
Continuous decks |
2 |
|
Main engine |
2x MaK 8 M 453 AK - 4 stroke single acting 8 cylinder 320 x 420 mm diesel engine - each 2.207 kW total 4.414 kW at 600,0 rpm Year of manufacture: 1976 Manufacturer: MaK Maschinenbau GmbH |
|
Propellers |
2x Controllable pitch propeller - aft at 312 rpm |
|
Boilers |
2x Water heater, oil fired Year of manufacture: 1976 |
|
Electric installations |
1x Plant 440/220 V - 676 kVA 1x Plant 440 V - 700 kVA 1x Plant 440 V - 25 kVA |
|
Shaft generator |
700 kVA |
|
Generators |
2x Main diesel generatorsets each 338 kVA |
|
Emergency generator |
1x Diesel generatorset 25 kVA |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar 1x Receiver 63 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster JASTRAM - forward |
|
Cargo capacity |
Bales: 14.498 m³ |
|
Tank capacities |
Fuel oil: 665 m³ Ballast water: 2.446 m³ |
|
Anchor equipment |
3x Anchors weight each 3.540 kg Chain length: 522,50 m |
|
Lifting device |
1x lift - SWL 40,0 t |
|
Number of passengers |
12 |
|
Number of beds |
12 |
|
Crew |
20 |
|
Manager |
EuroShip Services Ltd. |
|
Operator |
Cobelfret Ferries |
|
Owner |
Ro-Roco N.V. |
|
Previous owners |
1977-2001 Oskar Wehr KG |
|
Special Annotations |
40 t lift, ramp on the 2nd deck. As substitute of containers 91 trailer a 40'. 67 cars under deck. |
|
Previous names & operators |
1977 Thomas Wehr 1977-1978 Warco Express - Warco Lines 1978-1979 Thomas Wehr - Stena Line 1980-1982 Thomas Wehr - Lübeck Linie 1982-1985 Tor Neerlandia - Tor Lloyd 1985 Dana Germania - DFDS Seaways 1986-1987 Thomas Wehr - North Sea Ferries 1988 Thomas Wehr - Cobelfret Ferries 1989 Thomas Wehr - Elbe Humber Roline 1990-1991 Thomas Wehr - North Sea Ferries 1992 Thomas Weh - Irish Ferries 1993 Mana 1993 Santa Maria 1993-1994 Fuldatal 1994 Hornlink - Horn Line 1994-1999 Thomas Wehr - P&O European Ferries 1999-2000 Thomas Wehr 2000-2001 Thomas Wehr - Ferryways 2001-2007 Anglian Way - Ferryways 2007-2009 Anglian Way - Cobelfret Ferries |
