Malaga, Spain 21 February 2015 |
 |
 |
|
| Malaga, Spain 21/02/15 | Malaga, Spain 10/03/12 |
|
Name |

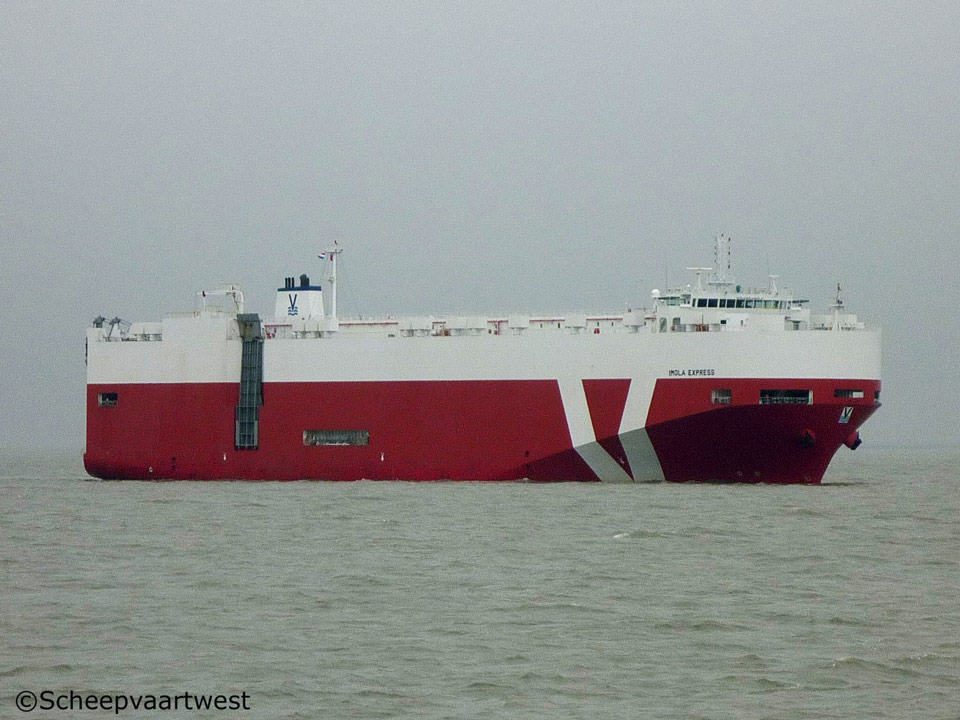

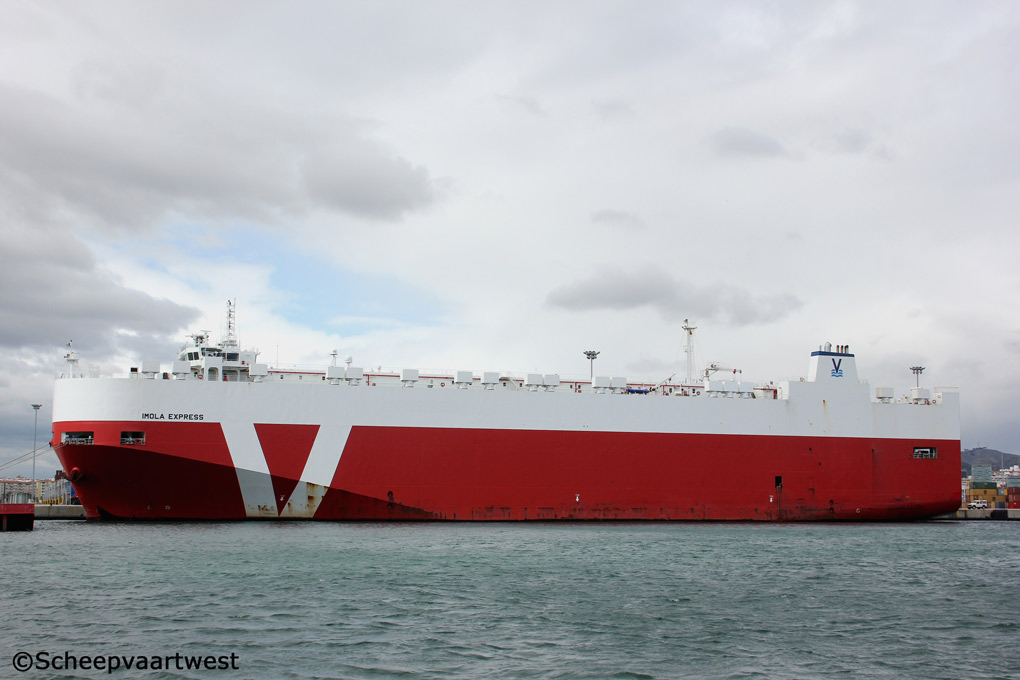

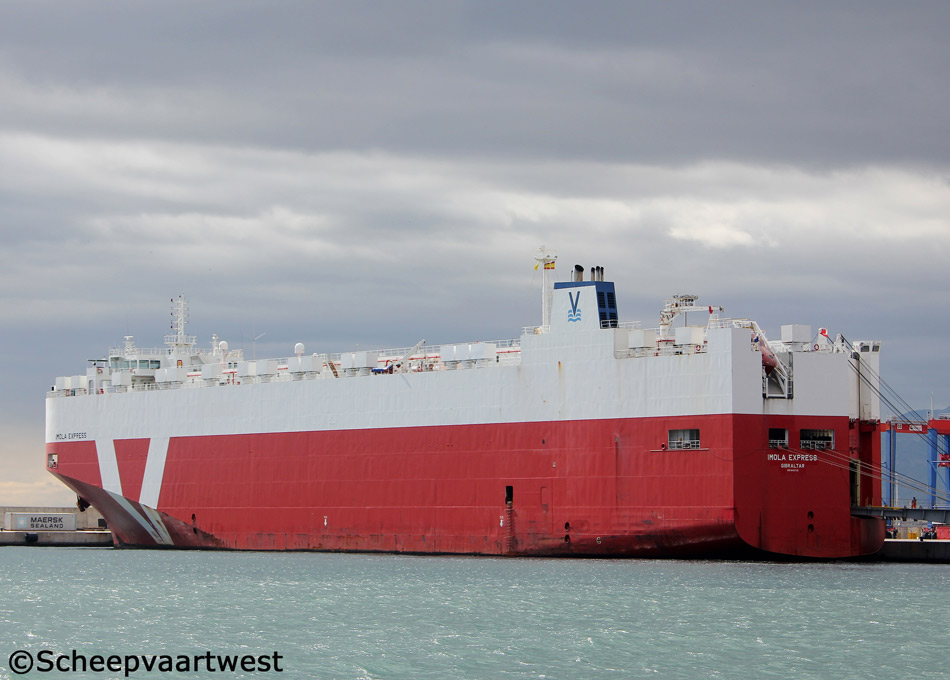

IMOLA EXPRESS |
|
Type |
Roll-On/Roll-Off vehicle carrier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9451721 |
|
Call sign |
9HA3929 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flag |
2010 - 2015 Gibraltar, Gibraltar - Call sign: ZDLV2 |
|
GT |
36.711 t |
|
DWT |
Summer: 11.215 t |
|
NT |
11.013 t |
|
Length |
168,06 m overall 158,00 m between perpendiculars |
|
Breadth |
28,03 m extreme |
|
Draught |
8,72 m |
|
Freeboard |
6.200 mm |
|
Depth |
30,65 m |
|
Speed |
Full: 19,50 knots Eco: 15,50 knots |
|
Built |
2010 |
|
Keel laid |
25.01.2010 |
|
Date of completion |
08.06.2010 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. |
|
Yard number |
8035 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x Hyundai/MAN B&W 7S50MC-C - 2stroke 7 cylinder diesel engine 11.620 kW / 15.582 bhp at 127,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Generators |
3x Diesel generatorsets each 1.350 kW |
|
Bow thruster |
2x 900 kW, forward 1x 1x 700 kW, aft |
|
Number of decks |
10 2x liftable decks |
|
Deck area |
Deck 1: 1.736 m² Deck 2: 1.736 m² Deck 3: 2.322 m² Deck 4: 2.471 m² Deck 5: 3.551 m² Deck 6: 3.862 m² Deck 7: 4.642 m² Deck 8: 4.133 m² Deck 9: 4.127 m³ Deck 10: 4.116 m² Total: 31.696 m² |
|
Liftable decks |
2 |
|
Ramps |
Stern ramp: 30,00 x 7,00 m - 120 t Side ramp: 21,00 x4,10 m - 22 t |
|
Car capacity |
3.693 Basis RT 43 standard cars 4,125 m x 1,55 m |
|
Manager |
Vroon 4511 AR Breskens |
|
Owner |
PCTC Express VI B.V. 4511 AR Breskens The Netherlands |
|
Previous owners |
2010 - 2010 Car Carries Investment CV - Gibraltar |
|
Renamed |
2015 Neptune Horizon - Malta, Valletta - Call sign: 9HA3929 Owner: Sea Star Company Ltd. |
|
Latest data adjustment |
27 January 2017 |
