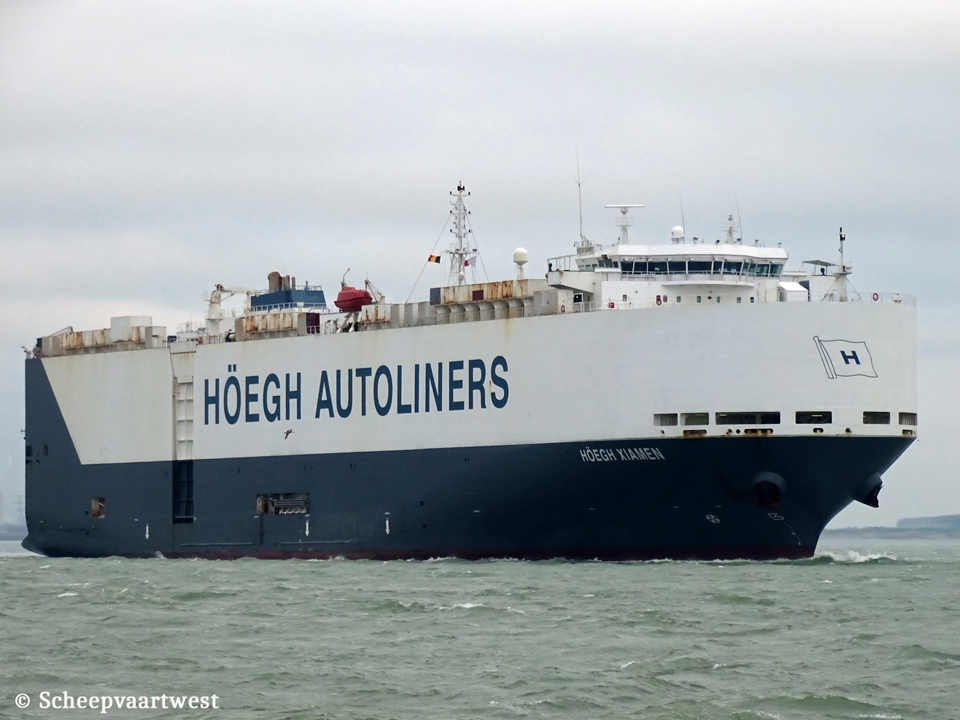

Westerschelde 08 July 2015 |
 |
 |
 |
 |
 |
||||

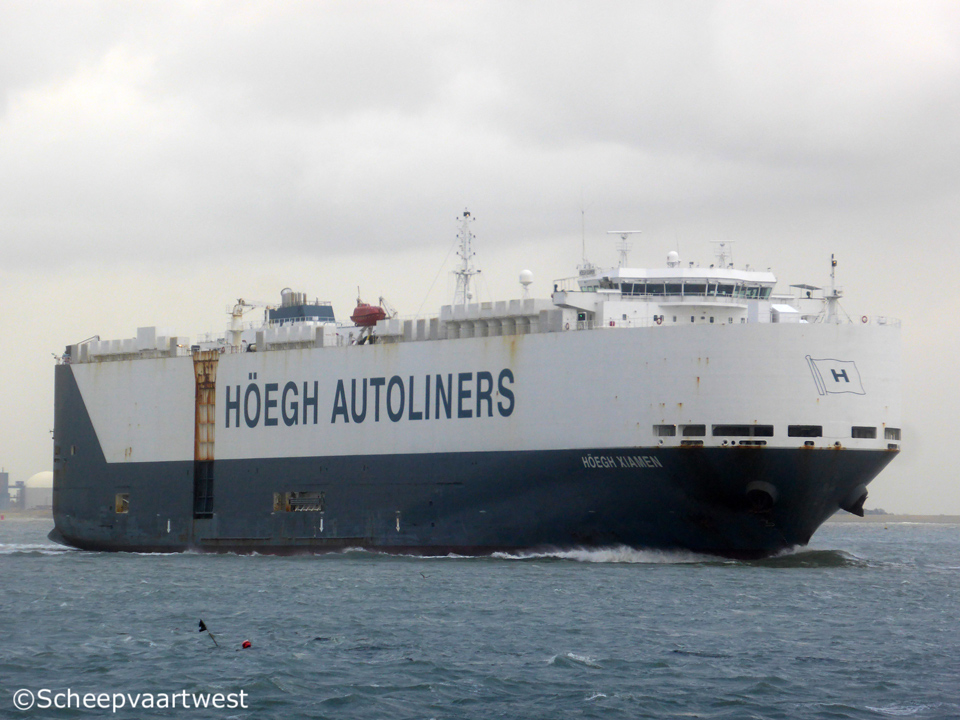

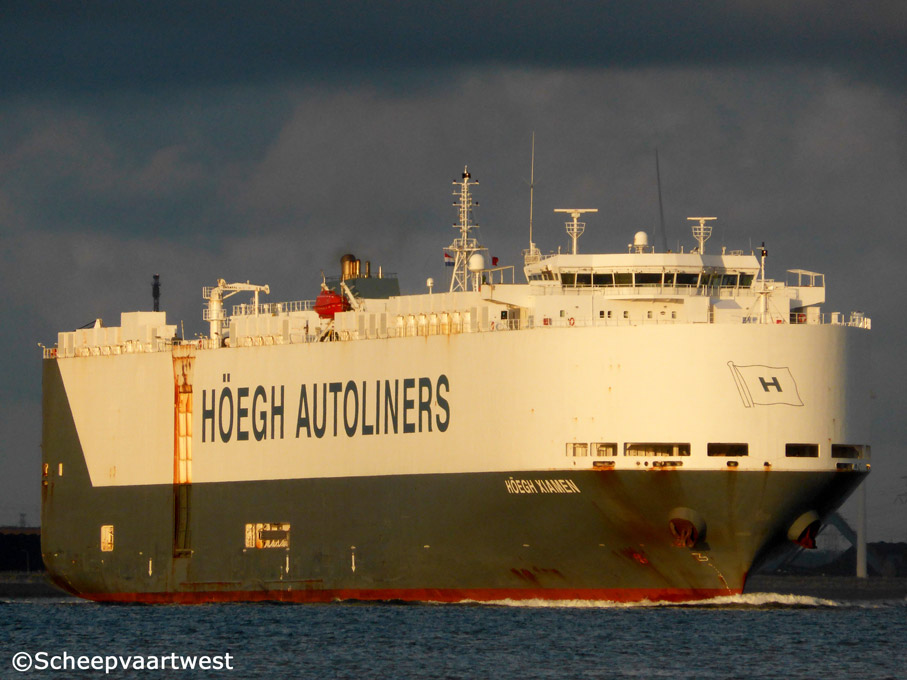

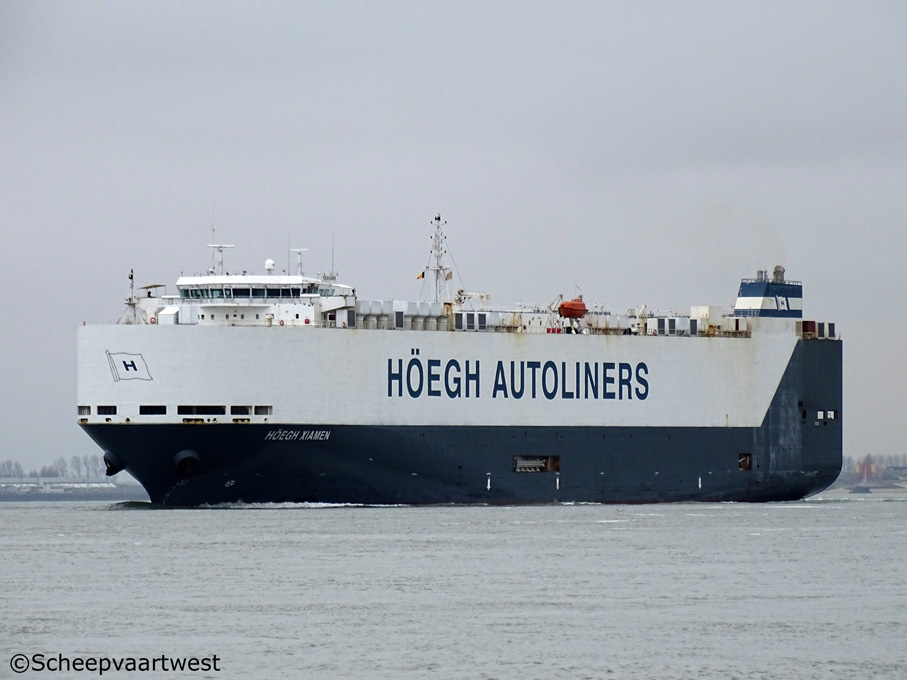

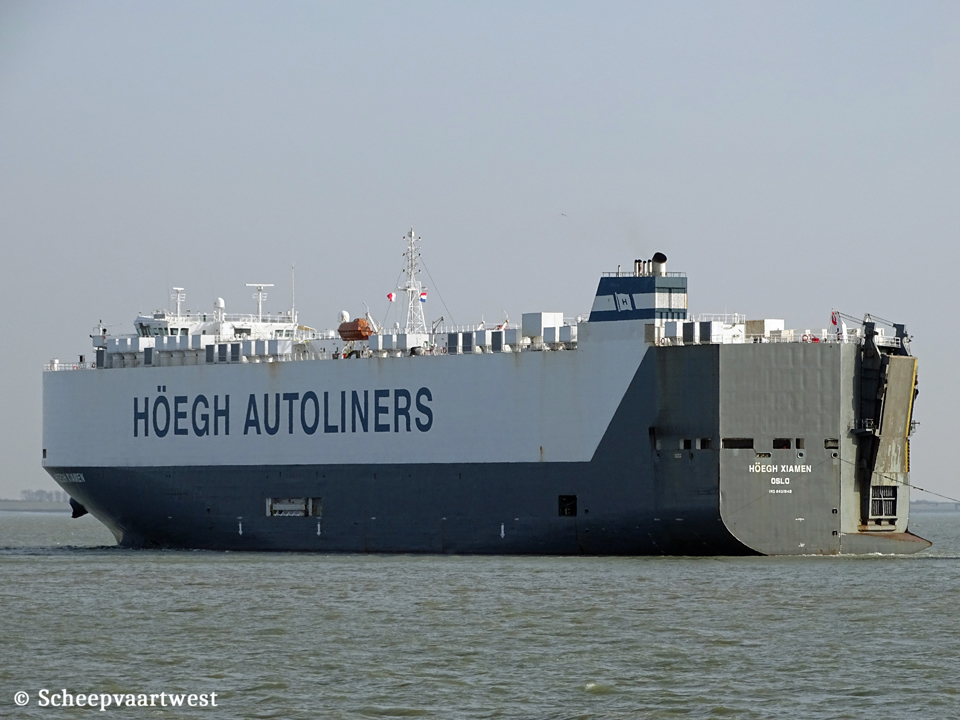

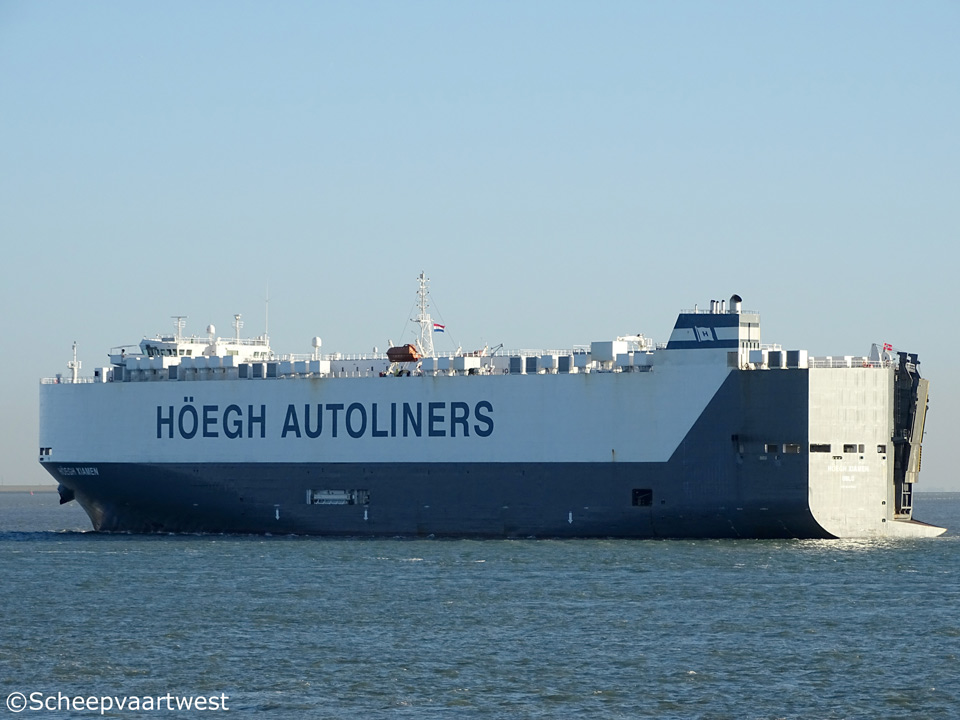

| Westerschelde 08/07/15 | Westerschelde 18/06/14 | Westerschelde 03/12/16 | Westerschelde 09/01/16 | Westerschelde 02/02/17 | ||||
|
Name |
HÖEGH XIAMEN |
|
Type |
Roll-On/Roll-Off vehicle carrier - Post-Panamax PCTC - Pure Car Truck Carrier |
|
IMO-number |
9431848 |
|
Call sign |
LAJM7 |
|
Flag |
Norway |
|
Port of registry |
Oslo |
|
GT |
47.232 t |
|
DWT |
Summer: 12.250 t |
|
NT |
14.315 t |
|
Length |
182,80 m overall 171,79 m between perpendiculars |
|
Breadth |
31,50 m extreme |
|
Draught |
9,01 m |
|
Depth |
31,80 m |
|
Speed |
20,0 knots |
|
Built |
2010 |
|
Keel laid |
30/03/2010 |
|
Launch date |
15/07/2010 |
|
Date of completion |
15/10/2010 |
|
Builder |
Xiamen Shipbuilding Industry Co. Ltd. Xiamen China |
|
Yard number |
XSI1461B |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 9S50MC-C - 2 stroke single acting 9 cylinder 500 x 2.000 mm combustion engine 14.220 kW / 20.260 bhp |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated - AQ-7 1x Auxiliary boiler, oil/gas fired - Mission OS-2000 Builder: Aalborg Industries AS |
|
Generators |
2x MAN 8L23/30 A-H diesel generatorsets each 1.130 kW 1x MAN 6L23/30 A-H diesel generatorset 850 kW Builder: MAN Diesel & Turbo SE |
|
Emergency generator |
1x Deutz MWM TBD 234V8 generatorset 240 kW Builder: Henan Diesel Engine Industry Co., Ltd. |
|
Bow thruster |
1x Kawasaki KT-130B3 - 1.100 kW |
|
Number of decks |
11 |
|
Deck area |
71.400 m² |
|
Number of cars |
4.943 |
|
Ramp |
Width: 7,60 m Height: 5,30 m Max. capacity: 120 t |
|
Tank capacities |
Ballast: 5.155,6 m³ |
|
Anchor equipment |
Length: 660,00 m Diameter: 76 mm |
|
Commercial manager |
Hoegh Autoliners Management AS Oslo Norway |
|
ISM manager |
Hoegh Technical Management Makati City, Manila Philippines |
|
Previous managers |
2010 - 2015 Höegh Fleet Services AS |
|
Operator |
Höegh Autoliners |
|
Registered owner |
OCY Xiamen Limited Malta |
|
Previous owners |
2010 - 2014 Höegh Autoliners Shipping Pte. Ltd. |
|
Scrapped |
05/10/2020 Beached at Aliaga - Turkey |
|
Latest data adjustment |
12 January 2024 |
