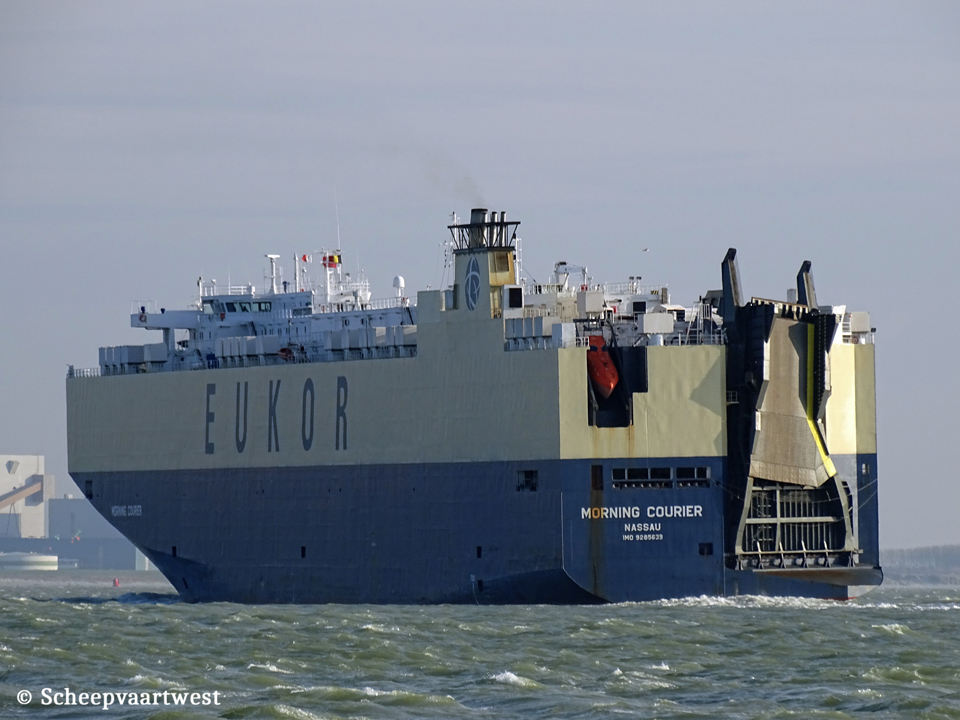

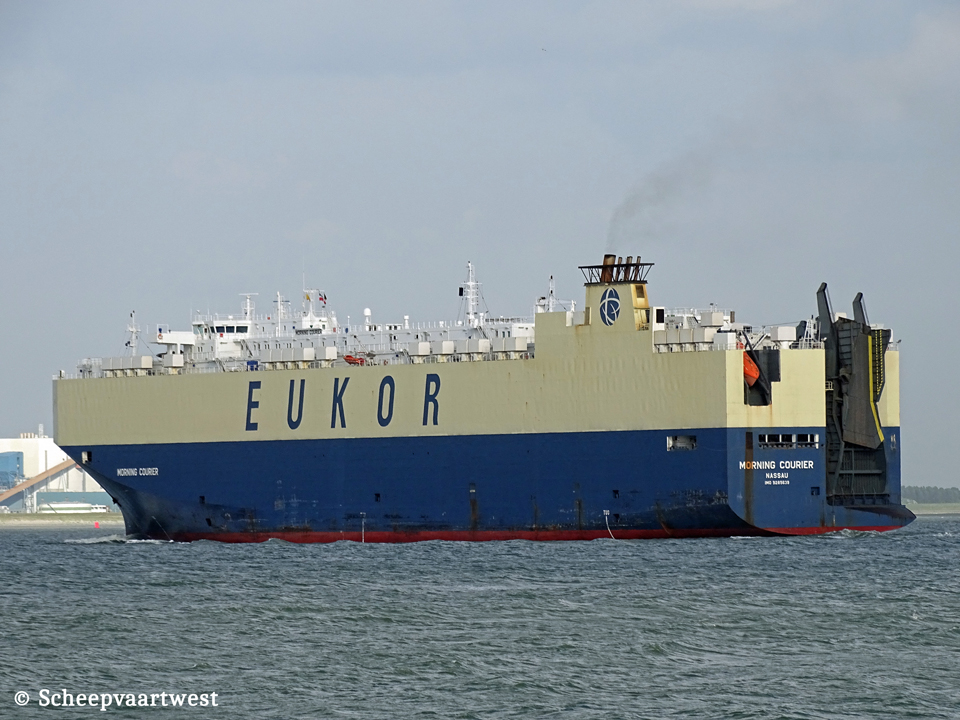

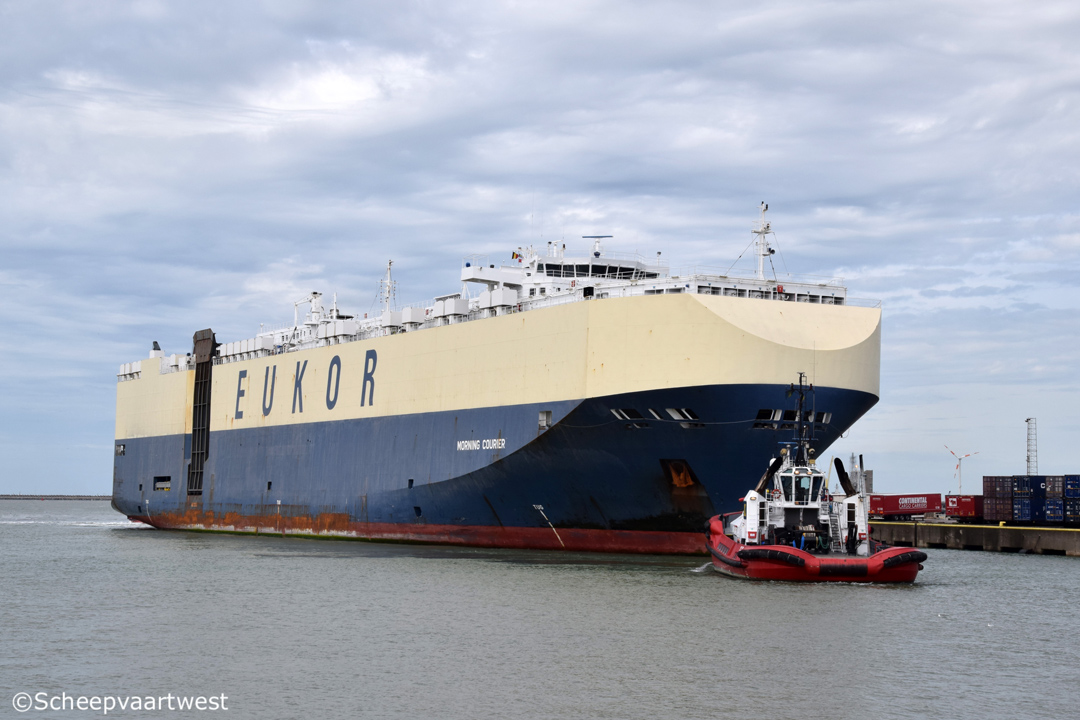

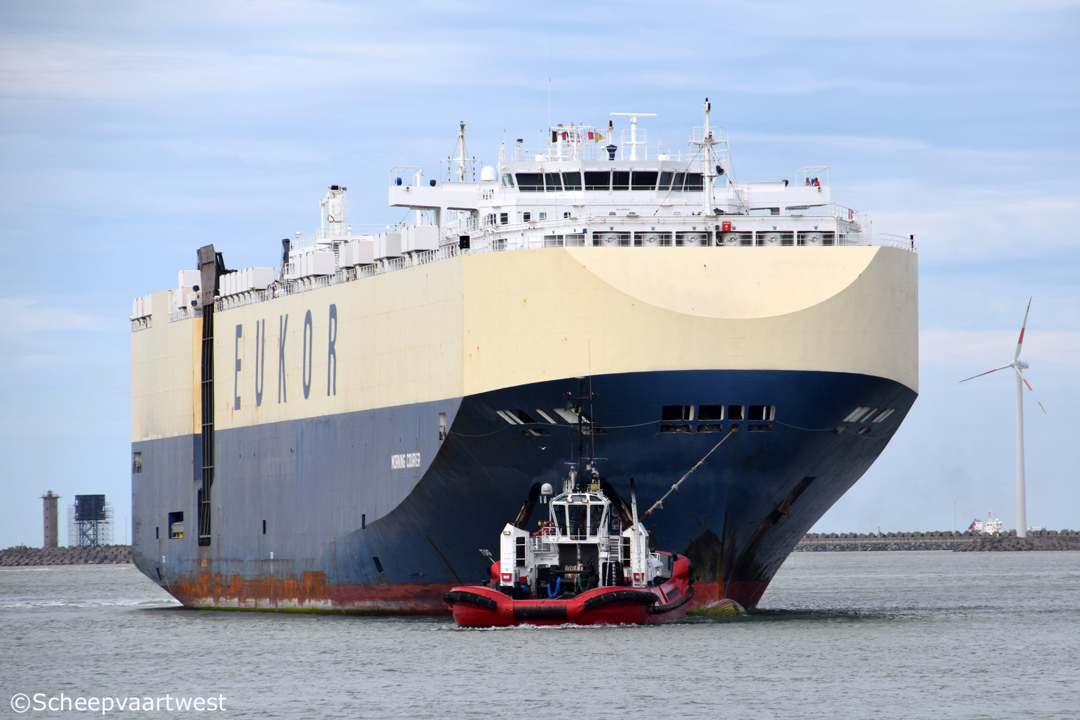

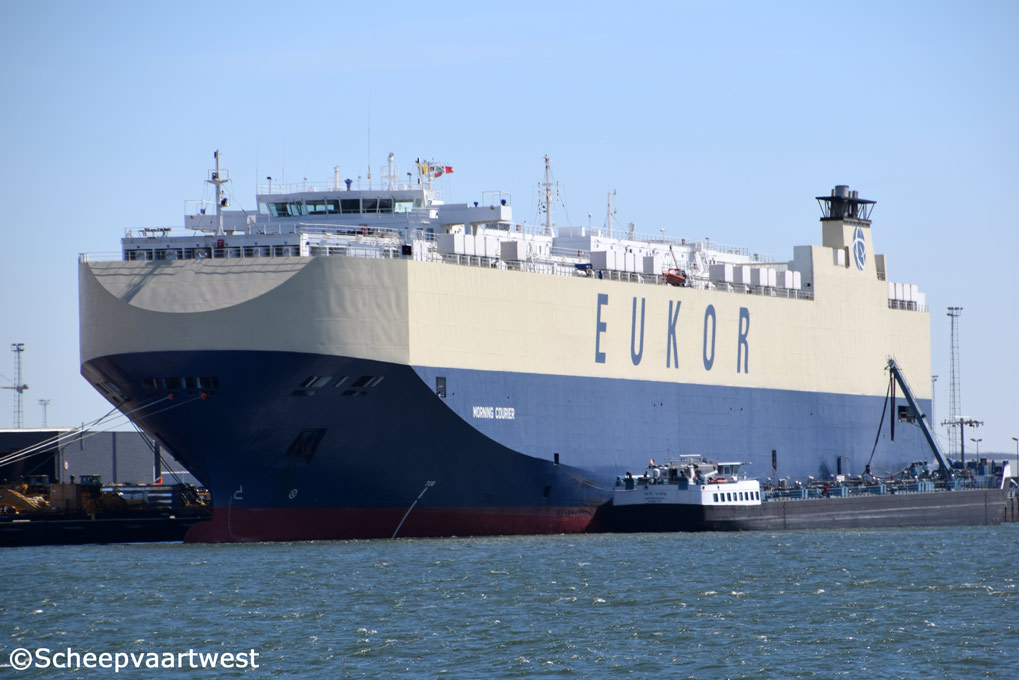

Zeebrugge 12 August 2018 |
 |
 |
 |
 |
|||
| Zeebrugge 12/08/18 | Zeebrugge 21/04/15 | Westerschelde 28/07/16 | Westerschelde 24/12/15 | |||
|
Name |
MORNING COURIER |
|
Type |
Roll-On/Roll-Off vehicle carrier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9285639 |
|
Call sign |
C6UI2 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
57.692 t |
|
DWT |
21.053 t |
|
NT |
21.037 t |
|
Length |
199,98 t overall |
|
Breadth |
32,25 m 32,40 m extreme |
|
Draught |
Summer: 10,01 m |
|
Reg. dimensions L x B x D |
191,50 x 32,25 x 19,98 m |
|
Rule dimensions L x B x D |
191,50 x 32,25 x 19,98 m |
|
Air draft |
45,64 m |
|
Freeboard |
3.644 mm |
|
Depth |
19,98 m |
|
Speed |
20,2 knots |
|
Built |
2005 |
|
Keel laid |
03/11/2004 |
|
Launch date |
18/04/2005 |
|
Date of completion |
07/06/2005 |
|
Builder |
Stocznia Gdynia S.A. ul. Czechoslowacka 3 81-963 Gdynia Poland |
|
Yard number |
8168/11 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Bulkheads |
Transverse: 3 |
|
Main engine |
1x MAN-B&W 7S60MC-C - 2 stroke single acting 7 cylinder 600 x 2.400 mm combustion engine 15.820 kW at 105,0 rpm Manufacturer: H.Cegielski-Poznan S.A. |
|
Propellers |
1x Fixed pitch mono-block Builder: Stocznia Gdynia S.A. |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated - 9,0 bar Heating Surface: 321,0 m² 1x Auxiliary boiler, oil/gas fired - 9,0 bar Heating Surface: 17,4 m² Manufacturer: Aalborg Industries |
|
Generators |
3x MAN-B&W 7L28/32H diesel generatorsets each 1.750 kVA / 450 Volt |
|
Emergency generator |
1x MAN-D2866LXE30 diesel generatorset |
|
Bow thruster |
1x Brunvoll FU 80 LTC 2250 - 1.300 kW |
|
Number of decks |
14 |
|
Number of ramps |
1x Starboard: 25,00 x 7,00 m - 22 t 1x Starboard aft: 38,00 x 7,00 m - 150 t |
|
Number of cars |
6.658 |
|
Number of trucks |
4.500 |
|
Car deck areas |
Total: 54.900 m² Hoist-able: 17.000 m² |
|
Tank capacities |
Fuel oil: 3.838,1 m³ Diesel oil: 130 m³ Lub oil: 150 m³ Fresh water: 259,4 m³ Water ballast: 7.774,2 m³ |
|
Anchor equipment |
Length: 660,00 m Diameter: 78 mm |
|
Lifting equipment |
1x Crane - SWL 5,0 t |
|
Crew size |
29 |
|
ISM & commercial manager |
Wilhelmsen Ship Management (Korea) Ltd. |
|
Previous manager |
Stamco Shipmanagement Co., Ltd., Piraeus 18535 - Greece |
|
Registered owner |
Courier Shipping Limited Isle of Man United Kingdom |
|
Previous owners |
2005 - 2005 Amber Maritime Limited |
|
Latest data adjustment |
26 May 2023 |
