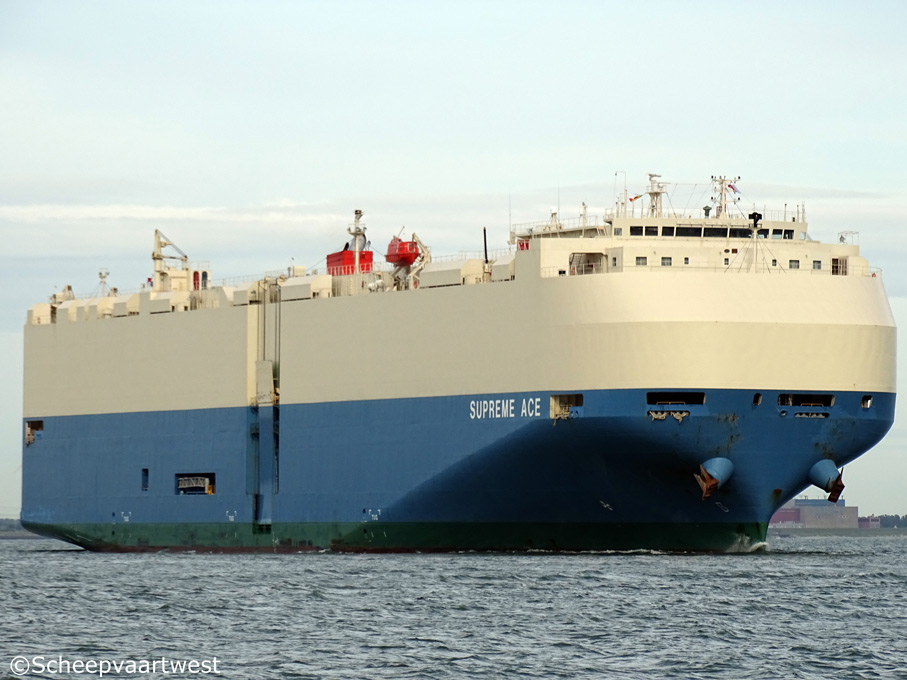

Zeebrugge 09 August 2015 |
 |
 |
 |
 |
 |
||||

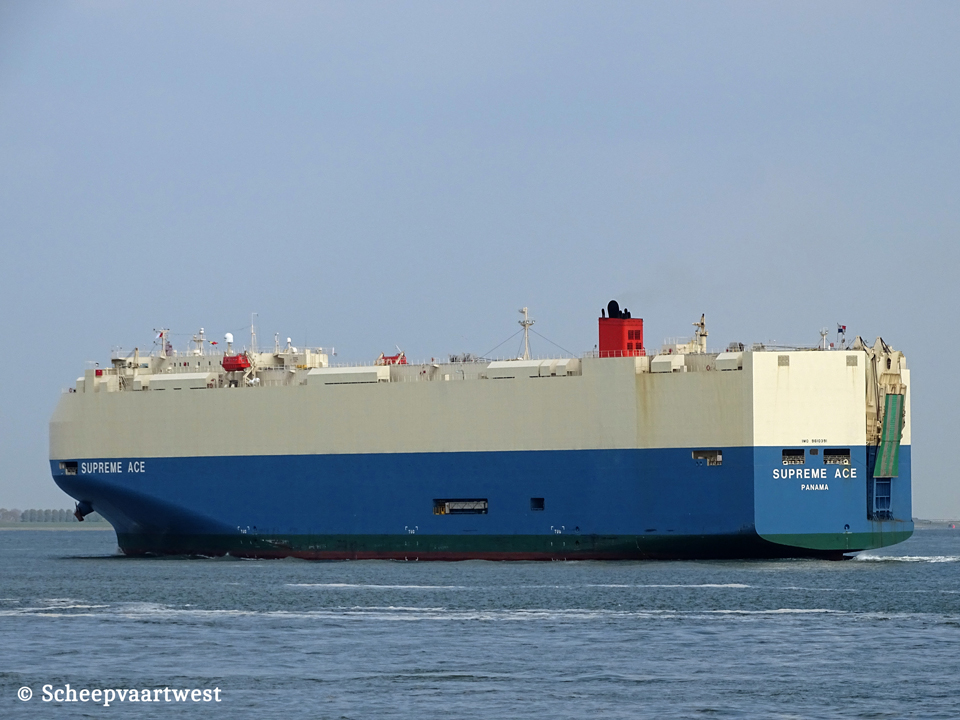

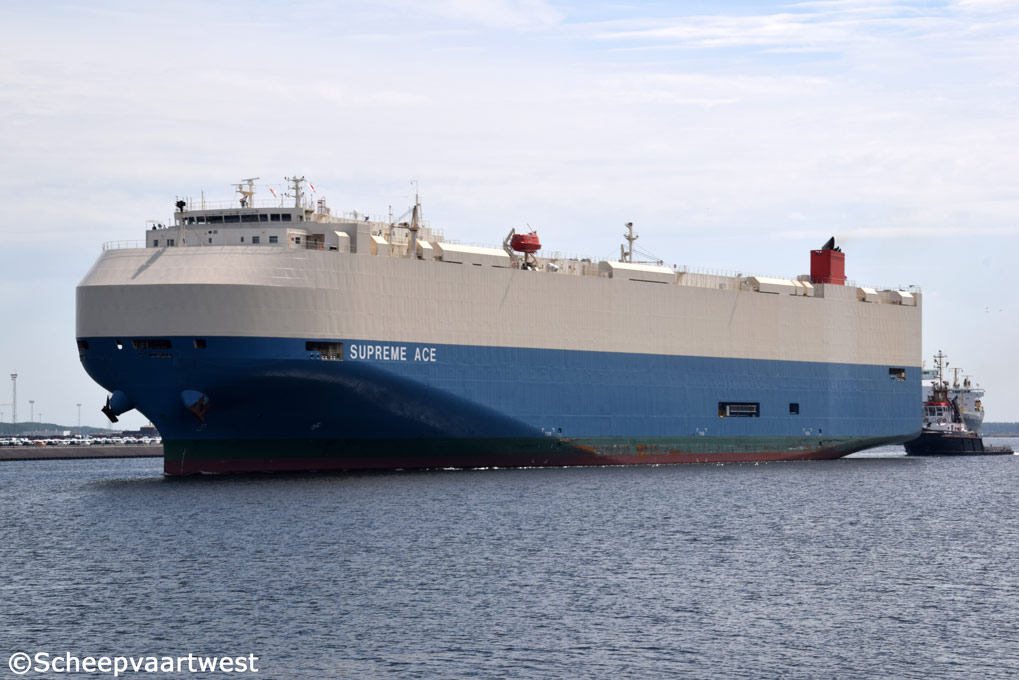

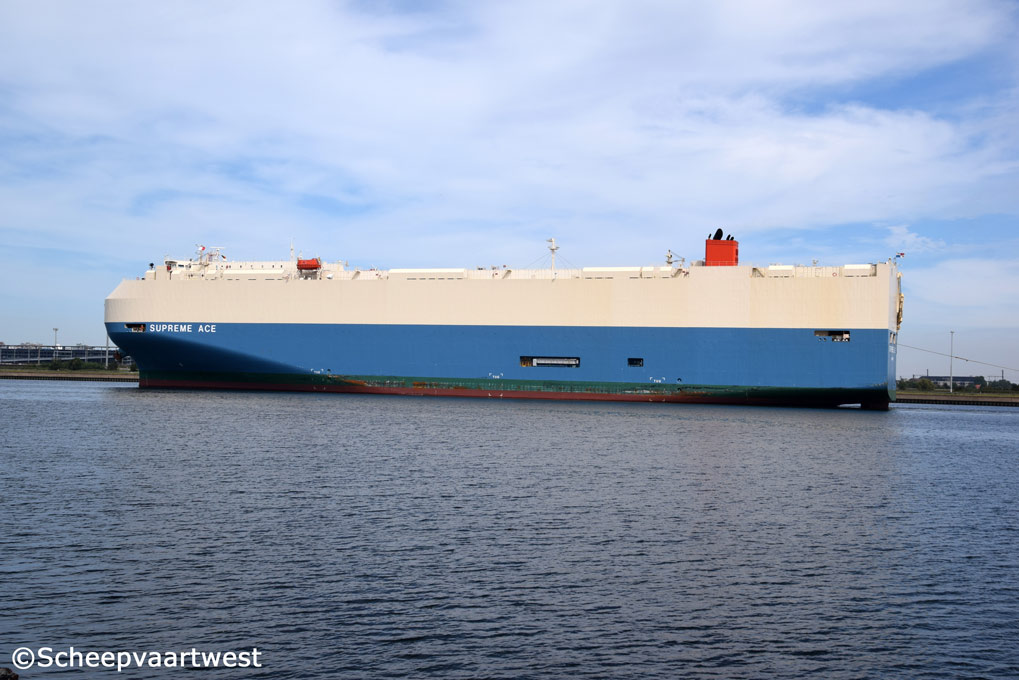

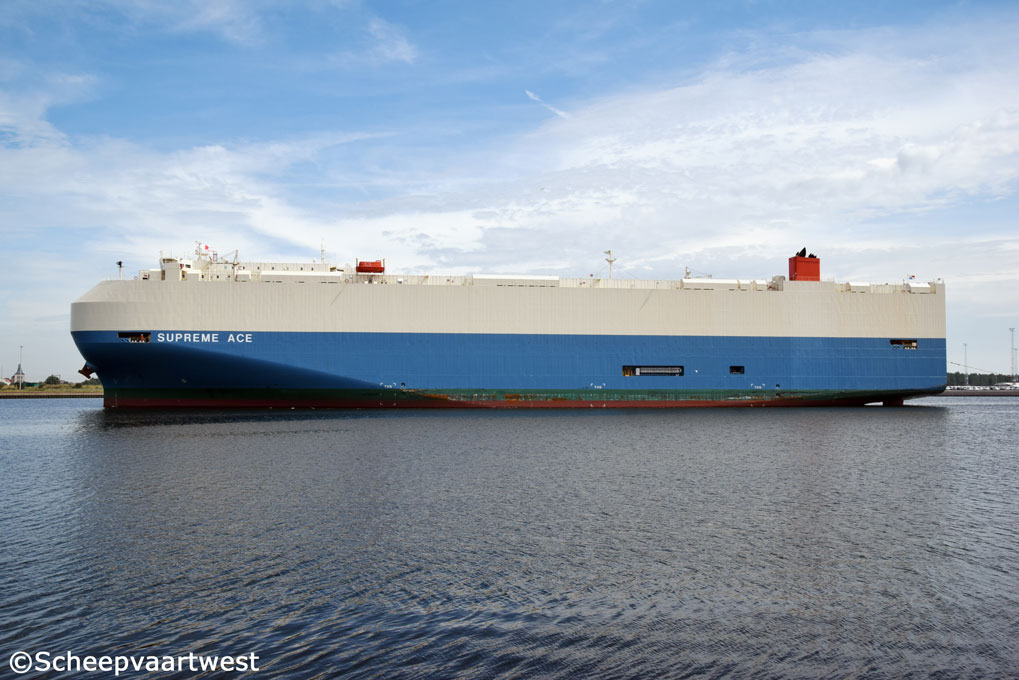

| Zeebrugge 09/08/15 | Zeebrugge 09/08/15 | Zeebrugge 09/08/15 | Westerschelde 09/07/16 | Westerschelde 29/04/17 | ||||
|
Name |
SUPREME ACE |
|
Type |
Roll-On/Roll-Off vehicle carrier |
|
IMO-number |
9610391 |
|
Call sign |
3ETV4 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
59.022 t registered |
|
DWT |
Summer: 18.374 t |
|
NT |
18.290 t registered |
|
Length |
199,95 m overall |
|
Breadth |
32,20 m moulded |
|
Draught |
Summer: 9,82 m |
|
Moulded L x B x D |
190,00 x 32,20 x 14,70 m |
|
Registered L x B x D |
192,88 x 32,20 x 21,25 m |
|
Freeboard |
4.914 mm |
|
Depth |
14,70 m moulded |
|
Speed |
Max.: 22,4 knots Service: 20,6 knots |
|
Built |
2011 |
|
Keel laid |
18/12/2010 |
|
Launch date |
31/08/2011 |
|
Date of completion |
09/12/2011 |
|
Builder |
Minaminippon Shipbuilding Co., Ltd. Usuki Japan |
|
Yard number |
718 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 7S60MC-C - 2 stroke single acting 7 cylinder 600 x 2.400 mm combustion engine 15.130 kW / 20.571 hp at 100,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 620 mm |
|
Propellers |
1x Fixed pitch propeller - aft at 100,0 rpm |
|
Boilers |
1x Auxiliary vertical boiler - 7,8 bar Evaporation: 2,95 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Generatorsets total 4.839 kVA |
|
Number of cars |
6.163 |
|
Tank capacities |
Fuel oil: 2.861 m³ Fresh water: 331 m³ Water ballast: 7.435 m³ |
|
Crew |
25 |
|
Manager |
MOL Ship Management Co., Ltd. |
|
Registered owner |
Supreme Shipholding S.A. |
|
Latest data adjustment |
19 April 2023 |
