Zeebrugge 16 August 2017 |
 |
 |
 |
||
| Zeebrugge 16/08/17 | Zeebrugge 16/08/17 | Zeebrugge 16/08/17 | ||
|
Name |

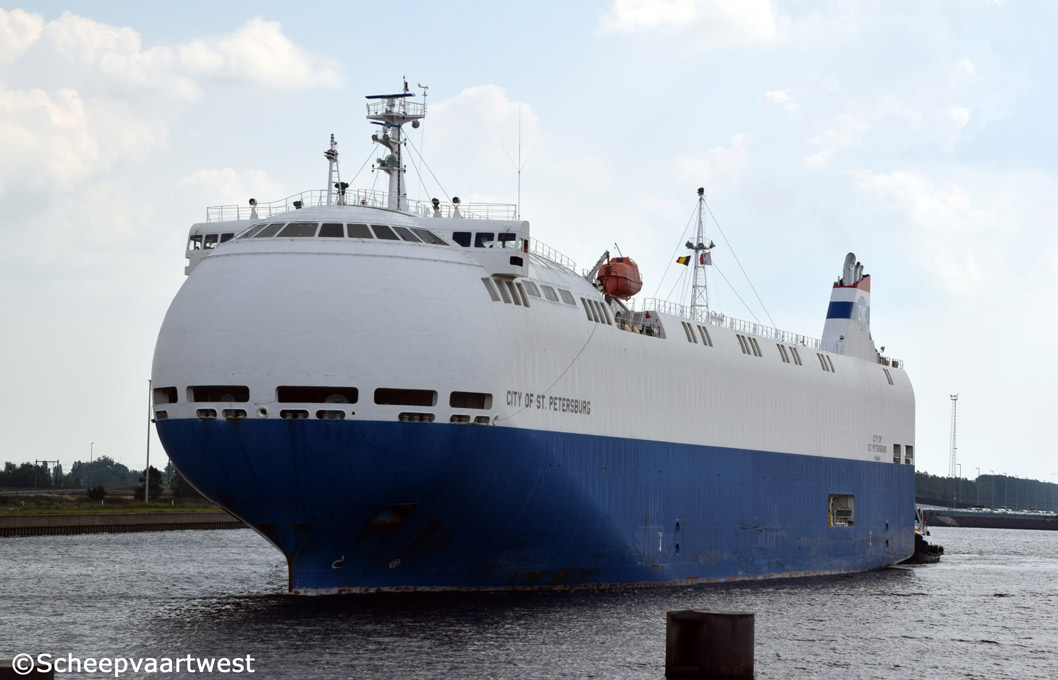

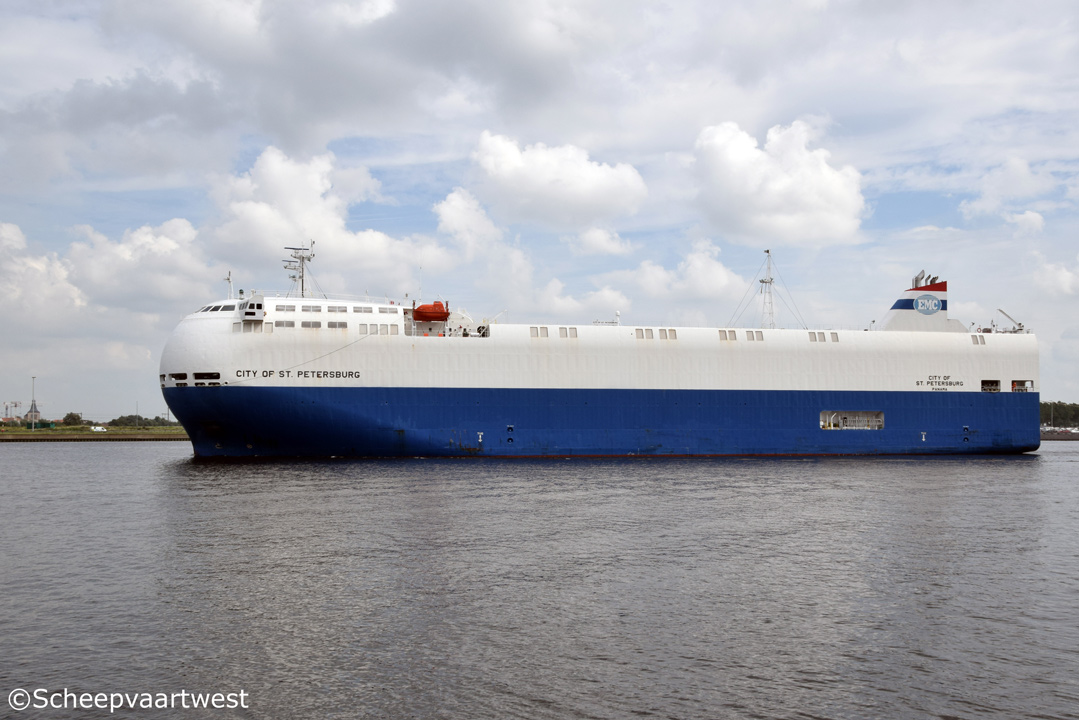

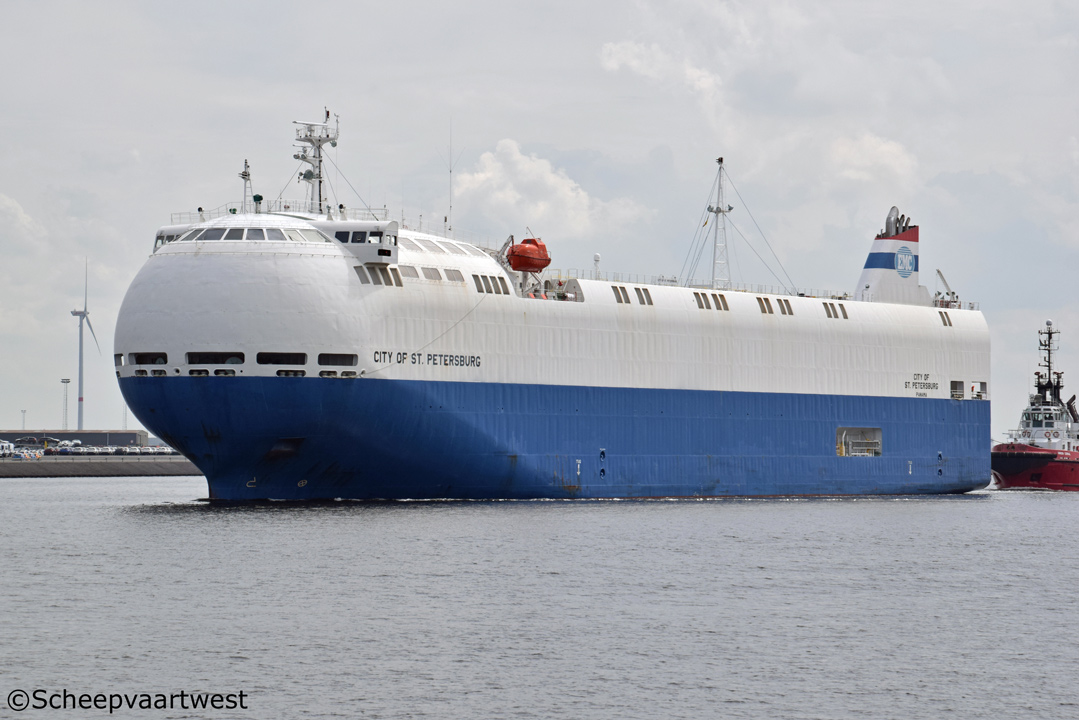

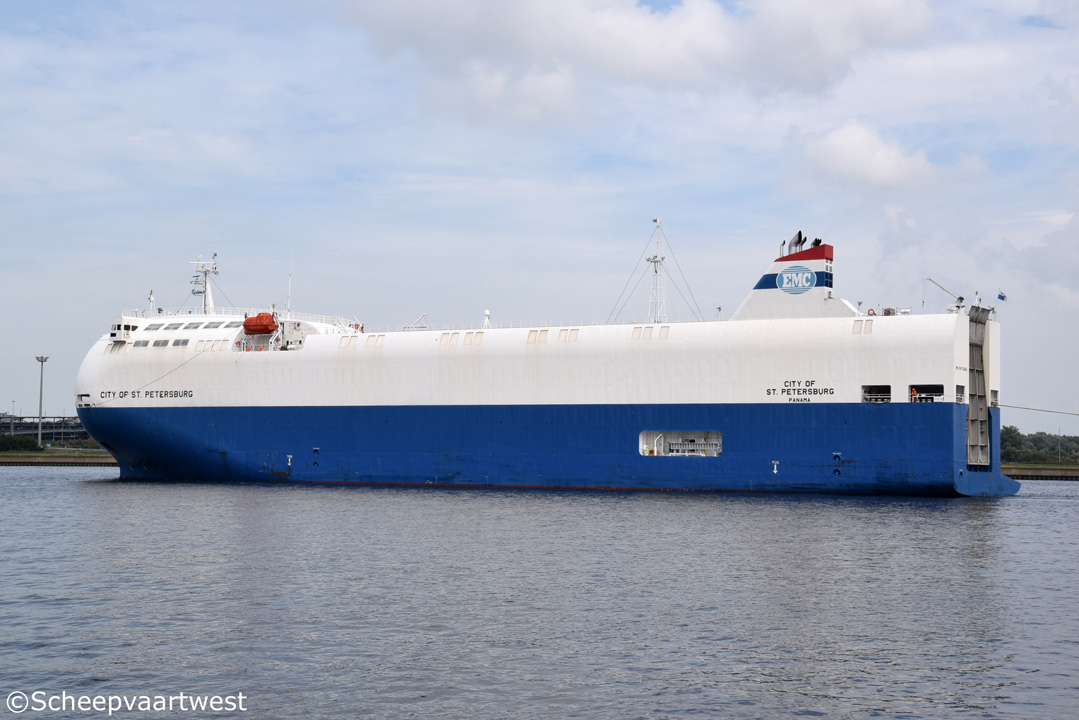

CITY OF ST. PETERSBURG |
|
Type |
Roll-On/Roll-Off cargo ship PCC - Pure Car carrier |
|
IMO-number |
9473456 |
|
Call sign |
3FIM5 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
21.143 |
|
DWT |
5.000 t |
|
NT |
6.342 |
|
Length |
139,99 m overall 131,00 m between perpendiculars |
|
Breadth |
22,40 m |
|
Draught |
Summer: 6,50 m |
|
Freeboard |
1.460 mm |
|
Depth |
24,45 m |
|
Speed |
16,9 knots |
|
Built |
2010 |
|
Keel laid |
15/06/2010 |
|
Launch date |
11/09/2010 |
|
Date of completion |
22/12/2010 |
|
Builder |
Kyokuyo Shipbuilding & Iron Works Shimonoseki Japan |
|
Yard number |
493 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
4 |
|
Number of decks |
12 |
|
Main engine |
1x MAN-B&W/Hitachi 7L42MC Mk6 - 2 stroke 7 cylinder 420 x1.360 mm combustion engine 6.965 kW / 9.463 hp at 176,0 rpm Built: 09/07/2010 Builder: Hitachi Zosen Corporation Innoshima Works, Innnoshima - Japan |
|
Propellers |
1x Screw propeller solid - aft at 176,0 rpm |
|
Boilers |
1x CHR Aalborg 115,00 m² - 6,90 bar 1x CHO Aalborg 12,00 m² - 6,90 bar |
|
Generators |
3x Main diesel generatorsets each 1.000 kVA - 800 kW - 1.168 hp |
|
Emergency generator |
1x Diesel generatorset 150 kVA - 120 kW - 186 hp |
|
Number of cars |
1.500 |
|
Ramp capacity |
20 t |
|
Max. deck height |
3,00 m |
|
Fuel capacity |
915,54 m³ |
|
Crew |
19 |
|
Crew size |
24 |
|
ISM manager |
Fairmont Shipping Hk Ltd. 21st Floor, Fairmont House, 8, Cotton Tree Drive, Central Hong Kong China |
|
Commercial manager |
Fairmont Shipping Canada Suite 950, 1100, Melville Street Vancouver BC V6E 4A6 Canada |
|
Operator |
EMC - Euro Marine Carrier B.V.(Nissan Motor Company Ltd.) Corsicaweg 10 /13 1044 AB Amsterdam The Netherlands |
|
Registered owner |
Glorious River Line SA C/O: Fairmont Shipping (Canada) Ltd Suite 950, 1100, Melville Street Vancouver BC V6E 4A6 Canada |
|
Latest data adjustment |
20 March 2025 |
