Somerset IMO 9188221 10

Westerschelde 10 July 2017

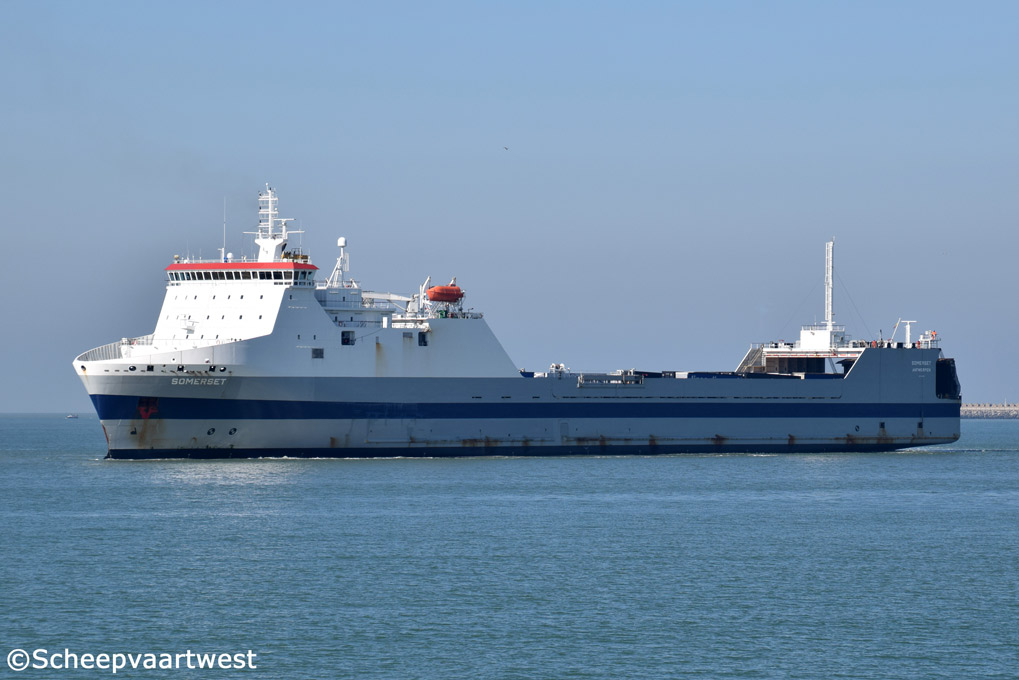

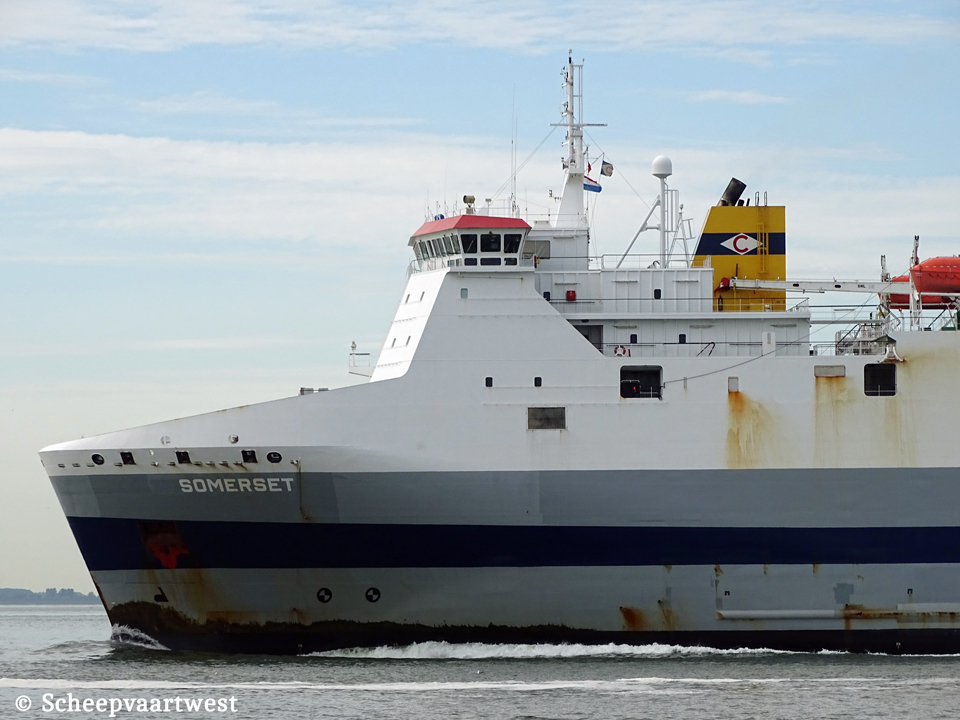

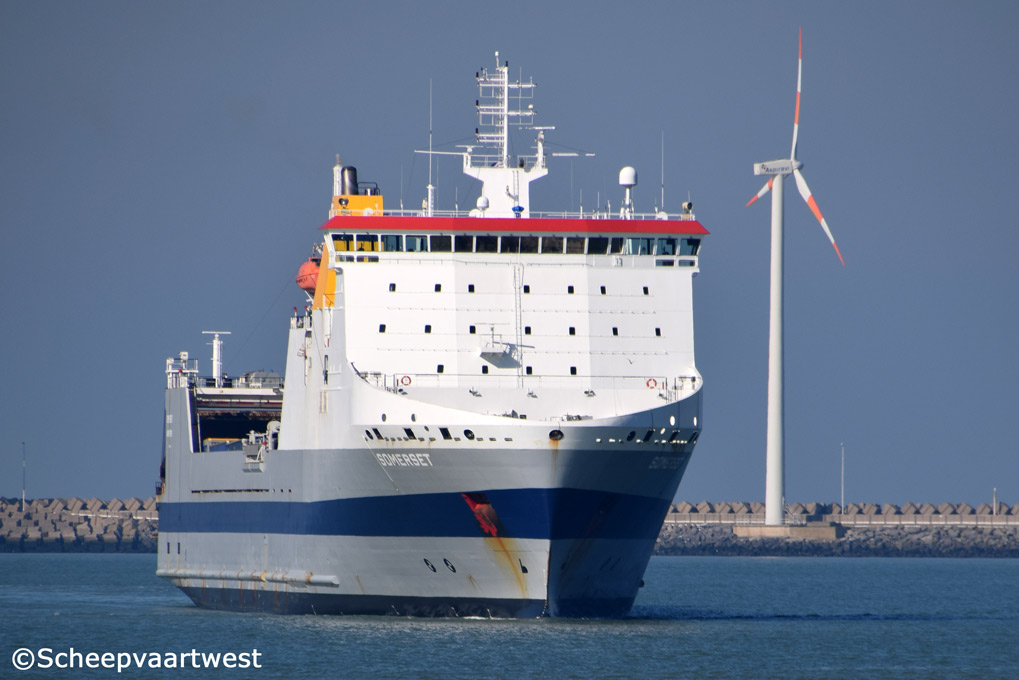

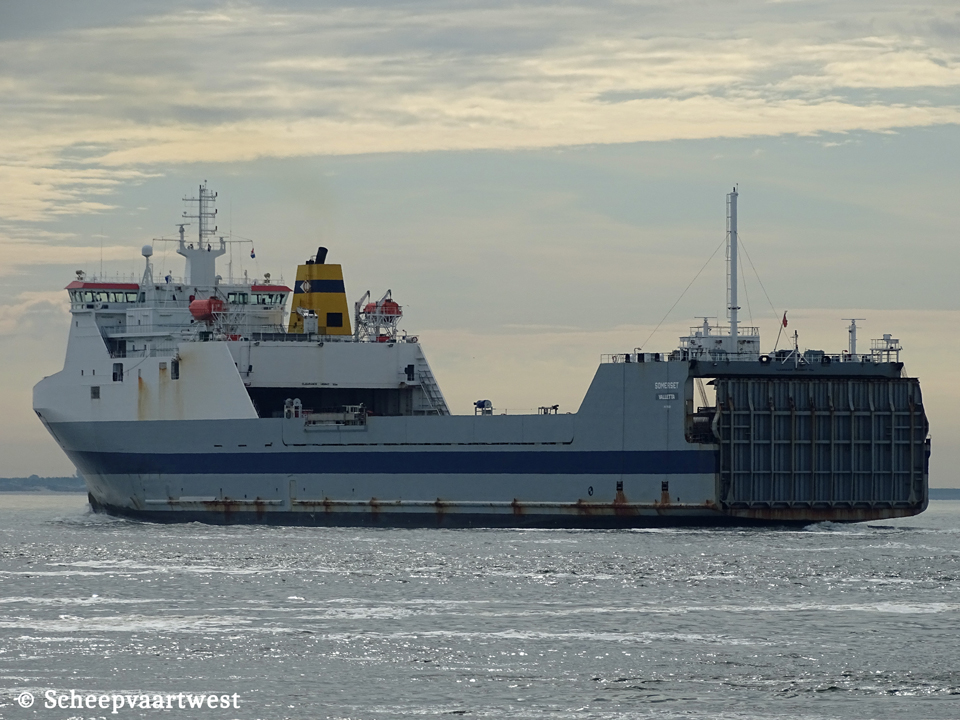

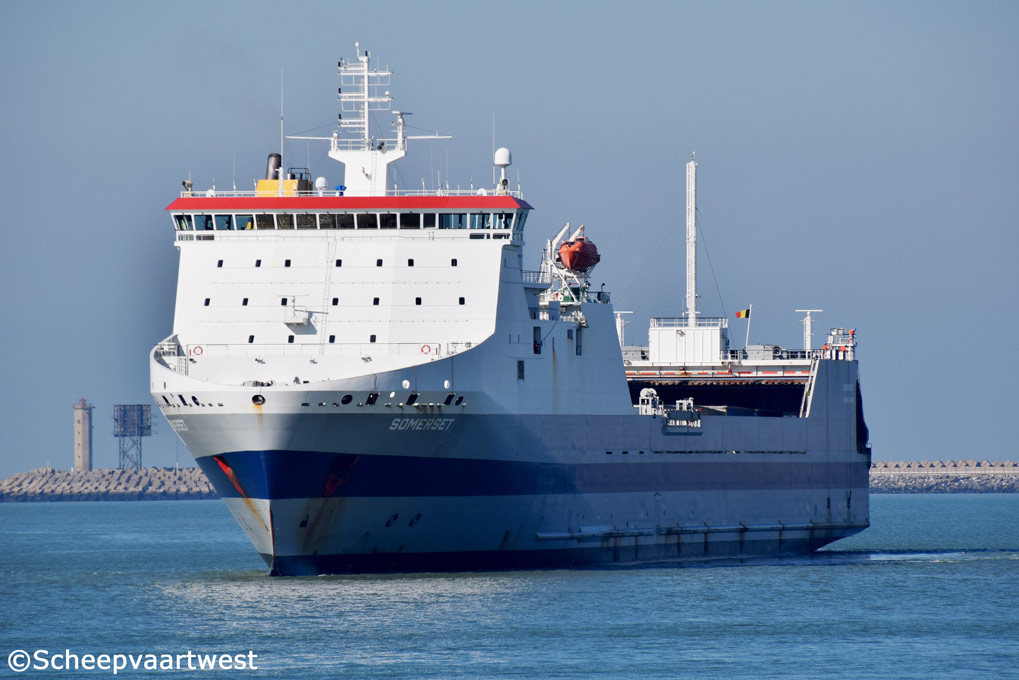

Somerset IMO 9188221 09   Somerset IMO 9188221 08   Somerset 01   Somerset 02   Somerset 04   Somerset 06
Westerschelde 16/05/17   Westerschelde 16/05/17   Zeebrugge 02/10/15   Zeebrugge 02/10/15 Zeebrugge 02/10/15 Zeebrugge 02/10/15

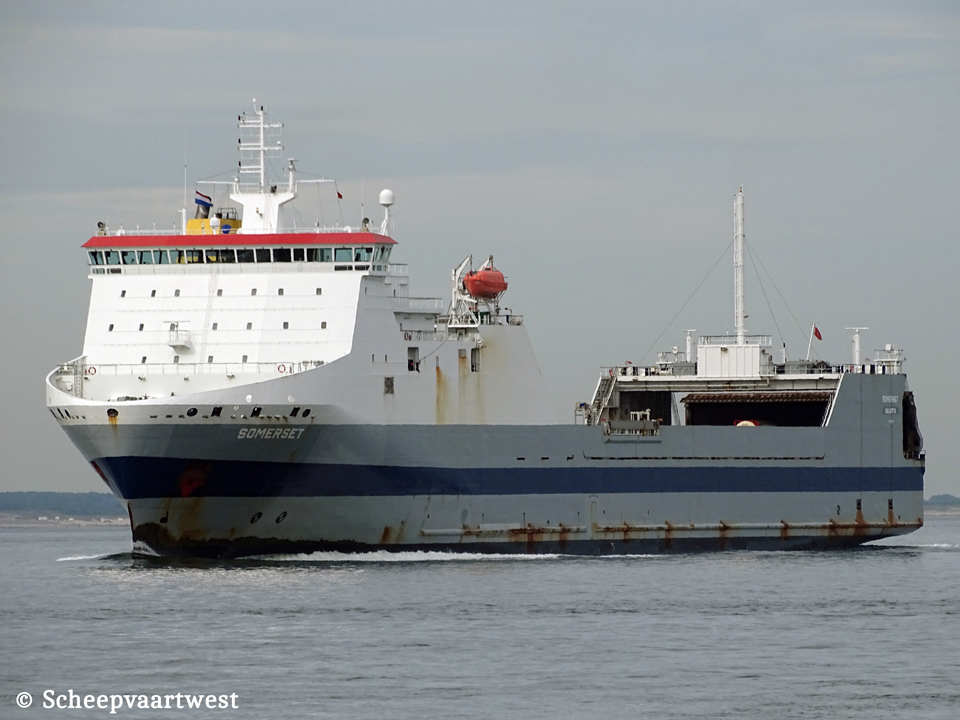

Somerset IMO 9188221 07
Westerschelde 16/05/17


Name

SOMERSET

Previous names

1999 -01/2015 Spaarneborg

Type

Roll-On/Roll-Off carrier

IMO-number

9188221

Call sign

9HA4234

Flag

Malta

Port of registry

Valletta

Previous flags

1999 - 2015 The Netherlands, Delfzijl - Call sign: PCGE

2015 - 2016 Belgium, Antwerpen - Call sign: ONIH

2016 - 2018 Malta, Valletta - Call sign: 9HA4234

2018 - 2023 The Netherlands, Hoek van Holland - call sign: PBCY

GT

21.005 t

DWT

12.502 t

NT

10.601 t

Length

183,29 m overall

178,40 m between perpendiculars

Breadth

25,20 m

Draught

Summer: 7,50 m

Lanemetres

1.884 m

Freeboard

1.100 mm

Depth

15,30 m

Speed

18,0 knots

Routes

01/2010 - 09/2010 Zeebrugge - Göteborg

16/2010 - 2011 Göteborg - Tilbury

08/2012 - 03/2013 Marseille - Tunis

04/2013 - 2018 Zeebrugge - Göteborg

09/2018 - 12/2023 Europoort - Harwich

2023 - 2023 Zeebrugge - Tilbury

12/2023 Zeebrugge - Santander - Dublin

Built

1999

Keel laid

14/04/1999

Launch date

20/08/1999

Date of delivery

26/11/1999

Builder

Lübecker Flenderwerke AG

Lübeck

Germany

Yard number

676

Hull material

Steel

Watertight compartments

6

Continuous decks

1

Main engine

1x Hanjung/Sulzer 7RTA52 U - 2 stroke single acting 7 cylinder 520 x 1.800 mm combustion engine Mcr 10.920 kW / 14.847 hp at 135,0 rpm

Built: 1999

Builder: Hanjung, Changwon - South Korea

Propellers

1x Screw propeller controllable pitch - aft at 135,0 rpm

Boilers

1x CHO Aalborg 32,00 m² - 9,0 bar

1x CHR Aalborg 223,00 m² - 9,0 bar

Electric installations

Power voltage: 400 V

Lighting voltage: 220 V

Frequency: 50 Hz

Generators

2x Main diesel generatorsets each 1.420 kVA - 1.136 kW - 1.345 hp

Emergency generator

1x Diesel generatorset 180 kVA - 144 kW - 298 hp

Thrusters

2x Tunnel thrusters each 800 kW / 1.088 bhp, forward

Number of ramps

1

16,00 x 22,70 m - SWL 100 t

Number of passengers

12

Number of cabins

12

Number of trailers

136

Tank capacities

Fuel oil: 1.452 m³

Diesel oil: 293 m³

Cargo gear

Gearless

Crew

18

Manager

CLDN Ro-Ro S.A.

Luxembourg

G.D. Luxembourg

Previous managers

  • 1999 - 2015 Wagenborg Shipping B.V., Delfzijl - The Netherlands

  • 2015 - 2016 CLDN Ro-Ro S.A., Luxembourg, G.D. Luxembourg

  • 2016- 2018 Euroship Services Ltd., Purfleet - United Kingdom

Registered owner

Shiplux XII S.A.

Rue Schiller 3-7

2519 Luxembourg

G.D. Luxembourg

Previous names & owners

1999 - 2015 Spaarneborg - Wagenborg Shipping B.V., Delfzijl - The Netherlands

Latest data adjustment

08 August 2024
