Westerschelde 16 February 2014 |
 |
| Westerschelde 16/02/14 |
|
Name |

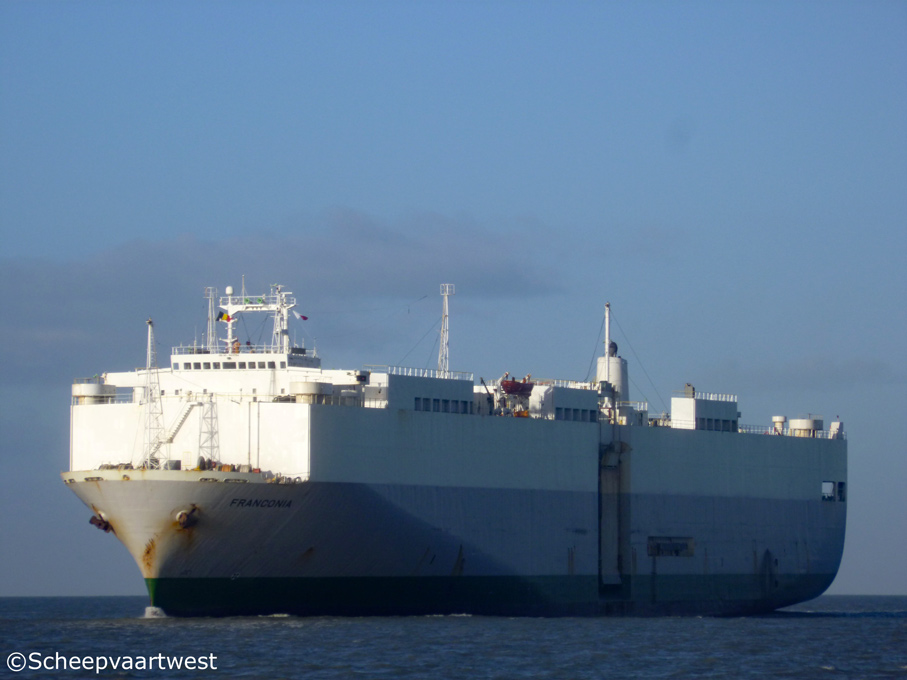

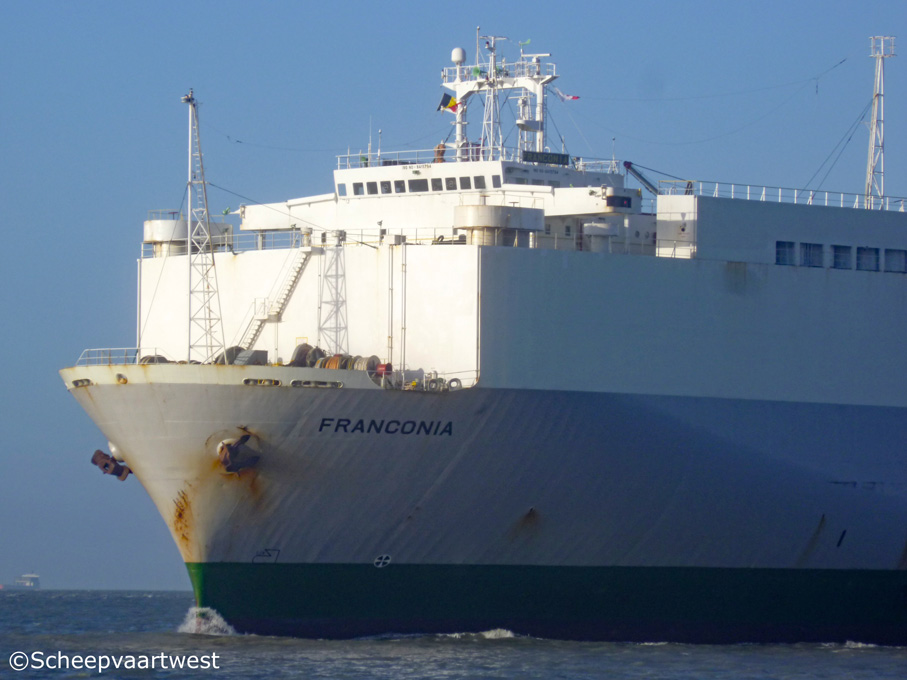

FRANCONIA |
|
Type |
Roll-On/Roll-Off carrier |
|
IMO-number |
8415794 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
36.201 t |
|
DWT |
Summer: 13.895 m |
|
NT |
10.860 t |
|
Number of 20ft containers |
289 |
|
Length |
176,72 m overall |
|
Breadth |
29,20 m moulded |
|
Draught |
9,02 m |
|
Moulded L x B x D |
164,80 x 29,20 x 11,13 m |
|
Registered L x B x D |
168,80 x 29,20 x 21,20 m |
|
Freeboard |
2.136 mm |
|
Depth |
11,13 m moulded |
|
Speed |
Max: 19,2 knots |
|
Built |
1985 |
|
Keel laid |
27/08/1984 |
|
Launch date |
25/10/1984 |
|
Date of completion |
14/01/1985 |
|
Builder |
Imabari Shipbuilding Co., Ltd. Marugame Headquarters Marugame Japan |
|
Yard number |
1138 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x Kawasaki/MAN-B&W 6L60MC - 2 stroke single acting 6 cylinder 600 x 1.944 mm diesel engine 9.179 kW / 12.480 hp at 111,0 rpm Manufacturer: Kawasaki Heavy Industries, Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 585 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 7,9 bar Evaporation: 3,26 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
2x Generators - 1.900 kVA |
|
Bow thruster |
1x 800 kW |
|
Number of cars |
3.309 |
|
Number of ramps |
1x Quarter side ramp - 50,0t / 5,80 m 2x Side ramps - 10,0 t / 4,60 m |
|
Number of decks |
10 Deck 1: 1.132 m² Deck 2: 1.970 m² Deck 3: 2.377 m² Deck 4: 2.533 m² Deck 5: 2.640 m² Deck 6: 3.885 m² Deck 7: 4.025 m² Deck 8: 4.022 m² Deck 9: 3.845 m² deck 10: 4.335 m² |
|
Tank capacities |
Fuel oil: 2.442 m² fresh water: 450 m³ Water ballast: 4.293 m³ |
|
Manager |
Wilhelmsen Ship Management Pte. Ltd. |
|
Operator |
K-Line - Kawasaki Kisen Kaisha Ltd. |
|
Owner |
Olive Investment Corp. SA |
|
Renamed |
05/2014 Sea Patris Republic of Panama, Panama City - Call sign: 3FWI7 Owner: Sea Patris Shipping SA - Greece Manager: MCCL - Mediterranean Car-Carriers Line S.A. - Greece |
|
Latest data adjustment |
10 February 2022 |
