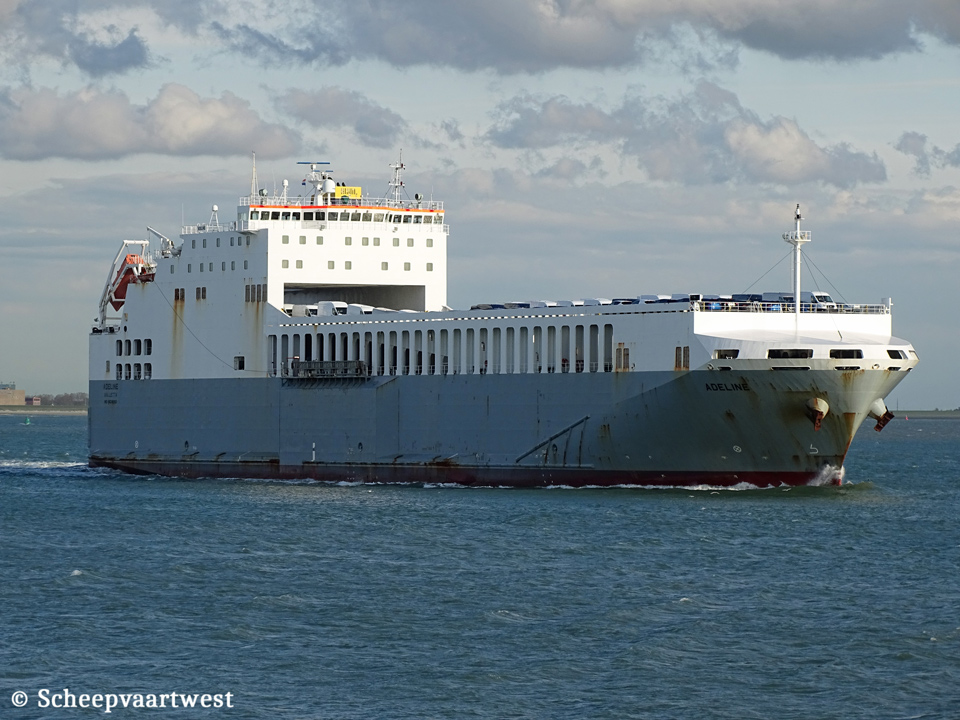

Westerschelde 28 Luly 2016 |
 |
 |
 |
 |
 |
 |
|||||
| Westerschelde 28/07/16 | Westerschelde 04/08/16 | Westerschelde 08/10/19 | Zeebrugge 21/07/16 | Zeebrugge 15/05/18 | Zeebrugge 23/04/19 | |||||
 |
 |
 |
 |
 |
 |
|||||
| Westerschelde 14/05/19 | Westerschelde 04/07/18 | Westerschelde 08/10/19 | Zeebrugge 21/07/16 | Westerschelde 27/06/17 | Westerschelde 27/06/17 | |||||
|
Name |
ADELINE |
|
Type |
Roll-On/Roll-Off carrier - Handysize |
|
IMO-number |
9539092 |
|
Call sign |
9HA3874 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
06/2012 - 10/2014 G.D. Luxembourg, Luxembourg City - Call sign: LXDL 10/2014 - 02/2015 Belgium, Antwerpen - Call sign: ONIF |
|
GT |
21.020 t |
|
DWT |
6.374 t |
|
NT |
6.306 t |
|
Length |
152,02 m overall 142,00 m between perpendiculars |
|
Breadth |
24,40 m |
|
Draught |
Summer: 5,63 m |
|
Lanemetres |
2.342 m |
|
Freeboard |
2.813 mm |
|
Depth |
16,20 m |
|
Speed |
17,0 knots |
|
Built |
2012 |
|
Date of completion |
20/06/2012 |
|
Builder |
Kyokuyo Shipbuilding & Iron Works Shimonoseki Japan |
|
Yard number |
503 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Continuous decks |
2 |
|
Main engine |
1x Wärtsilä 12V32 - 4 stroke 16 cylinder 320 x 350 mm combustion engine 7.000 kW / 9.511 hp at 750 rpm Built: 30/09/2011 Builder: Wärtsilä Finland Oy, Vaasa - Finland |
|
Propellers |
1x Controllable pitch propeller - aft at 190 rpm |
|
Boilers |
1x CHO Aalborg 28,00 m² - 10,0 bar 1x CHR Aalborg 77,00 m² - 10,0 bar |
|
Shaft generator |
1x 2.500 kVA - 2.000 kW |
|
Generators |
3x Main diesel generatorsets each 625 kVA - 500 kW - 747 hp |
|
Emergency generator |
1x Diesel generatorset 180 kVA - 144 kW - 255 hp |
|
Bow thruster |
1x 1.000 kW, forward 1x 700 kW, aft |
|
Number of ramps |
1 |
|
Number of trailers |
165 |
|
Number of passengers |
12 |
|
Number of beds |
12 |
|
Tank capacities |
Fuel oil: 891,5 m³ |
|
Crew |
22 |
|
Commercial manager |
CLDN RO-RO SA 3-7, rue Schiller 2519 Luxembourg City G. D. Luxembourg |
|
ISM manager |
Anglo-Eastern Ship Piet Heinstraat 23 4461 GL Goes The Netherlands |
|
Operator |
Cobelfret Ferries Hendrik van Minderhoutstraat 50 B - 8380 Zeebrugge Belgium |
|
Registered owner |
Shiplux II S.A. Malta |
|
Previous owners |
2012 - 2014 Shiplux X S.A - G.D. Luxembourg 2014 - 2015 Shiplux X S.A - Belgium |
|
Latest data adjustment |
23 May 2023 |
