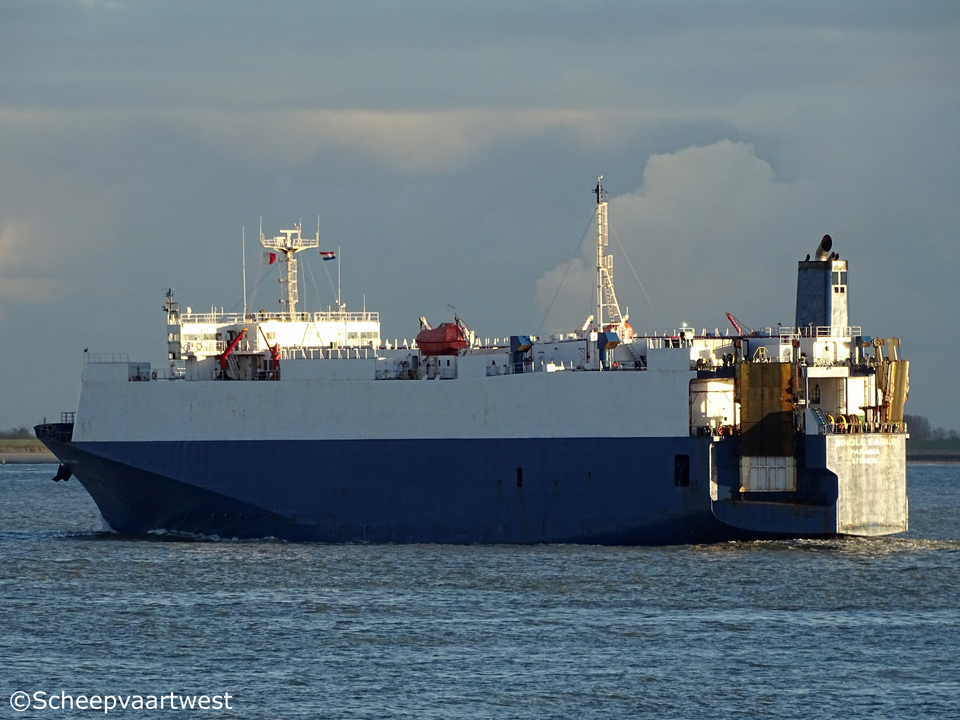

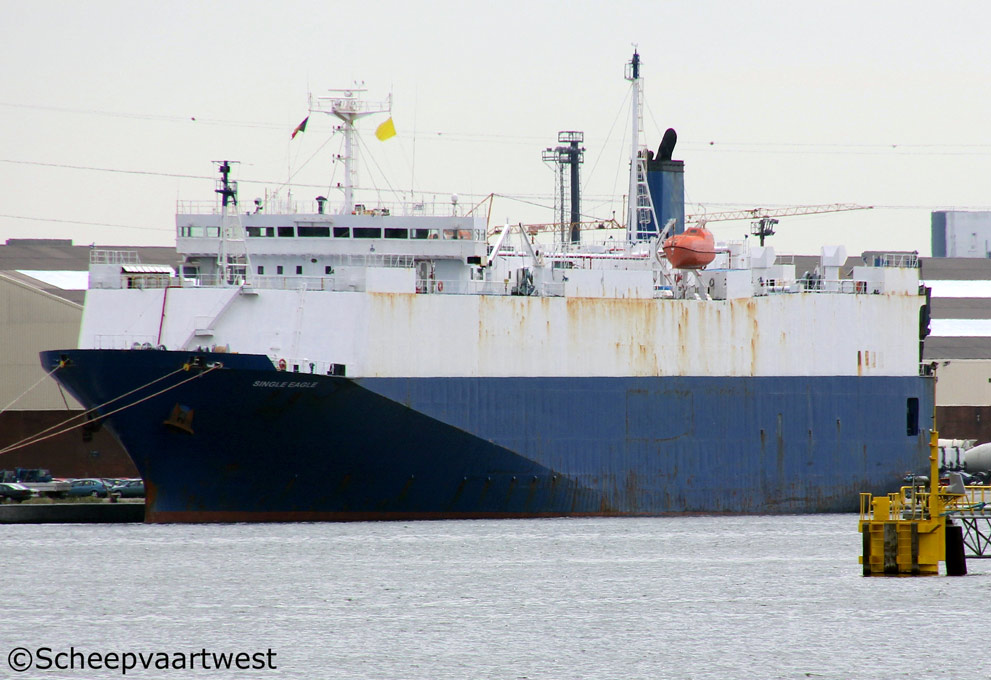

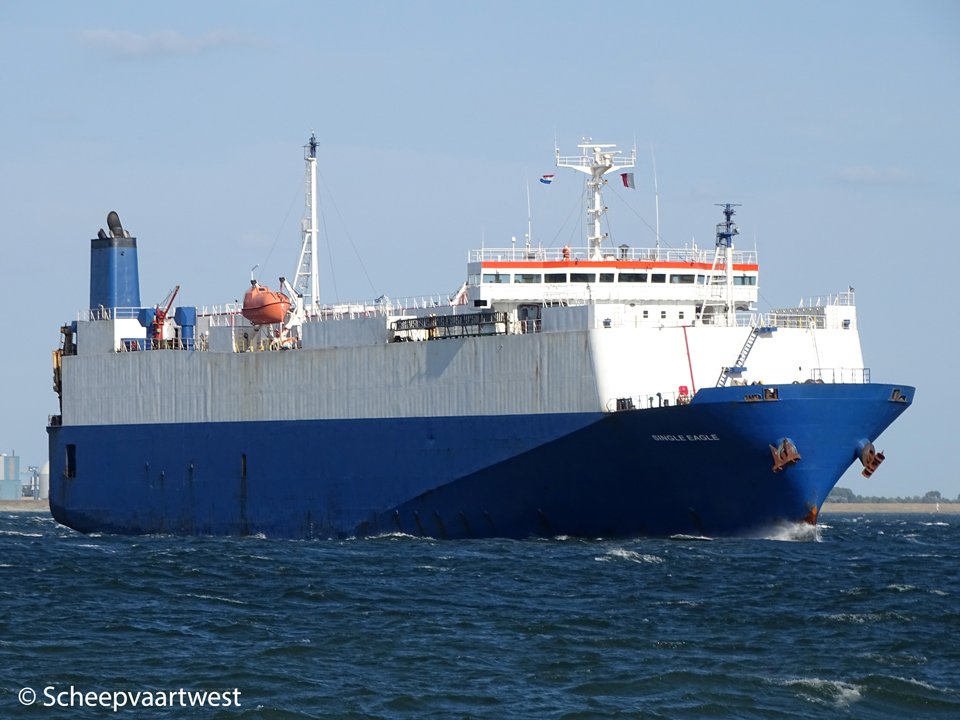

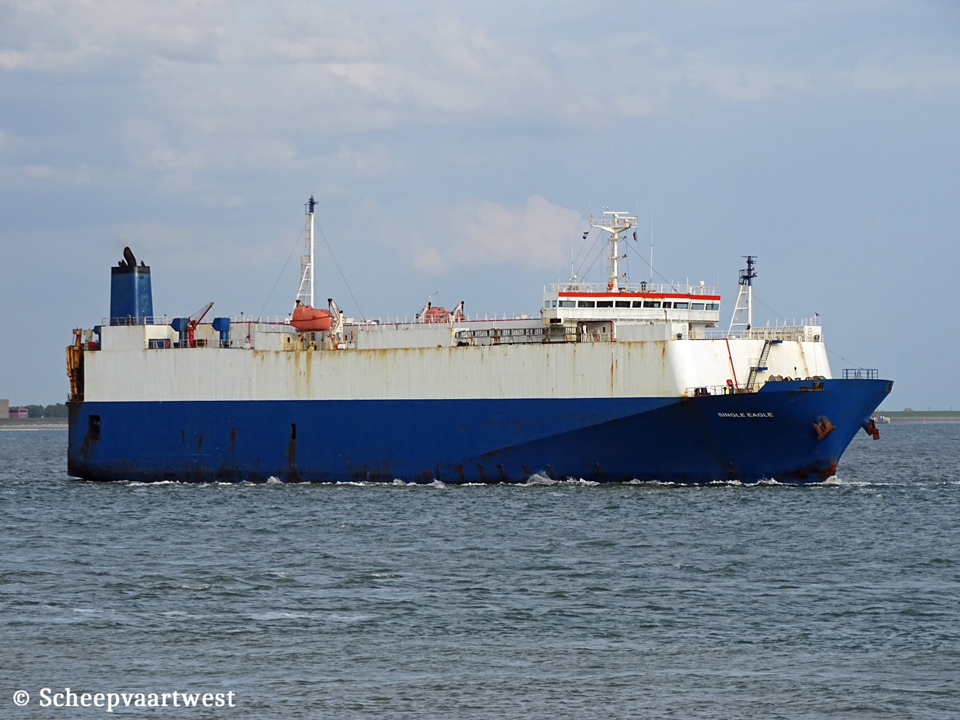

Single Eagle - IMO 8708830

 Westerschelde 8 July 2018

Name

SINGLE EAGLE

Previous names

1988 - 05/2013 Nissei

05/2013 - 01/2015 Sweet Lady

Type

Roll-On/Roll-Off carrier - Vehicle carrier

PCTC - Pure Car and Truck Carrier

IMO-number

8708830

Call sign

3FTA7

Flag

Republic of Panama

Port of registry

Panama City

Previous flags

1988 - 2013 Japan, Yokokama

2013 - 2015 Cook Islands, Avatiu

2015 - 2016 Barbados, Bridgetown - Call sing: 8PLM

GT

14.111 t registered

DWT

Summer: 3.845 t

NT

4.234 t registered

Length

138,00 m overall

Breadth

21,00 m moulded

Draught

Summer: 6,72 m

Moulded L x Bx D

130,00 x 21,00 x 8,15 m

Registered L x B x D

132,43 x 21,00 x 15,67 m

Freeboard

1.451 mm

Depth

8,15 m moulded

Speed

Max.: 22,2 knots

Built

1988

Keel laid

11/05/1987

Launch date

26/09/1987

Date of completion

24/06/1988

Builder

Shin Kurushima Dockyard Co., Ltd.

Onishi

Japan

Yard number

2523

Hull material

Steel

Main engine

1x Mitsubishi 8UEC52LA - 2 stroke single acting 8 cylinder 520 x 1.600 mm combustion engine 9.340 kW at 132,0 rpm

Manufacturer: Mitsubishi Heavy Industries, Ltd.

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 465 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 6,9 bar

Evaporation: 2,47 t/h

Manufacturer: Tortoise Engineering Co., Ltd.

Generators

4x Generators total 2.630 kVA

Number of cars

929

Tank capacities

Fuel oil: 523 m³

Fresh water: 171 m³

Water ballast: 1.972 t

Lifting equipment

1x Crane - SWL 3,0 t

Crew

18

Manager

Mediterranean Lloyd Ship Management S.A.L (Offshore)

ISM Manager

Rana Maritime Services S.A.

5th Floor, Bechara el Khoury Street

Beirut

Lebanon

Registered owner

Dytamar Shipping Ltd.

Beirut

Lebanon

Previous names & owners

1988 - 2013 Nissei - Kaiun Kaisha Ltd.

2013 - 2015 Sweet Lady - Satrad S.A.

Scrapped

20/2000 Beached at Chittagong - Bangladesh

Latest data adjustment

30 April 2021
