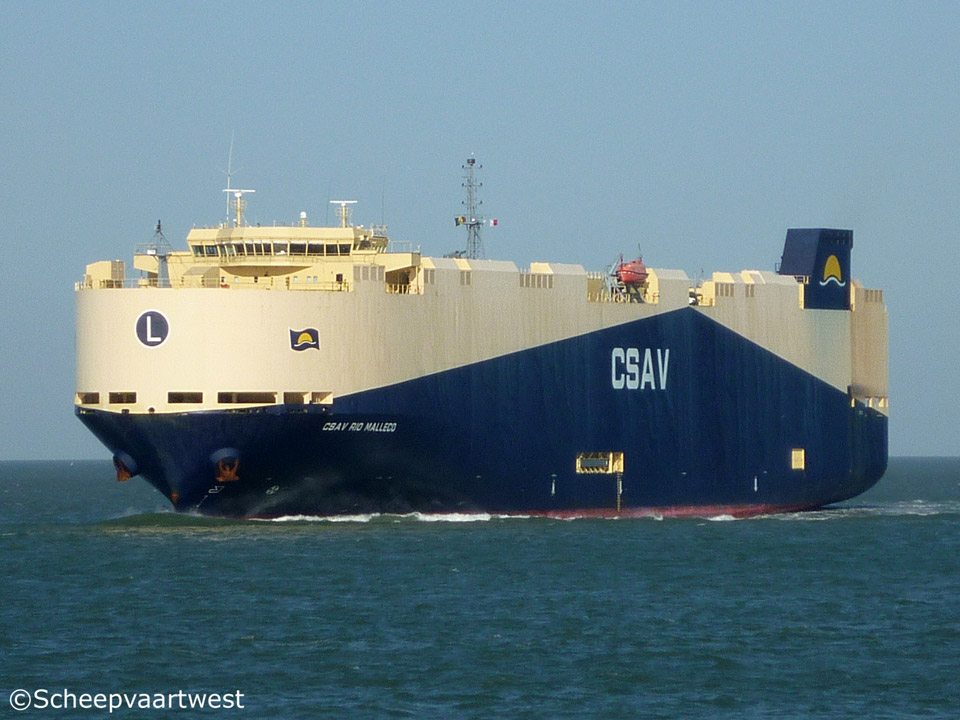

CSAV Rio Malleco 01

Westerschelde 27 April 2012

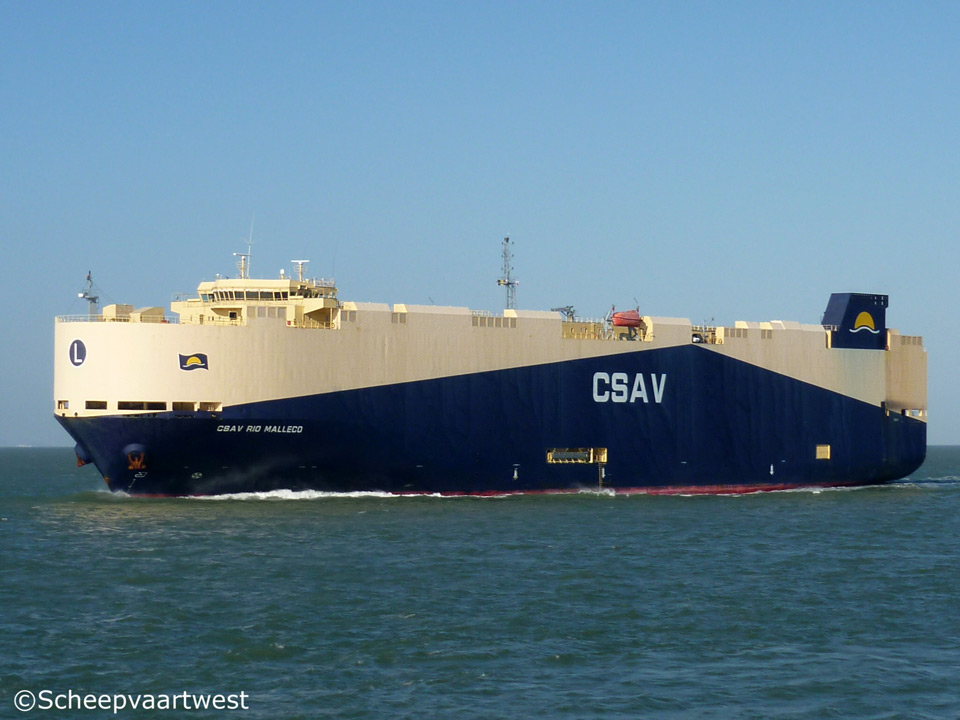

CSAV Rio Malleco 03
Westerschelde 17/04/12



Name

CSAV RIO MALLECO

Type

Roll-On/Roll-Off vehicle carrier
PCTC - Pure Car and Truck Carrier

IMO-number

9483786

Call sign

V2EU6

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

46.800 t

DWT

13.059 t

NT

14.264 t

Length

182,80 m overall

170,68 m between perpendiculars

Breadth

31,74 m extreme

31,53 m moulded

Draught

Summer: 9,00 m

7,20 m ballast

Depth

19,26 m

Speed

20,0 knots

Built

2010

Keel laid

28.11.2008

Launch date

05.02.2010

Date of completion

16.04.2010

Builder

Xiamen Shipbuilding Industry Corp. Ltd.
China

Yard number

XSI 404 H

Hull material

Steel

Main engine

1x MAN B&W 9S50MC-C - 9 cylinder diesel engine 12.798 kW at 122,6 rpm

Propellers

1x Fixed propeller

Boilers

1x Auxiliary boiler, exhaust gas heated AQ-7

1x Auxiliary boiler, oil/gas fired MISSION TM OS

Generators

2x MAN B&W 8 L 23/30 H main diesel generatorsets each 990 kW

1x MAN B&W 6 L 23/30 H main diesel generatorset 740 kW

Emergency generator

1x MWM TBD 234V6 diesel generatorset

Bow thruster

1.100 kW

Deck lifter

2x Truck decklifter

2x Ramp (1 stern ramp + 1 side ramp, both on starboard)

Max. heel: 3°

Max. trim: 1,5°

Total ramp length: 31,00 m

Ramps

Hydraulically operated ramp movable between deck 5 to deck 4 or into the fixed ramp on deck 3

Number of decks

11x Car decks, incl. 3 moveable decks

Number of cars

4.900

Ventilation

10x Air changes/hr during sea voyages

20x Air changes/hr during loading and unloading

Tank capacities

Ballast: 5.951,6 m³

HFO: 3.495 m³

MDO: 180 m³

Lub oil: 50 m³

Fresh water: 300 m³

Anchor equipment

Length: 660,00 m

Diameter: 76 mm

Crew size

31

Manager

M. Lauterjung GmbH

Operator

CSAV - Compañía Sudamericana de Vapores
Alpores
Chili

Owner

Sunship Schiffahrtskontor KG

Renamed

07.2015 Arabian Sea - Antigua & Barbuda, St. John's - Calla sign: V2EU6

Latest data adjustment

06 January 2016
