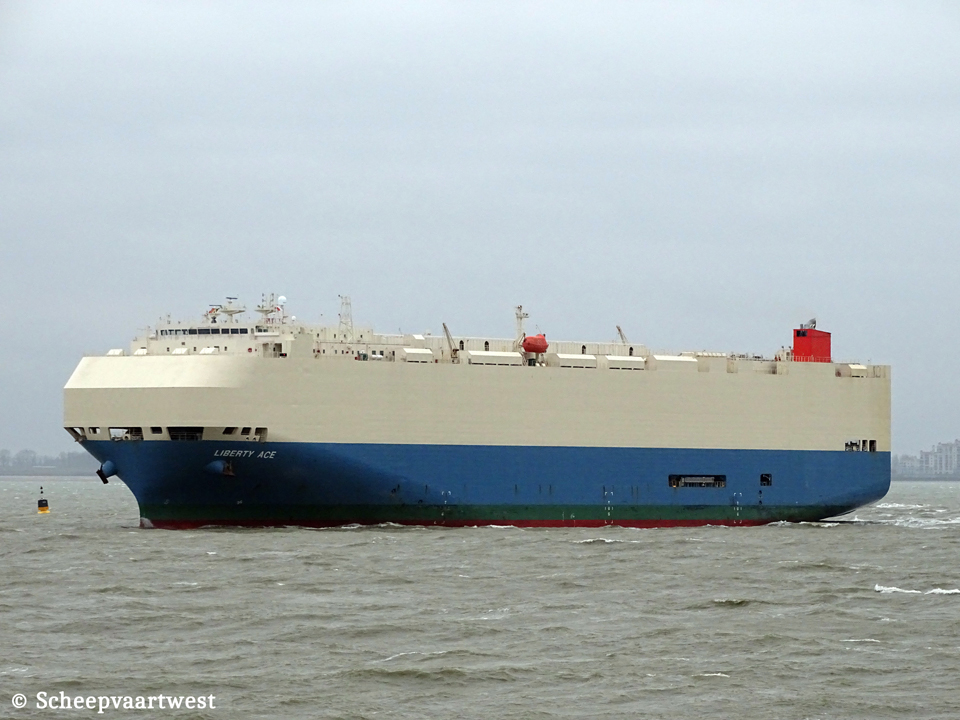

Liberty Ace IMO 9293650 07

Westerschelde 12 January 2019

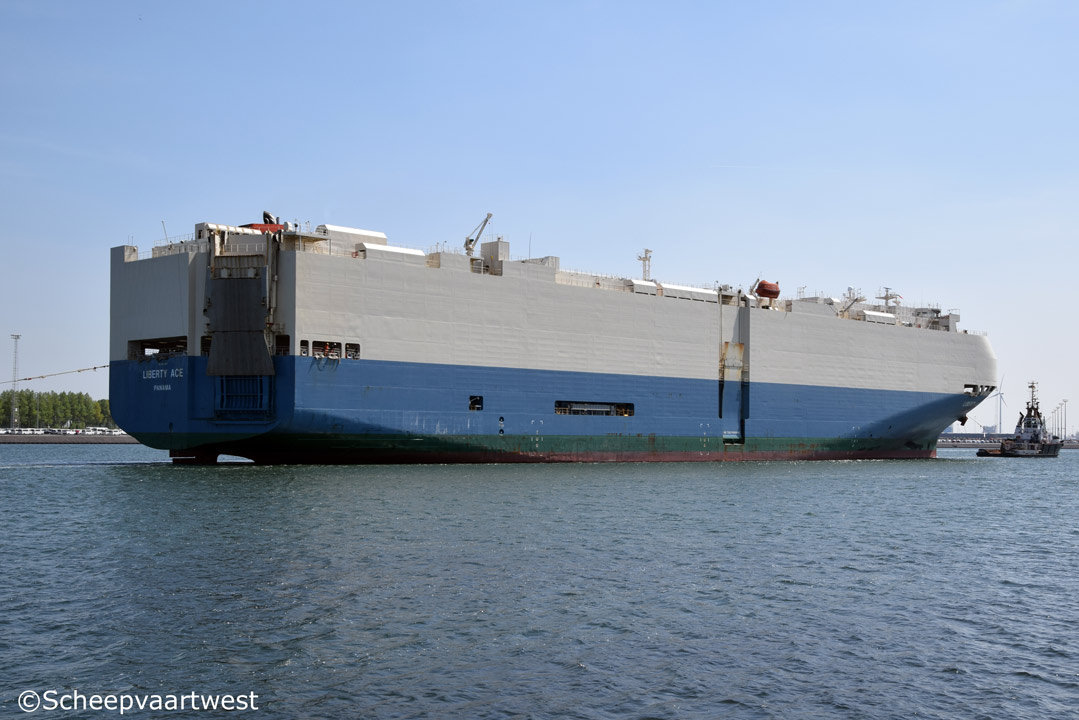

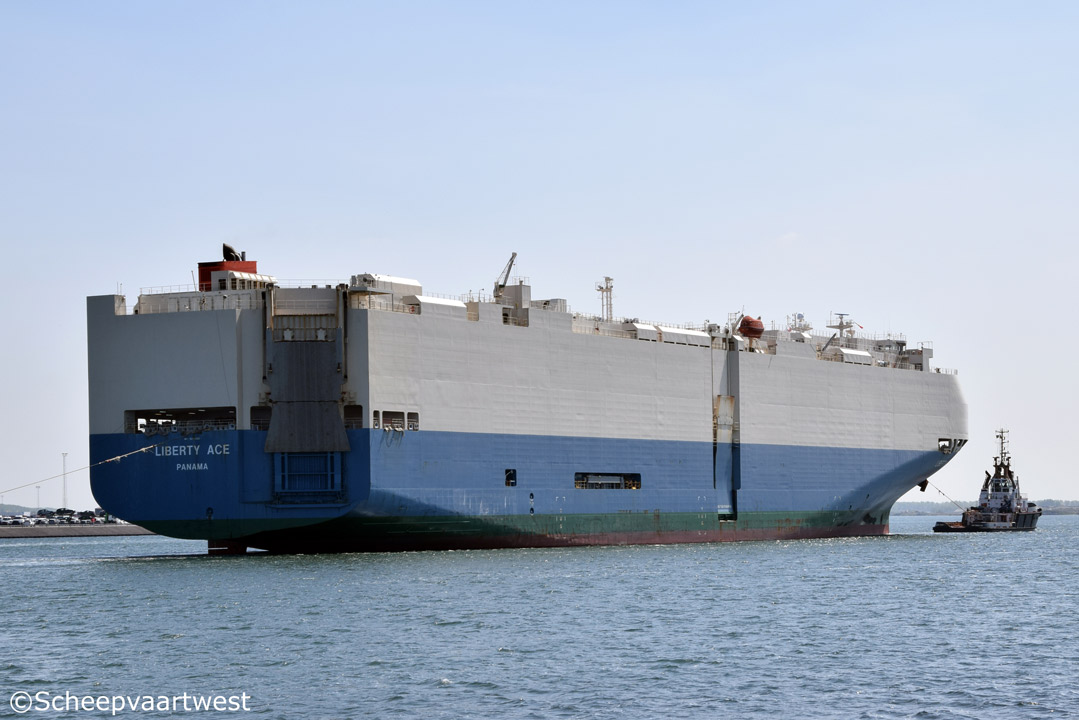

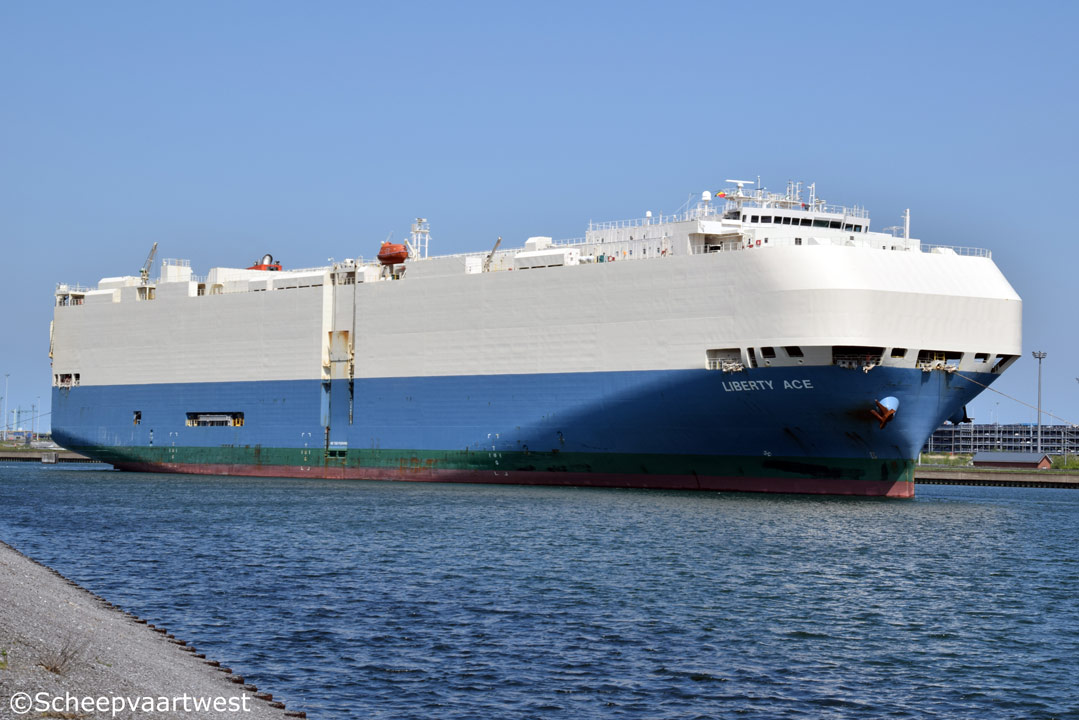

Liberty Ace 01   Liberty Ace 04   Liberty Ace 05   Liberty Ace 06
Zeebrugge 10/05/17   Zeebrugge 10/05/17 Zeebrugge 10/05/17 Zeebrugge 10/05/17


Name

LIBERTY ACE

Type

Roll-On/Roll-Off carrier - Vehicle Carrier

IMO-number

9293650

Call sign

7KAY

Flag

Japan

Port of registry

Tokyo

Previous flag

2004 - 2017 Republic of Panama, Panama City - Call sign: HOJZ

GT

59.992 t registered

DWT

Summer 19.106 t

NT

18.428 t registered

Length

199,99 m overall

Breadth

32,26 m moulded

Draught

Summer: 9,72 m

Moulded L x B x D

192,00 x 32,26 x 14,70 m

Registered L x Bx D

194,31 x 32,26 x 21,25 m

Freeboard

5.013 mm

Depth

14,70 m moulded

Speed

Max.: 22,5 knots

Service: 20,7 knots

Built

2004

Keel laid

24/03/2004

Launch date

28/07/2004

Date of completion

30/11/2004

Builder

Mitsubishi Heavy Industries, Ltd. Kobe Shipyard & Machinery Works

Japan

Yard number

1263

Hull material

Steel

Hull type

Single hull

Main engine

1x Mitsubishi 7UEC60LSII - 2 stroke single acting 7 cylinder 600 x 2.300 mm combustion engine 14.315 kW at 105,0 rpm

Manufacturer: Mitsubishi Heavy Industries, Ltd. Kobe Shipyard & Machinery Works - Japan

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 590 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary Vertical boiler - 6,9 bar

Evaporation: 3,61 t/h

Manufacturer: Osaka Boiler Mfg., Co., Ltd.

Generators

4x Generators total 4.200 kVA

Number of cars

6.354

Number of ramps

2

Tank capacities

Fuel oil: 2.943 m³

Fresh water: 567 m³

Crew

25

Manager

MOL Ship Management (Singapore) Pte. Ltd.

17-04, UIC Building, 5, Shenton Way

Singapore 068808

Republic of Singapore

Operator

Nissan Motor Car Carriers Co. Ltd. (MOL Group)

Tokio

Japan

Registered owner

Mitsui O.S.K. Lines, Ltd.

1-1, Toranomon 2-chome, Minato-ku

Tokyo, 105-8688

Japan

Latest data adjustment

23 January 2023
