Westerschelde 14 January 2017 |
|
Name |

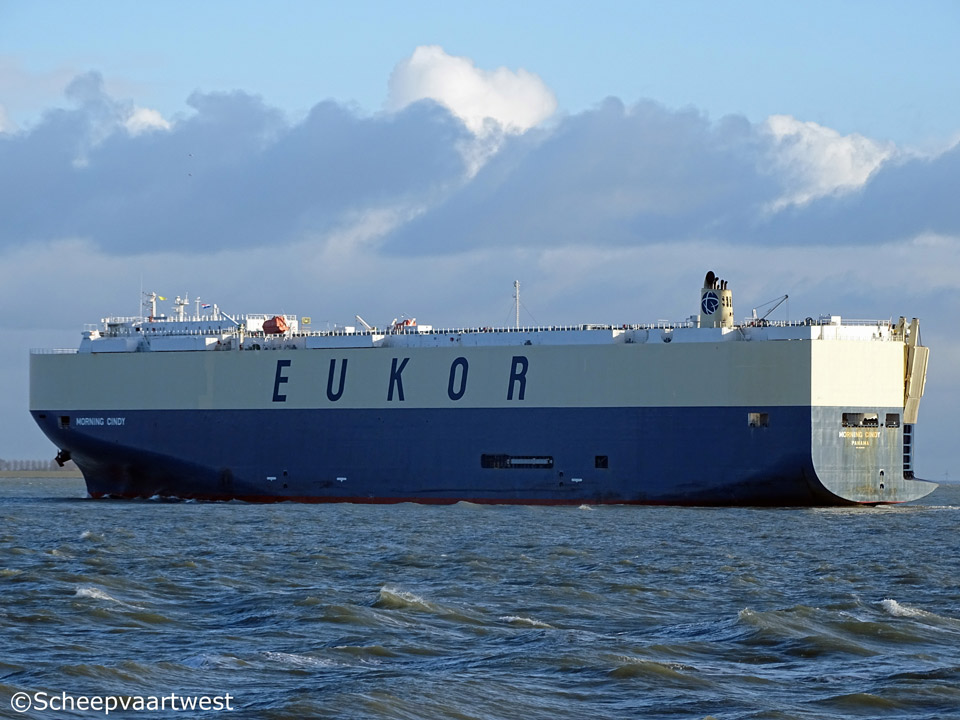

MORNING CINDY |
|
Type |
Roll-On/Roll-Off carrier - PCTC |
|
IMO-number |
9633185 |
|
Call sign |
3FQY7 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
59.432 t registered |
|
DWT |
Summer: 18.954 t |
|
NT |
19.148 t registered |
|
Length |
199,97 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 10,01 m |
|
Moulded L x B x D |
192,00 x 32,26 x 14,70 m |
|
Registered L x B x D |
194,14 x 32,26 x 21,31 m |
|
Freeboard |
Summer: 4.714 mm |
|
Depth |
14,70 m moulded |
|
Speed |
Max.: 22,1 knots |
|
Built |
2012 |
|
Keel laid |
29.07.2010 |
|
Launch date |
20.09.2012 |
|
Date of completion |
29.11.2012 |
|
Builder |
Imabari Shipbuilding Co., Ltd. Marugame Headquarters |
|
Yard number |
1602 |
|
Hull material |
Steel |
|
Main engine |
1x Mitsubishi-Kobe Hatsudoki 8UEC60LSII - 2 stroke single acting 8 cylinder 600 x 2.300 mm diesel engine 13.260 kW at 100,0 rpm Manufacturer: Kobe Diesel Co, Ltd. - Japan |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 630 mm |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary vertical boiler - 8,0 bar Evaporation: 4,04 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 1.140 kW |
|
Bow thruster |
1x 1.250 kW |
|
Number of cars |
6.215 |
|
Tank capacities |
Fuel oil: 2.805 m³ Fresh water: 659 m³ |
|
Manager |
Excel Marine C0., Ltd. |
|
Operator |
Eukor Car carriers Inc. South Korea |
|
Registered owner |
Lucia Navigation (Panama) S.A. |
|
Latest data adjustment |
17 May 2017 |
