Zeebrugge 08 July 2017 |
 |
| Zeebrugge 08/07/17 |
|
Name |

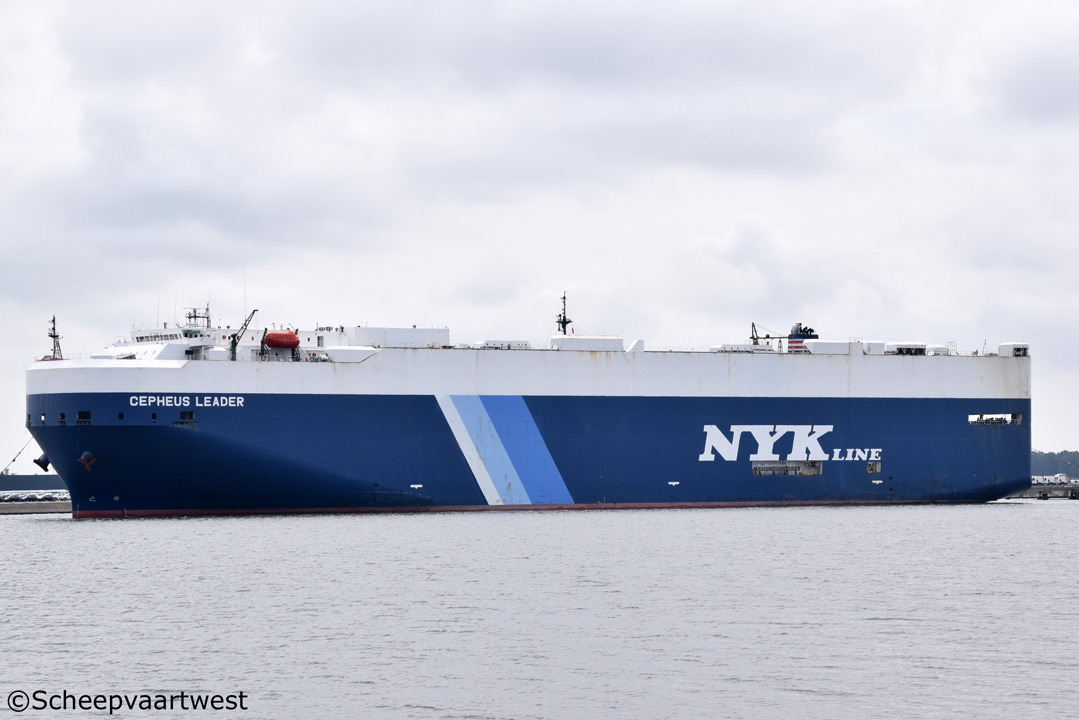

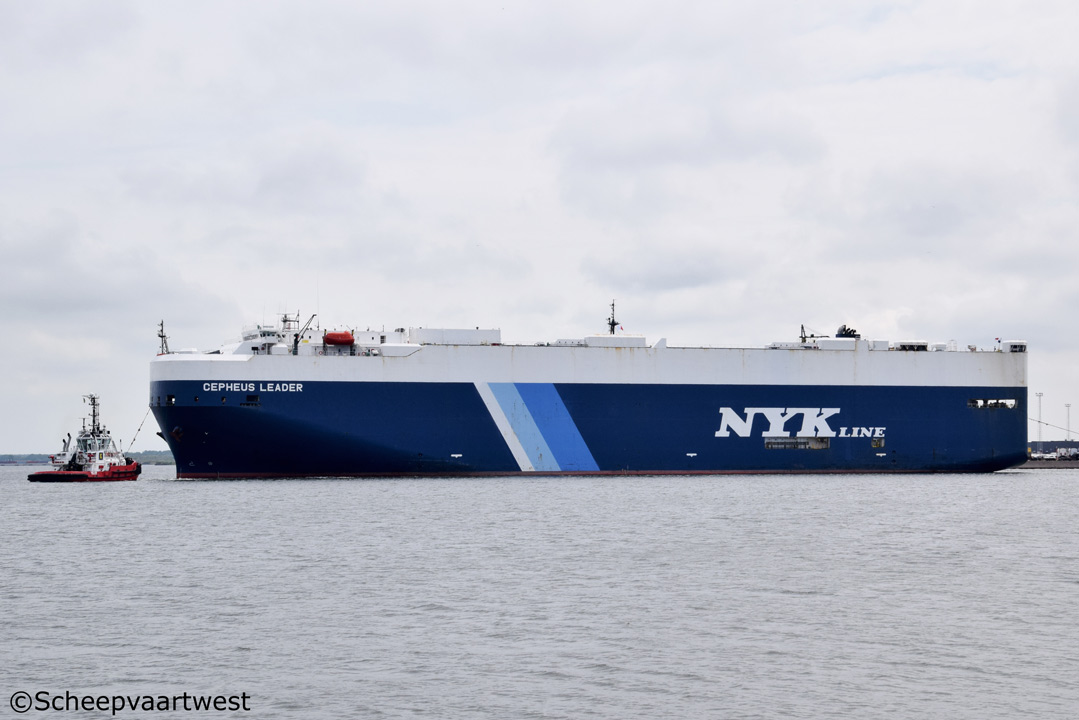

CEPHEUS LEADER |
|
Location |
Zeebrugge 08 July 2017 |
|
Type |
Roll-On/Roll-Off carrier - Vehicles carrier |
|
IMO-number |
9308883 |
|
Call sign |
3EIB2 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
62.571 t registered |
|
DWT |
21.402 t |
|
NT |
18.772 t registered |
|
Length |
199,94 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 10,32 m |
|
Moulded L x B x D |
190,00 x 32,26 x 15,00 m |
|
Registered L x B x D |
193,40 x 32,26 x 24,12 m |
|
Freeboard |
4.714 mm |
|
Depth |
15,00 m moulded |
|
Speed |
Max.: 21,6 knots |
|
Built |
2006 |
|
Keel laid |
25.11.2004 |
|
Launch date |
11.07.2006 |
|
Date of completion |
13.10.2006 |
|
Builder |
Toyohashi Shipbuilding Co., Ltd. Japan |
|
Yard number |
3587 |
|
Hull material |
Steel |
|
Main engine |
1x Mitsubishi/Kobe 8UEC60LSII - 2 stroke single acting 8 cylinder 600 x 2.300 mm diesel engine 15.540 kW / 21.130 hp at 104,0 rpm Manufacturer: Kobe Diesel Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 650 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 7,9 bar Evaporation: 4.37 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Generators - 4.325 kVA |
|
Number of cars |
6.333 |
|
Tank capacity |
Fuel oil: 2.963 m³ Fresh water: 531 m³ |
|
Crew |
26 |
|
Manager |
NYK Shipmanagement Pte Ltd. |
|
Operator |
NYK-Line |
|
Registered owner |
Shonan Maritima S.A. |
|
Latest data adjustment |
30 July 2017 |
