Zeebrugge 16 August 2017 |
|
Name |

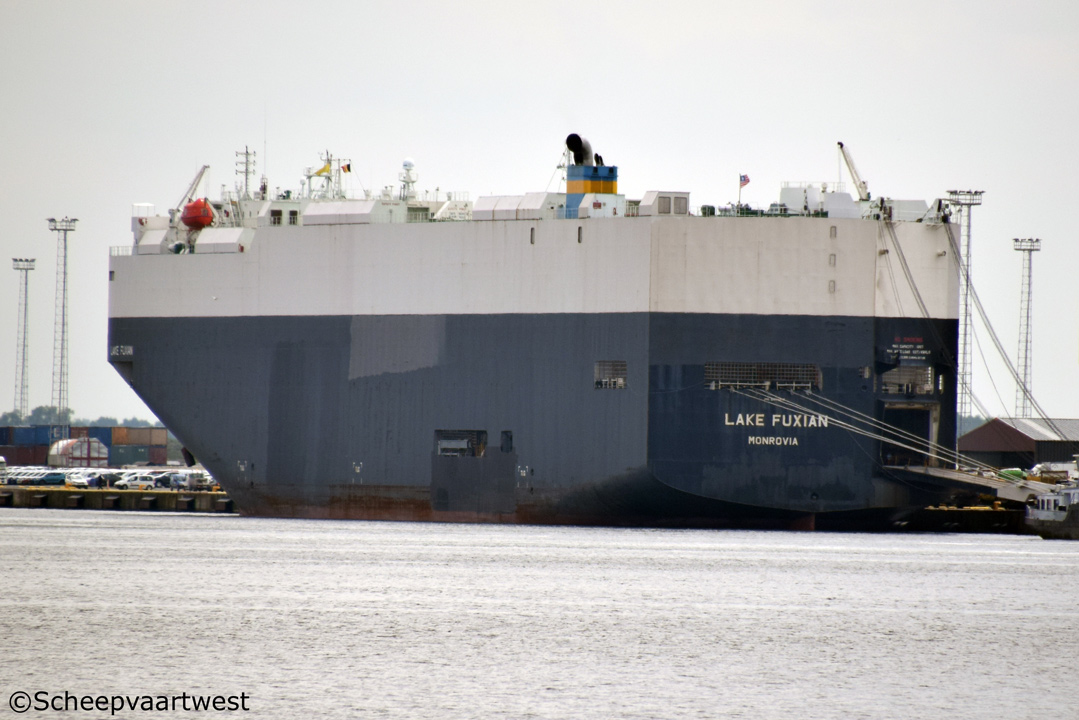

LAKE FUXIAN |
|
Previous names |
2009 - 2016 CSAV Rio Grey |
|
Type |
Roll-On/Roll-Off carrier - Vehicle carrier |
|
IMO-number |
9494905 |
|
Call sign |
A8UC7 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
60.387 t registered |
|
DWT |
17.245 t |
|
NT |
18.651 t registered |
|
Length |
1999,99 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 9,73 m |
|
Moulded L x B x D |
192,00 x 32,26 x 14,65 m |
|
Registered L x B x D |
199,99 x 32,26 x 21,20 m |
|
Freeboard |
Summer: 4.965 mm |
|
Depth |
14,65 m moulded |
|
Speed |
Max.: 22,2 knots |
|
Built |
2009 |
|
Keel laid |
16.04.2009 |
|
Launch date |
18.08.2009 |
|
Date of completion |
18.11.2009 |
|
Builder |
Shin Kurushima Dockyard Co., Ltd. |
|
Yard number |
5511 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x 2 stroke single acting 7 cylinder 600 x 2.400 mm diesel engine 15.090 kW at 98,0 rpm Manufacturer :Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works |
|
Propeller shaft |
1x Oil lubrication shat with monitoring device Diameter: 665 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 3,30 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Generators - 4.275 kVA |
|
Number of cars |
5.233 |
|
Tank capacities |
Fuel oil: 3.054 m³ Fresh water: 402 m³ |
|
Lifting equipment |
2x Cranes - SWL 4,0 t each |
|
Crew size |
25 |
|
Manager |
Eastern Pacific Shipping Pte. Ltd. |
|
Registered owner |
Fair Wind Navigation, S.A. |
|
Latest data adjustment |
11 September 2017 |
