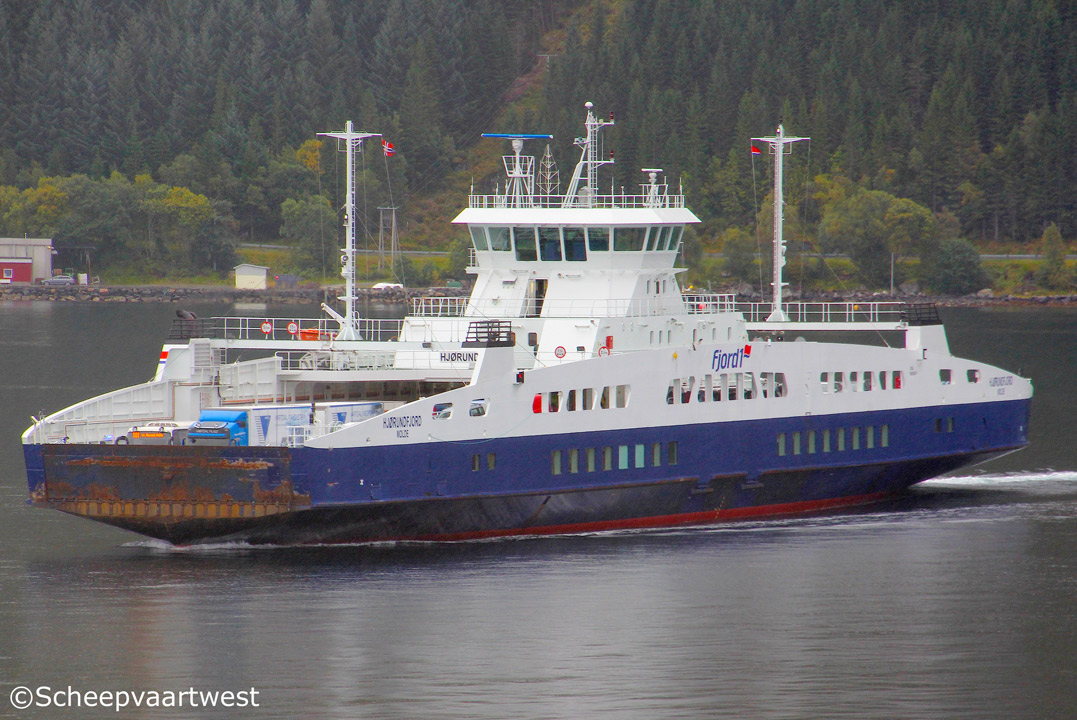

Hjorundfjord 01

Norangsfjord, Norway 21 September 2017

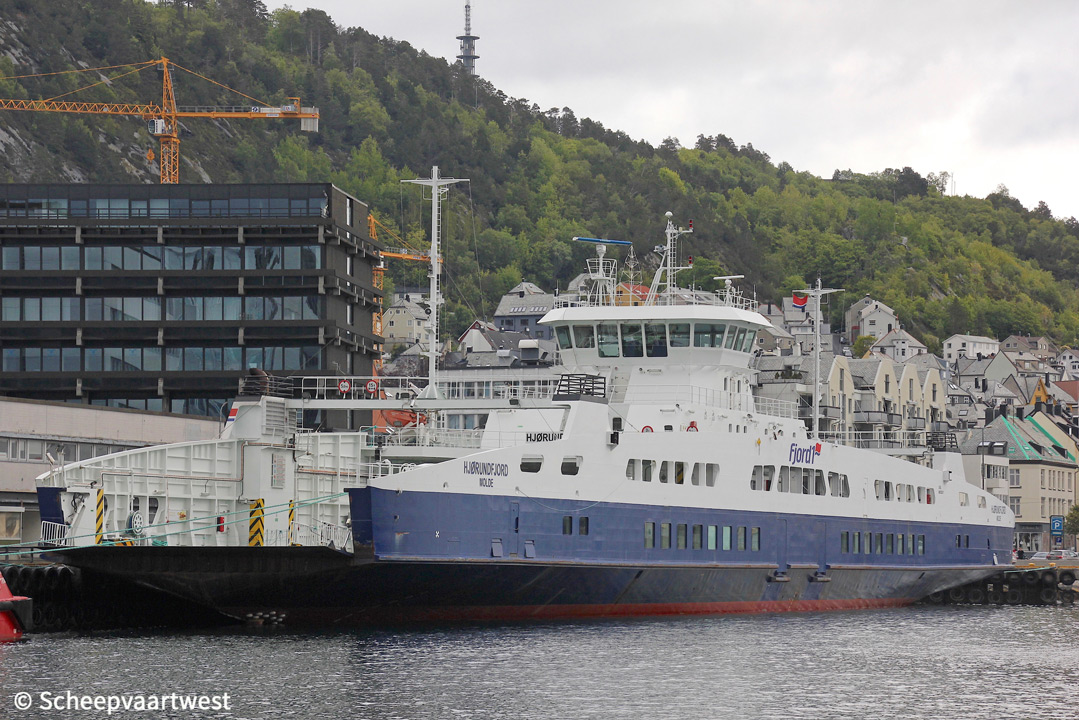

Hjorundfjord 02
Ålesund, Norway 30/05/19









Name

HJORUNDFJORD (HJØRUNDFJORD)

Type

Roll-On/Roll-Off carrier - Double ended ferries

IMO-number

9528471

Call sign

LDKQ

Flag

Norway

Port of registry

Molde

GT

2.967 t

DWT

Summer: 891 t

NT

891 t

Displacement

2.745 t

Length

109,93 m overall

99,60 m between perpendiculars

Breadth

17,42 m

Draught

Max.: 3,43 m

Depth

5,36 m

Speed

Max.: 13,0 knots

Built

2011

Keel laid

13/11/2009

Launch date

10/08/2010

Delivery date

24/03/2011

Builder

Gdansk Stocznia Remontowa SA
Gdansk
Poland

Yard number

1894/I/2

Hull material

Steel

Hull type

Single hull

Continuous decks

1

Main engine

2x Mitsubishi S16R-MPTK diesel engines each 1.250 kW at 1.600 rpm

Propellers

2x Propeller azimuth thrusters 1.200 kW Schottel STP1010 FP N (fore and aft)

Generators

2x Scania DI 12 62M EMS S6/PDE main diesel generatorsets each 236 kW

Ro-Ro ramps

1x Centre or only length 2,80 m, 15-ton axle load each, forward

1x Centre or only length 2,80 m, 15-ton axle load each, aft

Number of passengers

292

Number of cars

116 (4,30 x 1,85 m)

Deck equipment

High pressure hydraulic, remote operated, windlass
Two high pressure hydraulic capstans

Life saving equipment

Life jackets and life buoys
Four MES (Marine Escape System) stations for 150 passengers each
One MOB boat with davit

Tank capacities

Fuel oil: 81 m³

Crew

4

Manager

Fjord1 ASA
Strandavegen 15
6905 Florø
Norway

Registered owner

Fjord1 ASA
Strandavegen 15
6905 Florø
Norway

Remarks

Cardan shafts between main engines and thrusters

Latest data adjustment

04 October 2019
