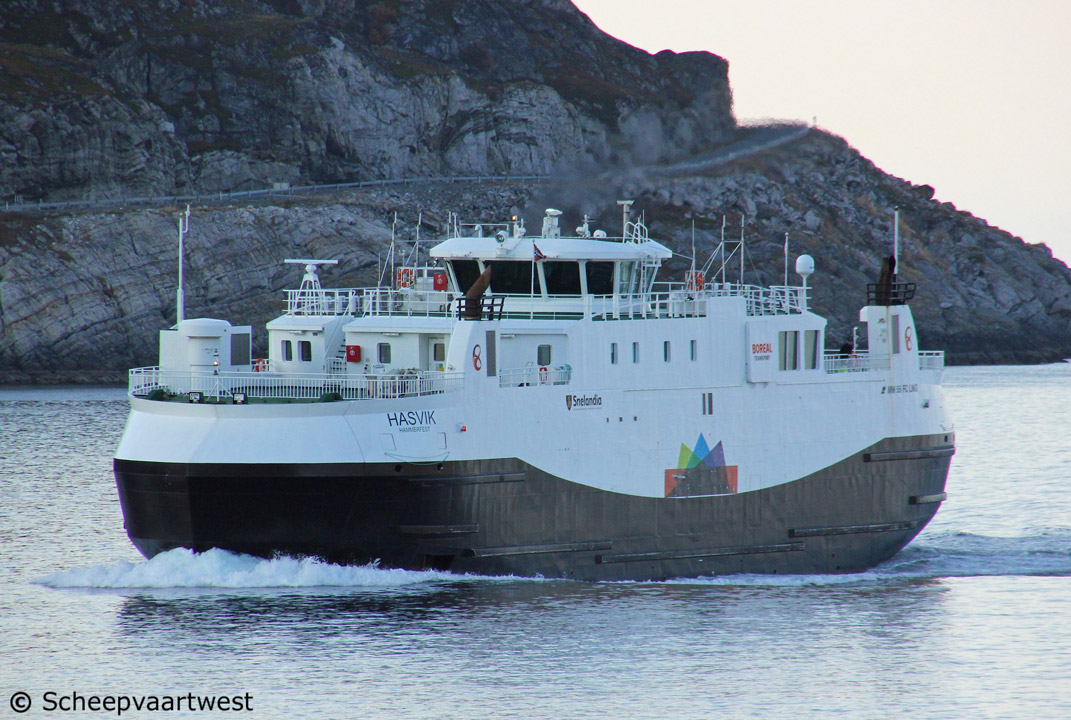

Hasvik 01

Øksfjord, Norway 27 September 2017

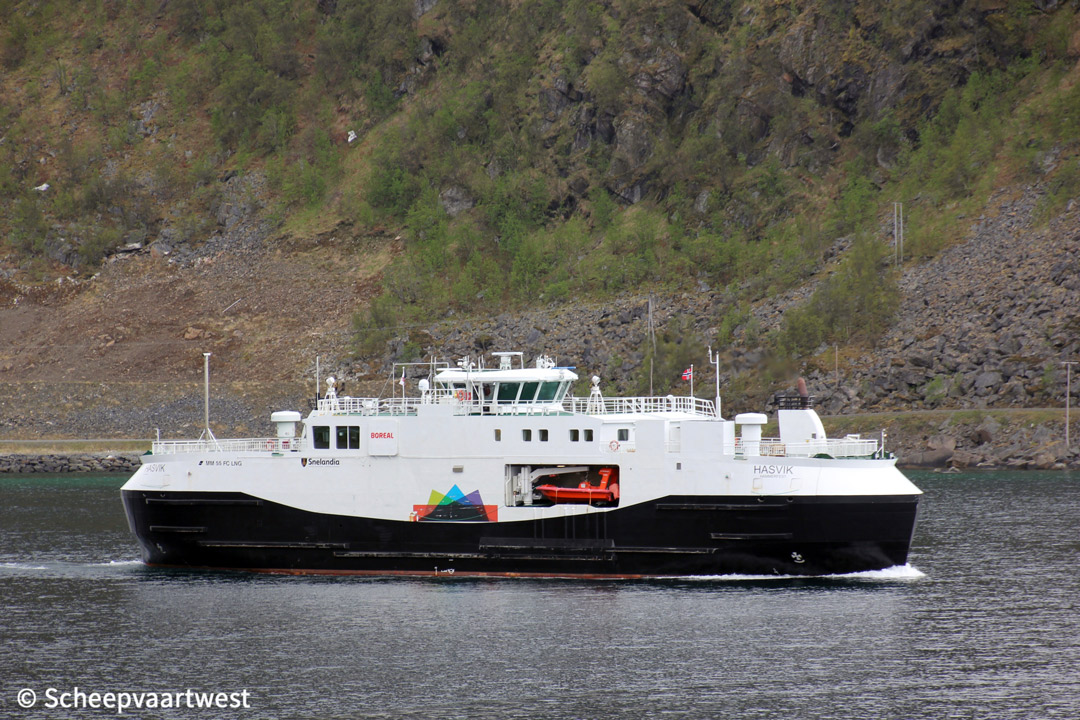

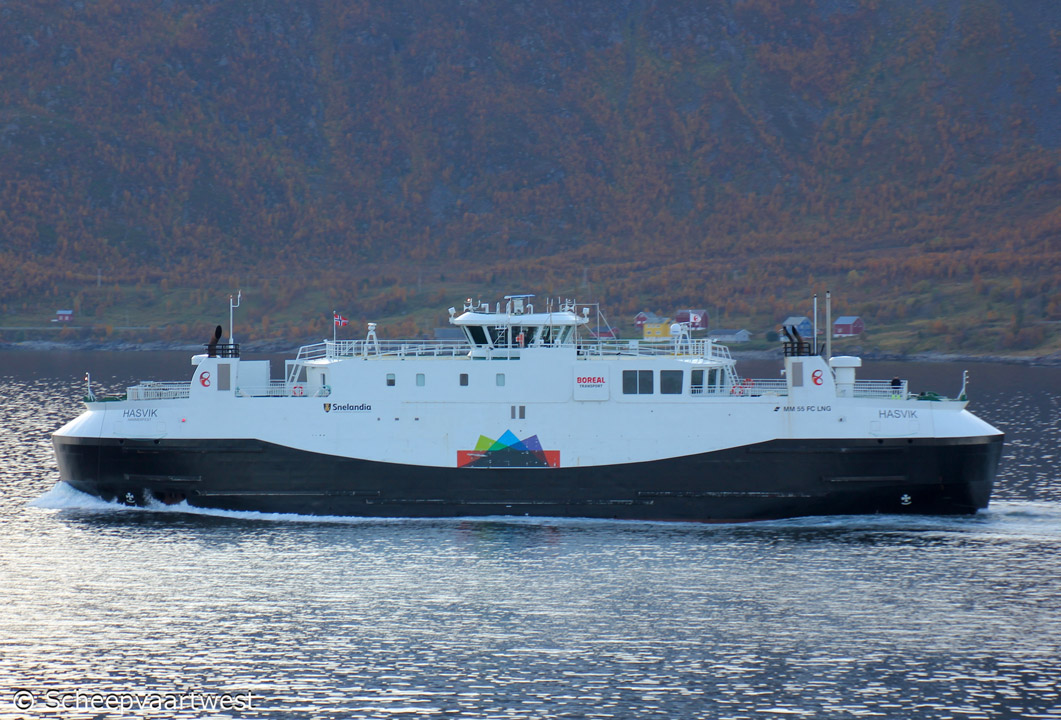

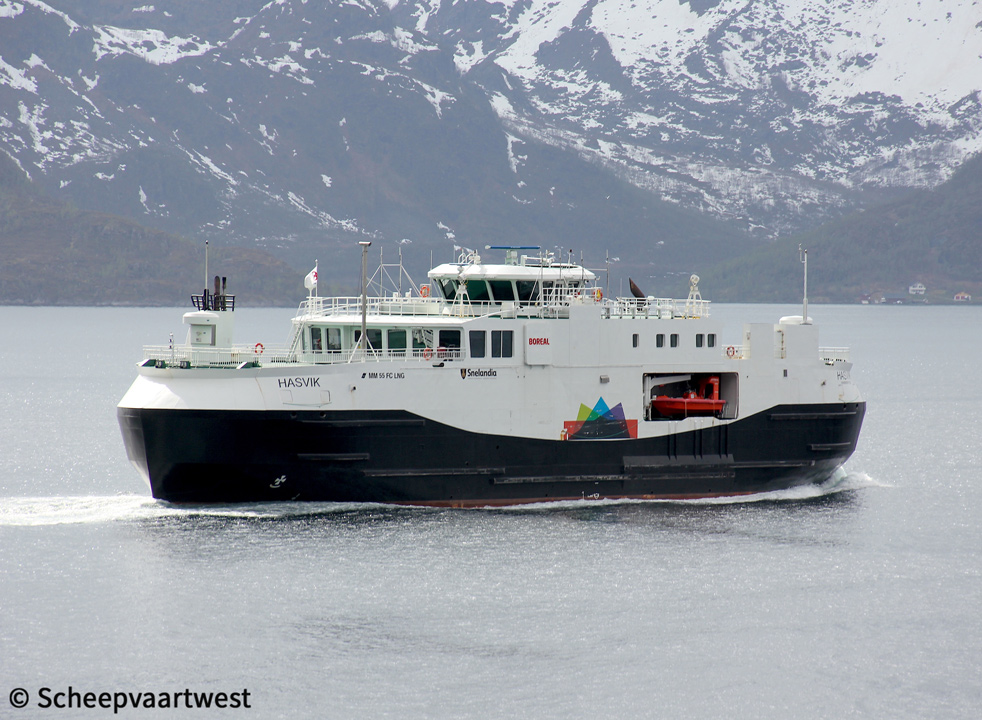

Hasvik 02   Hasvik 03   Hasvik 04
Øksfjord, Norway 27/09/17 Øksfjord, Norway 05/06/19 Øksfjord, Norway 05/06/19



Name

HASVIK

Type

Roll-On/Roll-Off carrier - Car ferry

IMO-number

9733143

Call sign

LNAR

Flag

Norway

Port of registry

Hammerfest

GT

2.203 t

DWT

Summer: 260

NT

807 t

Length

62,20 m overall

52,60 m length car deck

Breadth

13,20 m moulded

13,50 m extreme

Draught

3,80 m

Depth

5,55 m moulded to main deck

Speed

Service: 12,0 knots

Route

2016 Hasvik - Øksfjord
Øksfjord - Tverrfjord

Built

2015

Keel laid

16/10/2014

Launch date

29/03/2015

Date of completion

15/10/2015

Builder casco

ADA Denizcilik ve Tersane Isletmeciligi A.S.
Istanbul
Turkey

Yard number: 113

Builder completion

Fiskerstrand Verft AS
Risevegen 23
N-6035 Fiskarstrand
Norway

Yard number: 79

Hull material

Steel

Main engine

2x Bergen/Rolls Royce C26:33L-6 LNG fuelled combustion engine 1.340 kW

Propulsion

Gas electrical main propulsion
Diesel electrical back-up propulsion

Propellers

2x Frydenbø Schottel Nordic Azimuth Thruster Typ STP 550 FT each 746 kW

Generators

1x Caterpillar C32A diesel fuelled generatorset 800 kW

Number of passengers

106

Number of cars

40

Combi cars/trucks: 12+4

Number of trucks

4

Max. Axle load

15,0 t

Tank capacities

LNG: 70 m³

Fuel oil: 20 m³

Fresh water: 15 m³

Sewage: 15 m³

Anchor equipment

Length: 285,50 m

Diameter: 32 mm

Manager

Boreal Sjø AS
Hamnegata 3
9600 Hammerfest
Norway

Registered owner

Boreal Sjø AS
Hamnegata 3
9600 Hammerfest
Norway

Previous owner

Boreal Transport Norge AS
Hammerfest
Norway

Latest data adjustment

14 November 2019
