Zeebrugge 26 January 2018 |
 |
 |
 |
 |
 |
||||

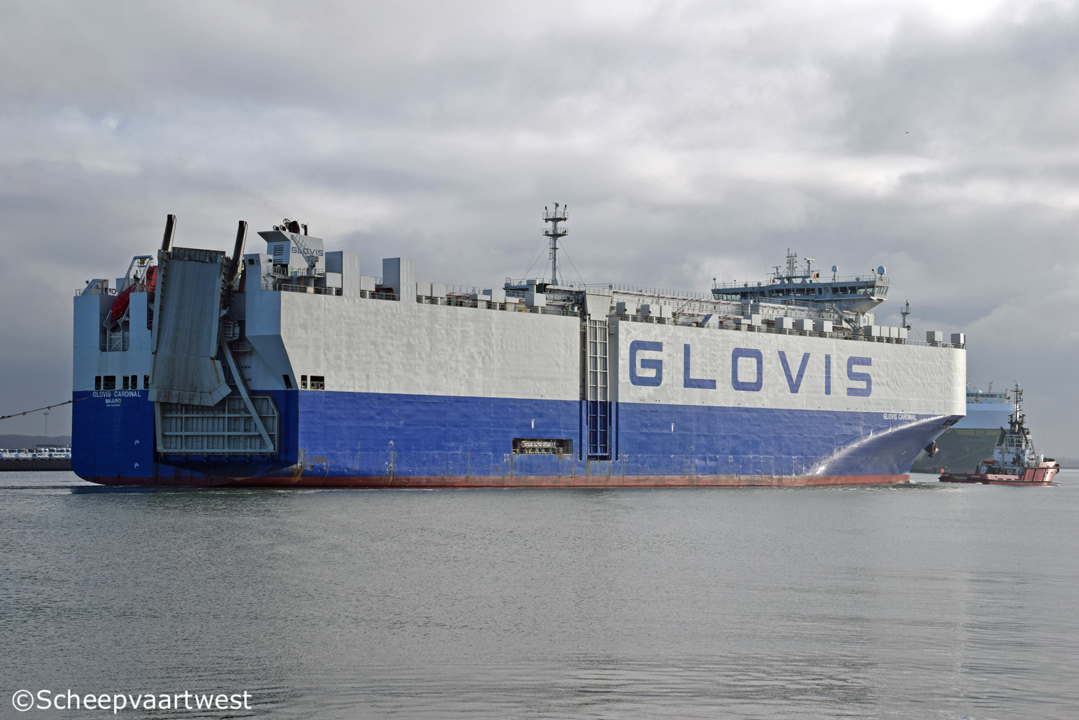

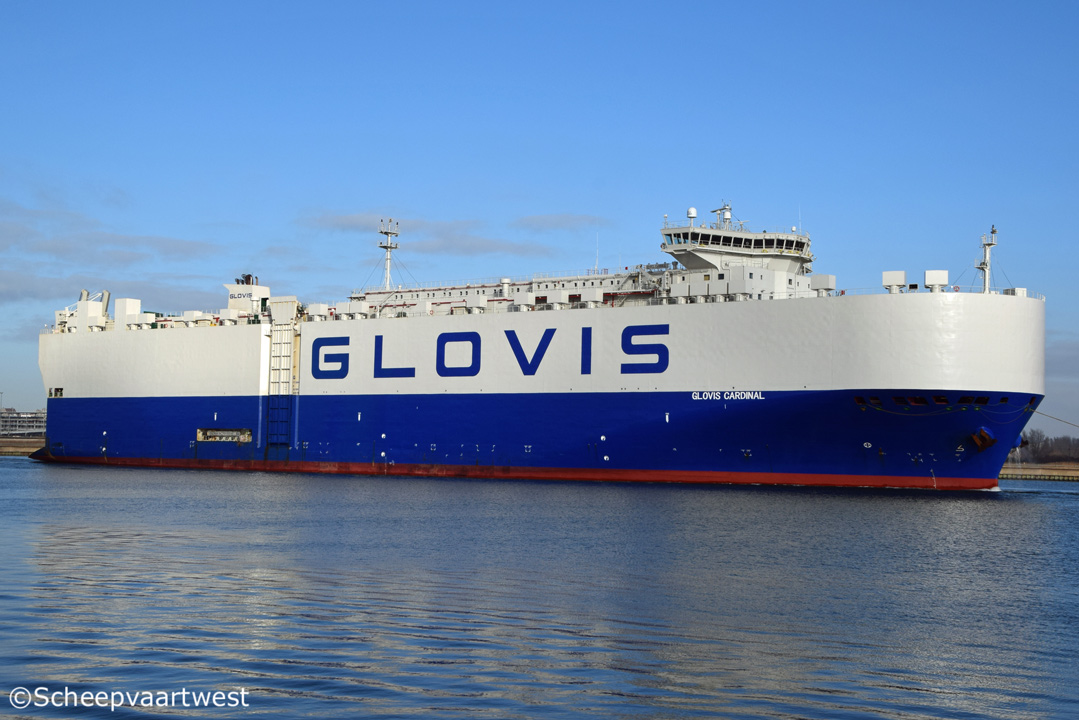

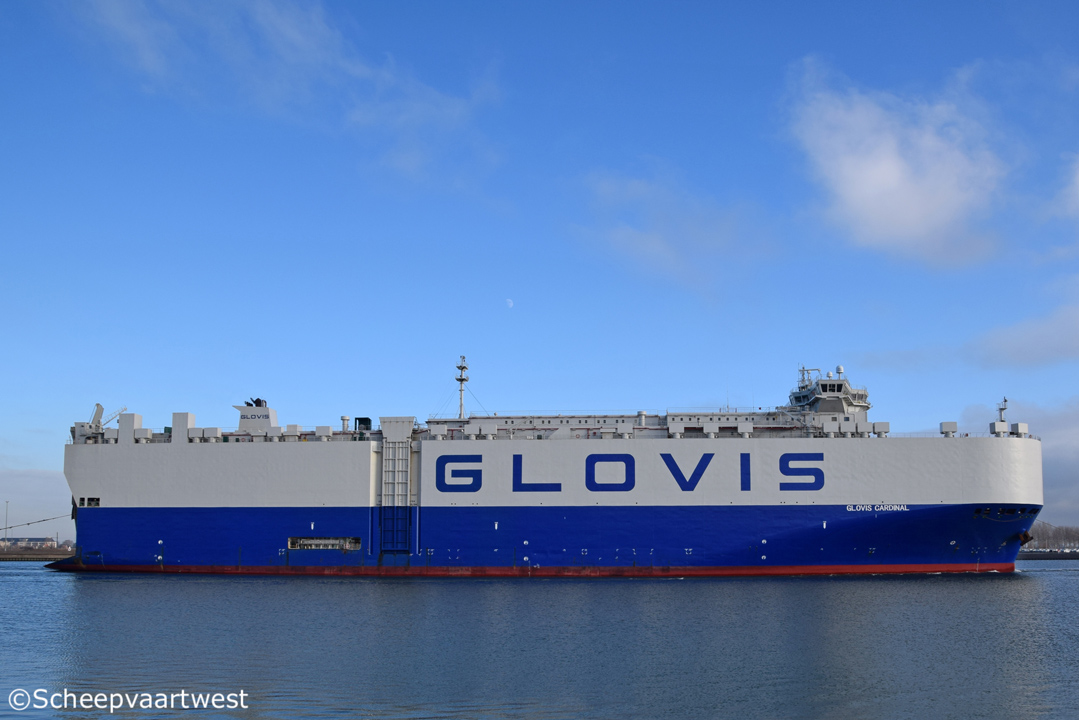

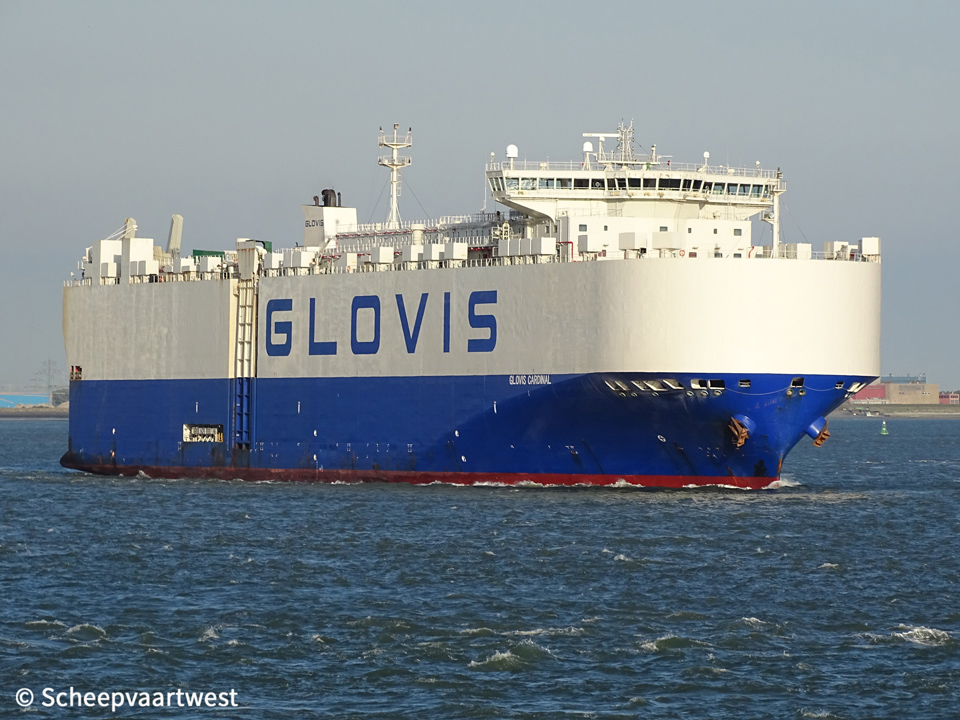

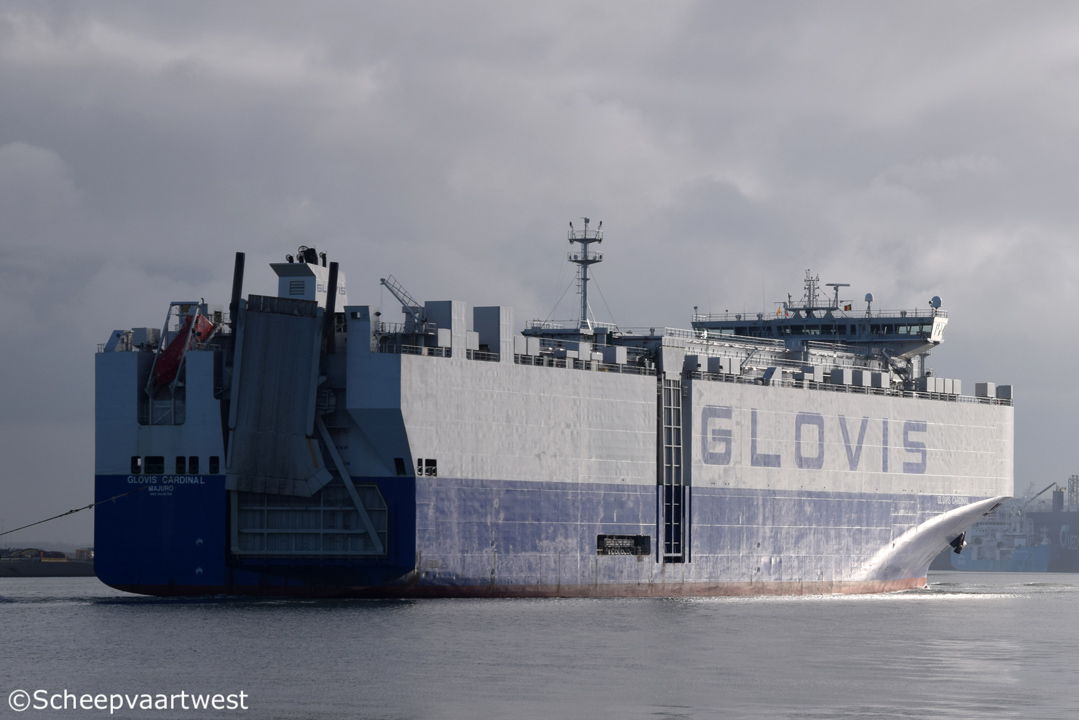

| Zeebrugge 26/01/18 | Zeebrugge 26/01/18 | Zeebrugge 26/01/18 | Westerschelde 29/08/19 | Westerschelde 18/09/15 | ||||
|
Name |
GLOVIS CARDINAL |
|
Korean name |
글로비스 카디널 |
|
Previous names |
2012 - 08/2013 STX Eagle |
|
Type |
Roll-On/Roll-Off carrier - Car carrier |
|
IMO-number |
9419759 |
|
Call sign |
D7GV |
|
Flag |
South Korea |
|
Port of registry |
Jeju |
|
Previous flag |
2012 - 10/2019 Marshall Islands, Majuro - Call sign: V7CC2 |
|
GT |
60.559 t |
|
DWT |
22.342 t |
|
NT |
26.896 t |
|
Length |
199,10 m overall |
|
Breadth |
32,26 m |
|
Draught |
Summer: 11,22 m |
|
Reg dimensions L x B x D |
192,89 x 32,26 x 19,65 m |
|
Rule dimensions L x B x D |
188,22 x 32,26 x 13,46 m |
|
Freeboard |
Summer: 2.271 mm |
|
Depth |
19,65 m registered |
|
Speed |
20,4 knots |
|
Built |
2012 |
|
Keel laid |
22/12/2008 |
|
Launch date |
29/02/2012 |
|
Date of completion |
31/07/2012 |
|
Builder |
STX Offshore & Shipbuilding Co., Ltd. Jinhae South Korea |
|
Yard number |
D-1003 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight bulkheads |
4 |
|
Number of decks |
7 |
|
Main engine |
1x MAN-B&W 6S50MC-C - 2 stroke single acting 6 cylinder 600 x 2.400 mm combustion engine 14.280 kW / 19.420 bhp at 105,0 rpm Built: 08/2011 Builder: STX Heavy Industries Co., Ltd., Changwon - South Korea |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary water tube boiler - 8,8 kg/cm² Heating surface: 76,2 m² 1x Economizer exhaust gas boiler - 11,8 kg/cm² Heating surface: 204,0 m² Built: 08/2009 Manufacturer: Kangrim Heavy Industrial Co., Ltd., Changwon - South Korea |
|
Generators |
3x Main diesel generatorsets each 435 kW - 450 Volt |
|
Number of ramps |
2 |
|
Number of cars |
6.700 |
|
Tank capacities |
Fuel oil: 3.990,9 m³ Fresh water: 256,7 m³ Water ballast: 9.213,1 m³ |
|
Crew |
24 |
|
Commercial manager |
Hyundai Glovis Co., Ltd. 512, Yeongdong-daero, Gangnam-gu Seoul, 06172 South Korea |
|
Technical manager |
G-Marine Service Co., Ltd. 331, Jungang-daero, Dong-gu Busan, 48792 South Korea |
|
Registered owner |
Hyundai Glovis Co., Ltd. 512, Yeongdong-daero, Gangnam-gu Seoul, 06172 South Korea |
|
Previous names & shipping company |
2012 - 08/2013 STX Eagle - POS Maritime BB SA |
|
Latest data adjustment |
04 September 2024 |
