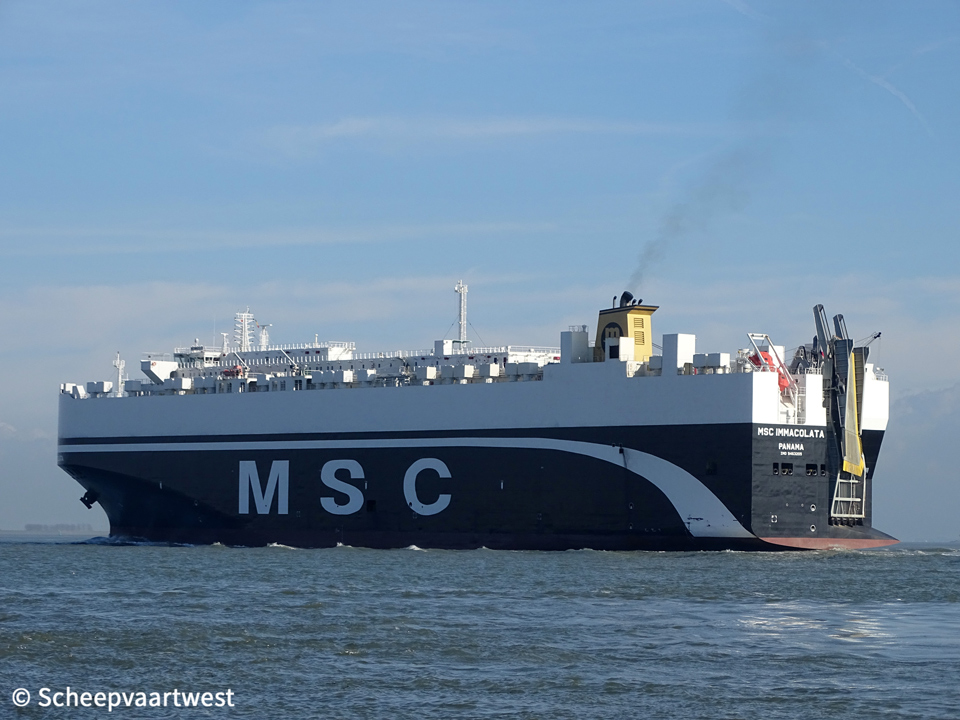

MSC Immacolata 02

Westerschelde 21 March 2018


MSC Immacolata 03   MSC Immacolata 01   MSC Immacolata IMO 9463205 06   MSC Immacolata IMO 9463205 07
Westerschelde 21/03/18 30/01/18 Zeebrugge 05/07/22   Westerschelde 05/06/18


Name

MSC IMMACOLATA

Type

Roll-On/Roll-Off carrier

PCTC - Pure Car and Truck Carrier

IMO-number

9463205

Call sign

3FLQ2

Flag

Republic of panama

Port of registry

Panama City

GT

59.835 t

DWT

Summer: 22.196,35 t

NT

25.783 t

Length

199,07 m overall

190,80 m between perpendiculars

Breadth

32,27 m extreme

Draught

11,20 m

Depth

14,30 m

Speed

Max: 21,1 knots

Built

2012

Keel laid

15/12/2010

Launch date

20/09/2011

Date of completion

11/04/2012

Builder

STX (Dalian) Shipbuilding Co., Ltd.

Wafangdian

China

Yard number

D1006

Hull material

Steel

Main engine

1x STX/MAN-B&W 7S60MC-C8 - 2 stroke 7 cylinder 600 x 2.400 mm combustion engine 16.660 kW / 21.467 bhp at 105,0 rpm

Builder: STX Engine Co., Ltd.(B&W), Changwon - South Korea

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary boiler, oil/gas fired

1x Auxiliary boiler, exhaust gas heated

Generators

3x MAN 7L21/31 main diesel generatorsets each 1.540 kW

Emergency generator

1x Cummins NT855-D(M) diesel generatorset 205 kW

Bow thruster

1x 1.500 kW

Number of ramps

2

Number of cars

6.700

Tank capacities

Ballast: 9.286,5 m³

Anchor equipment

Length: 687,50 m

Diameter: 84 mm

Crew

26

Manager

MSC Shipmanagement Limited

Chemin Rieu, 12

141208 Geneva

Switzerland

ISM manager

MSC Shipmanagement Limited

Chemin Rieu, 12

141208 Geneva

Switzerland

Registered owner

Bugle Shipping Co. Ltd.

c/o Niki Shipping Co. Inc.

Building A24, Filellinon Street

105 57 Athens

Greece

Latest data adjustment

17 July 2022
