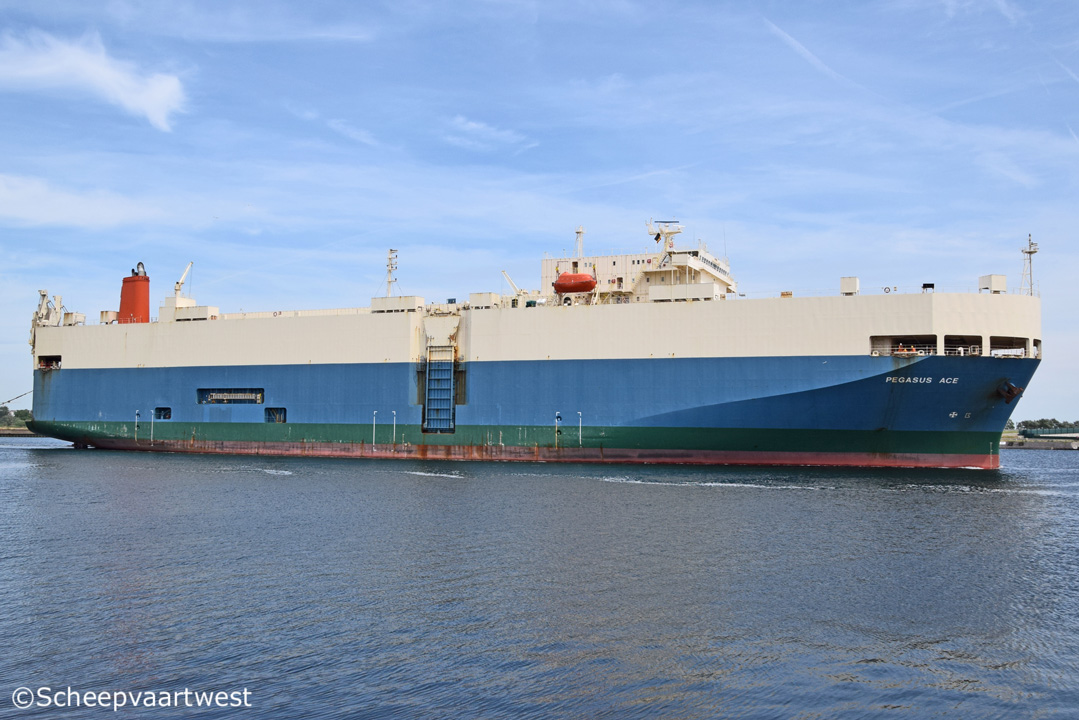

Pegasus Ace 04

Zeebrugge 23 June 2018

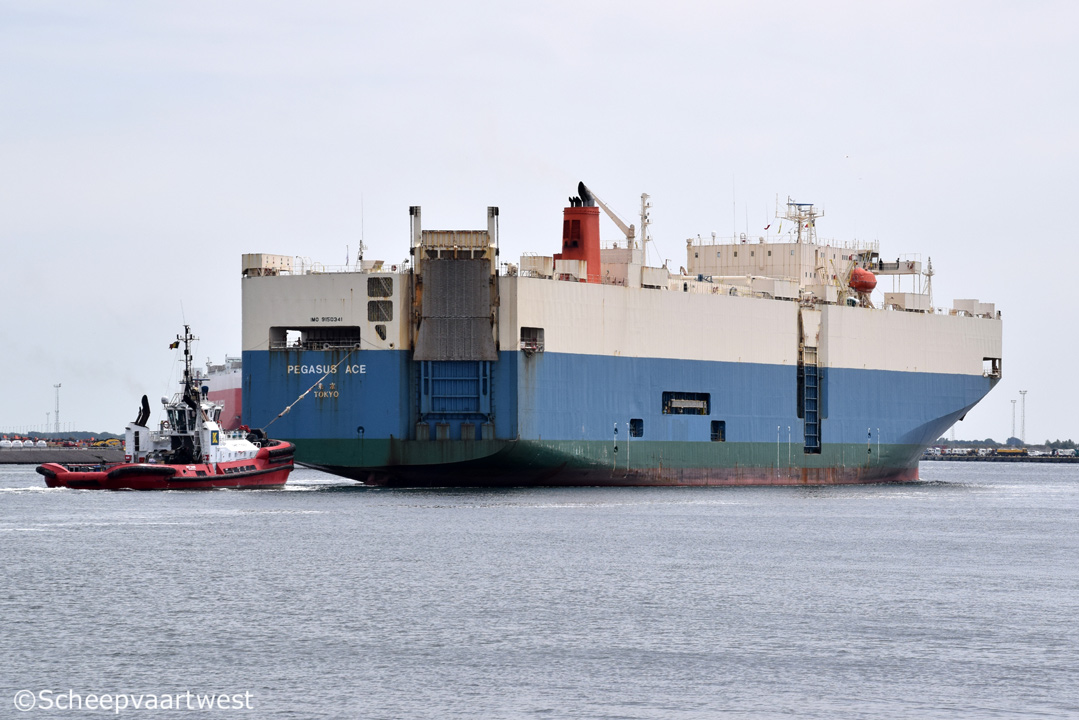

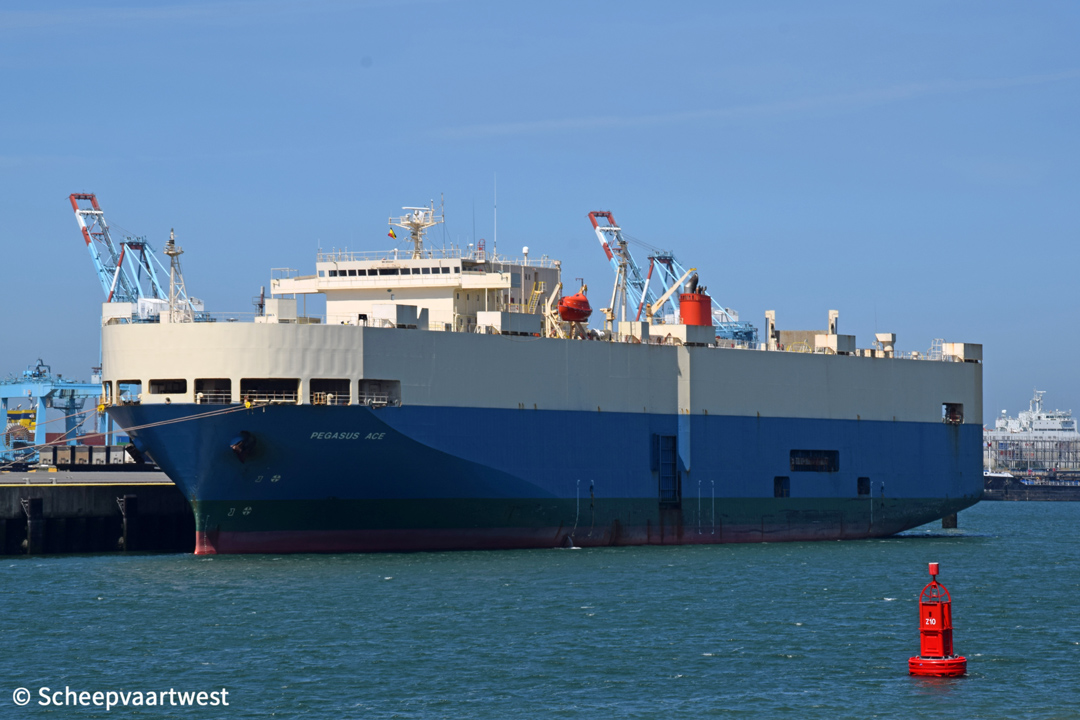

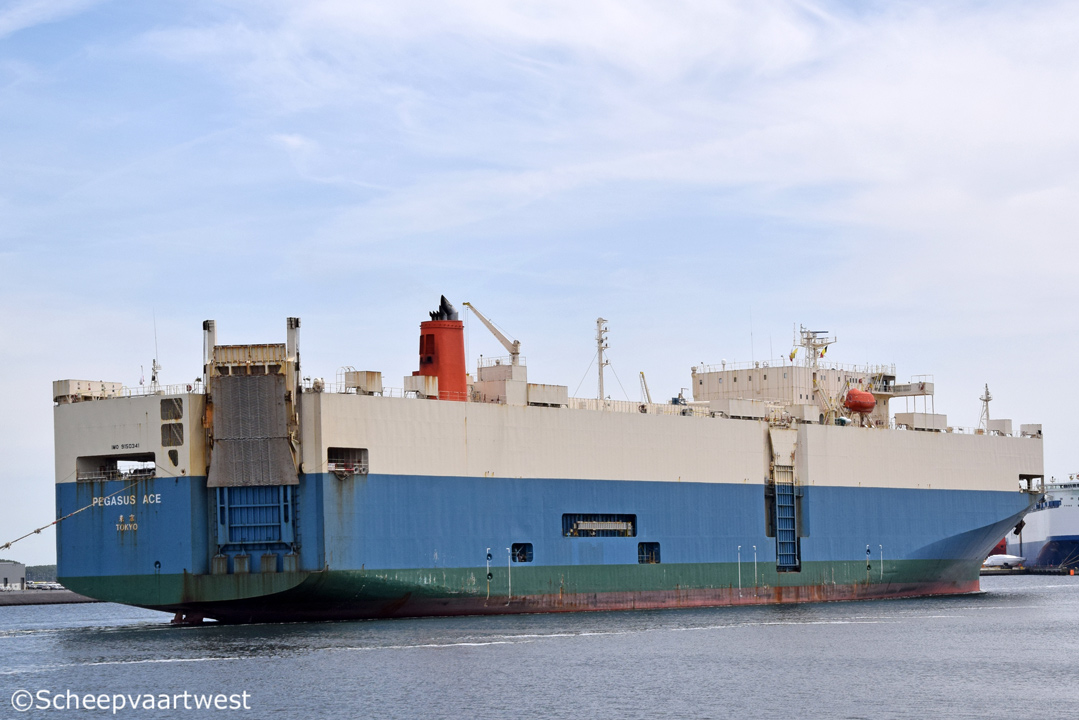

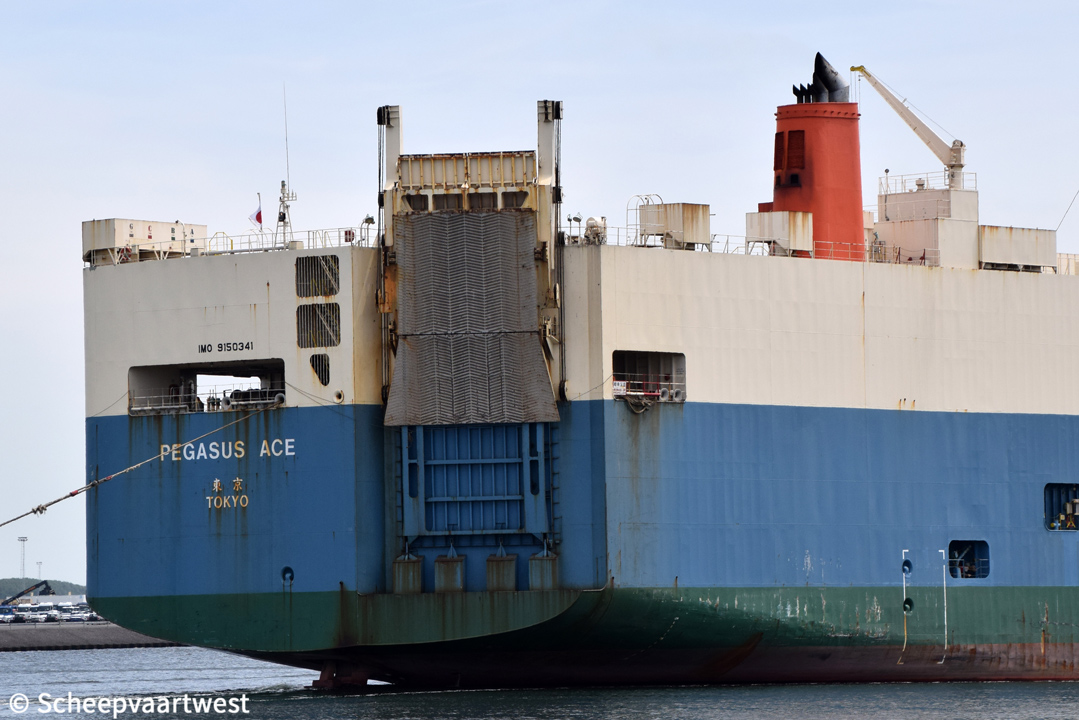

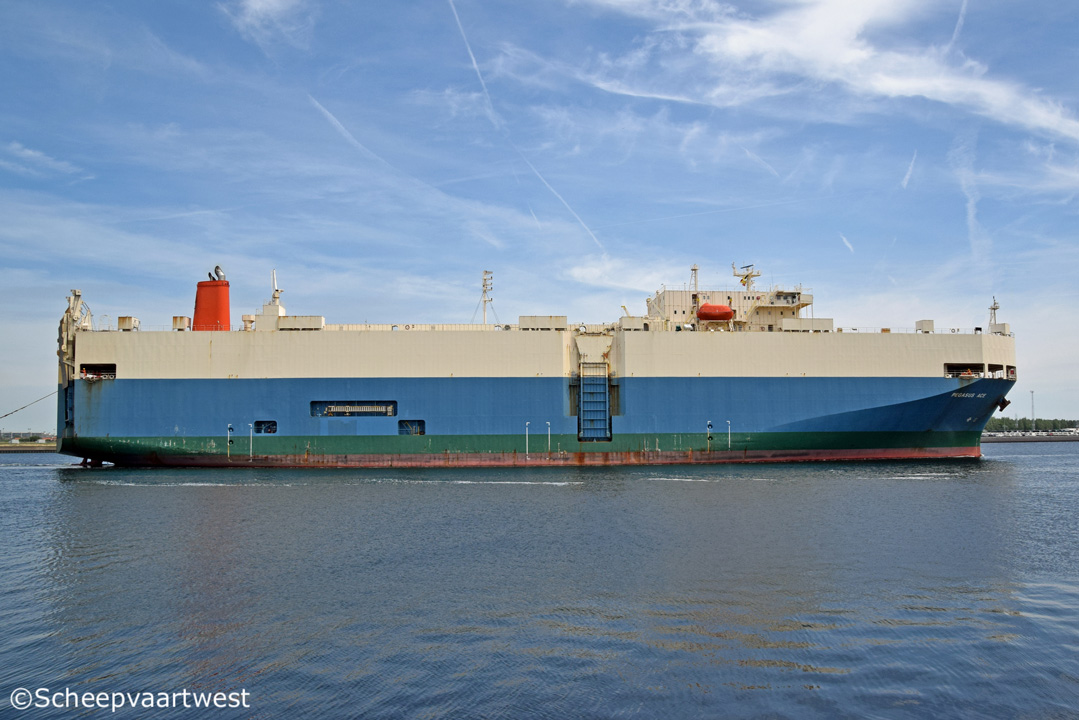

Pegasus Ace 05   Pegasus Ace 06   Pegasus Ace 08   Pegasus Ace 07   Pegasus Ace 11
Zeebrugge 23/06/18 Zeebrugge 23/06/18 Zeebrugge 23/06/18 Zeebrugge 23/06/18   Zeebrugge 29/05/20



Name

PEGASUS ACE

Type

Roll-On/Roll-Off carrier - Vehicle carrier

IMO-number

9150341

Call sign

7JWX

Flag

Japan

Port of registry

Tokyo

Previous flags

Republic of Panama, Panama City - Call sign: 3FKV8

GT

22.858 t registered

DWT

14.348 t

NT

11.067 t

Length

174,98 m

Breadth

29,20 m

Draught

Summer: 8,52 m

Moulded L x B x D

166,00 x 29,00 x 11,48 m

Registered L x B x D

171,15 x 29,20 x 20,74 m

Freeboard

Summer: 2.986 mm

Depth

11,48 m moulded

Speed

Max: 20,7 knots

Built

1998

Keel laid

07/11/1997

Launch date

27/02/1998

Date of completion

21/05/1998

Builder

Shin Kanasashi Co., Ltd. Toyohashi Works

Toyohash

Japan

Yard number

2441

Hull material

Steel

Hull type

Single hull

Main engine

1x Mitsubishi - 2 stroke single acting 8 cylinder 520 x 1.850 mm combustion engine 10.591 kW at 120,0 rpm

Manufacturer: Kobe Diesel Co., Ltd. Nagasaki Works - Japan

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 600 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 6,9 bar

Evaporation: 2,33 t/h

Manufacturer: Tortoise Engineering Co., Ltd.

Generators

4x Generators total 2.960 kVA

Bow thruster

1x 920 kW

Number of cars

3.027

Tank capacities

Fuel oil: 2.460 m³

Fresh water: 346 m³

Crew size

25

Manager

MOL Ship Management (Singapore) Pte. Ltd.

Registered owner

Mitsui O.S.K. Lines, Ltd.

Building, 1-1, Toranomon 2-chome

Minato-ku

Tokyo-to, 105-0001

Japan

Latest data adjustment

21 September 2020
