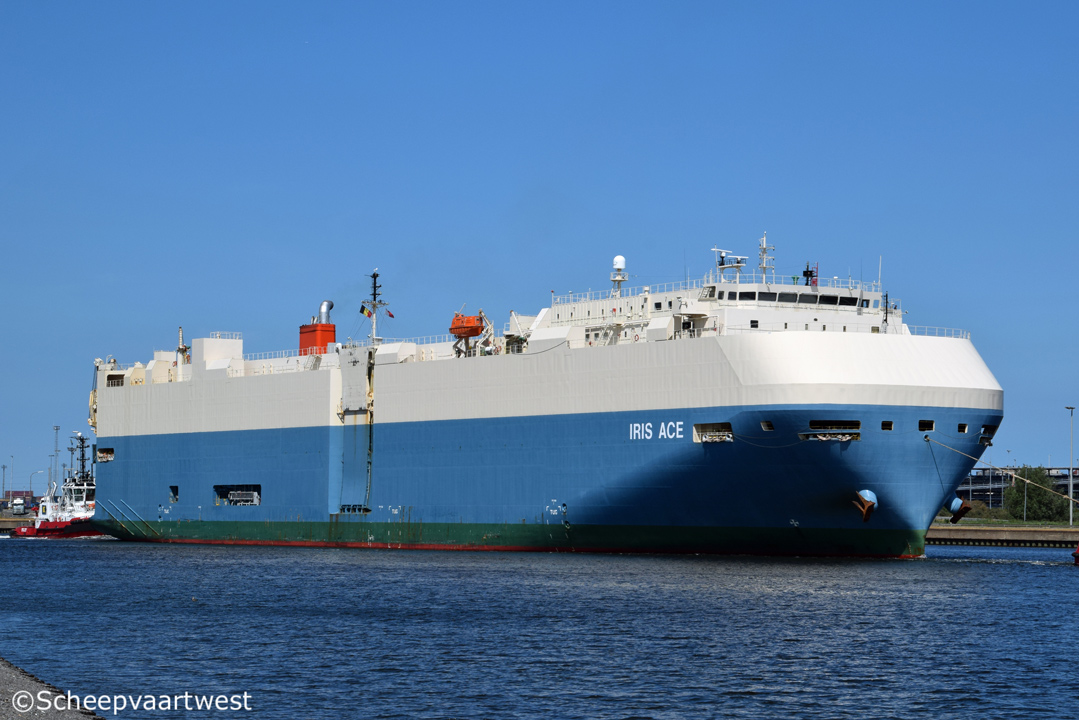

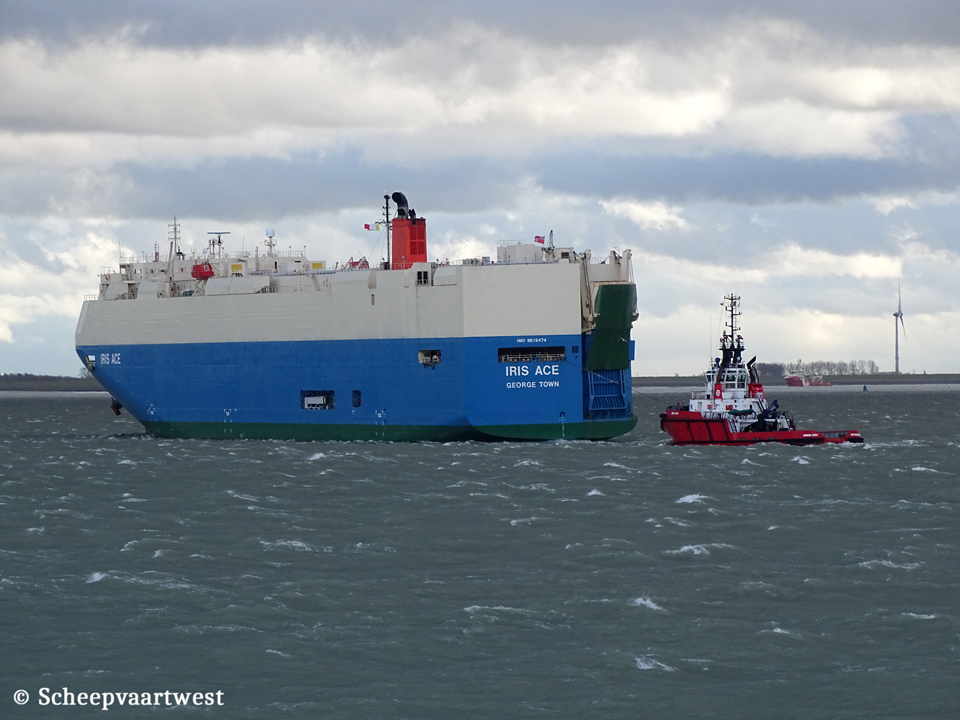

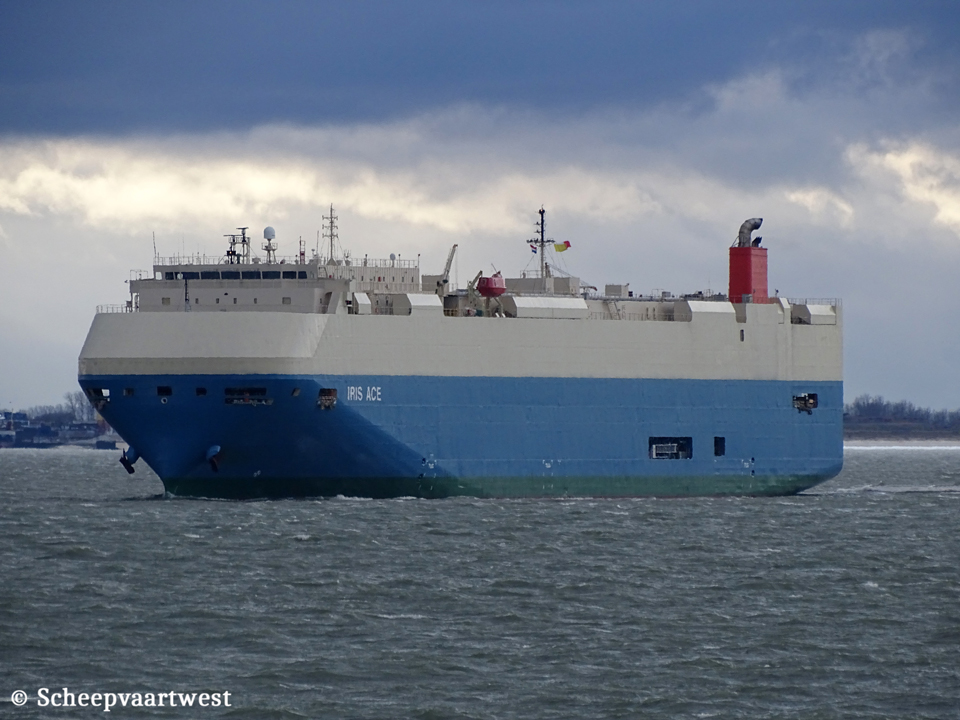

Westerschelde 20 December 2019 |
 |
 |
 |
 |
|||

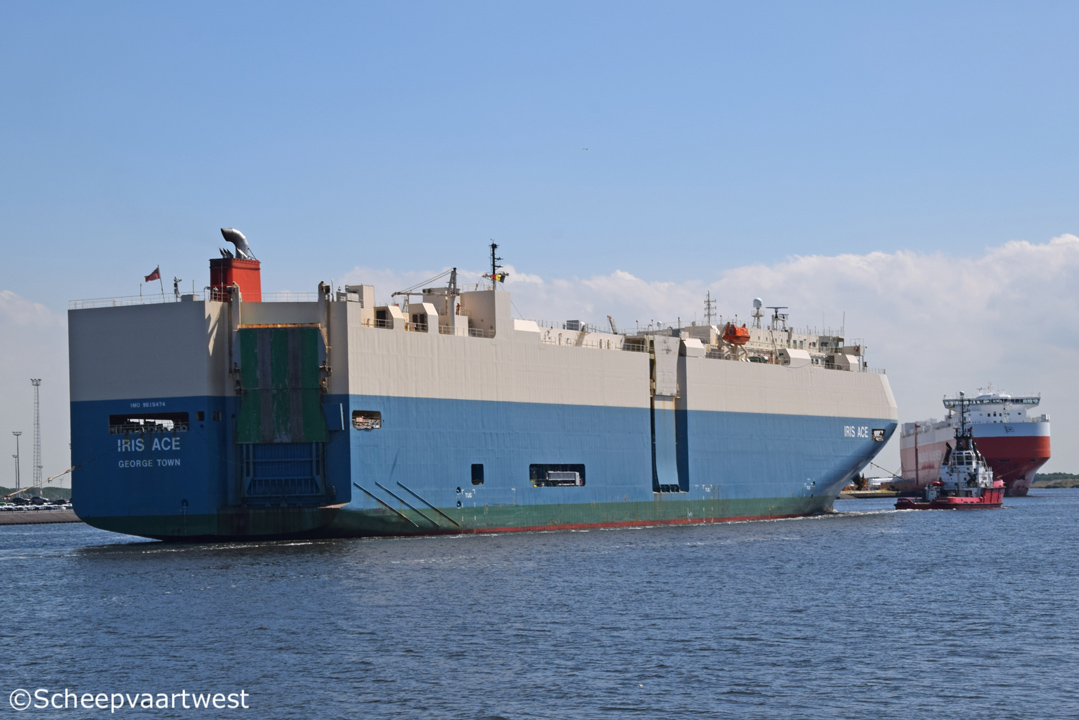

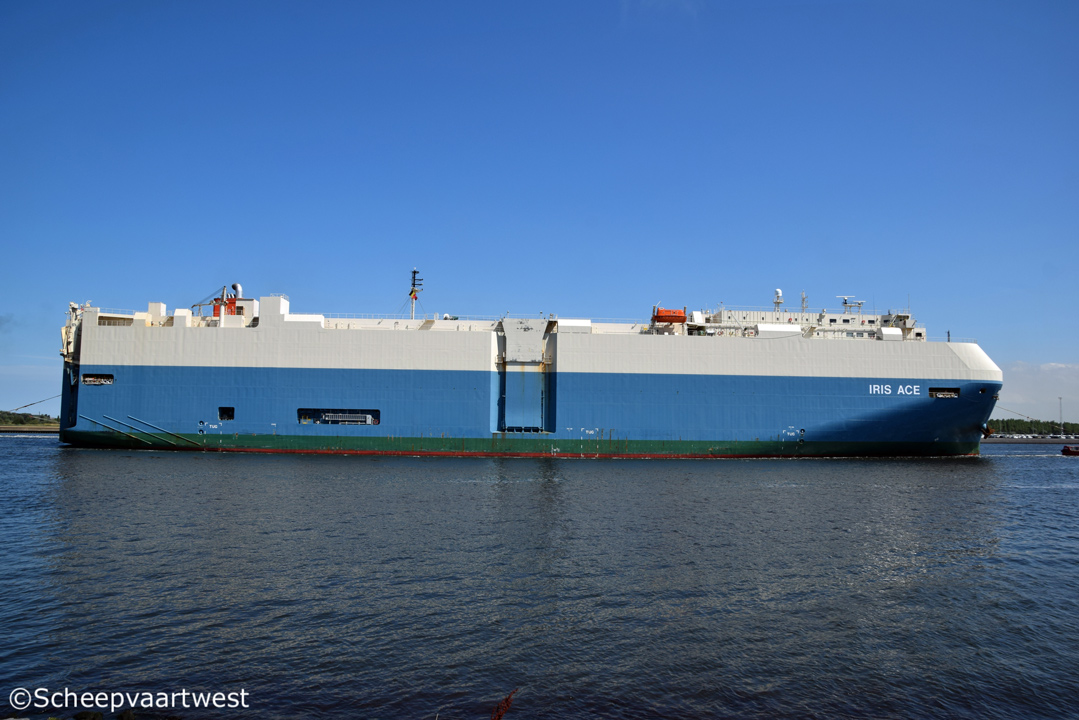

| Westerschelde 20/12/19 | Zeebrugge 01/08/18 | Zeebrugge 01/08/18 | Zeebrugge 01/08/18 | |||
|
Name |
IRIS ACE |
|
Type |
Roll-On/Roll-Off carrier - Vehicle carrier |
|
IMO-number |
9515474 |
|
Call sign |
ZGBS2 |
|
Flag |
Cayman Islands |
|
Port of registry |
George Town |
|
GT |
43.709 t registered |
|
DWT |
14.349 t |
|
NT |
13.113 t registered |
|
Length |
187,53 m overall |
|
Breadth |
28,20 m moulded |
|
Draught |
Summer: 8,72 m |
|
Moulded L x B x D |
182,50 x 28,20 x 12,65 m |
|
Registered L x B x D |
182,60 x 28,20 x 19,10 m |
|
Freeboard |
Summer: 3.964 mm |
|
Depth |
12,65 m moulded |
|
Speed |
Max: 20,9 knots |
|
Built |
2011 |
|
Keel laid |
10/11/2010 |
|
Launch date |
22/03/2011 |
|
Date of completion |
26/09/2011 |
|
Builder |
Shin Kurushima Dockyard Co., Ltd. Imabari Japan |
|
Yard number |
5527 |
|
Hull material |
Steel |
|
Main engine |
1x Mitsui/MAN-B&W 8S50MC-C 2 stroke single acting 8 cylinder 500 x 2.000 mm combustion engine 12.640 kW at 127,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 600 m |
|
Propellers |
1x fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 3,93 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Generators - 3.800 kVA |
|
Number of cars |
4.064 |
|
Number of ramps |
2 |
|
Tank capacities |
Fuel oil: 2.514 m³ Fresh water: 337 m³ |
|
Crew |
24 |
|
Commercial manager |
Mitsui Osk Lines Ltd. 1-1, Toranomon 2-chome, Minato-ku Tokyo, 105-8688 Japan |
|
ISM Manager |
MOL Ship Management (Singapore) Pte. Ltd. 17-04, UIC Building, 5, Shenton Way, Singapore 068808 Republic of Singapore |
|
Registered owner |
Hilary Navigation S.A. Care of Mitsui OSK Lines Ltd (MOL) 1-1, Toranomon 2-chome, Minato-ku Tokyo, 105-8688 Japan |
|
Latest data adjustment |
22 October 2022 |
