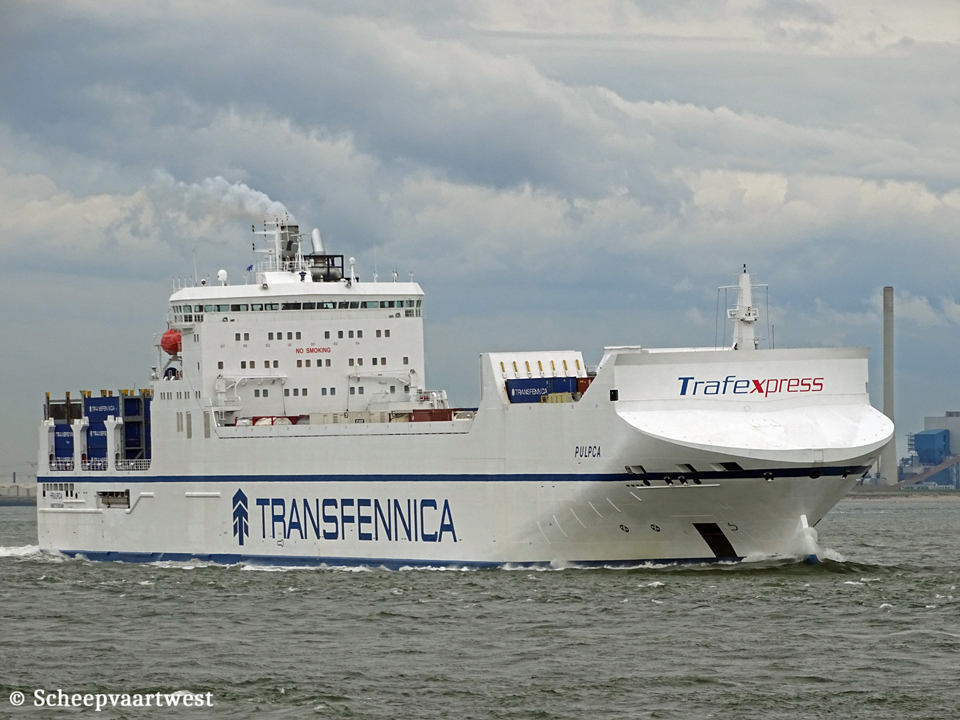

Pulpca IMO 9345386 05

Westerschelde 22 July 2017

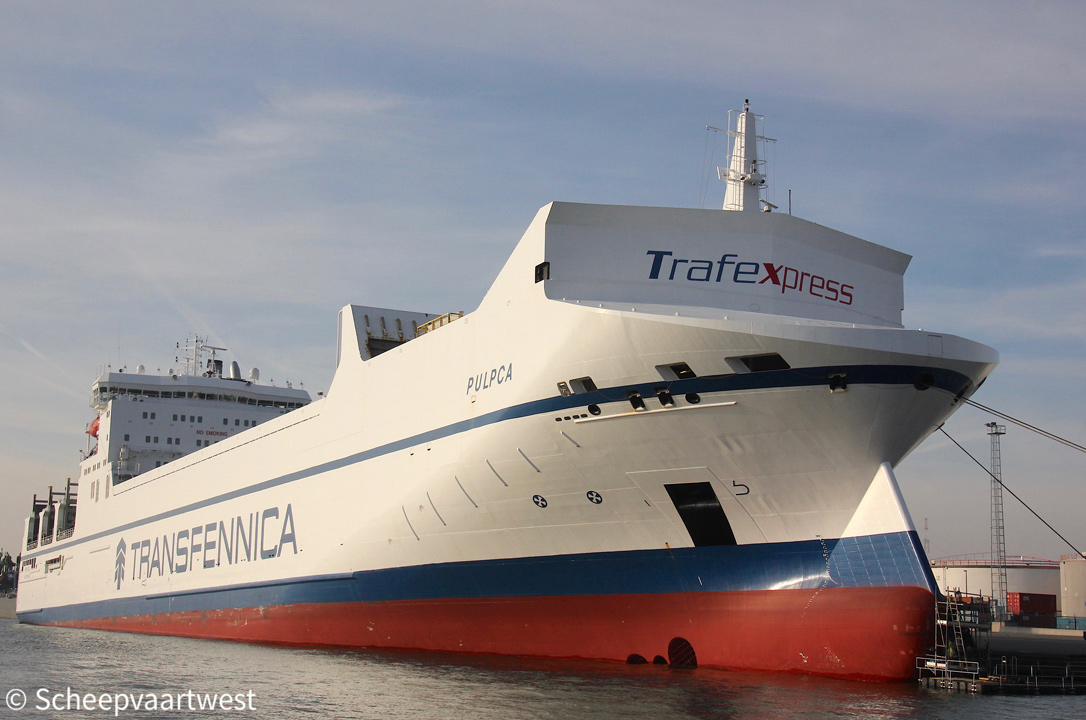

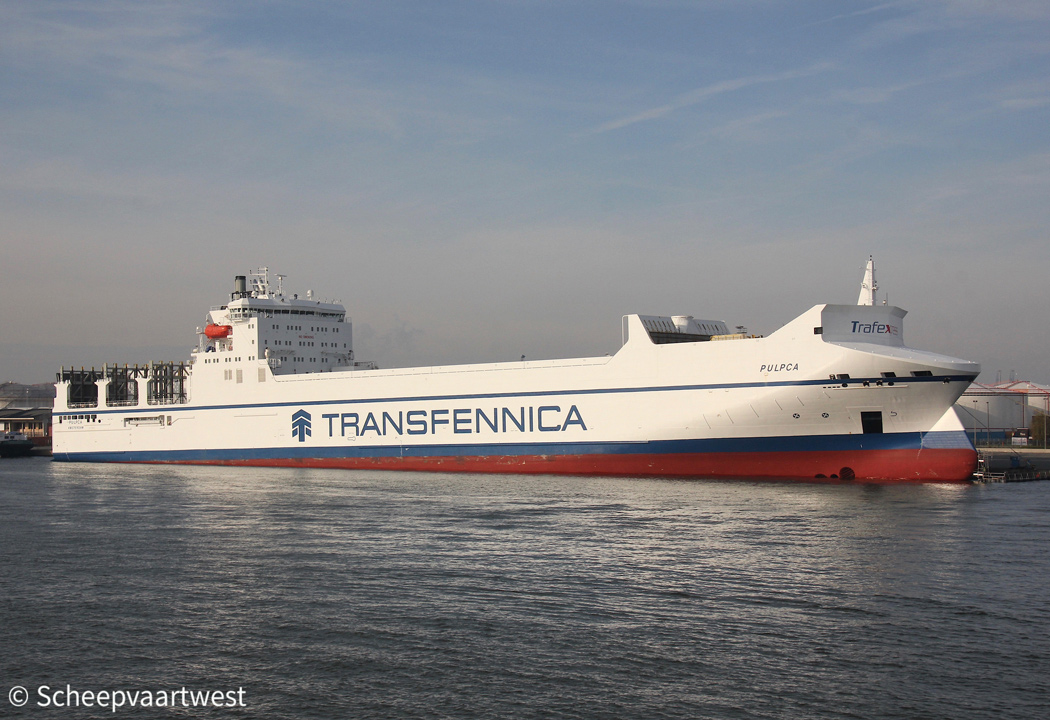

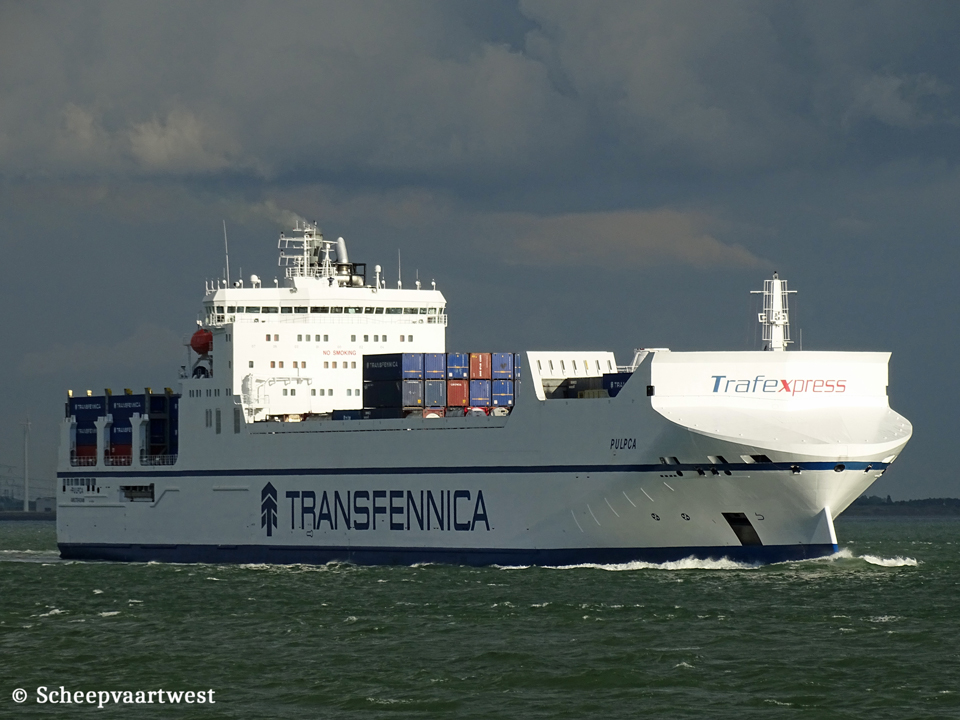

Pulpca 01   Pulpca 02   Pulpca 03   Pulpca IMO 9345386 04
Antwerpen 04/11/18   Antwerpen 04/11/18 Westerschelde 22/05/18   Westerschelde 01/10/16


Name

PULPCA

Type

Roll-On/Roll-Off carrier - Container ship

IMO-number

9345386

Call sign

PHMT

Flag

The Netherlands

Port of registry

Amsterdam

GT

28.289 t

DWT

Summer: 18.250 t

NT

8.486 t

Light ship

12.400 t

Number of 20ft containers

In hold: 346

On deck: 297

Total: 643

Container capacity 14t

346

Reefer capacity

20

Length

205,00 m overall

190,00 m between perpendiculars

Breadth

25,80 m moulded

Draught

Max: 8,40 m

Lane metres

2.963 m

Depth

21,25 m moulded

Speed

Max: 22,7 knots

Built

2008

Launch date

20/10/2007

Date of completion

04/2008

Builder

Stocznia Szczecinska Nowa Sp. z o.o.

Szczecin (Stettin)

Poland

Yard number

B201-II/05

Hull material

Higher tensile steel

Hull type

Single hull

Number of decks

3

Main engine

2x Wärtsilä 12V46C - 4 stroke single acting 12 cylinder 460 x 580 mm combustion engines each 12.600 kW / 17.131 hp at 500 rpm

Total 25.215 kW / 34.262 hp

Manufacturer: O/Y Wärtsilä A/B, Turku - Finland

Propellers

2x Controllable pitch propellers aft at 212,0 rpm

Boilers

1x Exhaust gas economiser

1x Thermal oil heater

Shaft generator

2x 1.292 kW / 450 Volt 60 Hz

Generators

2x Wärtsilä 8L20 - 4 stroke 8 cylinder 200 x 208 mm diesel engines each 1.360 kW connected with generators each 1.700 kW / 450 Volt 60 Hz

Emergency generator

1x Mitsubishi S6R2-MPTA, - 4 Stroke 6 cylinder 170 x 220 mm diesel engine 470 kW

Bow thruster

2x 1.250 kW / 1.700 bhp

Ramp

1x Centre 17,50 m x 25,00 m x 85 t

Number of passengers

12

Number of beds

12

Crew size

32

Manager

Spliethoff's Bevrachtingskantoor BV

Radarweg 36

1042 AA Amsterdam

The Netherlands

Operator

Transfennica

Helsinki

Finland

Registered owner

Pulpca Rederij

Care of Spliethoff's Bevrachtingskantoor BV

Radarweg 36

1042 AA Amsterdam

The Netherlands

Previous owners

04/2008 - 02/2016 B.V. Beheermaatschappij Pulpca II, Amsterdam - The Netherlands

Latest data adjustment

17 August 2024
