Westerschelde 18 August 2017 |
 |
 |
|
| Westerschelde 18/08/17 | Westerschelde 27/06/18 | |
|
Name |

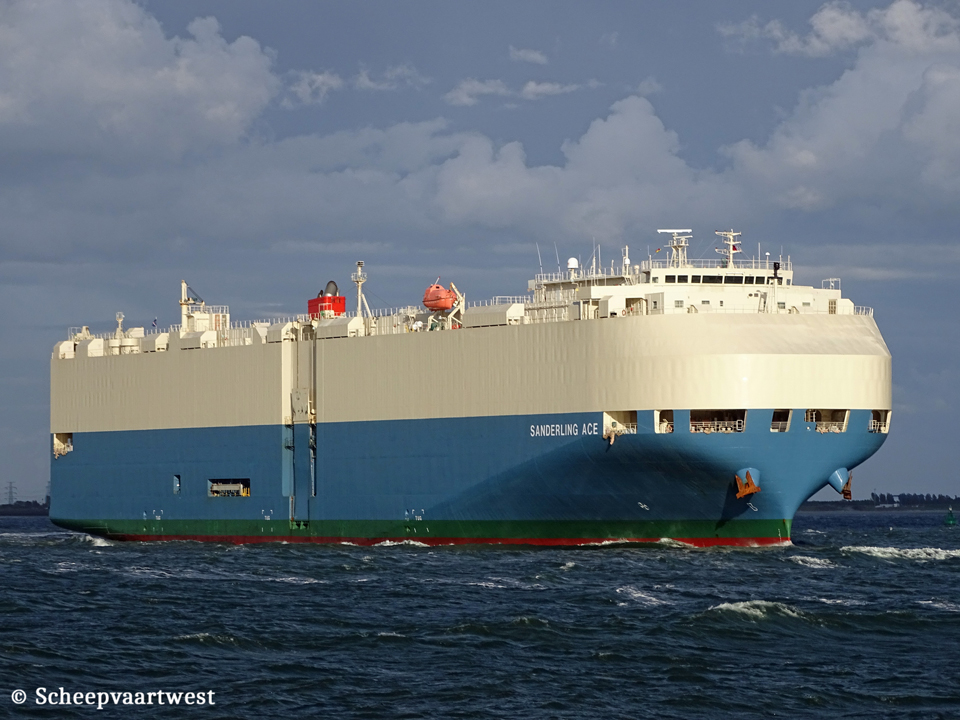

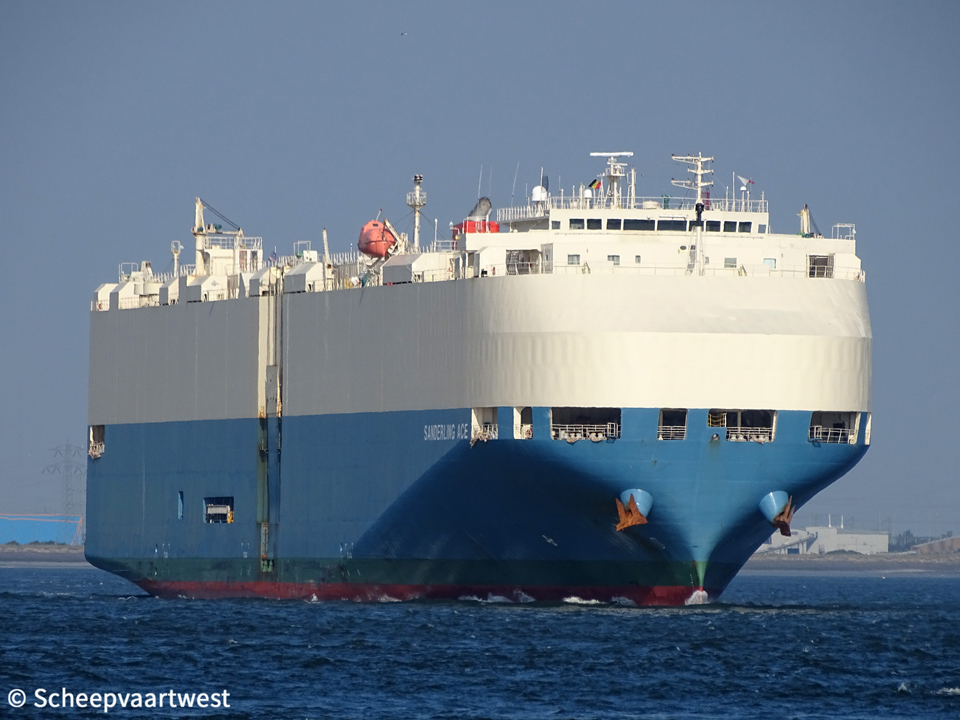

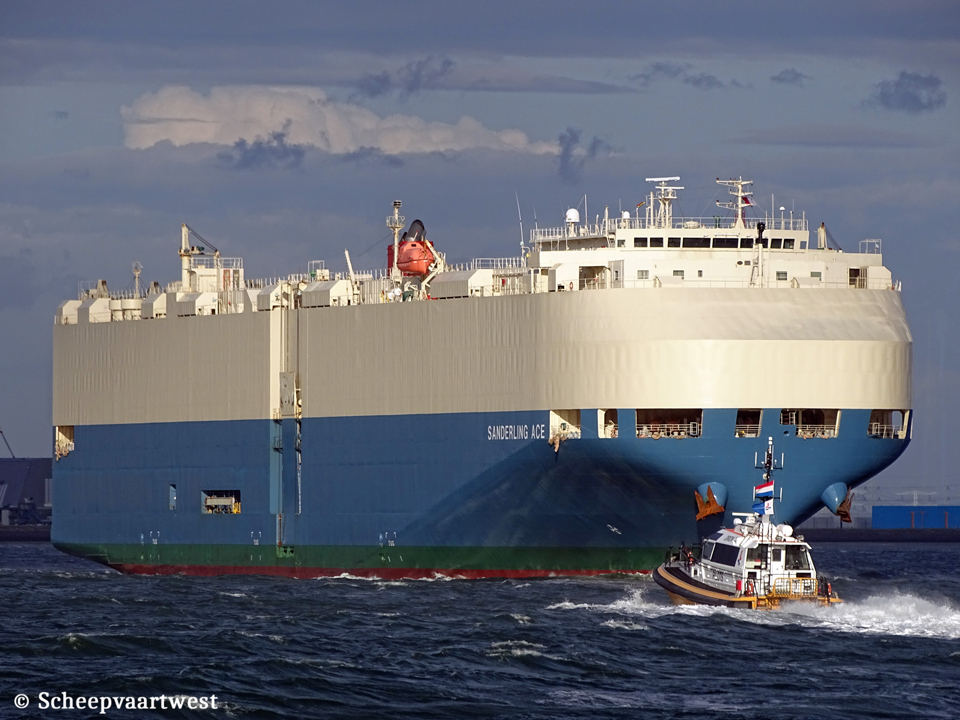

SANDERLING ACE |
|
Type |
Roll-On/Roll-Off carrier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9409481 |
|
Call sign |
V7UZ3 |
|
Flag |
Marshall islands |
|
Port of registry |
Majuro |
|
Previous flags |
2007 - 2017 Cayman Islands, George Town - Call sign: ZCTI7 |
|
GT |
58.685 t registered |
|
DWT |
Summer: 18.865 t |
|
NT |
18.167 t registered |
|
Length |
199,95 m overall 190,00 m between perpendiculars |
|
Breadth |
32,20 m |
|
Draught |
Max: 9,82 m |
|
Moulded L x B x D |
190,00 x 32,20 x 14,70 m |
|
Registered L x B x D |
190,86 x 32,20 x 21,19 m |
|
Forecastle |
4.914 mm |
|
Depth |
14,70 m moulded |
|
Speed |
Max: 22,4 knots |
|
Built |
2007 |
|
Keel laid |
13/10/2006 |
|
Launch date |
06/03/2007 |
|
Date of completion |
22/06/2007 |
|
Builder |
Minaminippon Shipbuilding Co., Ltd. Usuki Japan |
|
Yard number |
705 |
|
Hull material |
Steel |
|
Main engine |
1xMitsui/MAN-B&W 7S60MC-C - 2 stroke single acting 7 cylinder 600 x 2.400 mm combustion engine 15.130 kW / 20.289 bhp at 100,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd., Tamano - Japan |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 620 mm |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary vertical boiler - 7,8 bar Evaporation: 3,98 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Diesel generatorsets each 975 kVA |
|
Number of cars |
5.222 |
|
Ro/Ro ramps |
1x Starboard 1x Starboard aft |
|
Tank capacities |
Fuel oil: 2.951 m³ Fresh water: 671 m³ |
|
Crew size |
30 |
|
Manager |
Kansai Steamship Co. Ltd. Across Shinkawa Building Annex 6th Floor, 16-14, Shinkawa 1-Chome, Chuo-ku Tokyo Japan |
|
Previous managers |
MOL Ship Management (Singapore) Pte. Ltd., Singapore |
|
Registered owner |
New Shipcarrier SA |
|
Previous owners |
2007 - 2017 GL Lotus (Cayman) Ltd., Republic of Singapore |
|
Latest data adjustment |
23 June 2024 |
