Westerschelde 06 May 2019 |
|
Name |

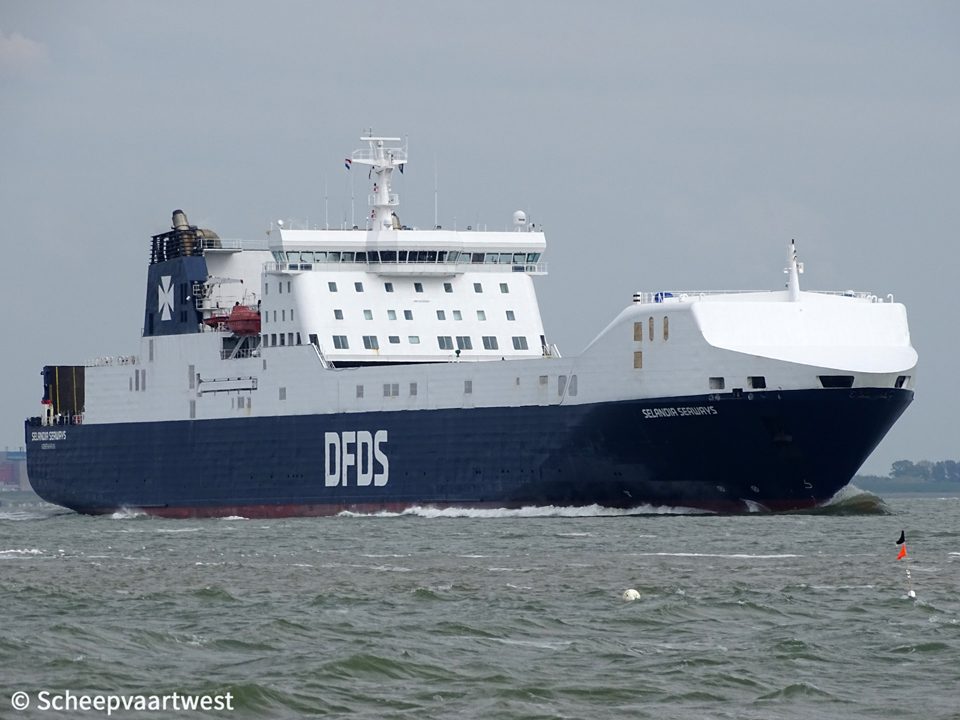

SELANDIA SEAWAYS |
|
Previous names |
1998 - 08/2010 Tor Selandia |
|
Type |
Roll-On/Roll-Off carrier |
|
IMO-number |
9157284 |
|
Call sign |
OWLH2 |
|
Flag |
Denmark |
|
Port of registry |
København |
|
Previous flags |
03/1999 - 10/2012 Sweden, Göteburg - Call sign: SIZE |
|
GT |
24.803 t |
|
DWT |
Summer: 11.089 t |
|
NT |
7.441 t |
|
Number of 20ft containers |
Weather deck: 180 Main deck: 400 Tank top: 67 Total: 647 |
|
Reefer capacity |
Weather deck: 40 Main deck: 35 Total: 75 |
|
Length |
197,02 m overall 180,55 m between perpendiculars |
|
Breadth |
25,90 m |
|
Draught |
Max: 7,50 m |
|
Lane metres |
Weather deck: 1.162 m Main deck: 1.204 m Tank top: 406 m Total: 2.772 m |
|
Air draft |
38,10 |
|
Depth |
16,60 m |
|
Speed |
Max: 21,7 knots |
|
Built |
1998 |
|
Launch date |
10/04/1998 |
|
Date of completion |
04/03/1999 |
|
Builder |
Fincantieri Cantieri Navali Italiani S.P.A. Ancona Italy |
|
Yard number |
6020 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Bulkheads |
Transverse: 6 |
|
Number of decks decks |
3 |
|
Main engine |
2x Wärtsilä Sulzer 9ZAL50S - 4 stroke single acting 9 cylinder 500 x 600 mm combustion engines each 10.800 kW / 14.684 hp at 450 rpm Manufacturer: Wärtsilä Italia S.p.A. |
|
Propellers |
2x KaMeWa Rolls-Royce controllable pitch propellers 4 blades- aft at 131 rpm |
|
Boilers |
2x Auxiliary boiler, exhaust gas heated AV-6N 1x Auxiliary boiler, oil/gas fired AQ10/12 Manufacturer: Aalborg Industries A/S |
|
Generators |
3x Wärtsilä S20/6 main diesel generatorsets Manufacturer: Wärtsilä NSD Switzerland Ltd. |
|
Emergency generator |
1x Isotta Fraschini L-1306-T3TE50 diesel generatorset |
|
Bow thruster |
2x 1.100 kW each, Fincantieri |
|
Trail capacity 14,00 m |
Weather deck: 75 Main deck: 78 Tank top: 24 Total: 177 |
|
Car capacity |
Deck 1: 124 Deck 2: 138 Ramp: 6 |
|
Square metres |
Weather deck: 3.456 m² Main deck: 3.692 m² Car deck: 1.480 m² Tank top: 1.366 m² Total: 9.994 m² + ramps 515 m² |
|
Free height |
Weather deck: 5,00 m Main deck: 6,10 m Car deck: 2,10 m Tank top: 5,00 m |
|
Tank capacities |
Ballast: 6.457 m³ |
|
Lifting equipment |
1x Liebherr CBW 40/26 crane - SWL 4,0 t Outreach: 26,00 m |
|
Passengers |
12 |
|
Manager |
DFDS A/S København Denmark |
|
Registered owner |
DFDS Seaways AB Sydatlanten 6 Götebug Denmark |
|
Previous names & shipping companies |
1998 - 1999 Tor Selandia - Tor Line 1999 - 2010 Tor Selandia - DFDS Tor Line 2010 - 2010 Tor Selandia - DFDS Seaways |
|
Latest data adjustment |
07 January 2020 |
