MSC Los Angeles 02
Antwerpen 06 April 2010

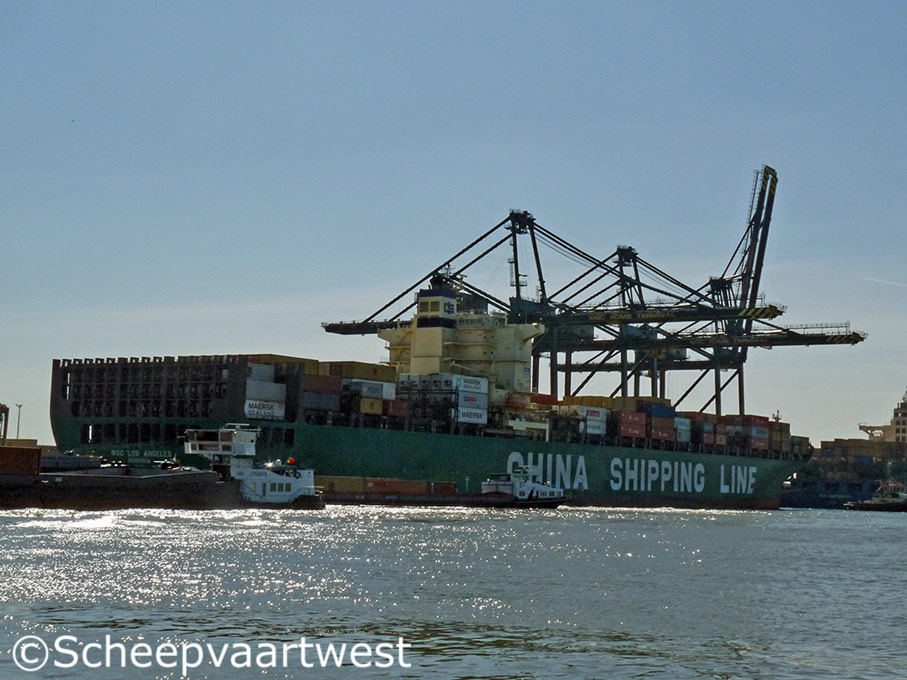

MSC Los Angeles 01
Antwerpen 06/04/10



Name

MSC LOS ANGELES

Previous names

2001 E.R. Los Angeles

01.08.2008 CSCL Los Angeles

2010 MSC Los Angeles

Type

Cellular containership

IMO-number

9222986

Call sign

A8AX8

Flag

Liberia

Port of registry

Monrovia

GT

66.058 t

DWT

68.131 t

NT

34.043 t

Number of 20ft containers

5.514

Reefer capacity

500

Container capacity 14t

4180

Length

277,22 m overall

263,15 m registered

Breadth

40,00 m

Draught

14,00 m

Forecastle

255,25 m

Poop

7,90 m

Freeboard

3.639 mm

Depth

20,23 m

Speed

24,9 knots

Built

2001

Keel laid

04.01.2001

Launch date

31.03.2001

Date of completion

06.2001

Builder

Samsung Heavy Industries Co., Ltd. Geoje Shipyard
530, Jangpyeong-ri, Sinhyeon-eup
Geoje , Gyeongsangnam-do 656-710
Republic of Korea

Yard number

1351

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

9

Continuous decks

2

Main engine

1x MAN-B&W 12 K 90 MC - 2 stroke single acting 12 cylinder 900 x 2.550 mm diesel engine - 54.900 KW at 94 rpm

Year of manufacture: 2001

Manufacturer: HSD Engine Co., Ltd.
69 Sinchon-dong
Changwon , Kyungnam 641-370
Republic of Korea

Propeller

1x Solid propeller (keyless) - aft at 94 rpm

Boilers

1x Steam boiler, oil fired - 9,8 bar

Heating surface: 55,0 m²

Built: 2000

1x Steam boiler, exhaust gas heated - 9,8 bar

Heating surface: 1.026,0 m²

Built: 2001

Manufacturer: KangRim Ind. Co., Ltd. (1st Factory)
505, Sinpyung-dong, Saha-gu
Busan
Republic of Korea

Electric installations

4x Plants each 440/220 V - 2.750 kVA

1x Plant 440 V - 188 kVA

1x Plant 24 V - 200 Ah

Generators

4x Main diesel generatorsets each 2.750 kVA

Emergency generator

1x Diesel generatorset 188 kVA

Batteries

1x Battery for UPS radio 200 Ah

Compressed air receivers

2x Receivers each 16.000 litres - 27,5 bar

1x Receiver 300 litres - 27,5 bar

1x Receiver 150 litres - 27,5 bar

1x Receiver 500 litres - 11,0 bar

1x Receiver 300 litres - 7,7 bar

Bow thruster

1x Transverse thruster - 2.000 kW, forward

Tank capacities

Fuel oil: 8.737 m³

Water ballast: 15.061 m³

Anchor equipment

3x Anchors weight each 15.400 kg
Chain length: 742,50 m

Cargo gear

Gearlass

Manager

E.R. Schiffahrt GmbH & Cie. KG

Operator

China Shipping Line

Owner

E.R. Schiffahrt GmbH & Cie. KG

Renamed

2010 E.R. Los Angeles
