Westerschelde 21 February 2020 |
 |
 |
 |
 |
|||
| Westerschelde 21/02/20 | Westerschelde 21/02/20 | Westerschelde 05/01/20 | Westerschelde 05/01/20 | |||
|
Name |

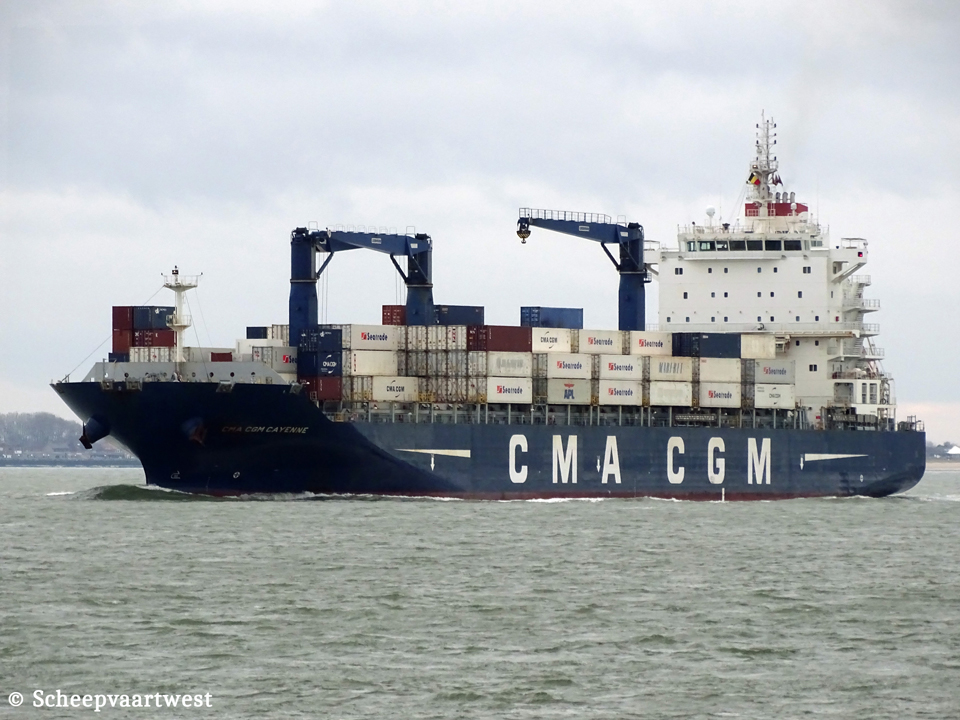

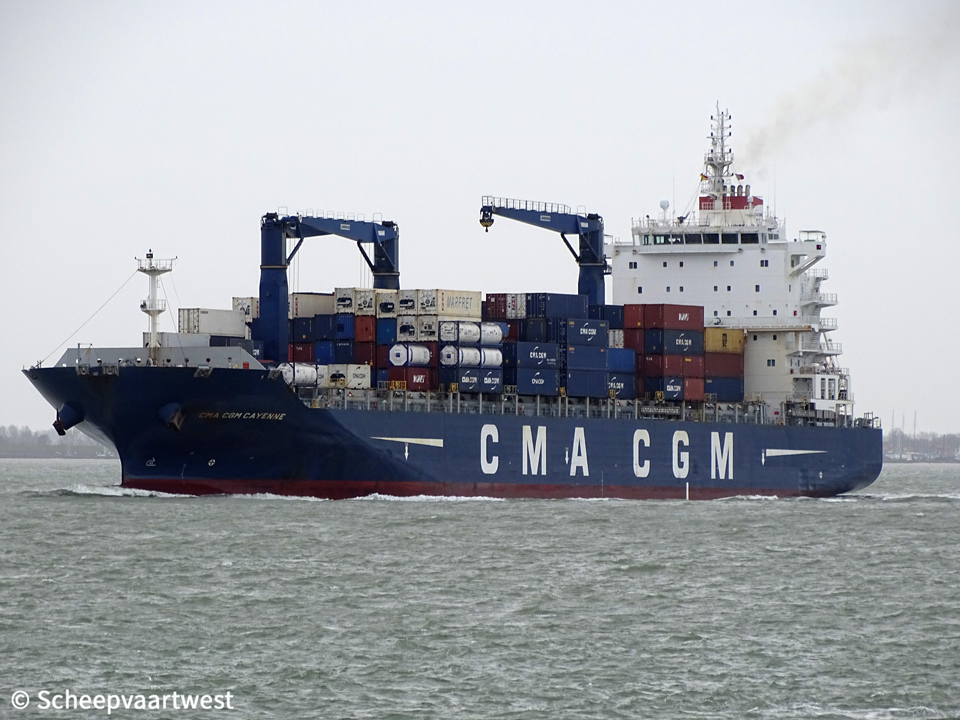

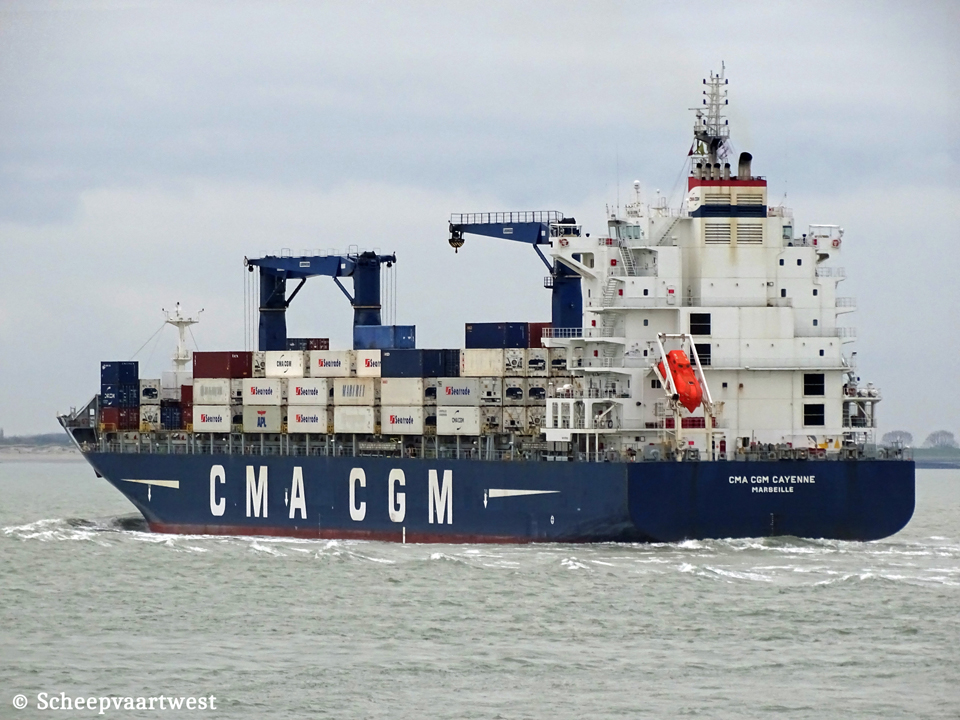

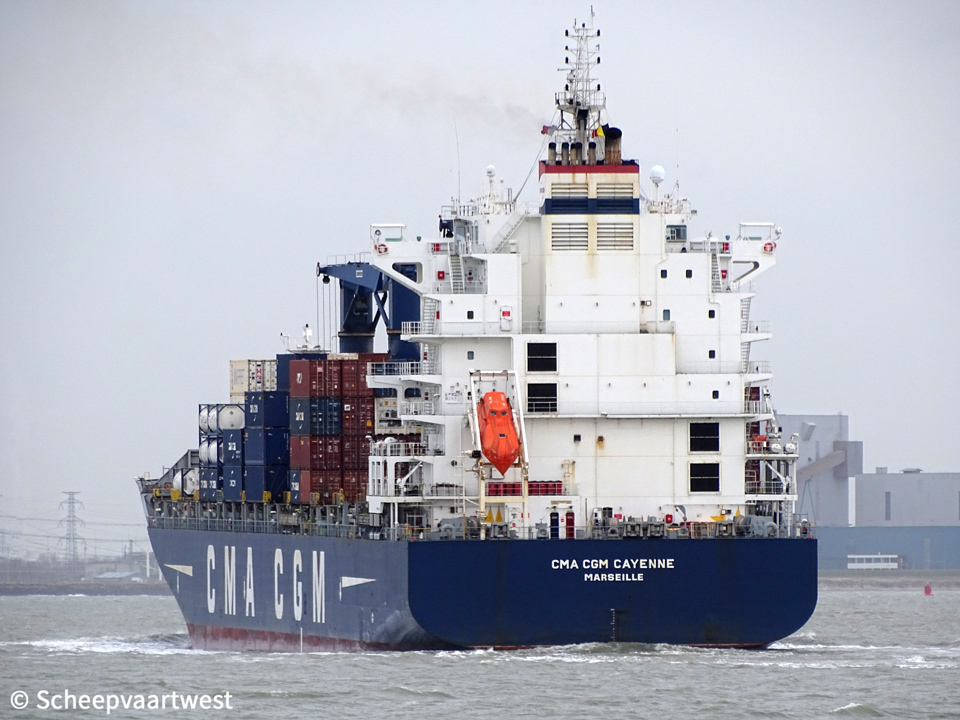

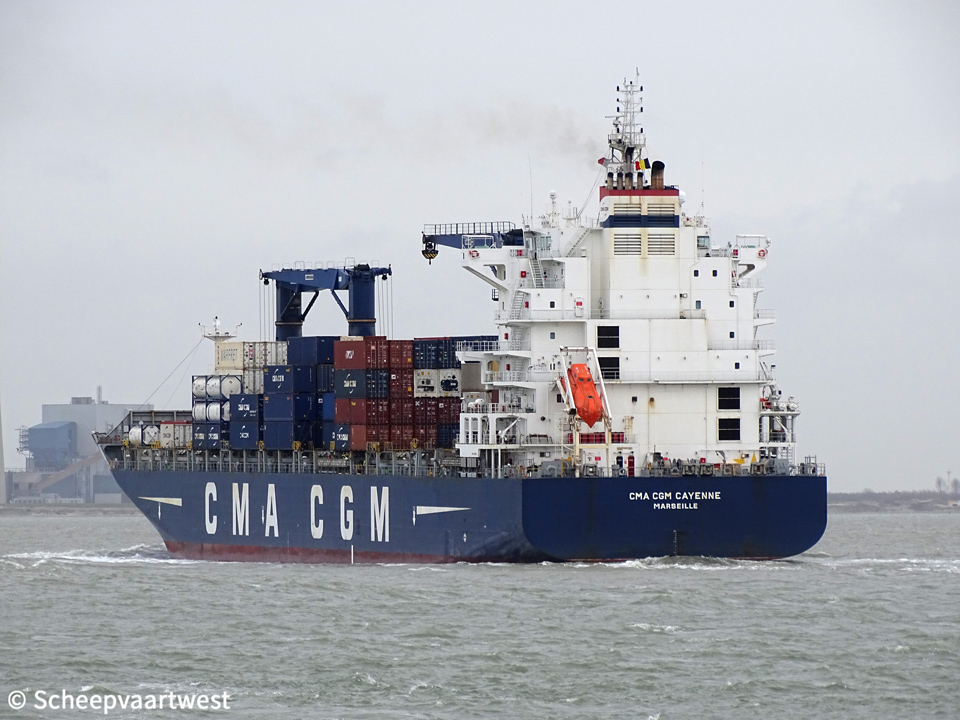

CMA CGM CAYENNE |
|
Type |
Geared cellular containership - Feedermax |
|
IMO-number |
9709192 |
|
Call sign |
FLVR |
|
Flag |
France |
|
Port of registry |
Marseille |
|
Previous flags |
2015 - 2019 United Kingdom - Call sign: 2IIX7 |
|
GT |
26.645 t |
|
DWT |
27.322 t |
|
NT |
7.993 t |
|
Number of 20ft containers |
2.140 |
|
Container capacity 14t |
1.570 |
|
Reefer capacity |
530 |
|
Length |
190,00 m overall 180,00 m between perpendiculars |
|
Breadth |
30,00 m |
|
Draught |
Max: 9,50 m |
|
Freeboard |
7.522 mm |
|
Depth |
17,00 m |
|
Speed |
Max: 19,4 knots |
|
Built |
2015 |
|
Date of completion |
21/07/2015 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. Ulsan South Korea |
|
Yard number |
4092 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
10 |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai/Wärtsilä 7RT-Flex58T-E - 2 stroke single acting 7 cylinder 580 x 2.416 mm combustion engine 16.450 kW / 22.351 hp at 105,0 rpm Build: 19/03/2015 Builder: Hyundai Heavy Ind. Co., Ltd. - Engine & Mach. Div., Ulsan - South Korea |
|
Propellers |
1x Screw propeller solid - aft at 105,0 rpm |
|
Boilers |
1x CHM Kangrim Heavy IND. 471,60 m² - 7,00 bar |
|
Generators |
4x Main diesel generatorsets each 2.750 kVA - 2.200 kW - 3.179 hp |
|
Emergency generator |
1x Diesel generatorset 188 kVA - 150 kW - 255 hp |
|
Bow thruster |
1x Tunnel thruster 1.300 kW / 1.767 bhp, forward 1x Tunnel thruster 1.000 kW / 1.360 bhp, aft |
|
Number of holds |
5 |
|
Total capacity of holds |
46.708,2 m³ |
|
Tank capacities |
Fuel: 2.673,3 m³ |
|
Cargo gear |
3x Deck cranes - SWL 40,0 t each |
|
Crew size |
22 |
|
Manager |
CMA CGM SA The French Line 4, Quai d Arenc 13002 Marseille France |
|
Operator |
CMA CGM |
|
Registered owner |
Guyane 4092 SNC |
|
Latest data adjustment |
10 June 2020 |
