Westerschelde 12 December 2019 |
 |
 |
 |
 |
 |
||||
| Westerschelde 12/12/19 | Westerschelde 11/08/19 | Westerschelde 11/08/19 | Westerschelde 11/08/19 | Westerschelde 01/05/17 | ||||
|
Name |

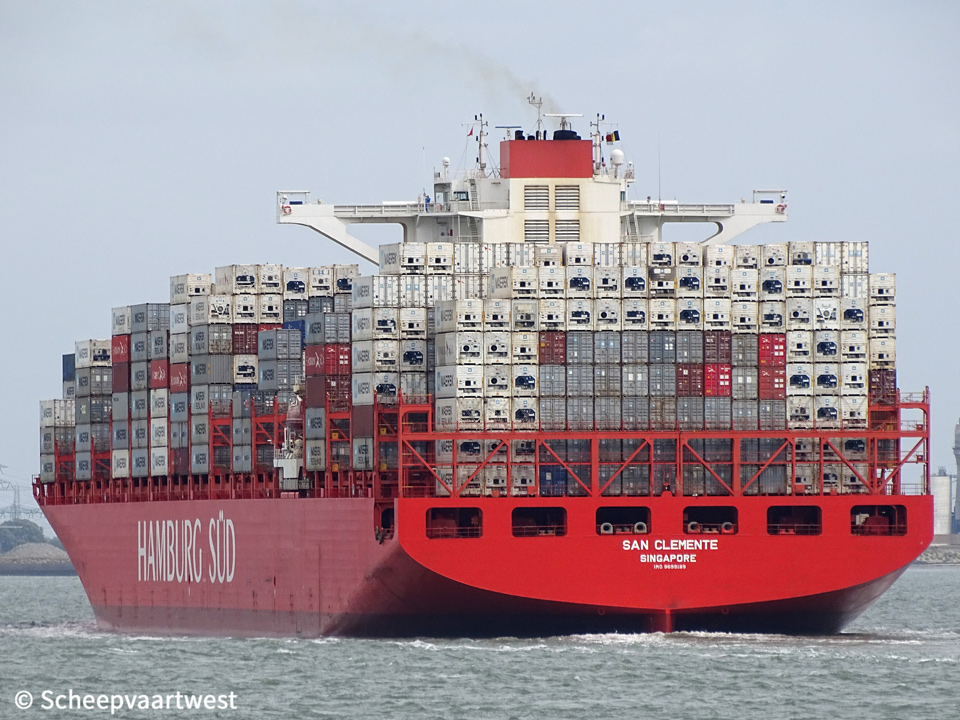

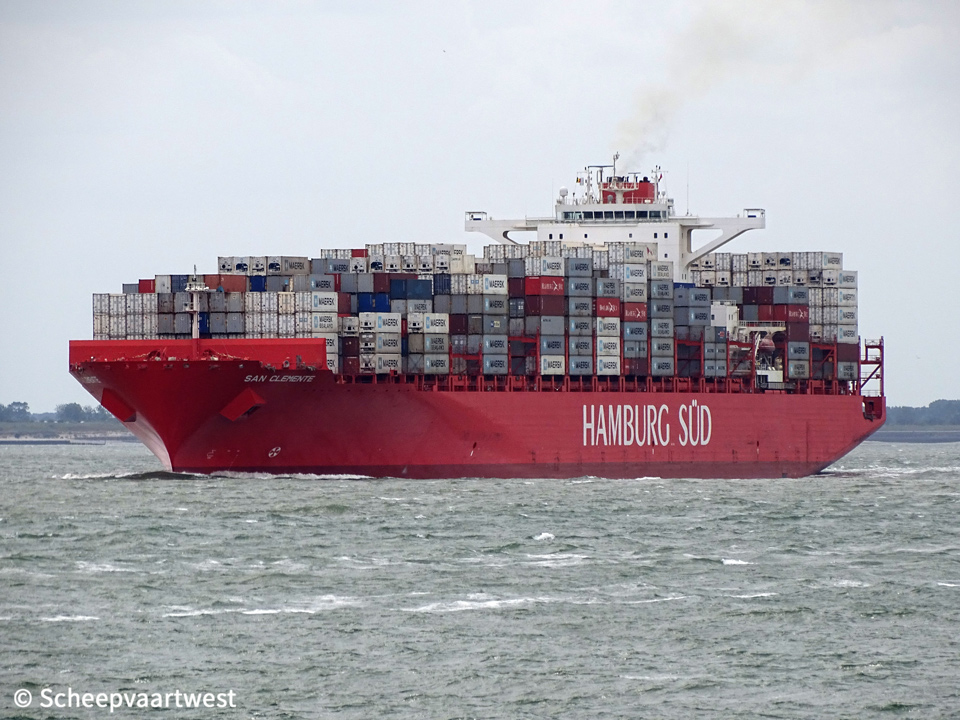

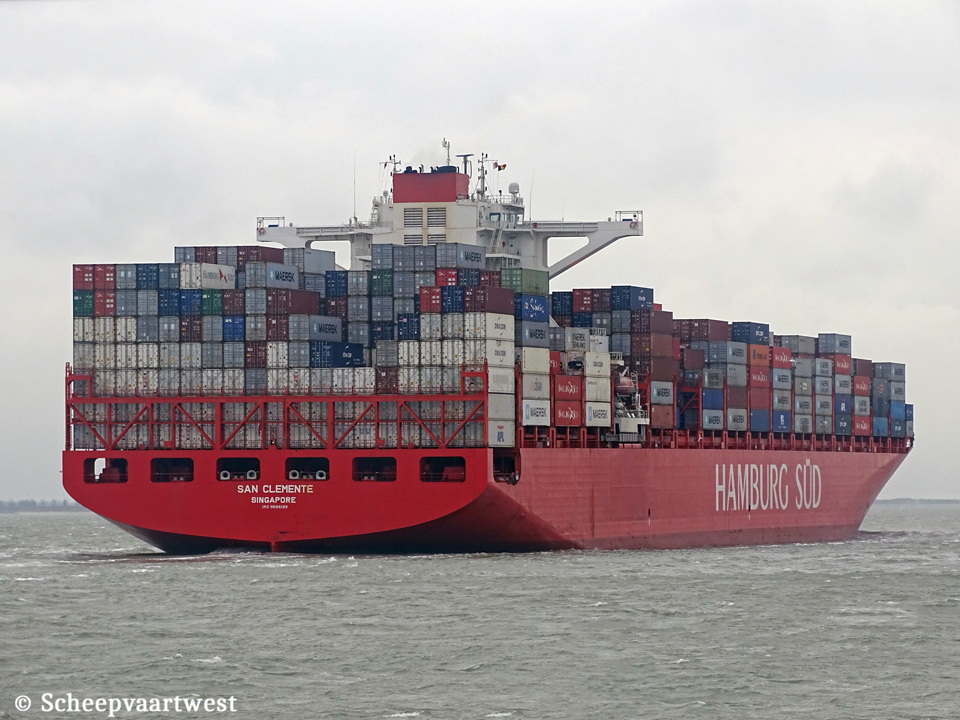

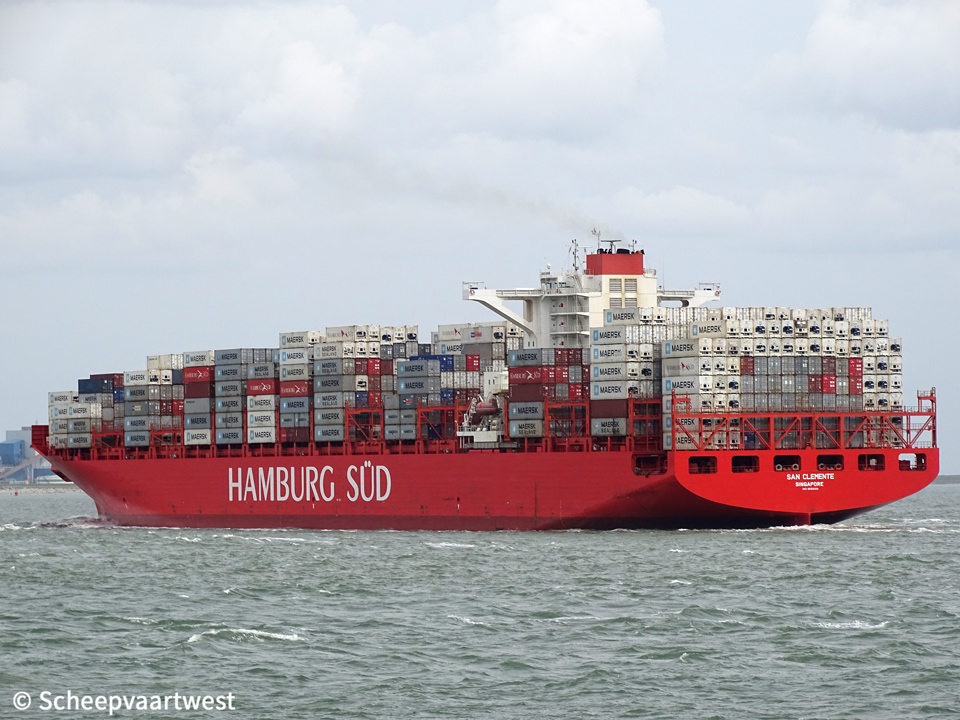

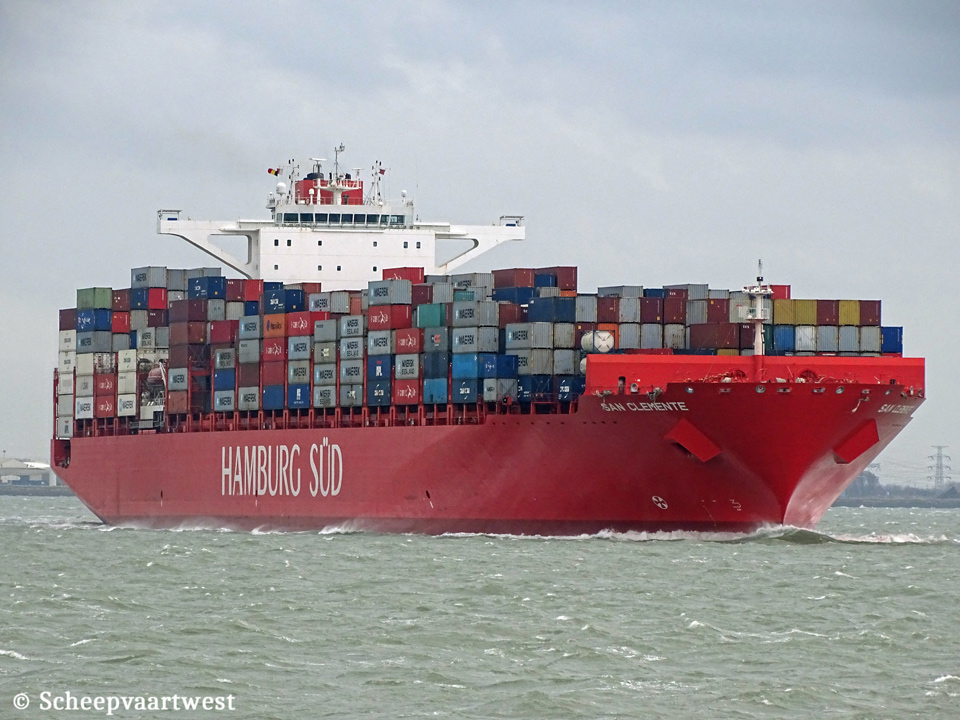

SAN CLEMENTE |
|
Type |
Cellular containership - Carriage of dangerous goods - Panamax |
|
IMO-number |
9699189 |
|
Call sign |
9V9091 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
Previous flags |
2014 - 2018 Liberia, Monrovia - Call sign: D5GN4 |
|
GT |
94.930 t Suez: 96.835,36 t |
|
DWT |
Summer: 112.231 t |
|
NT |
58.464 t Suez: 86.065,57 t Panama: 93.558 t |
|
Displacement |
142.961 t |
|
Number of 20ft containers |
9.034 |
|
Container capacity 14t |
7.200 |
|
Reefer capacity |
1.370 |
|
Length |
299,92 m overall 287,00 m between perpendiculars |
|
Breadth |
48,28 m moulded |
|
Draught |
Max: 12,50 m |
|
Freeboard |
5.756 mm |
|
Depth |
24,80 m moulded |
|
Speed |
Max: 22,0 knots |
|
Built |
2014 |
|
Keel laid |
04/03/2014 |
|
Launch date |
23/05/2014 |
|
Delivery date |
25/07/2014 |
|
Builder |
Hyundai Heavy Ind. Co., Ltd. Contract Management Dept. 1000 Bangeojinsunhwan-Doro Dong-Gu - Ulsan South Korea |
|
Yard number |
2711 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä W9X82 - 2 stroke single acting 9 cylinder 820 x 3.375 mm combustion engine 36.440 kW / 49.544 hp at 74,5 rpm Manufacturer: Hyundai Heavy Industries Engine & Machinery Div. - South Korea |
|
Propellers |
1x Fixed pitch propeller - Aft at 74,5 rpm Manufacturer: Hyundai Heavy Industries Engine & Machinery Div. |
|
Boilers |
1x Auxiliary boiler - 6,87 MPa 1x Exhaust Gas Boiler - 6,87 MPa Manufacturer: Kangrim Heavy Industries Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 3.840 kW 1x Main diesel generatorset 2.880 kW Manufacturer: Hyundai Heavy Industries Electro Electric System |
|
Tank capacities |
Diesel oil: 578,40 m³ Fuel oil: 7.482,20 m³ Ballast: 28.927,50 m³ Lub oil: 466,60 m³ Fresh water: 598,80 m³ |
|
Lifting equipment |
1x Engine room crane - SWL 9,5 t Manufacturer: Oriental Prec & Eng'g Co. 1x Monorail crane - SWL 9,5 t Manufacturer: Dongnam Marine Crane Co., Ltd. |
|
Cargo gear |
Gearless |
|
Crew size |
24 |
|
Manager |
Maersk Line A/S Esplanaden 50 1098 Copenhagen, K Denmark |
|
Operator |
Hamburg Süd Hamburg Germany |
|
Registered owner |
A.P. Moller Singapore Pte. Ltd. 200 Cantonment Road #10-00 Southpoint Singapore, 089763 Republic of Singapore |
|
Previous owners |
Siebte Santa GmbH & Co KG |
|
Latest data adjustment |
05 June 2023 |
