Westerschelde 26 April 2019 |
 |
 |
 |
 |
 |
 |
|||||
| Westerschelde 08/10/19 | Westerschelde 08/10/19 | Westerschelde 13/04/20 | Westerschelde 13/04/20 | Westerschelde 13/04/20 | Westerschelde 04/12/19 | |||||
|
Name |

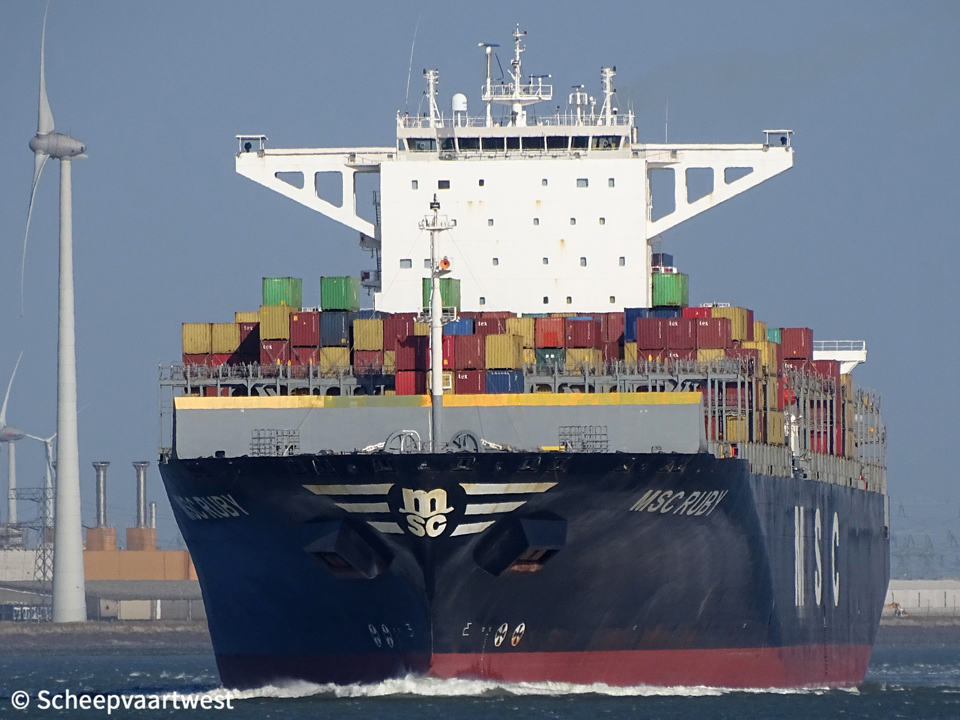

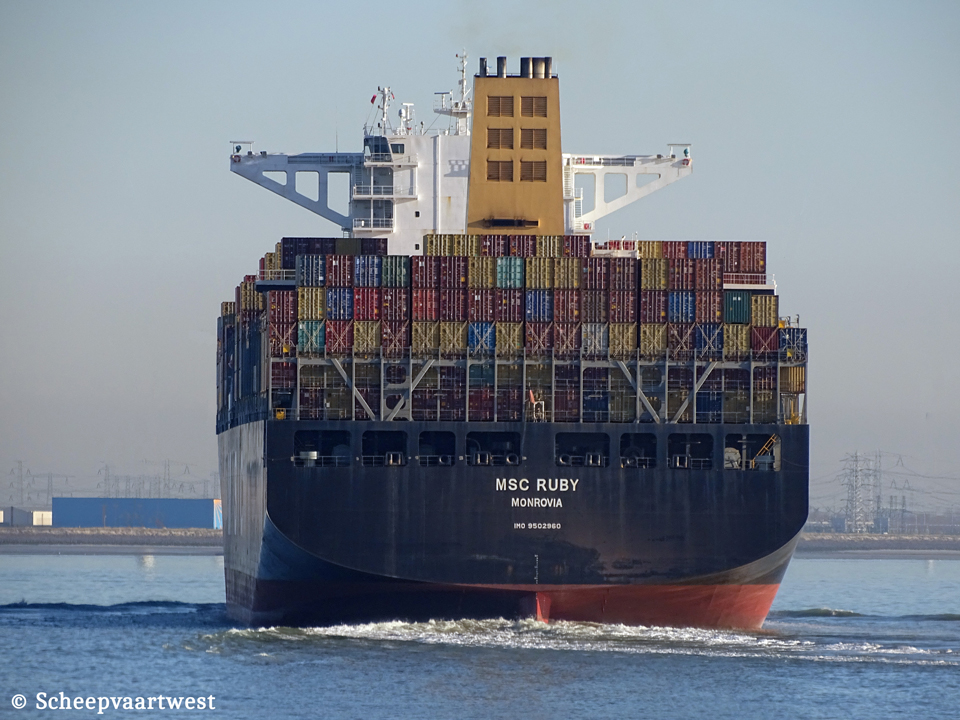

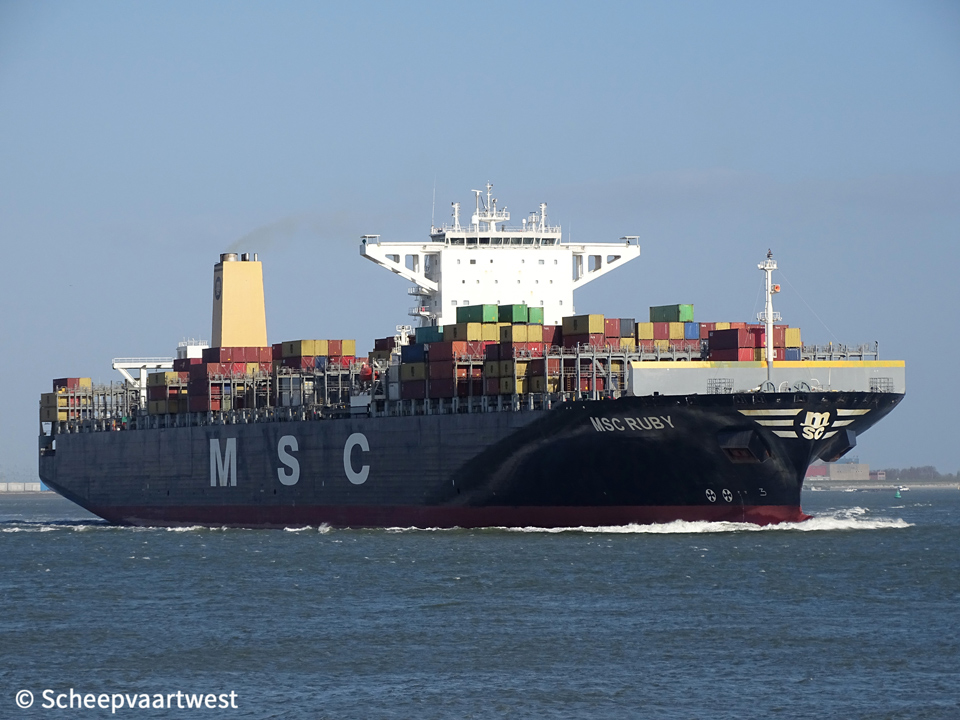

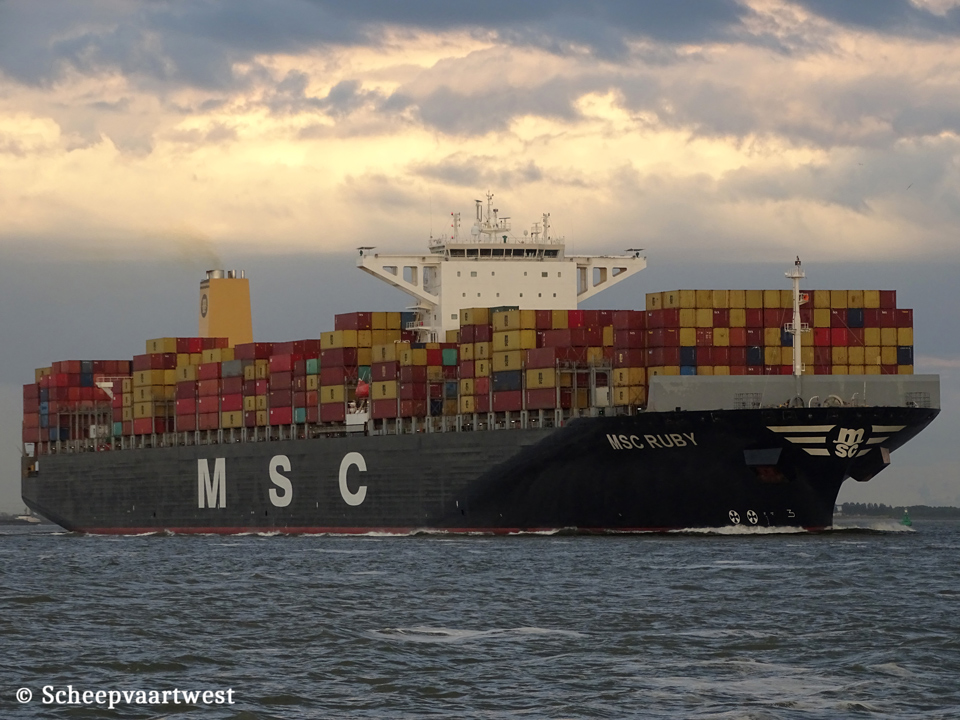

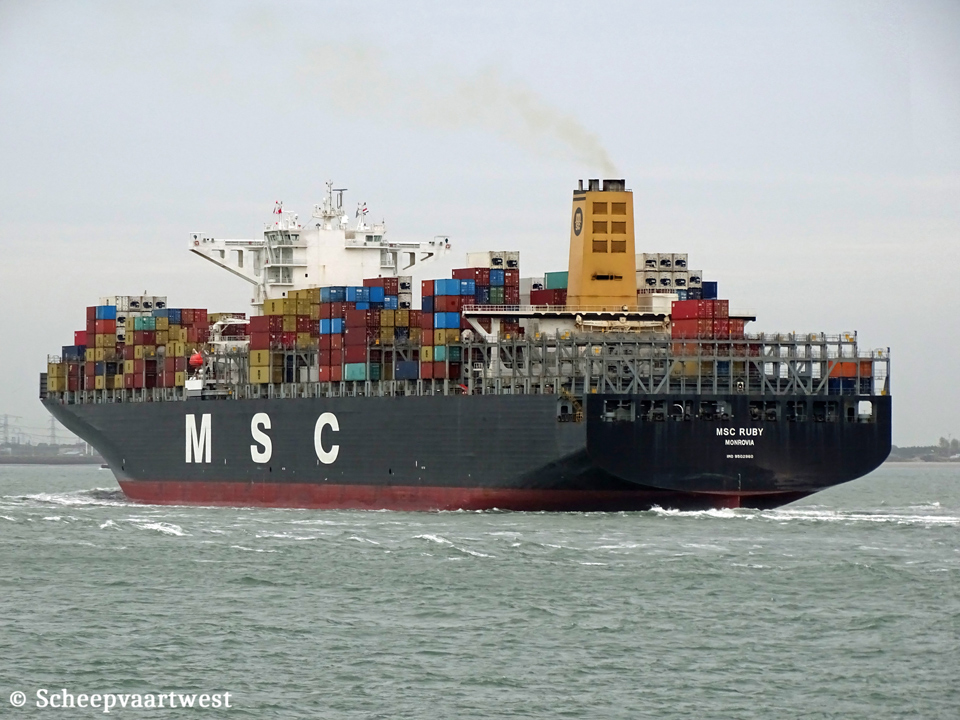

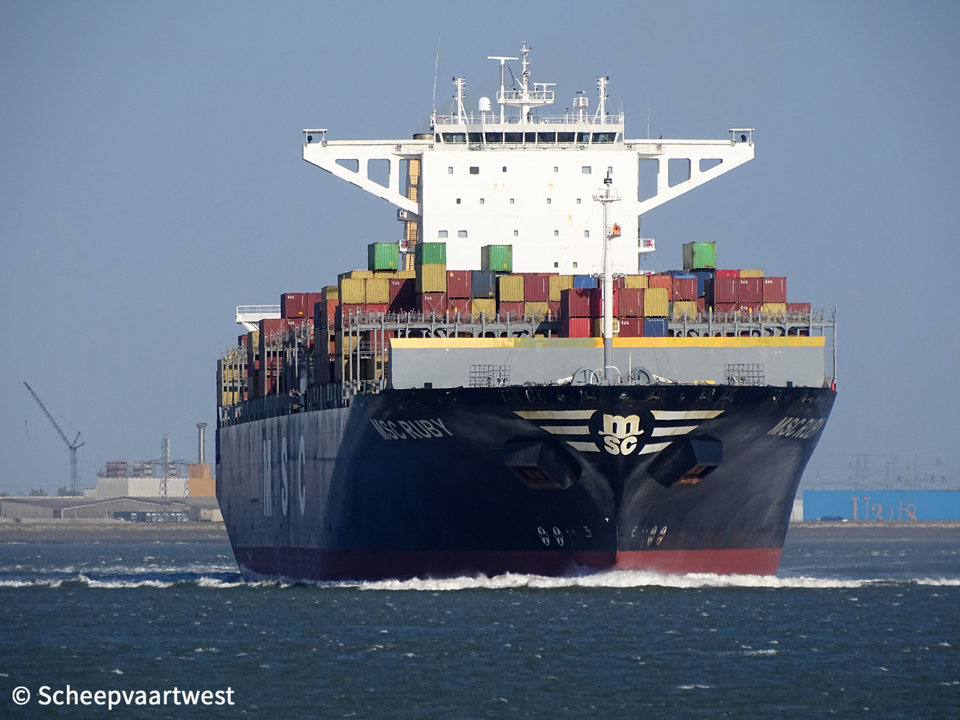

MSC RUBY |
|
Previous names |
Launch as: 2013 Rio Nadia 2013 - 2017 Hanjin Gold |
|
Type |
Cellular containership |
|
IMO-number |
9502960 |
|
Call sign |
D5NJ4 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2013 - 2017 Isle of Man, Douglas - Call sign: 2GEL2 |
|
GT |
141.754 t |
|
DWT |
Summer: 140.973 t |
|
NT |
60.615 t |
|
Number of 20ft containers |
In hold: 6.018 On deck: 7.074 Total: 13.092 |
|
Container capacity 14t |
9.000 |
|
Reefer capacity |
800 |
|
Length |
366,00 m overall 350,00 between perpendiculars |
|
Breadth |
48,20 m |
|
Draught |
Max: 15,52 m |
|
Freeboard |
4.959 mm |
|
Depth |
29,85 m |
|
Speed |
Max: 26,3 knots Service: 23,7 knots |
|
Built |
2013 |
|
Keel laid |
03/09/2012 |
|
Launch date |
16/11/2012 |
|
Date of completion |
09/04/2013 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. Ulsan South Korea |
|
Yard number |
H-2236 |
|
Hull material |
Steel |
|
Watertight compartments |
10 |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai /Wärtsilä 12RT-flex96C - 2 stroke single acting 12 cylinder 960 x 2.500 mm combustion engine 68.640 kW / 63.540 hp at 102,0 rpm Build: 18/09/2012 Builder: Hyundai Heavy Ind. Co., Ltd. - Engine & Mach. Div. , Ulsan - South Korea |
|
Propellers |
1x Fixed pitch propeller - aft at 102 ,0 rpm |
|
Boilers |
1x CHO 55,90 m² - 9,0 bar 1x CHR 728,20 m² - 9,0 bar |
|
Generators |
2x Main diesel generatorsets each 3.733 kVA - 2.986 kW - 4.008 hp 2x Main diesel generatorsets each 5.067 kVA - 4.054 kW - 5.435 hp |
|
Emergency generator |
1x Diesel generatorset375 kVA - 300 kW - 480 hp |
|
Bow thruster |
2x Tunnel thruster 1.800 kW / 2.447 bhp, forward |
|
Number of holds |
10 |
|
Tank capacities |
Fuel: 13.783 m³ |
|
Cargo gear |
Gearless |
|
Crew size |
32 |
|
Manager |
MSC Shipmanagement Ltd. chemin Rieu, 12-14 1208 Geneva Switzerland |
|
Previous managers |
2013 - 2017 Hanjin Shipping Co., Ltd. 46, Chungjang-daero 9beon-gil Jung-gu, Busan, 600-755, South Korea |
|
Operator |
MSC- Mediterranean Shipping Company |
|
Registered owner |
Imagine Shipping Limited Cyprus |
|
Previous owners |
2013 - 2017 Resolute Leasing 7 Ltd. |
|
Latest data adjustment |
13 December 2021 |
