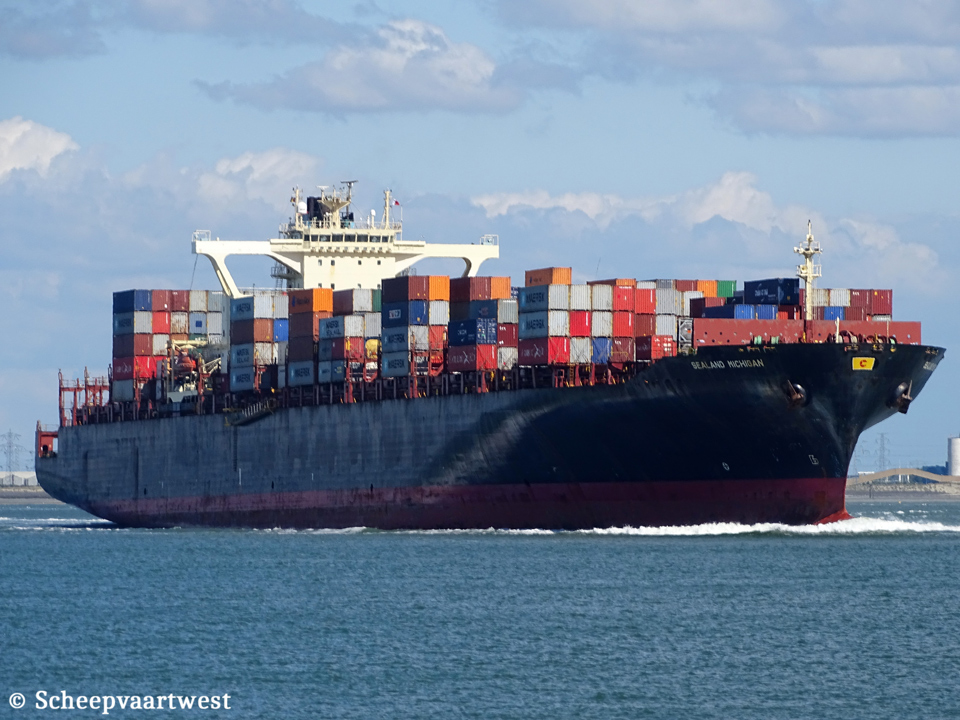

Sealand Michigan IMO 9196864 03

Westerschelde 12 May 2019

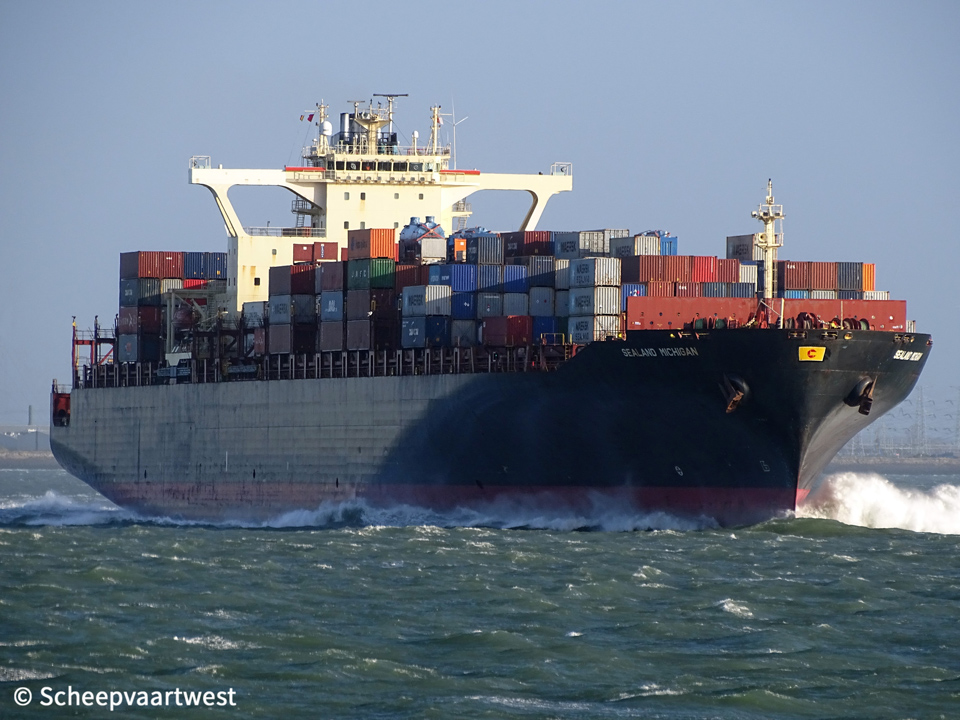

Sealand Michigan 01
 Westerschelde 12/05/19









Name

SEALAND MICHIGAN

Type

Cellular containership

IMO-number

9196864

Call sign

VRSQ3

Flag

Hong Kong - China

Port of registry

Hong Kong

Previous flags

2000 - 2013 Greece - Call sign: SWFA

2013 - 2019 Malta, Valletta - Call sign: 9HA3390

GT

74.583 t

DWT

Summer: 81.574 t

NT

41.490 t

Number of 20ft containers

6.252

Container capacity 14t

4.826

Reefer capacity

500

Length

304,16 m overall

292,00 m between perpendiculars

Breadth

40,00 m

Draught

Max: 14,00 m

Freeboard

6.180 mm

Depth

24,20 m

Speed

Max: 26,0 knots

Built

2000

Date of completion

20/10/2000

Builder

Hyundai Heavy Industries Co., Ltd.

Yard number

1211

Hull material

Mild steel

Hull type

Single hull

Double bottom, continuous from peak to peak bulkhead

Watertight compartments

8

Continuous decks

1

Main engine

1x Hyundai/MAN-B&W 10K98MC-C - 2 stroke 10 cylinder 980 x 2.400 mm combustion engine 57.059 kW / 77.526 hp at 104,0 rpm

Build: 06/2000

Builder: Hyundai Heavy Ind. Co., Ltd. - Engine & Mach. Div., Ulsan - South Korea

Propellers

1x Fixed pitch propeller - aft at 104,0 rpm

Boilers

1x CHR 455,00 m² - 9,8 bar

1x CHO 68,00 m² - 7,8 bar

Generators

4x MAN-B&W 8L27/38 main diesel generatorsets each 2.850 kVA - 2.280 kW - 3.254 hp

Emergency generator

1x Diesel generatorset 250 kVA - 200 kW - 345 hp

Bow thruster

1x Tunnel thruster 2.500 kW / 3.399 bhp, forward

Number of holds

8

Number of hatches

17

Total capacity of holds

154.087 m³

Tank capacities

Fuel: 8.805,8 m³

Cargo gear

Gearless

ISM manager

V Ships Shanghai Ltd.

Room F20, 3rd Floor, Dragon Pearl Complex

2123, Pudong Dadao, Pudong Xinqu, Shanghai, 200135

China

Commerical manager

Costamare Shipping Co., SA

Costamare Building

60, Zefyrou Street & A Syngrou Avenue

175 64 Athens

Greece

Registered owner

Dino Shipping Co.

Care of Costamare Shipping Co SA ,

Costamare Building, 60, Zefyrou Street & A Syngrou Avenue

175 64 Athens

Greece

Latest data adjustment

17 November 2021
