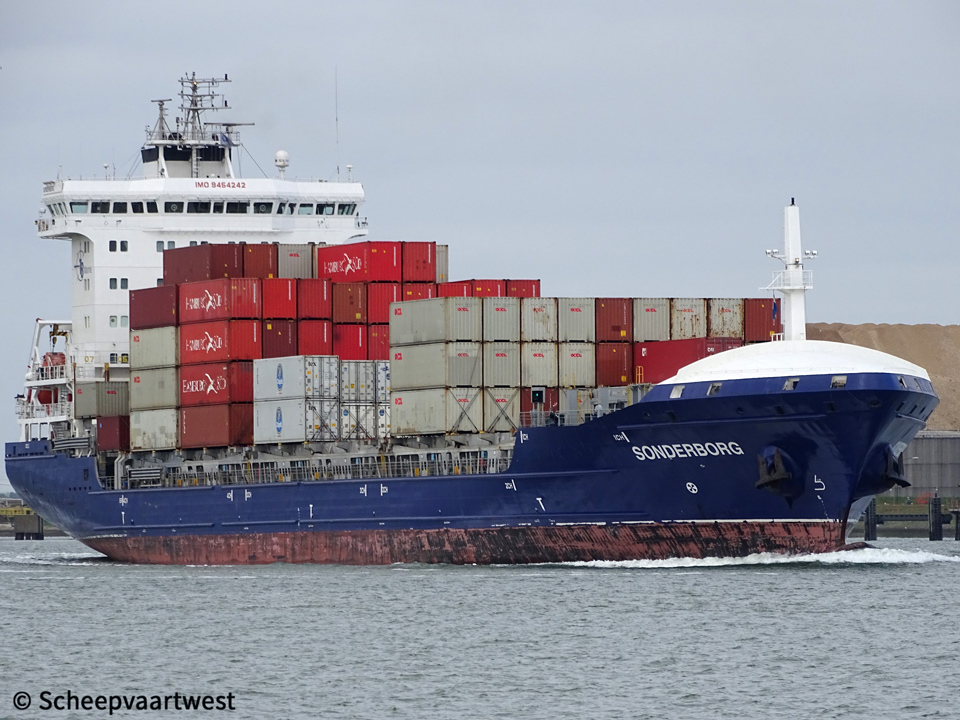

Vlissingen 18 May 2018 |
|
Name |
SONDERBORG |
|
Previous names |
2012 - 2018 Sonderborg Strait |
|
Type |
Cellular containership |
|
IMO-number |
9454242 |
|
Call sign |
CQIW4 |
|
Flag |
Portugal |
|
Previous flags |
2012 - 2018 Antigua & Barbuda, St. John's- Call sign: V2GD6 |
|
GT |
12.514 t Suez: 12.609,43 t |
|
DWT |
Summer: 14.222,18 t |
|
NT |
5.387 t Panama: 10.518 t Suez: 9.808,91 t |
|
Displacement |
20.806,6 t |
|
Number of 20ft containers |
In hold: 372 On deck: 713 Total: 1.085 |
|
Number of 40ft containers |
535 - 14 TEU |
|
Container capacity 14t |
733 homogeneous load |
|
Reefer capacity |
250 reefer plugs whereby 166 on deck and 84 in holds |
|
Length |
158,01 m overall 150,08 m registered |
|
Breadth |
23,50 m moulded |
|
Draught |
8,60 m |
|
Freeboard |
3.318 mm |
|
Depth |
11,90 m moulded |
|
Speed |
18,5 knots |
|
Built |
2012 |
|
Keel laid |
18/12/2008 |
|
Launch date |
17/11/2011 |
|
Date of completion |
23/11/2012 |
|
Builder |
Nanjing Wujiazui Shipbuilding Co., Ltd. Dongjiangcun Baguazhou Zhen, Qixia Qu Nanjing, 210043 Jiangsu People's Republic of China |
|
Yard number |
WJZ034 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
7 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 6RT-flex50-B - 2 stroke 6 cylinder 500 x 2.050 mm combustion engine 9.960 kW / 13.542 hp at 124,0 rpm Year of manufacture: 2011 Manufacturer : Hitachi Zosen Corporation, Ariake Machinery Works 1, Ohaza Ariake, Nagasu-machi Tamana-Gun ,869-0113 Kumamoto-ken Japan |
|
Propellers |
1x Controllable pitch propeller - aft at 124 rpm |
|
Boilers |
Steam boiler, oil fired - 9,0 bar Heating surface: 15,0 m² Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 193,0 m² Year of manufacture: 2011 Manufacturer: Alfa Laval Qingdao Ltd. 86 Guangzhou Road North Jiaozhou Qingdao, 266300 Shandong People's Republic of China |
|
Electric installations |
2x Plants each 450 V - 1.125 kVA 1x Plant 450 V - 1.500 kVA 1x Plant 450 V - 124 kVA 2x Plants each 12 V - 90 Ah 2x Plants each 12 V - 195 Ah 4x Plants each 12 V - 195 Ah |
|
Generators |
2x Daihatsu 6DK-20 - 4 stroke 6 cylinder 200 x 300 diesel engines each 845 kW connected with generators each 800 kW / 1.125 kVA 450 Volt 1x Daihatsu 8DK-20 - 4 stroke 8 cylinder 200 x 300 diesel engines each 1.360 kW connected with generators each 1.200 kW / 1.500 kVA 450 Volt |
|
Emergency generator |
1x Diesel generatorset 124 kVA |
|
Batteries |
4x Batteries for other purpose each 195 Ah 2x Batteries for automation each 195 Ah 2x Batteries for start emergency engine each 90 Ah |
|
Compressed air receivers |
2x Receivers each 1.500 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 2x Receivers each 100 litres - 10,0 bar 1x Receiver 1.000 litres - 7,0 bar |
|
Bow thruster |
1x Transverse thruster 700 kW / 952 hp, forward |
|
Number of holds |
7 |
|
Cargo hold capacity |
20.081,0 m³ |
|
Number of hatches |
7 No. 1 13,30 x 12,80 m No. 2 A+B 26,60 x 20,468 m No. 3 A+B 28,00 x 20,468 m No. 4 A+B 28,00 x 20,468 m |
|
Type of hatch covers |
Hydraulically operated folding hatch covers |
|
Tank capacities |
Diesel oil: 240,70 m³ Fuel oil: 1.571,80 m³ Ballast: 5.672,70 m³ Lube oil: 83,20 m³ Hydraulic oil: 3,80 m³ Fresh water: 255,60 m³ |
|
Anchor equipment |
3x Anchors weight each 6.000 kg Chain length: 577,50 m |
|
Lifting equipment |
Double beam engine room crane - SWL 3,0 t Manufacturer: Jiangyin Oya Marine Machinery Co. Ltd. Provision crane - SWL 4,0 t Manufacturer: Shanghai Hengyuan Marine Equipment |
|
Cargo gear |
Gearless |
|
Crew size |
20 |
|
Manager |
TB Marine Cont Shipmanagement GmbH & Co. KG Paul-Dessau-Strasse 6 22761 Hamburg Germany |
|
Previous managers |
CR - Carsten Rehder Schiffsmakler und Reederei GmbH & Co. KG, 22767 Hamburg - Germany |
|
Registered Owner |
Sonderborg Beteiligungsgesellschaft Gmbh & Co Kg C/O Tb Marine Cont Shipmanagement Gmbh & Co. Kg |
|
Previous owners |
MS "SONDERBORG STRAIT" GmbH & Co. KG, Hamburg - Germany |
|
Latest data adjustment |
21 July 2020 |
