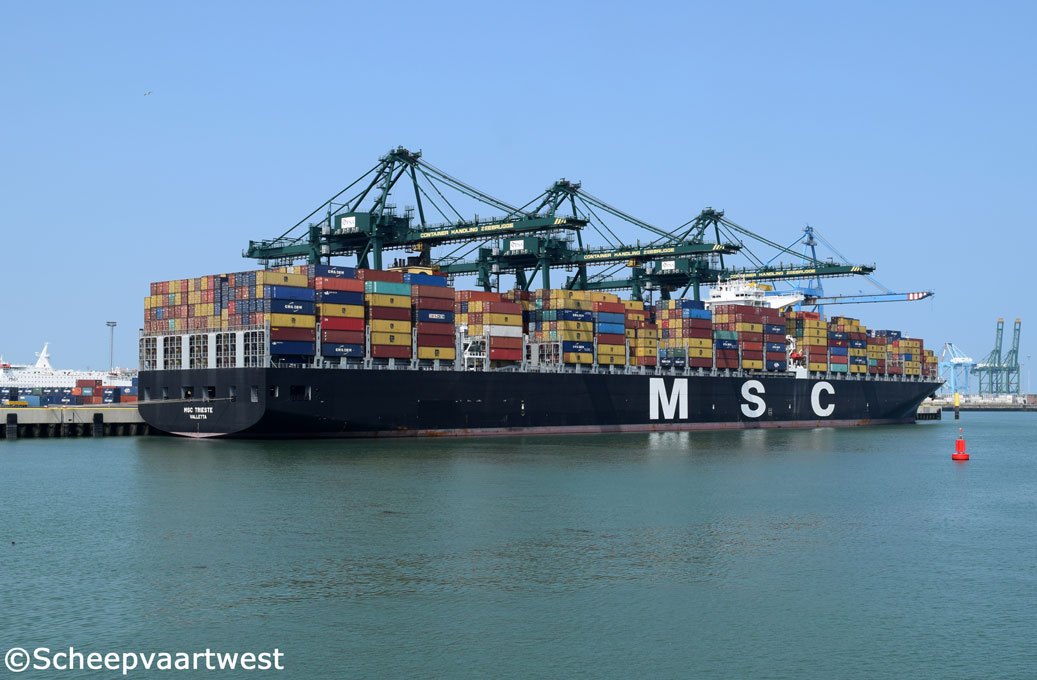

MSC Trieste 12
Zeebrugge 01 June 2014

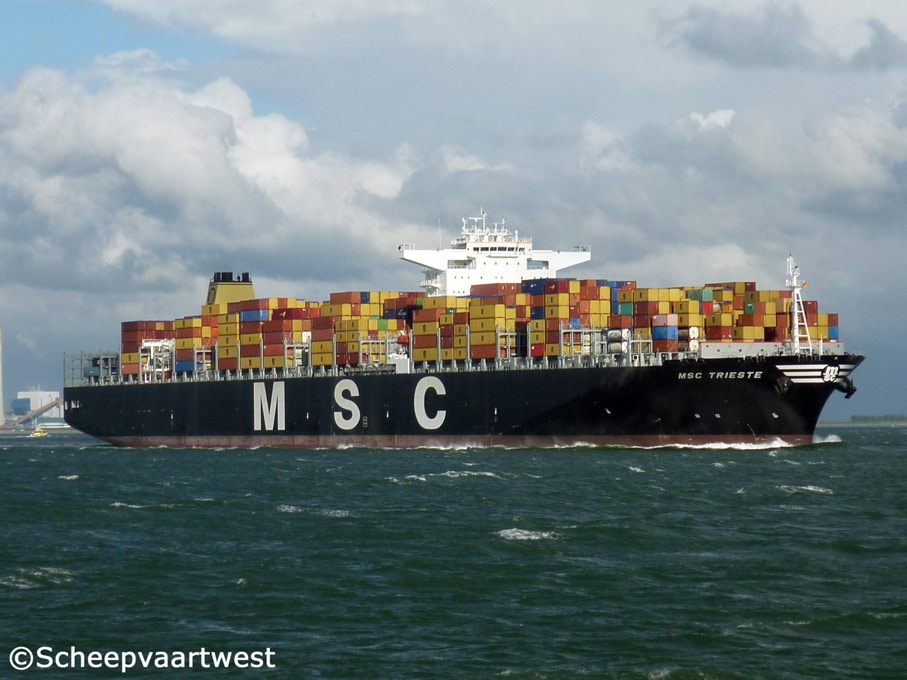

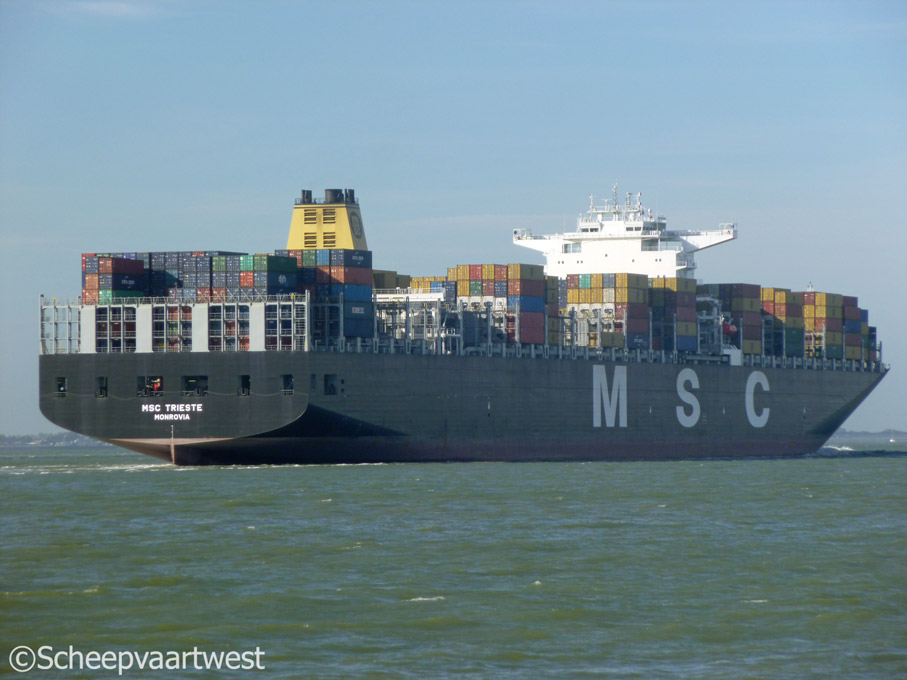

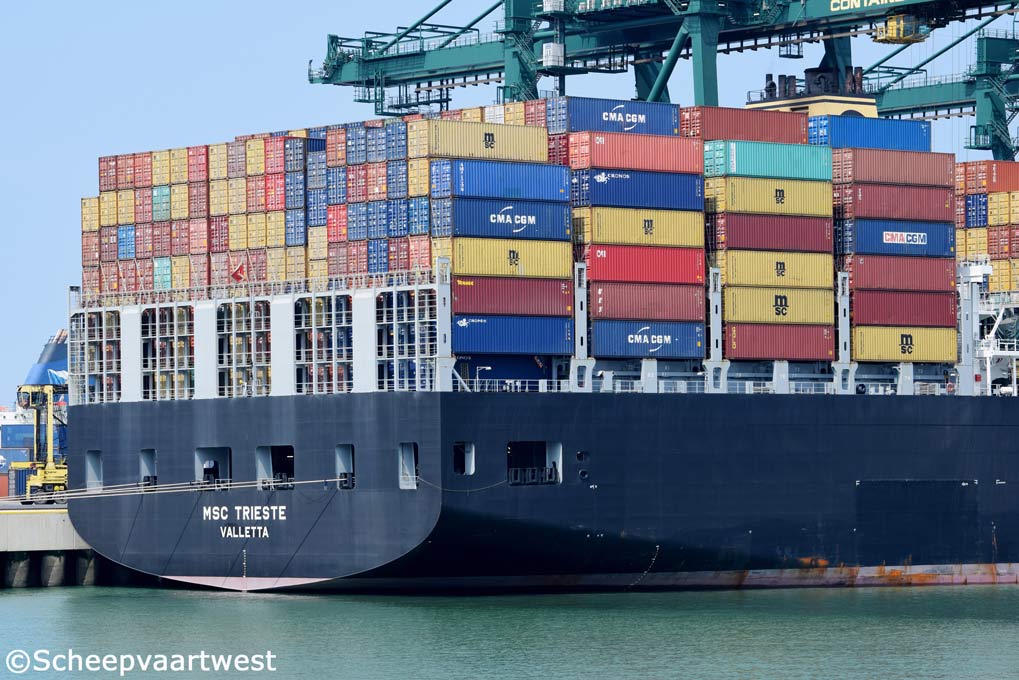

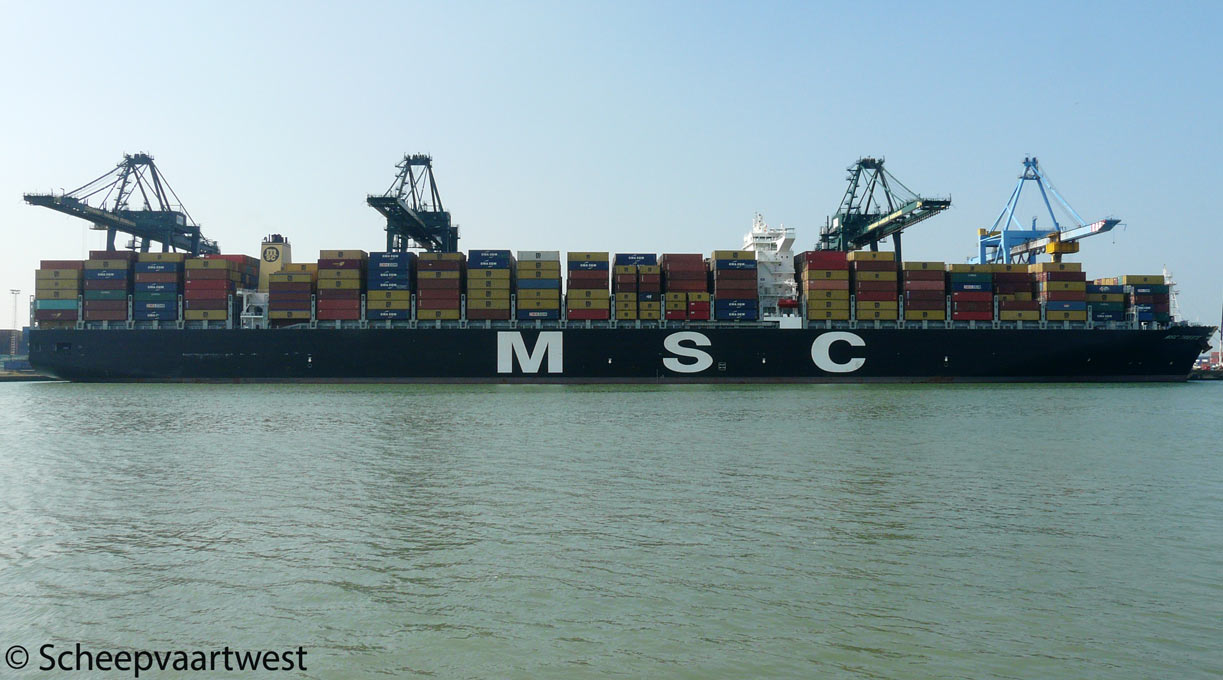

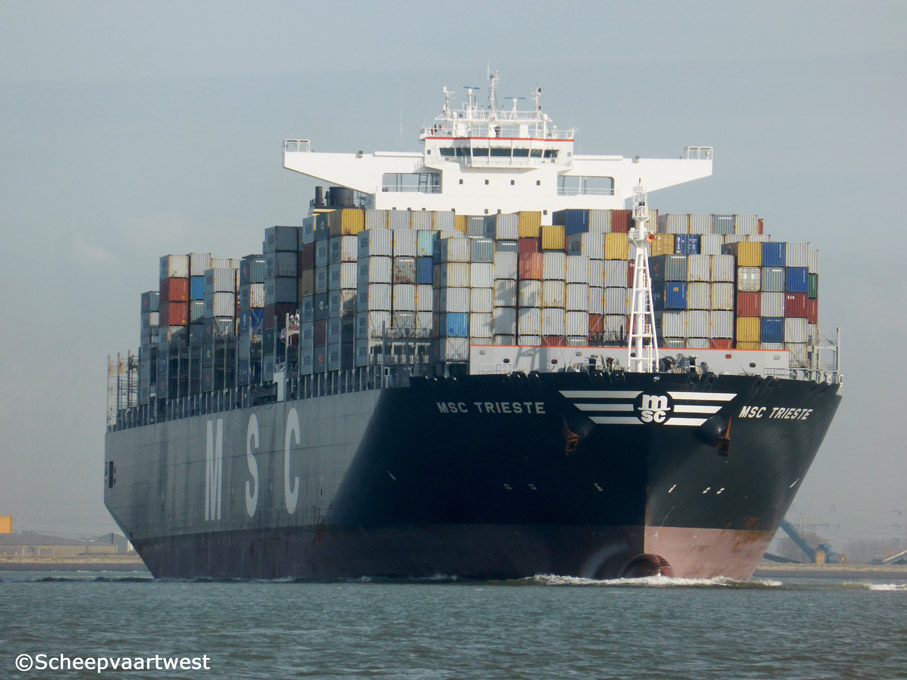

MSC Trieste 10   MSC Trieste 04   MSC Trieste 07   MSC Trieste 01   MSC Trieste 13
Zeebrugge 01/06/14 Zeebrugge 04/09/13 Westerschelde 08/07/12 Westerschelde 30/09/12   Westerschelde 05/03/15



Name

MSC TRIESTE

Previous names

CPO Trieste

Type

Cellular containership

IMO-number

9484479

Call sign

9HA3459

Flag

Malta

Previous flag & home

Liberia, Monrovia - Call sign: A8ZV6

Port of registry

Valletta

GT

143.521 t

DWT

154.663 t

NT

83.512

Number of 20ft containers

On deck:6;992

In hold: 6.058

Total: 13.050

Container capacity 14t

9.400

Reefer capacity

1.000 on deck

Length

365,81 m overall

349,50 m between perpendiculars

351,80 m registered

Breadth

48,40 m registered

Draught

16,00 m

Depth to main deck

29,90 m moulded

Speed

24,0 knots

Keel laid

21.06.2011

Launch date

06.08.2011

Date of completion

01.12.2011

Builder

Daewoo Shipbuilding & Marine Engineering Co., Ltd. Okpo Shipyard
1, Aju-dong
Geoje-si ,656-714 Kyongsang-namdo
Republic of Korea

Yard number

4202

Hull material

Mild steel and higher-tensile

Hull type

Partly double bottom

Watertight bulkheads

10

Continuous decks

2

Main engine

1x MAN-B&W 12K98MC-C - 2 stroke 12 cylinder 980 x 2.400 mm diesel engine - 72.240 kW at 104,0 rpm

Year of manufacture: 2011

Manufacturer: Doosan Engine Co., Ltd.
18, Gongdanro21-gil, Sungsan-gu
Changwon ,642-370 Kyongsang-namdo
Republic of Korea

Propellers

1x Solid propeller, aft at 104,0 rpm

Boilers

1x Steam boiler, oil fired - 10,0 bar

Heating surface: 46,0 m²

1x Steam boiler, exhaust gas heated - 10,0 bar

Heating surface: 679,0 m²

Year of manufacture: 2011

Manufacturer: Alfa Laval Aalborg A/S
Gasvaerksvej 24
9100 Aalborg
Kingdom of Denmark

Electric installation

4x Plants each 6600 V - 5.120 kVA

1x Plant 450 V - 625 kVA

1x Plant 24 V - 15 Ah

1x Plant 24 V - 63 Ah

1x Plant 24 V - 92 Ah

1x Plant 24 V - 300 Ah

1x Plant 24 V - 300 Ah

2x Plants each 108 V - 40 Ah

Generators

4x Main diesel generatorsets each 5.120 kVA / 4.096 kW

Emergency generator

1x Diesel generators set 625 kVA

Compressed air receivers

2x Receivers each16.500 litres - 30,0 bar

1x Receiver 540 litres - 30,0 bar

1x Receiver 200 litres - 30,0 bar

1x Receiver 2.000 litres - 7,0 bar

1x Receiver 350 litres - 7,0 bar

Bow thruster

2x Transverse thruster each 1800 kW, forward

Pumps

Ballast & bilge pump: 2x 1.000 m³/h

Tank capacities

Heavy fuel oil:. 13.000 m³

Marine diesel: 400 m³

Fresh water: 400 m³

Ballast: water. 40.000 m³

Anchor equipment

3x Anchors weight each 24.500 kg

Chain length: 770,00 m

Cargo gear

Gearless

Crew size

30

Crew

24

Manager

Reederei Claus-Peter Offen GmbH & Co. KG
Bleichenbrücke 10
20354 Hamburg
Federal Republic of Germany

Operator

MSC - Mediterranean Shipping Company S.A.

Registered owner

Kommanditgesellschaft MS "CPO TRIESTE" Offen

Reederei GmbH & Co.
Bleichenbrücke 10
20354 Hamburg
Federal Republic of Germany

Latest data adjustment

14 July 2014
