MSC Vega 06
Zeebrugge 25 May 2012

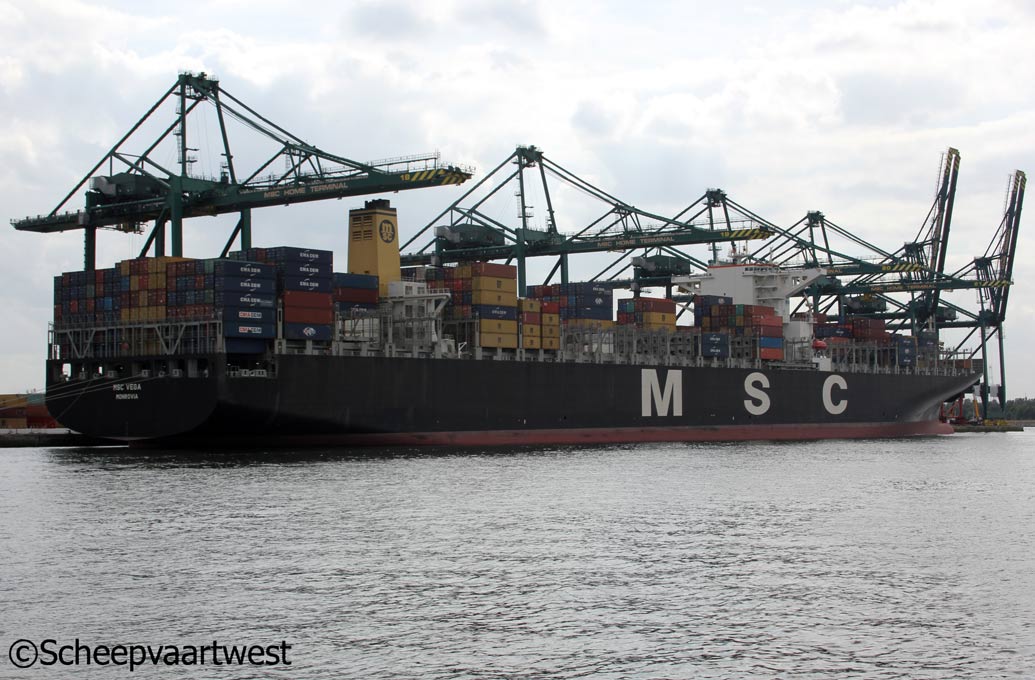

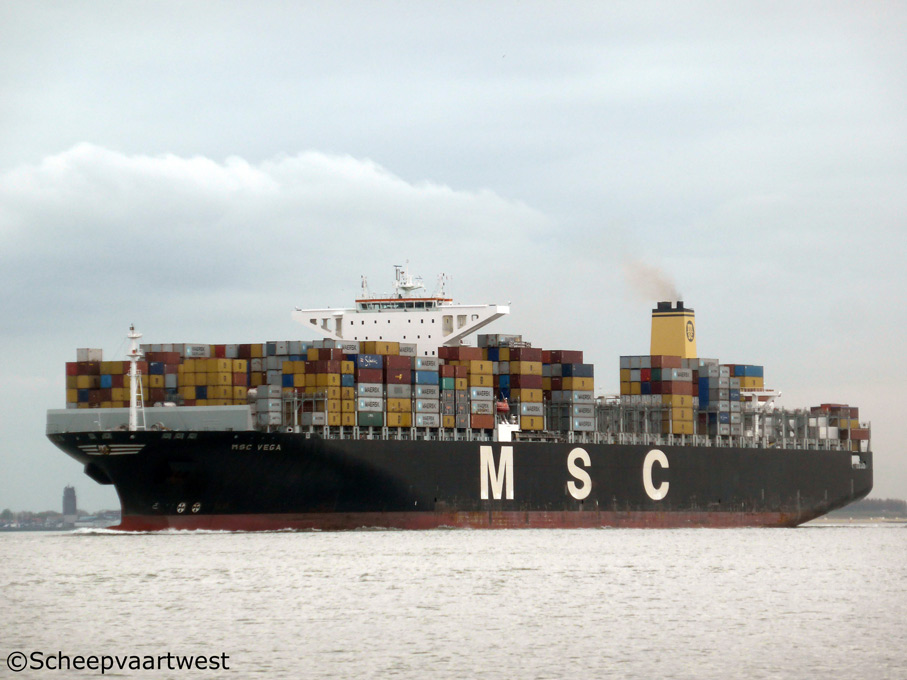

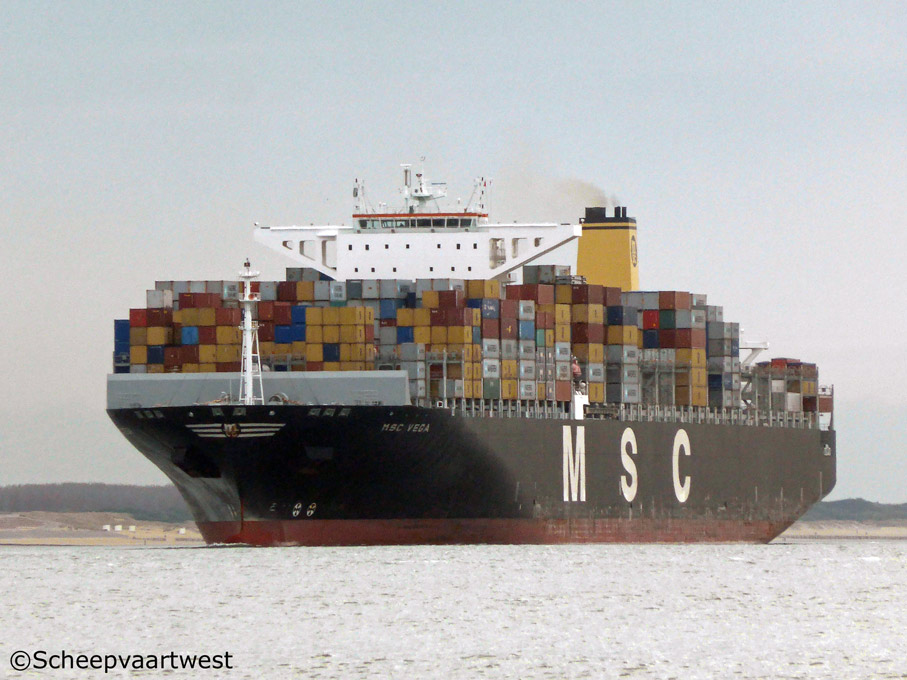

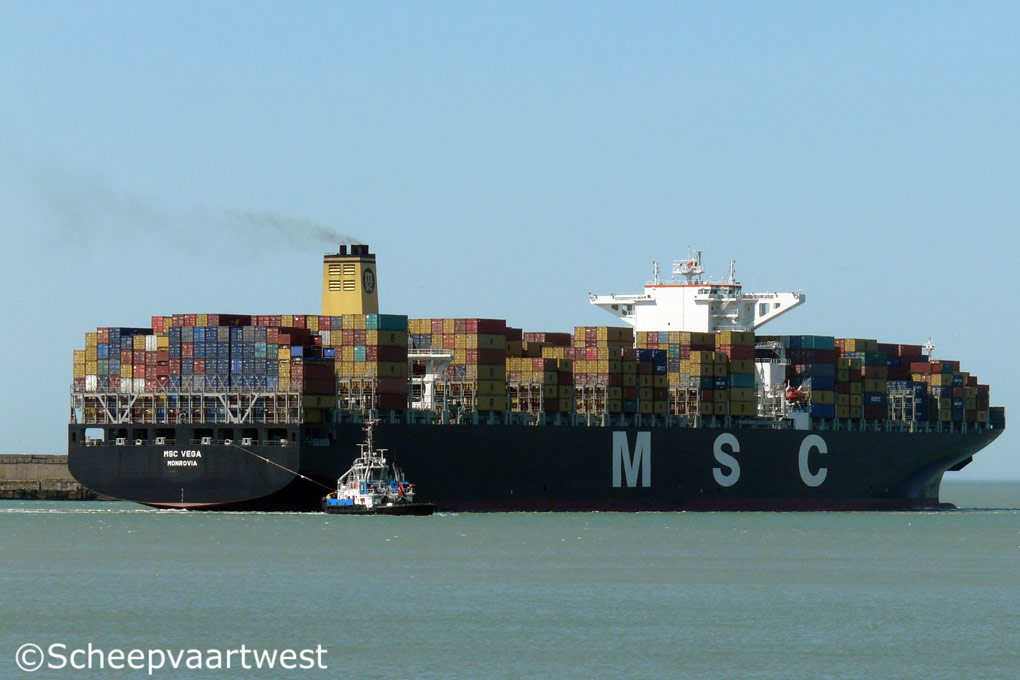

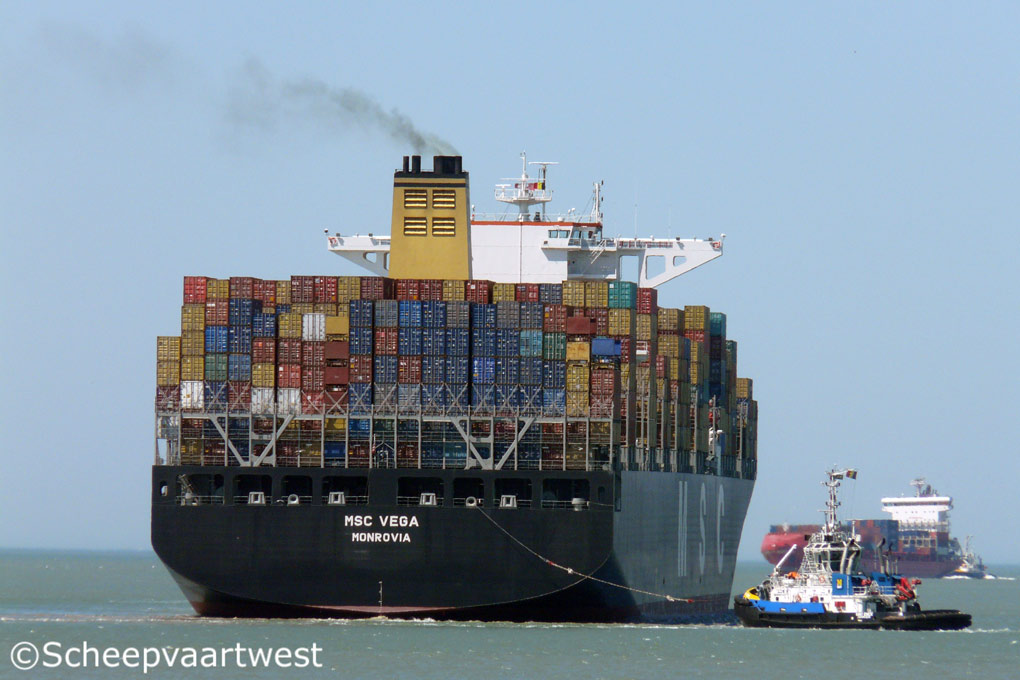

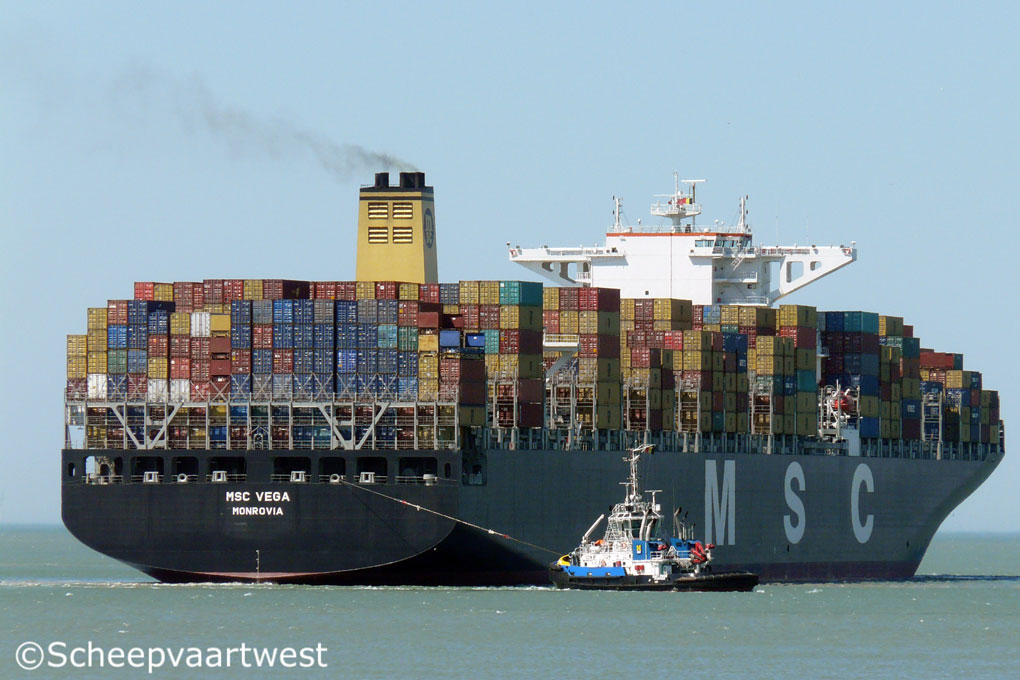

MSC Vega 08 MSC Vega 09 MSC Vega 10 MSC Vega 14   MSC Vega 15   MSC Vega 16
Zeebrugge 25/05/12 Zeebrugge 25/05/12 Zeebrugge 25/05/12 Antwerpen 16/08/12   Westerschelde 24/04/15   Westerschelde 24/04/15

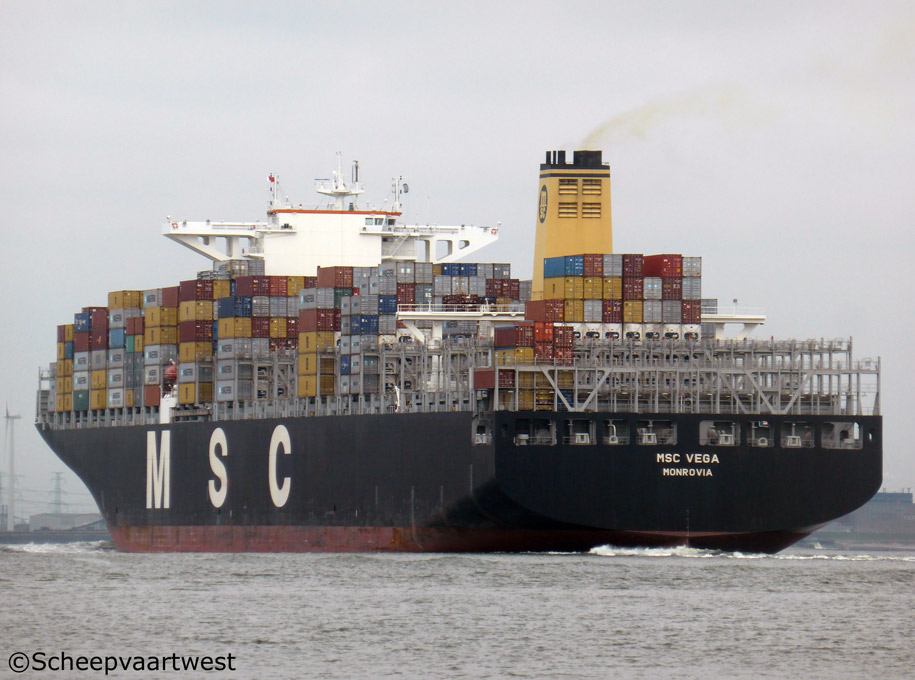

MSC Vega 17
Westerschelde 24/04/15



Name

MSC VEGA

Type

Cellular containership - Super-Post-Panamax-Klasse

IMO-number

9465265

Call sign

D5BE4

Flag

Liberia

Port of registry

Monrovia

GT

141.635 t

DWT

140.989 t

NT

63.825 t

Number of 20ft containers

On deck 7.082

In hold: 6.018

Total: 13.100

Container capacity 14t

8.921

Reefer capacity

800

Length

366,46 m overall

350,00 m between perpendiculars

Breadth

48,26 m extreme

Draught

16,00 m

Depth

29,85 m

Speed

Max.: 24,7 knots

Built

2012

Keel laid

18.07.2011

Launch date

28.10.2011

Date of completion

11.01.2012

Builder

Hyundai Heavy Industries Co., Ltd.
1, Cheonha-dong, Dong-gu
Ulsan, 682-792 Kyongsang-namdo
Republic of Korea

Yard number

2156

Hull material

Shipbuilding steel (standard)

Hull type

Partly double bottom

Main engine

1x HHI MAN B&W 12K98ME7 - 2 stroke 12 cylinder 980 x 2.660 mm combustion engine - 72.240 kW at 97,0 rpm

Year of Manufacture: 2011

Manufacturer: Hyundai Heavy Industries Co., Ltd.
1, Jeonha-dong, Dong-gu
Ulsan ,682-792 Kyongsang-namdo
Republic of Korea

Propellers

Solid propeller (keyless) - aft at 97,0 rpm 1x

Boilers

1x Steam boiler, oil fired - 7,85 bar

Heating surface: 73,4 m²

1x Steam boiler, exhaust gas heated - 9,81 bat

Heating surface: 911,4 m²

Year of manufacture: 2011

Manufacturer: KangRim Heavy Industries Co., Ltd.
40, Wongnam-dong
Changwon ,642-290 Kyongsang-namdo
Republic of Korea

Electric installations

4x Plants each 6.600 V with 4.426,7 kVA

1x Plant 450 V - 370 kVA

2x Plants each 12 V - 3 Ah

2x Plants each 24 V - 200 Ah

12x Plants each 24 V - 200 Ah

12x Plants each 24 V - 200 Ah

Generators

4x HHI HimSen 7H32/40 diesel generatorsets each 4.426,7 kVA

Emergency generators

1x SCANIA DC 123 54A diesel generatorset 370 kVA

Batteries

12x Batteries for UPS navigation each 200 Ah

12x Batteries for UPS radio each 200 Ah

2x Batteries for start emergency engine each 200 Ah

2x Batteries for other purpose each 3 Ah

Compressed air receivers

2x Receivers each 16.000 litres - 32,4 bar

1x Receiver 500 litres - 32,4 bar

1x Receiver 300 litres - 7,7 bar

1x Receiver 2.000 litres - 7,56 bar

Bow thruster

2x Transverse thruster each 1.800 kW, forward

Anchor equipment

3x Anchors weight each 24.500 kg

Length: 770,00 m

Diameter: 122 mm

Cargo gear

Gearless

Crew

24

Manager

E.R. Schiffahrt GMBH & Cie. KG

Hohe Bleichen 12
D - 20354 Hamburg
Germany

Operator

MSC - Mediterranean Shipping Company S.A.

40. Avenue Eugène-Pittard
CH-1206 Geneva

Switzerland

Owner

Grand Indus Shipping Ltd.

Latest data adjustment

13 October 2016
