Spijkernisse 06 April 2009 |
Name |

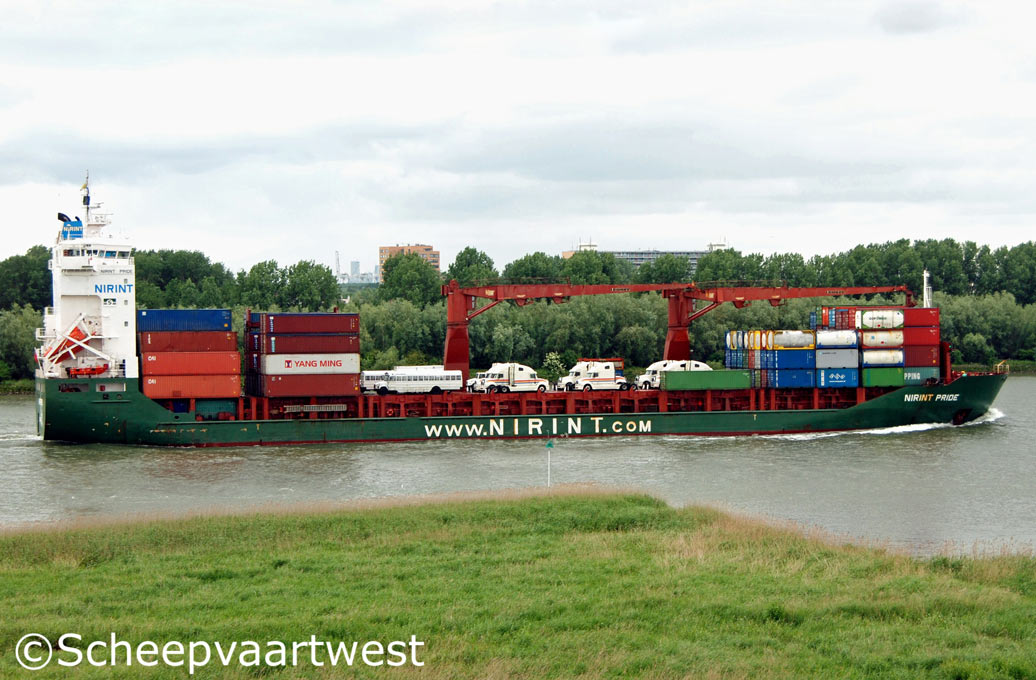

NIRINT PRIDE |
Previous names |
2000-2004 CEC Atlantic 2004-2009 Nirint Pride |
Type |
Container feeder |
IMO-number |
9214575 |
Call sign |
V71Y4 |
Flag |
Isle of Man (United Kingdom) |
Port of registry |
Douglas |
GT |
8.861 t |
DWT |
11.932 t |
NT |
4.238 t |
Number of 20ft containers |
900 |
Reefer capacity |
176 |
Length |
134,05 m overall 127,20 m registered |
Breadth |
20,40 m registered |
Draught |
8,380 m |
Depth |
11,10 m moulded |
Speed |
17,5 knots |
Built |
2000 |
Keel laid |
14.02.2000 |
Launch date |
02.06.2000 |
Date of completion |
18.10.2000 |
Builder |
Dalian Shipyard Co., Ltd. |
Yard number |
MC120-3 |
Hull material |
Shipbuilding steel (standard) |
Hull type |
Double bottom |
Watertight bulkheads |
6 |
Continuous decks |
2 |
Main engine |
1x Wärtsilä NSD 8 L 46 B - 4 stroke single acting 8 cylinder 460 x 580 mm diesel engine - 7.796 kW at 500 rpm Year of manufacture: 2000 Manufacturer: Wärtsilä Finland Oy |
Propeller |
1x Controllable pitch propeller - aft at 145 rpm |
Boilers |
2x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 26,0 m² Heating surface: 180,0 m² Year of manufacture: 1999 Manufacturer: Aalborg Industries Ltd. |
Electric installations |
3x Plant each 440/220 V - 750 kVA 1x Plant 440 V - 1.125 kVA 1x Plant 440 V - 120 kVA |
Shaft generator |
1x 900 kW / 1.125 kVA |
Generators |
3x Cummins VTA-28-G5 main diesel generatorsets each 569 kW / 750 kVA |
Emergency generator |
1x Diesel generatorset 120 kVA |
Compressed air receivers |
2x Receivers each 1.500 litres - 33,0 bar 2x Receivers each 100 litres- 10,0 bar 1x Receiver 500 litres - 9,0 bar |
Bow thruster |
700 kW - forward |
Cargo capacity |
Grain: 14.701 m³ |
Largest hatch |
Length: 52,00 m Breadth: 15,30 m |
Tank capacities |
Fuel oil: 1.007 m³ Water ballast: 4.483 m³ |
Anchor equipment |
3x Anchors weight each 5.250 kg Chain length: 577,50 m |
Cargo gear |
2x Cranes each 150,00 / 80,00 / 40,00 t |
Crew size |
20 |
Manager |
Scanscot Shipping Services Germany |
Head office |
Nirint Shipping |
Owner |
S Fellow Schiffahrts Isle Of Man |
Renamed |
2009 OXL Fakir |
