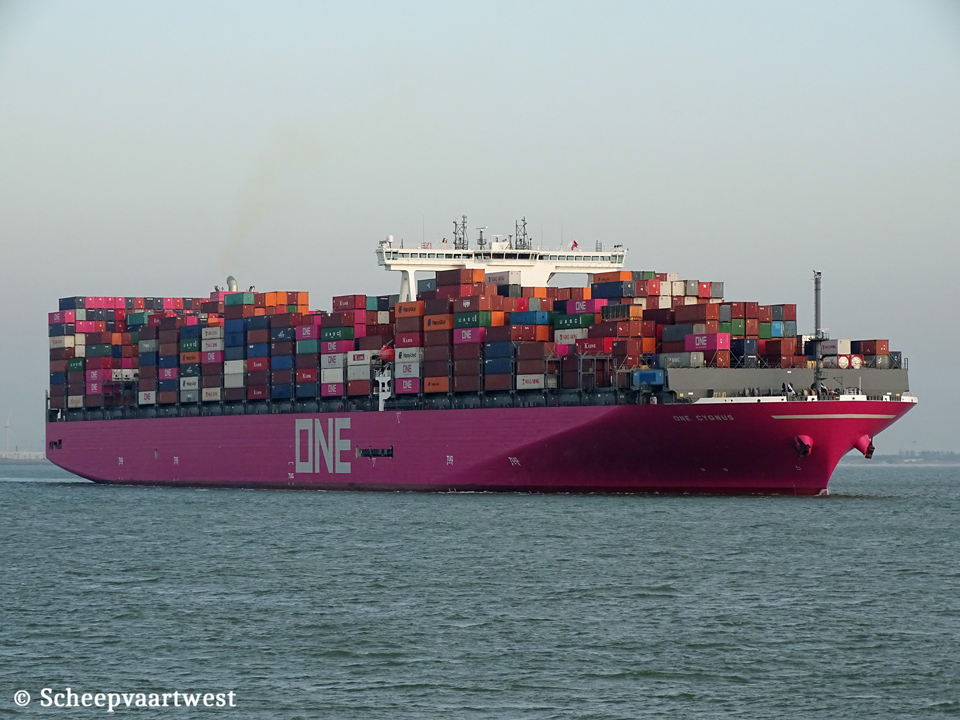

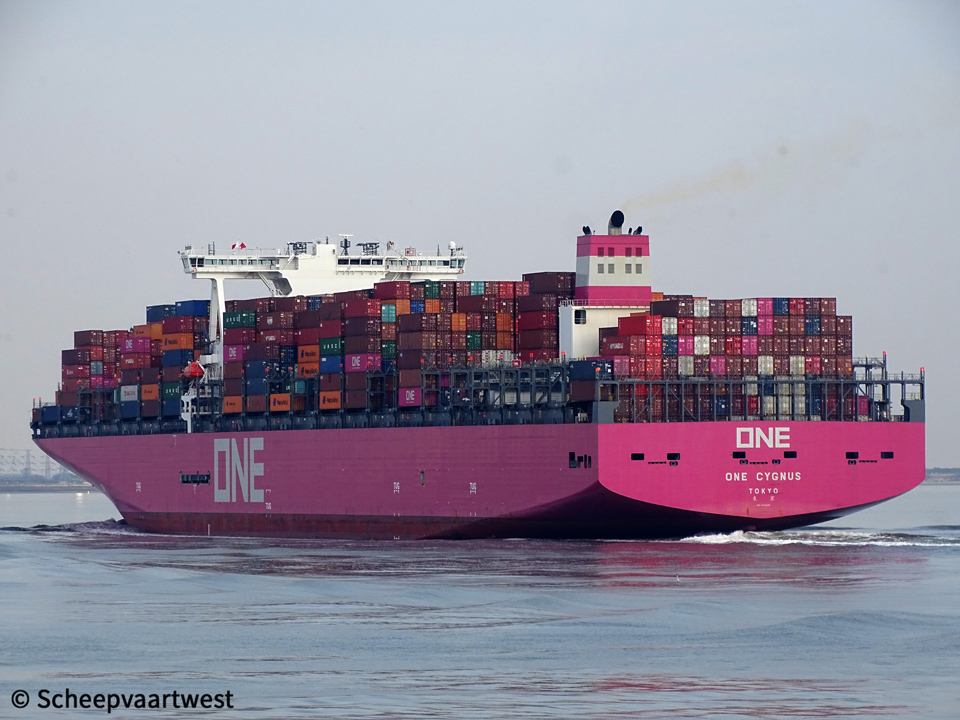

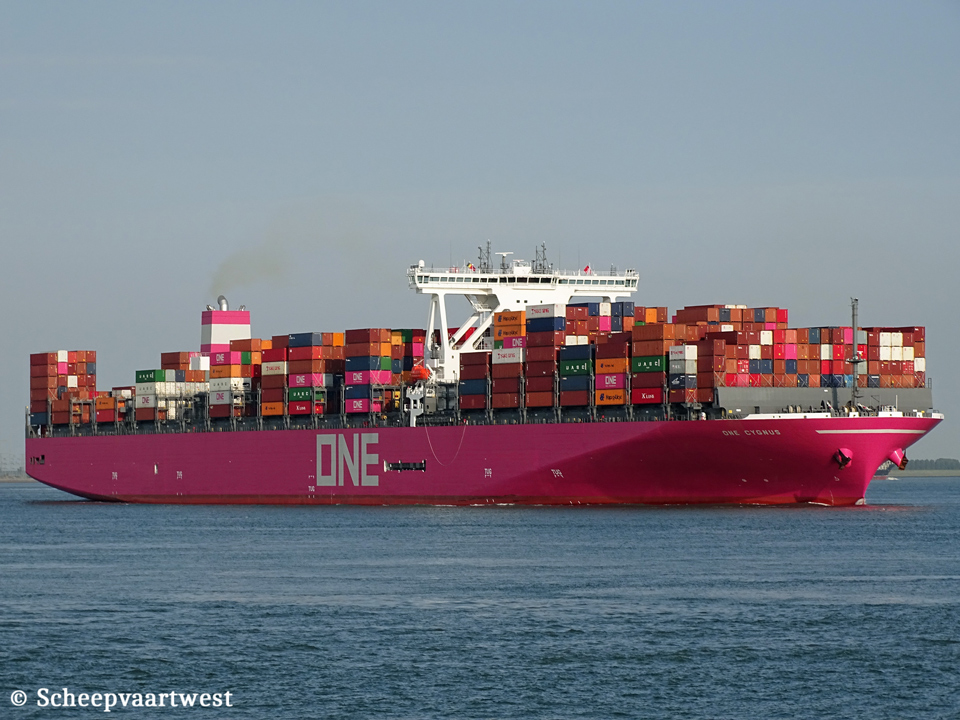

Westerschelde 30 October 2019 |
 |
 |
|
| Westerschelde 21/08/19 | Westerschelde 16/04/20 |
|
Name |
ONE CYGNUS |
|
Type |
Cellular containership |
|
IMO-number |
9806081 |
|
Call sign |
7KEP |
|
Flag |
Japan |
|
Port of registry |
Tokyo |
|
GT |
146.694 t registered |
|
DWT |
138.611 t |
|
NT |
85.850 t registered |
|
Number of 20ft containers |
14.052 |
|
Container capacity 14t |
9.150 |
|
Reefer capacity |
1.150 |
|
Length |
364,15 m overall |
|
Breadth |
50,60 m moulded |
|
Draught |
Summer: 15,79 m |
|
Moulded L x B x D |
349,20 x 50,60 x 23,04 m |
|
Registered L x B x D |
349,91 x 50,60 x 23,04 m |
|
Freeboard |
7.301 mm |
|
Depth |
23,04 m moulded |
|
Speed |
Max: 24,0 knots Service: 19,4 knots |
|
Built |
2019 |
|
Keel laid |
07/12/2015 |
|
Launch date |
15/02/2019 |
|
Date of completion |
04/07/2019 |
|
Builder |
JMU - Japan Marine United Corporation, Kure Shipyard Japan |
|
Yard number |
5125 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 9X82-DU - 2 stroke single acting 9 cylinder 820 x 3.375 mm combustion engine 42.180 kW / 57.348 hp at 75,0 rpm Manufacturer: Diesel United, Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 1.020 mm |
|
Propellers |
1x Fixed pitch propeller - aft at 75,0 rpm |
|
Boilers |
1x Auxiliary vertical boiler- 0,7 MPa Evaporation: 2,50 t/h Manufacturer: Osaka Boiler Mfg. Co., Ltd. |
|
Generators |
4x Yanmar 6EY33LW - 4 stroke 6 cylinder 330 x 440 mm diesel engines each 3.360 kW connected with generators each 3.000 kW |
|
Bow thruster |
2x Tunnel thruster each 1.800 kW / 2.447 bhp, forward |
|
Tank capacities |
Fuel oil: 11.014,26 m³ Fresh water: 599,34 m³ |
|
Cargo gear |
Gearless |
|
Crew size |
23 |
|
Operator |
One - Ocean Network Express Shipping alliance between MOL, NYK and K-Line |
|
Registered owner |
Denen Ship Holding LLC |
|
Latest data adjustment |
20 April 2021 |
