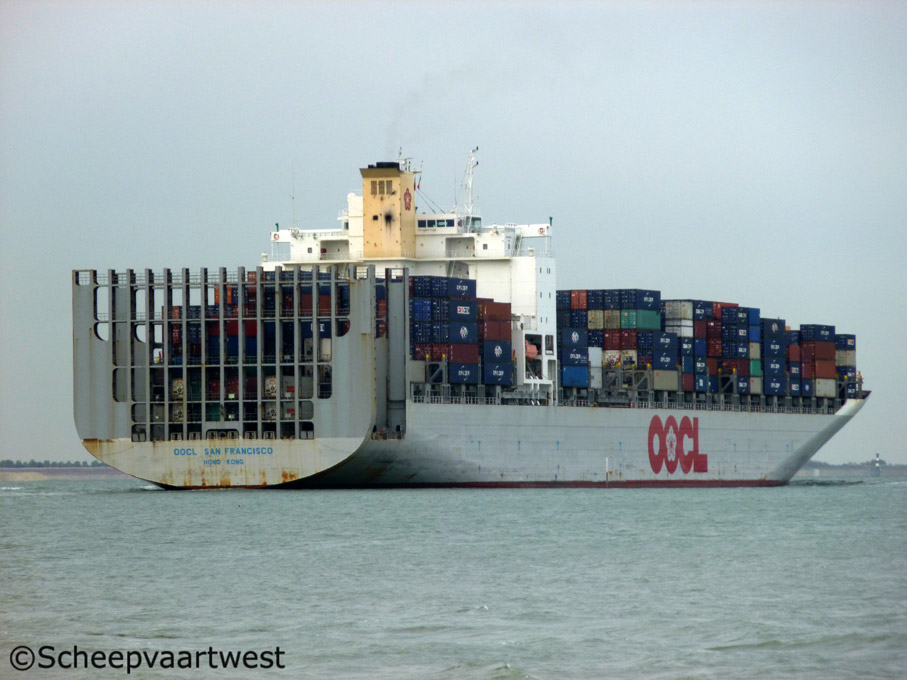

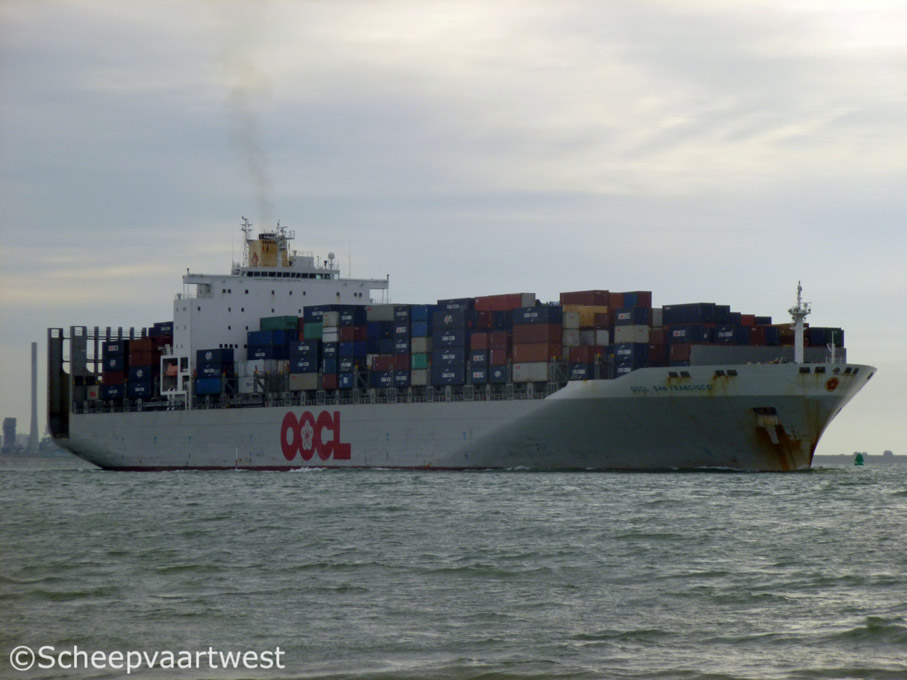

| Westerschelde 23 September 2012 |
 |
| Westerschelde 23/09/12 |
|
Name |
OOCL SAN FRANCISCO |
|
Type |
Cellular containership |
|
IMO-number |
9199268 |
|
Call sign |
VRWN4 |
|
Flag |
Hong Kong - Special Administrative Region of the People's Republic of China |
|
Port of registry |
Hong Kong |
|
GT |
66.677 t registered Suez: 68.961,79 t |
|
DWT |
67.268 t |
|
NT |
39.516 registered Suez: 56.746,43 |
|
Number of 20ft containers |
5.714 |
|
Container capacity 14t |
4.120 |
|
Reefer capacity |
628 |
|
Length |
277,33 m overall 263,97 m between perpendiculars |
|
Breadth |
40,01 m moulded |
|
Draught |
14,02 m |
|
Displacement |
92.313 t |
|
Lightweight |
25.027 |
|
Freeboard |
10.049 mm |
|
Depth |
24,00 m moulded |
|
Speed |
25,0 knots |
|
Built |
2000 |
|
Keel laid |
03.01.2000 |
|
Launch date |
15.09.2000 |
|
Builder |
China Shipbuilding Corp. Kaohsiung Shipyard |
|
Yard number |
788 |
|
Hull material |
Ordinary strength steel High strength steel |
|
Bulkheads |
Water tight: 13 |
|
Main engine |
1x MAN-B&W 12K90MC - 2 stroke 12 cylinder diesel engine - 55.681,44 kW Manufacturer: HHI Engine & Machinery Div. |
|
Propellers |
1x Fixed propeller |
|
Boilers |
Auxiliary water tube boiler Waste heat boiler |
|
Shaft generator |
1x 2.200 kW |
|
Generators |
4x Daihatsu 8DK28 main diesel generatorsets each 2.400 kW |
|
Bow thruster |
2.000 kW |
|
Number of tanks |
Ballast: 18 Fuel oil: 12 Lubricating oil: 7 Fresh water: 4 Diesel oil: 3 Sludge: 3 Waste water: 2 Chain: 1 |
|
Tank capacities 100% |
Fresh water: 455 m³ Fuel oil: 7.873 m³ / 7.400,62 t Tank ballast: 17.829 m³ |
|
Lifting equipment |
1x Crane - SWL 5,0 t 2x Lifting device - SWL 4,0 t each |
|
Handling gear |
None |
|
Manager |
Orient Overseas Container Line Ltd. Hongkong |
|
Operator |
OOCL - Orient Overseas Container Line |
|
Registered owner |
Newcontainer No.9 Shipping Inc. |
