Westerschelde 20 June 2018 |
Westerschelde 30/07/20 |
Name |

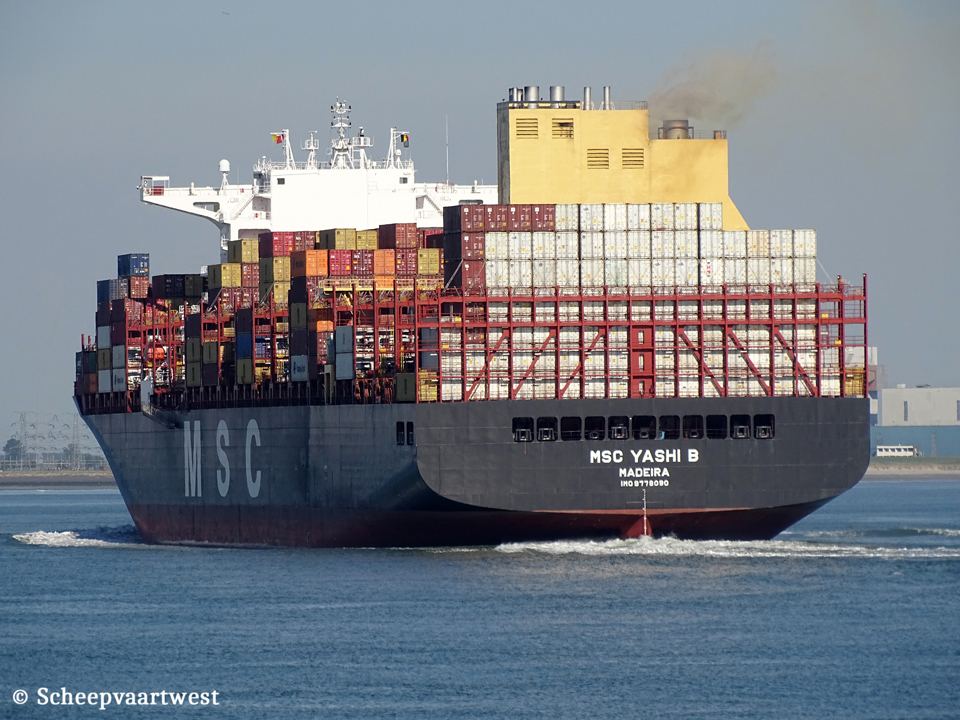

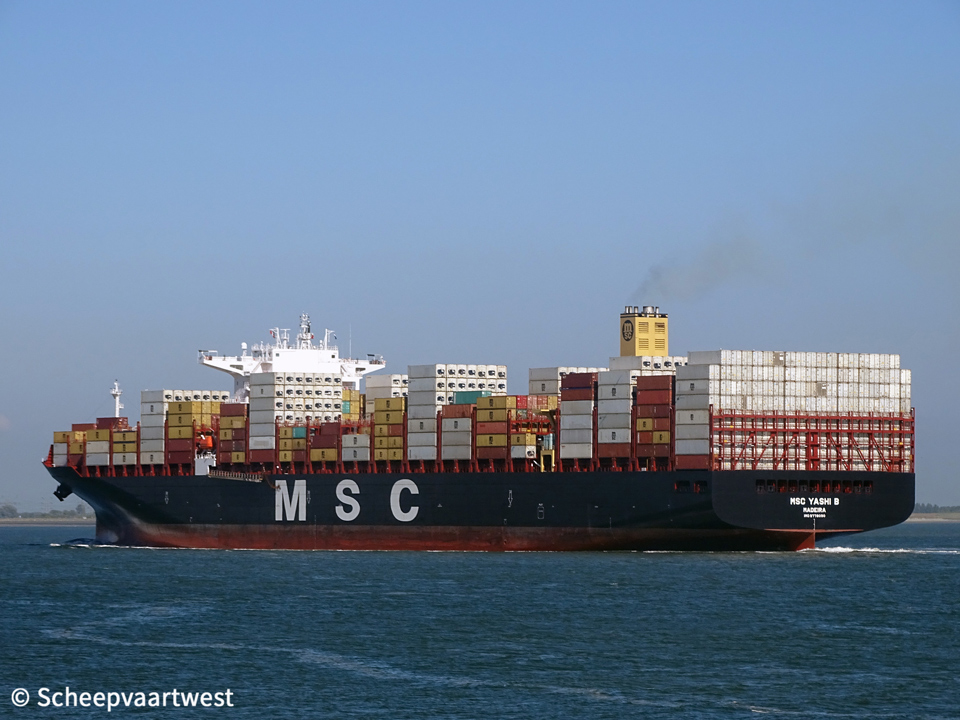

MSC YASHI B |
Type |
Cellular containership |
IMO-number |
9778090 |
Call sign |
CQIP7 |
Flag |
Portugal |
Port of registry |
Madeira |
GT |
113.112 t |
DWT |
134.007 t |
NT |
62.337 t |
Number of 20ft containers |
11.010 |
Container capacity 14t |
8.270 |
Reefer capacity |
1.453 |
Length |
330,04 m overall 316,40 m between perpendiculars |
Breadth |
48,34 m extreme 48,20 m moulded |
Draught |
Summer: 16,02 m |
Depth |
27,20 m |
Speed |
Max: 22,0 knots |
Built |
2018 |
Keel laid |
04/12/2015 |
Launch date |
30/08/2017 |
Date of completion |
04/01/2018 |
Builder |
HHIC - Hanjin Heavy Industries and Construction Philippines Inc. Subic Bay Philippines |
Yard number |
NCP0153 |
Hull material |
Steel |
Hull type |
Double hull |
Continuous decks |
1 |
Main engine |
1x Hyundai/ MAN-B&W 8G95ME-C9 - 2 stroke single acting 8 cylinder 950 x 3.460 mm combustion engine 42.310 kW / 57.525 hp at 77,0 rpm Builder: Hyundai Heavy Industries Co Ltd - South Korea |
Propellers |
1x Fixed pitch mono-block propeller - aft at 77,0 rpm |
Boilers |
2x Auxiliary boiler, exhaust gas heated 1x Auxiliary boiler, oil/gas fired 1 Manufacturer: KangRim Heavy Industries |
Generators |
2x MAN 8L32/40CD - 4 stroke 8 cylinder 320 x 400 diesel engine each 4.000 kW connected with generators each 3.840 kW 2x Man 9L32/40CD - 4 stroke 9 cylinder 320 x 400 diesel engine each 4.400 kW connected with generators each 4.320 kW |
Emergency generator |
1x MAN diesel generatorset |
Bow thruster |
1x Tunnel thruster 3.000 kW / 4.079 bhp, forward |
Tank capacities |
Ballast: 28.078,79 m³ |
Anchor equipment |
Length: 770,00 m Diameter: 114 mm |
Cargo gear |
Gearless |
ISM & commercial manager |
MSC Shipmanagement Limited MSC House, 8, Spyrou Kyprianou Avenue Limassol Cyprus. |
Registered owner |
SPDBFL No. One Hundred and Twenty-Three (Shanghai) Ship Leasing Company Limited Care of MSC Shipmanagement Ltd. MSC House, 8, Spyrou Kyprianou Avenue Limassol Cyprus |
Latest data adjustment |
03 July 2022 |
