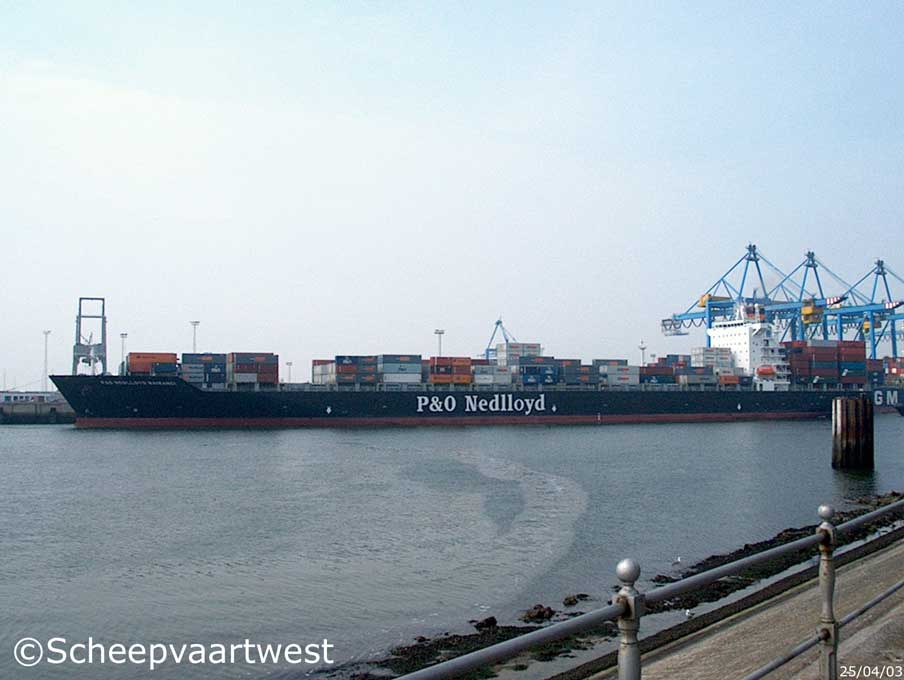

| Zeebrugge 25 April 2003 |
|
Name |
P&O NEDLLOYD MAIRANGI |
|
Previous names |
Launch as: Santa Rufina |
|
Type |
Cellular Containership |
|
IMO-number |
9244881 |
|
Call sign |
ELZZ9 |
|
Flag |
Germany |
|
Port of registry |
Hamburg |
|
GT |
45.803 t registered |
|
DWT |
53.115 t |
|
NT |
25.077 t registered |
|
Number of 20ft containers |
4.112 |
|
Number of 40ft containers |
718 |
|
Container capacity at 14t |
2.840 |
|
Reefer capacity |
1.300 |
|
Length |
281,00 m overall 268,86 m registered |
|
Breadth |
32,20 m registered |
|
Poop |
15,40 m |
|
Depth |
15,538 m moulded |
|
Speed |
25,1 knots |
|
Built |
2002 |
|
Keel laid |
27.06.2002 |
|
Launch date |
21.10.2002 |
|
Builder |
Samsung Heavy Industries Co., Ltd. Geoje Shipyard |
|
Yard number |
1363 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
9 |
|
Continuous decks |
2 |
|
Main engine |
1x Sulzer 9RTA96C-B - 2 stroke single acting 9 cylinder 960 x 2.550 mm diesel engine- 51.480 kW at 102,0 rpm Year of Manufacture: 2002 Manufacturer: HSD Engine Co., Ltd. |
|
Propellers |
1x Solid propeller (keyless) - aft |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 40,2 m² 1x Steam boiler,exhaust gas heated - 9,0 bar Heating surface: 591,0 m² Year of Manufacture: 2001 Manufacturer: Aalborg Industries A/S Division Heaters |
|
Electric installations |
1x Plant 6.600/440 V - 21.198 kVA 1x Plant 440 V - 250 kVA 1x Plant 24 V - 200 Ah 1x Plant 24 V - 600 Ah |
|
Generators |
4x Main diesel generatorsets each 4.371 kVA 1x Generator - 3.714 kVA |
|
Emergency generator |
1x Diesel generatorset 250 kVA |
|
Compressed air receivers |
2x Receivers each 12.900 litres - 33,0 bar 1x Receiver 300 litres - 33,0 bar 1x Receiver 150 litres - 7,7 bar |
|
Bow thruster |
1x Transverse thruster NAKASHIMA - 1.600 kW, forward |
|
Tank capacities |
Fuel oil: 8.519 m³ Ballast water: 13.938 m³ |
|
Anchor equipment |
3x Anchors weight each 12.300 kg Chain length: 687,50 m |
|
Crew size |
30 |
|
Manager |
Reederei Claus-Peter Offen GmbH & Co. KG |
|
Owner |
Kommanditgesellschaft MS "SANTA RUFINA" Offen Reederei GmbH & Co. |
|
Renamed |
2006 Maersk Denton |
