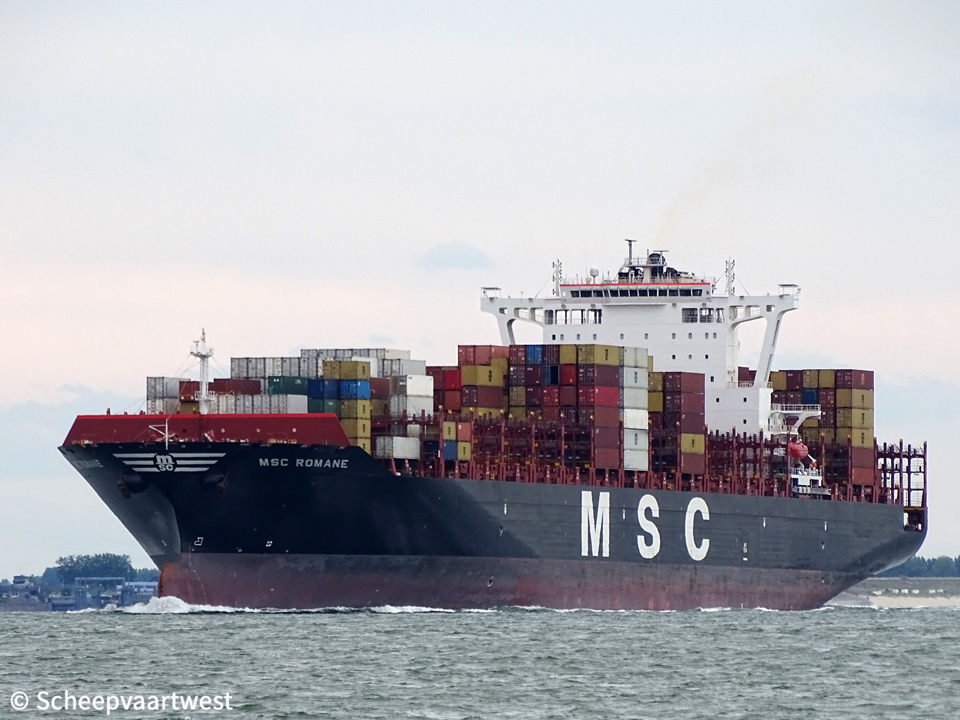

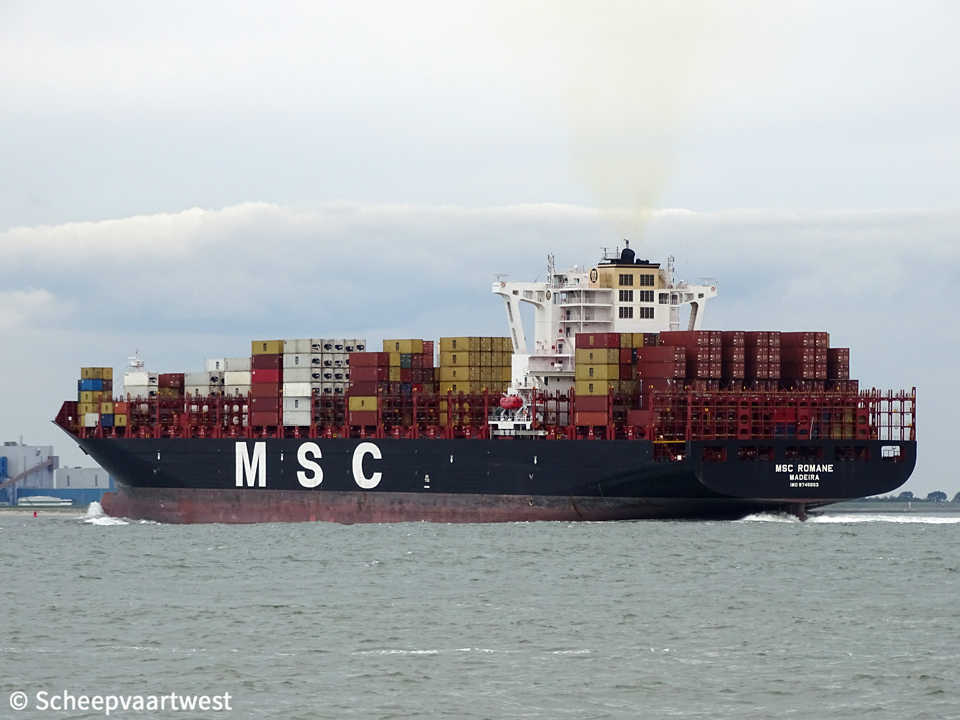

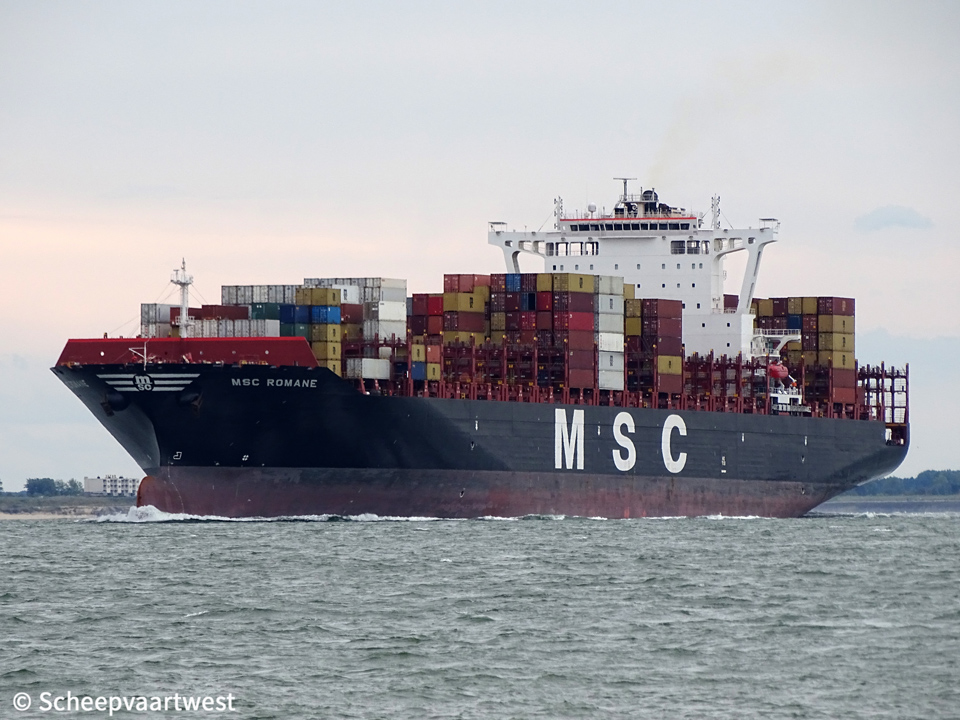

Westerschelde 08 September 2018 |
 |
 |
 |
 |
|||

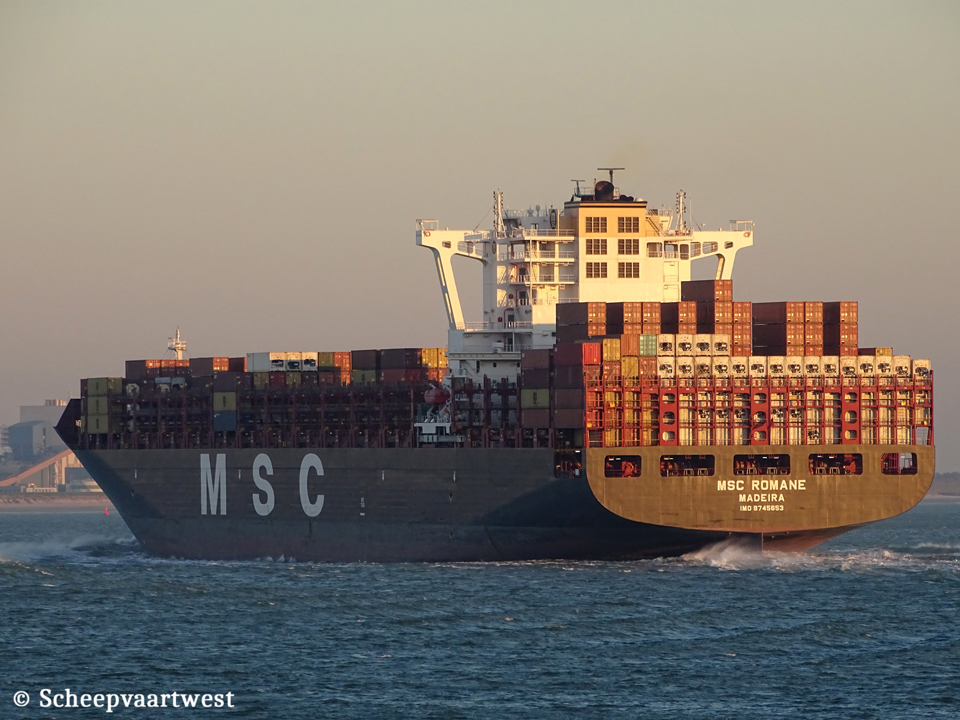

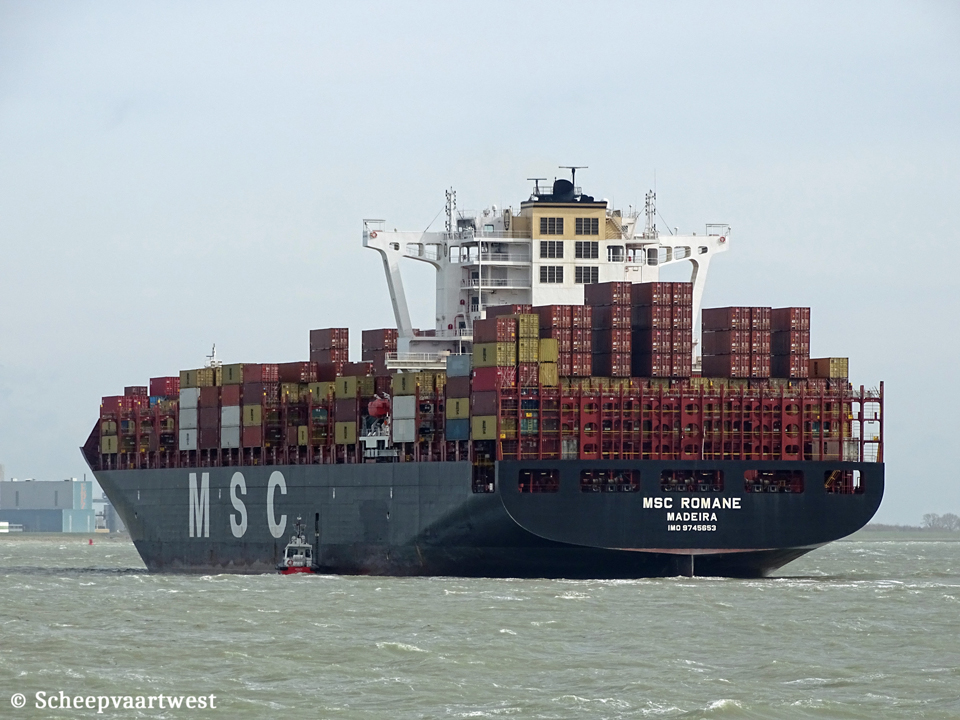

| Westerschelde 08/09/18 | Westerschelde 08/09/18 | Westerschelde 04/03/19 | Westerschelde 17/11/18 | |||
|
Name |
MSC ROMANE |
|
Type |
Cellular containership - Panamax |
|
IMO-number |
9745653 |
|
Call sign |
CQZN |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
GT |
97.805 t |
|
DWT |
109.802 t |
|
NT |
51.562 t |
|
Number of 20ft containers |
9.408 |
|
Container capacity 14t |
7.000 |
|
Reefer capacity |
700 |
|
Length |
299,89 m overall 286,40 m between perpendiculars |
|
Breadth |
48,33 m extreme 48,20 m moulded |
|
Draught |
Summer: 14,50 m |
|
Depth |
24,80 m |
|
Speed |
Max: 22,2 knots |
|
Built |
2017 |
|
Keel laid |
29/12/2014 |
|
Launch date |
21/05/2016 |
|
Date of completion |
27/03/2017 |
|
Builder |
Jinhai Intelligent Manufacturing Co., Ltd. 1 Jinhai Avenue Changtu Town Daishan County Zhoushan, 316291 China |
|
Yard number |
J0231 |
|
Hull material |
Steel |
|
Hull type |
Double bottom Double side |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 9S90ME-C10 - 2 stroke single acting 9 cylinder 900 x 3.260 mm combustion engine Mcr 47,600 kW / 64.717 hp at 84,0 rpm Builder: MAN B&W Diesel AG - Augsburg - Germany |
|
Propellers |
1x Fixed pitch mono-block propeller - aft at 84,0 rpm |
|
Boilers |
1x Auxiliary boiler, oil/gas fired 2x Auxiliary boiler, exhaust gas heated Manufacturer: KangRim Heavy Industries Co., Ltd. |
|
Generators |
3x MAN 9L32/40 4 stroke 6 cylinder 320 x 400 mm diesel engines each Mcr 4.500 kW connected with generators each 2.900 kW 2x MAN 6L32/40 - 4 stroke 6 cylinder 320 x 400 mm diesel engines each Mcr 3.000 kW connected with generators each 4.400 kW |
|
Emergency generator |
1x MAN D2842LE201 diesel generatorset |
|
Bow thruster |
1x Tunnel thruster 3.050 kW / 4.147 bhp, forward |
|
Tank capacities |
Ballast: 29.734,6 m³ |
|
Anchor equipment |
Length: 770,00 m Diameter: 111 mm |
|
Cargo gear |
Gearless |
|
Crew size |
23 |
|
ISM manager |
MSC Shipmanagement Limited MSC House, 8, Spyrou Kyprianou Avenue Limassol Cyprus |
|
Operator |
MSC - Mediterranean Shipping Co Chemin Rieu, 12-14 1208 Geneva Switzerland |
|
Registered owner |
CL Neptune Limited Care of MSC Shipmanagement Ltd. MSC House, 8, Spyrou Kyprianou Avenue Limassol Cyprus |
|
Latest data adjustment |
02 April 2022 |
