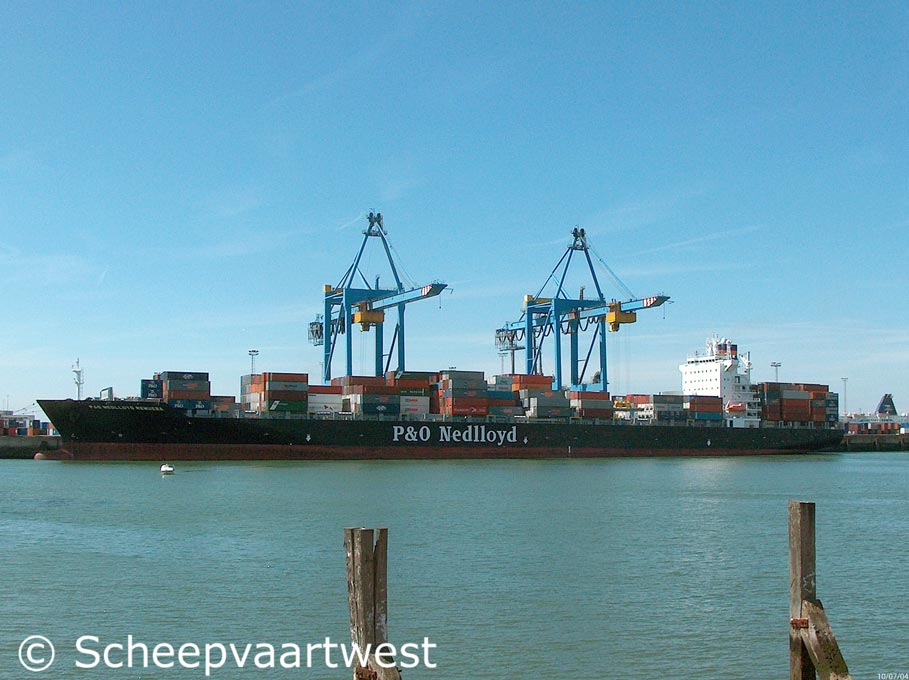

| Zeebrugge 10 July 2004 |
|
Name |
P&O NEDLLOYD REMUERA |
|
Previous names |
Launch as: Santa Rafaela |
|
Type |
Cellular containership |
|
IMO-number |
9227297 |
|
Call sign |
ELZJ4 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
45.803 t |
|
DWT |
53.328 t |
|
NRT |
25.077 t |
|
Number of 20ft containers |
4.112 |
|
Number of 40ft containers |
718 |
|
Reefer capacity |
1.300 |
|
Length |
281,03 m overall |
|
Breadth |
32,20 m registered |
|
Draught |
Summer: 12,50 m |
|
Forecastle |
134,053 m |
|
Bridge |
118,648 m |
|
Poop |
15,404 m |
|
Depth |
15,538 m moulded |
|
Speed |
25,1 knots |
|
Line |
ANZECS |
|
Built |
2002 |
|
Keel laid |
31.08.2001 |
|
Launch Date |
11.11.2001 |
|
Date of completion |
23.01.2002 |
|
Builder |
Samsung Heavy Industries Co., Ltd. Geoje Shipyard |
|
Yard number |
1357 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
9 |
|
Continuous decks |
2 |
|
Main engine |
1x Sulzer 9RTA96C-B - 2 stroke single acting 9 cylinder 960 x 2.550 mm diesel engine- 51.480 kW at 102 rpm |
|
Propellers |
1x Solid propeller (keyless) - aft |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar |
|
Electric installations |
1x Plant 6.600/440 V - 21.198 kVA |
|
Generators |
4x Main diesel generatorsets each 4.371 kVA |
|
Emergency generator |
1x Diesel generatorset 250 kVA |
|
Compressed air receivers |
2x Receivers each 12.900 litres - 33,0 bar |
|
Bow thruster |
1x Transverse thruster NAKASHIMA - 1.600 kW, forward |
|
Anchor equipment |
3x Anchors weight each 12.300 kg |
|
Fuel capacity |
8.519 m³ |
|
Crew size |
30 |
|
Crew |
26 |
|
Manager |
Reederei Claus-Peter Offen GmbH & Co. KG |
|
Operator |
P&O Nedlloyd |
|
Owner |
Kommanditgesellschaft MS "SANTA RAFAELA" Offen Reederei GmbH & Co. |
|
Renamed |
2006 Maersk Denia |
