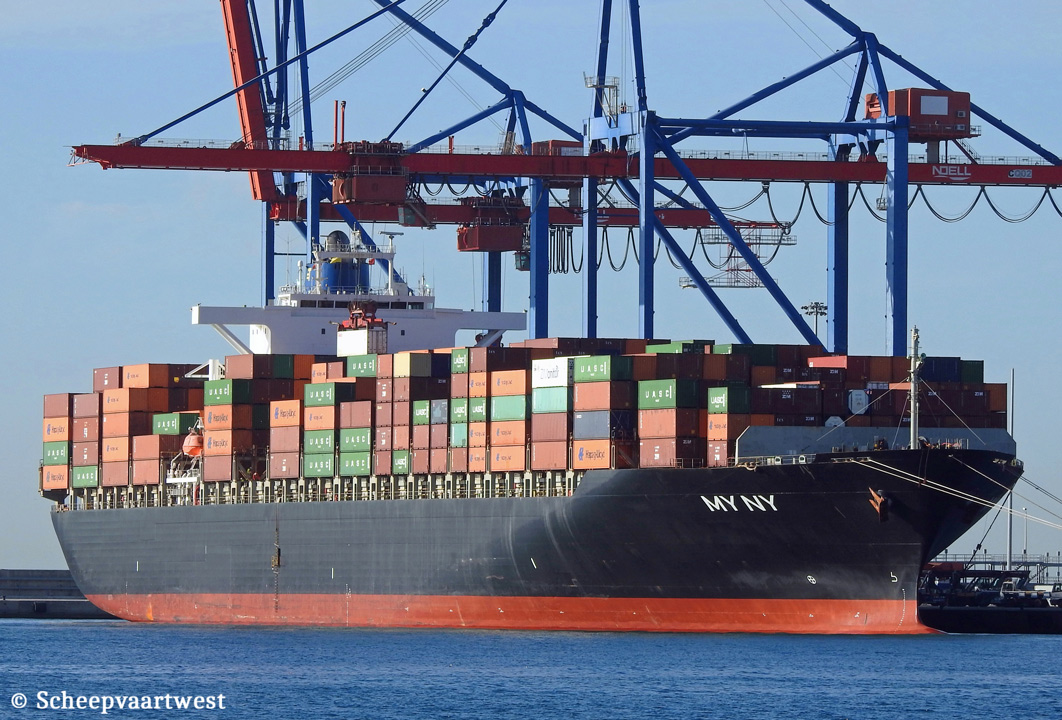

My Ny IMO 9298997 02

Malaga, Spain 15 October 2020

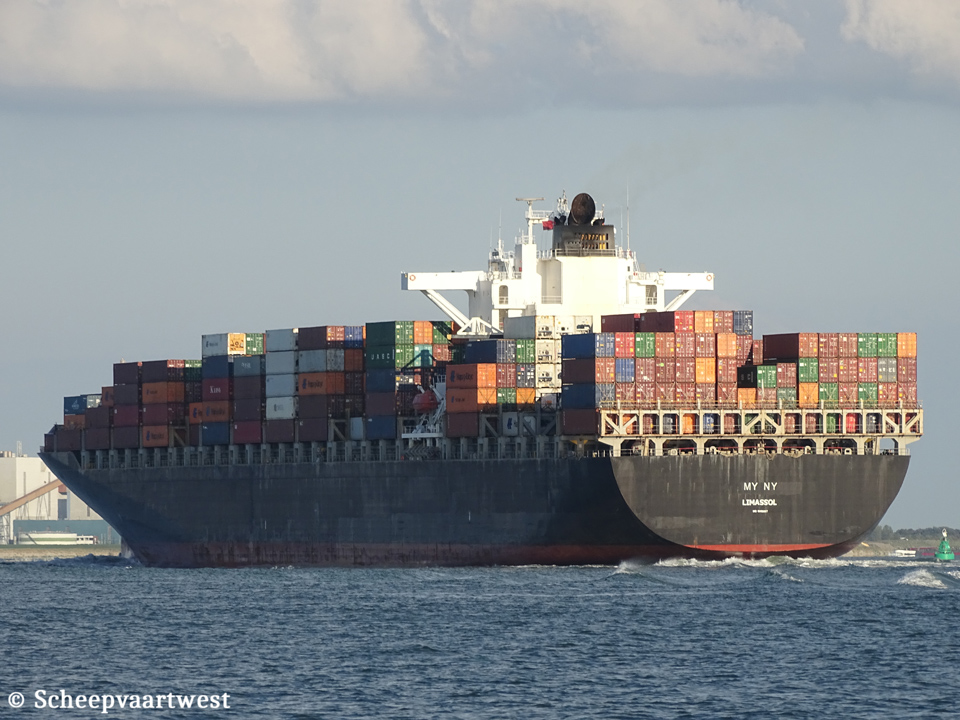

My Ny IMO 9298997 01   My Ny IMO 9298997 03
Westerschelde 13/09/18 Westerschelde 14/03/19









Name

MY NY

Previous names

2004 Ming March

05/2004 - 2015 YM March

2015 - 2018 March

Type

Cellular containership

IMO-number

9298997

Call sign

9HA5084

Flag

Malta

Port of registry

Valletta

Previous flags

2004 - 2013 Republic of Panama, Panama City - Call sign: H3NC

2013 - 2018 Marshall Islands, Majuro - Call sing: V7HZ6

2018 - 2019 Cyprus, Limassol - Call sign: 5BYB4

GT

66.332 t

DWT

Summer: 67.270 t

NT

25.247 t

Number of 20ft containers

5.576

Container capacity 14t

4.170

Reefer capacity

500

Length

278,94 m overall

262,00 m between perpendiculars

Breadth

40,10 m

Draught

Summer: 14,02 m

Keel to mast end

60,44 m

Freeboard

5.520 mm

Depth

24,00 m moulded

Speed

Max: 25,0 knots

Built

2004

Keel laid

25/06/2002

Launch date

18/01/2004

Delivery date

06/05/2004

Builder

Koyo Dockyard Co., Ltd.

Mihara

Hiroshima

Japan

Yard number

2172

Hull material

High strength steel

Hull type

Single hull

Bulkheads

Non tight: 5

Water tight: 20

Oil tight: 14

Main engine

1x Mitsui/MAN-B&W 10K98MC-C - 2 stroke 10 cylinder 980 x 2.660 mm combustion engine 57.201 kW/ 77.770 hp at 94,0 rpm

Manufacturer name: Mitsui Engineering & Shipbuilding Co., Ltd.

Propellers

1x Fixed pitch propeller

Manufacturer: Kobe Steel, Ltd., Takasago - Japan

Boilers

1x Auxiliary Boiler - 8,16 bar

Boiler heating surface: 47,0 m²

1x Exhaust gas boiler - 12,0 bar

Builder: Osaka Boiler Manufacturing, Osaka - Japan

Shaft generator

2.100 kW

Generators

4x Yanmar 6N330L-EV main diesel generatorsets each 2.200 kW

Manufacturer name: Nishishiba Electric Co., Ltd.

Bow thruster

1x 2000 kW

Number of holds

7

Number of tanks

Ballast: 22

Fuel oil: 17

Sludge: 7

Lubricating: oil 7

Diesel oil: 3

Waste water: 2

Fresh water: 1

Potable water: 1

Chain: 1

Tank capacities

Water ballast: 15.078,91 m³

Diesel oil: 380,82 m³

Freshwater: 391,90 m³

Fuel oil: 9.866,35 m³

Lube oil: 561,36 m³

Lifting equipment

2x Bunkering Davit - SWL 0,9 t each

1x Monorail crane - SWL 9,5 t

Cargo gear

Gearless

Commerical manager

Conchart Commercial Inc.

3-5, Menandrou Street, Kifisia

145 61 Athens

Greece

ISM manager

Technomar Shipping Inc.

3-5 Menandrou Street

Kifisia, 145 61 Athens

Greece

Registered owner

Myny Maltese Co., Ltd.

Care of ConChart Commercial Inc.

3-5, Menandrou Street, Kifisia

145 61 Athens

Greece

Renamed

2021 Wan Hai 625

Republic of Singapore, Singapore City - Call sign: 9V732

Owner: Wan Hai Lines Singapore Pte - Republic of Singapore

Latest data adjustment

25 June 2022
