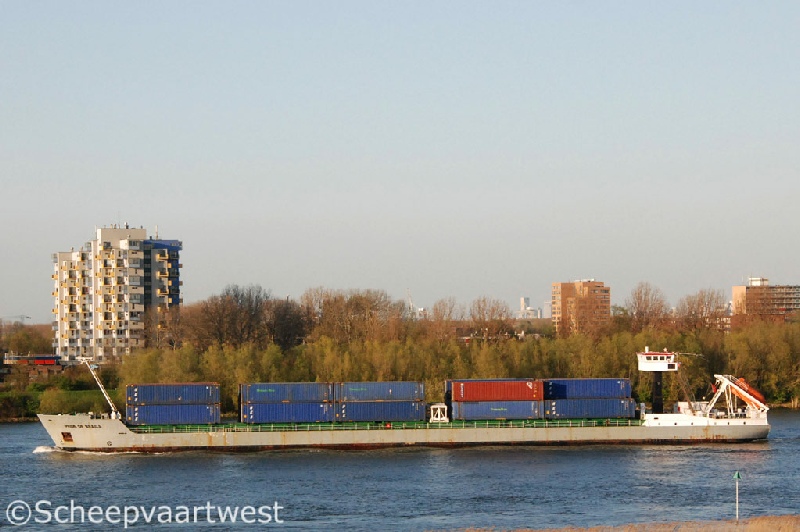

Pride Of Braila 01
Spijkenisse 08 April 2011



Name

PRIDE OF BRAILA

Type

Container Ship

IMO-number

9141340

Call sign

V2EH6

Flag

2009 Antigua & Barbuda

Previous flags

1998 2004 The Netherlands

2004 2009 Austria

Port of registry

2009 St. John's

Previous port of registry

1998 2004 Rotterdam

2004 2009 Wenen

GT

2.077 t

DWT

3.200 t

NT

734 t

Number of 20ft containers

190

Length

109,97 m over all

105,59 m registered

Breadth

11,36 m registered

Draught

3,60 m

Forecastle

9,24 m

Quarterdeck

15,27 m

Depth

5,576 m

Speed

12,0 knots

Built

1998

Keel laid

14.06.1996

Launch date

17.05.1998

Date of completion

01.08.1998

Builder

Santierul Naval Braila
2800 Braila 1
Romania

Yard number

1382

Hull material

Shipbuilding steel (standard)

Hull type

Partly double bottom

Watertight bulkheads

5

Continuous decks

1

Main engine

4x SKL 6 VD 29/24 AL-2 - 4 stroke 6 cylinder 240 x 290 mm diesel engines - each 1450 kW total 5800 kW at 1.000 rpm

Year of manufacture: 1997

Manufacturer: SKL Motoren- und Systemtechnik GmbH vorm. Buckau-Wolf
Friedrich-List-Str. 8
39122 Magdeburg
Federal Republic of Germany

Propeller

2x Solid propeller - aft at 337 rpm with nozzle

Electric installations

1x Plant 380/220 V - 78 kVA

2x Plant 380/220 V - 155 kVA

1x Plant 380/220 V - 565 kVA

Generators

1x Generator 565 kVA

2x Main diesel generatorsets each 155 kVA

1x Main diesel generatorset 78 kVA

Compressed air receivers

2x Receivers each 250 litres - 30,0 bar

1x Receiver 500 litres - 10,0 bar

Bow thruster

1x Transverse thruster - 400 kW, forward

Tank capacities

Fuel: 155 m³

Ballast water: 1.950 m²

Anchor equipment

3x Anchors weight each 1.290 kg

Chain length: 385,00 m

Manager

Maritime Services Kapt. Joachim Paschedag
Ottersring 17
47627 Kevelaer
Federal Republic of Germany

Owner

2010

Pride Schiffsverwaltung & Reederei GmbH (Maritime Services Kapt. Joachim Paschedag)
Duisburg
Germany

Registered owner

MS "PRIDE OF BRAILA" Schifffahrtsgesellschaft mbH & Co. KG
Krausstr. 1a
47119 Duisburg
Federal Republic of Germany

Previous owners

1998 Pride of Braila B.V., Veere (Rederij Gefonzo B.V.) - The Netherlands

2009 Pride Schiffsverwaltung & Reederei GmbH (Rhein- Maas- und See Schiffahrtskontor GmbH), Duisburg - Germany
