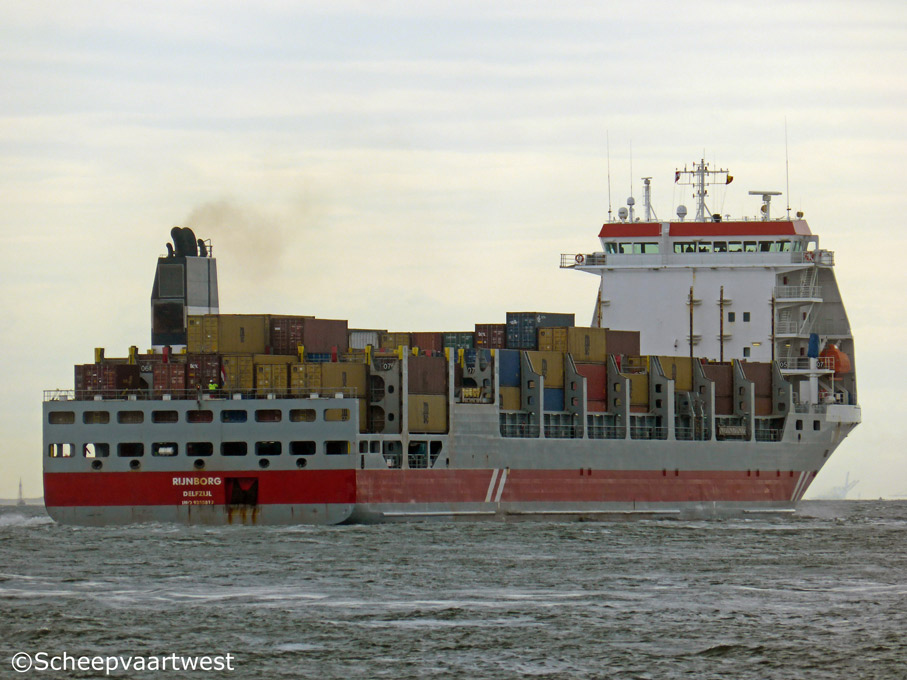

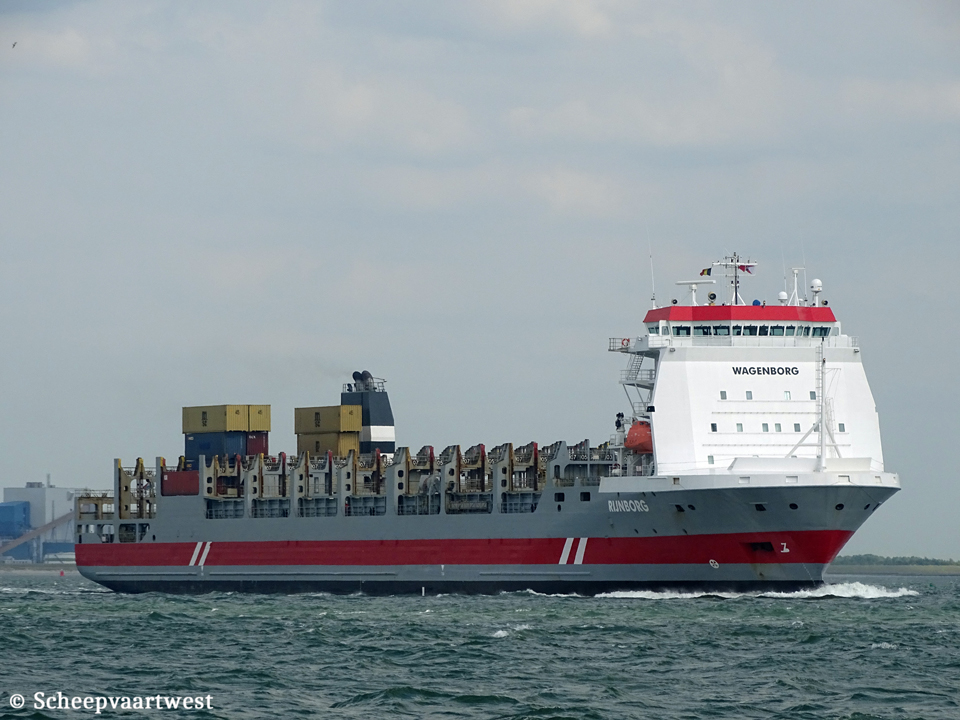

| Westerschelde 29 April 2015 |
 |
 |
 |
 |
 |
 |
|||||

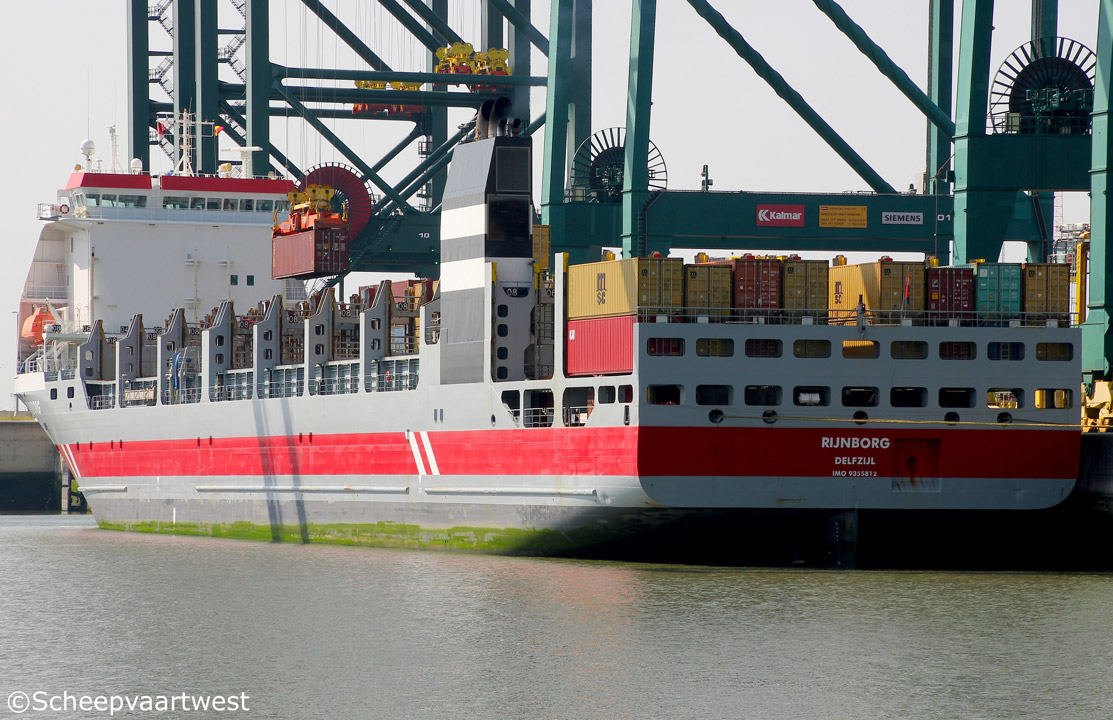

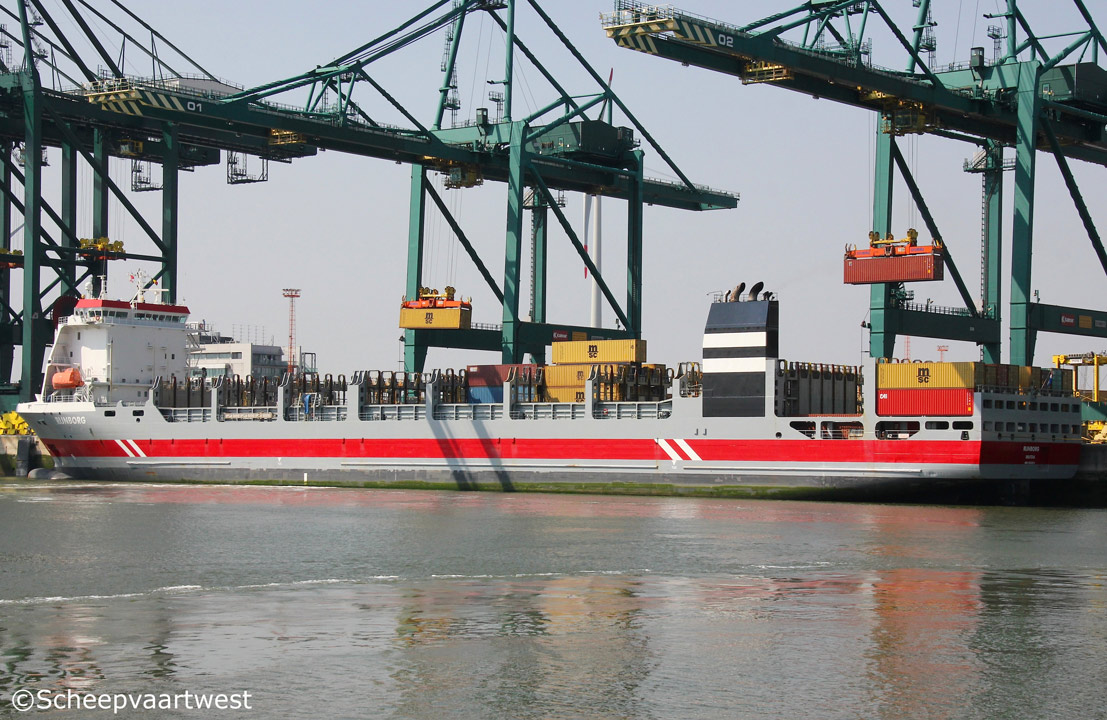

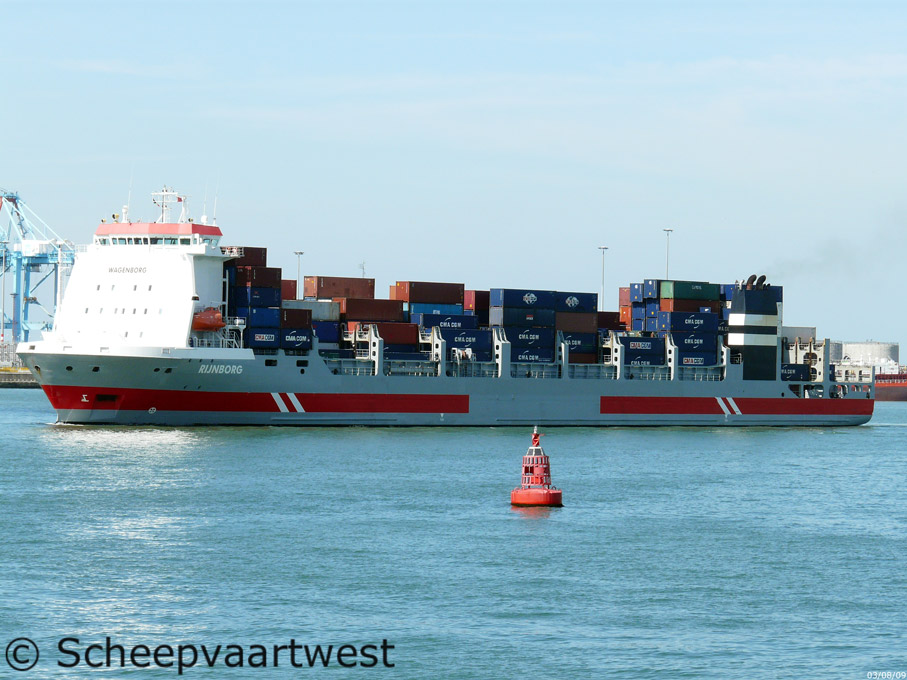

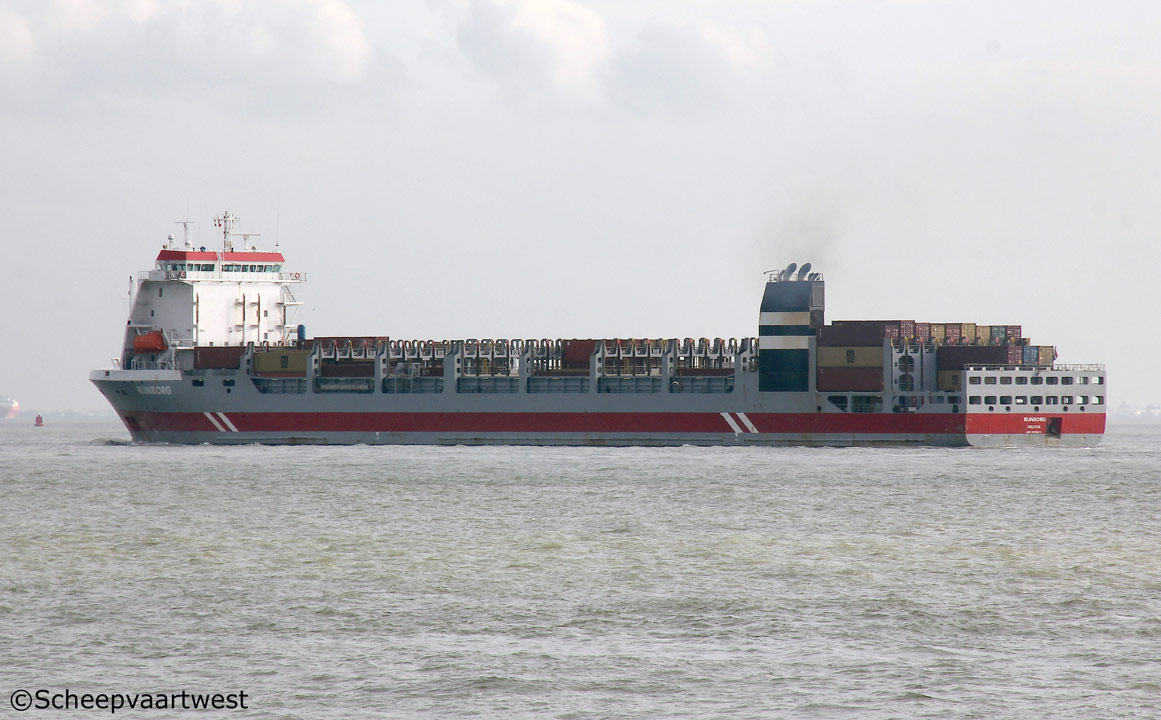

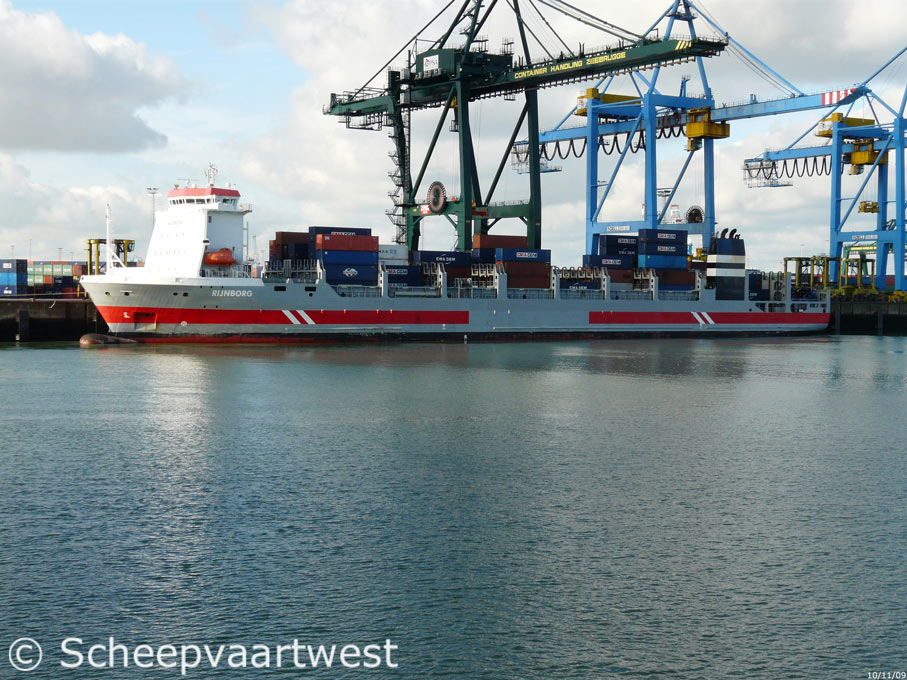

| Westerschelde 29/04/15 | Zeebrugge 03/08/09 | Zeebrugge 10/11/09 | Westerschelde 12/11/15 | Doel, Belgium 29/08/17 | Doel, Belgium 29/08/17 | |||||
 |
 |
|||||||||

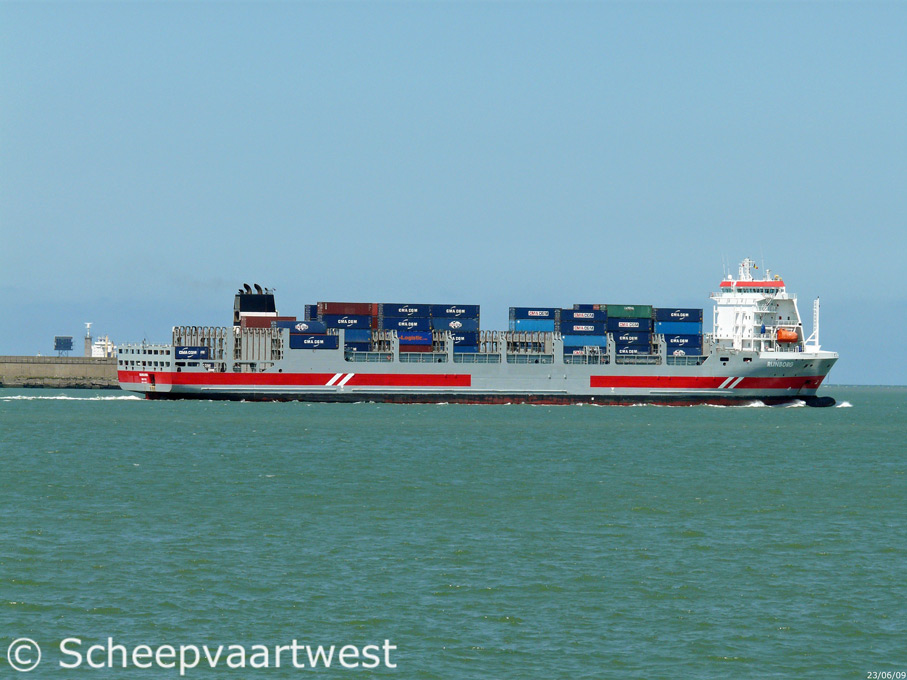

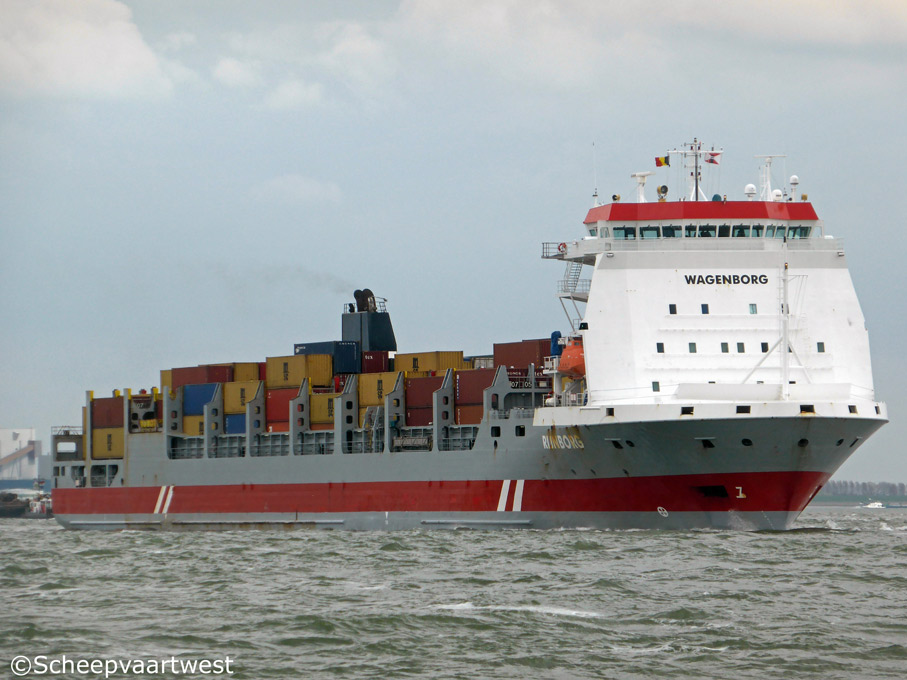

| Zeebrugge 23/07/09 | Westerschelde 08/06/17 | |||||||||
|
Name |
RIJNBORG |
|
Previous name |
2007 build as: Rijnborg 2007 - 20/12/2008 Katharina |
|
Type |
Cellular containership |
|
IMO-number |
9355812 |
|
Call sign |
PHFZ |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
16.506 t |
|
DWT |
Summer: 16.450 t |
|
DWCC |
Summer: 19.825 t |
|
NT |
8.084 t |
|
Number of 20ft containers |
1.712 |
|
Container capacity 14TH |
1.050 |
|
Reefer point |
200 |
|
Length |
176,00 m overall 166,75 m between perpendiculars |
|
Breadth |
23,70 m overall |
|
Draught |
Summer: 7,70 m |
|
Air draft |
39,50 m in ballast |
|
Freeboard |
6.550 mm summer: 3.160 mm |
|
Depth |
10,85 m moulded |
|
Speed |
19,75 knots |
|
Line |
CMA CGM French Baltic |
|
Built |
2007 |
|
Keel laid |
31/08/2005 |
|
Launch date |
03/06/2006 |
|
Date of completion |
10/01/2007 |
|
Builder |
IHC Holland Dredgers B.V. Kinderdijk The Netherlands |
|
Yard number |
CO1242 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
7 |
|
Continuous decks |
1 |
|
Main engine |
2x Wärtsilä 6L46F - 4 stroke 6 cylinder 460 x 580 mm internal combustion engine total 15.000 kW / 20.380 hp at 600 rpm Built: 2006 Builder: Wärtsilä Diesel Oy, Turku - Finland |
|
Electrical propulsion gen. |
1x 2.000 kW - 480 Volt |
|
Propelling system |
2x Screw propeller controllable pitch - aft at 135 rpm Diameter: 5.350 mm |
|
Boilers |
1x CHO Aalborg 45,00 m² - 10,0 bar 2x CHR Aalborg 97,00 m² - 10,0 bar |
|
Electrical installation |
Power voltage: 480 V Lighting voltage: 220 V Frequency: 60 Hz |
|
Shaft generator |
2.000 kW |
|
Generators |
2x Main diesel generatorsets each 1.288 kVA - 1.030 kW - 1.505 hp |
|
Emergency generators |
1x Diesel generatorset 687 kVA - 550 kW - 808 hp |
|
Bow thruster |
1x 880 KW |
|
Holds |
3 Length: 57,20 m Breadth: 10,30 m Height: 7,90 m |
|
Hatch |
Length: 26,80 / 25,50 m Breadth: 10,30 m |
|
Tank capacities |
HFO: 1.400 m³ MGO: 150 m³ Water ballast: 5.000 m³ Fresh water: 200 m³ |
|
Cargo gear |
Gearless |
|
Crew |
14 |
|
Manager |
Wagenborg Shipping BV Delfzijl The Netherlands |
|
Owner |
Wagenborg Shipowners B.V Delfzijl The Netherlands |
|
Previous owners |
01/2007 - 12/2008 Wagenborg Rederij B.V., Delfzijl - The Netherlands |
|
Latest data adjustment |
24 October 2024 |
