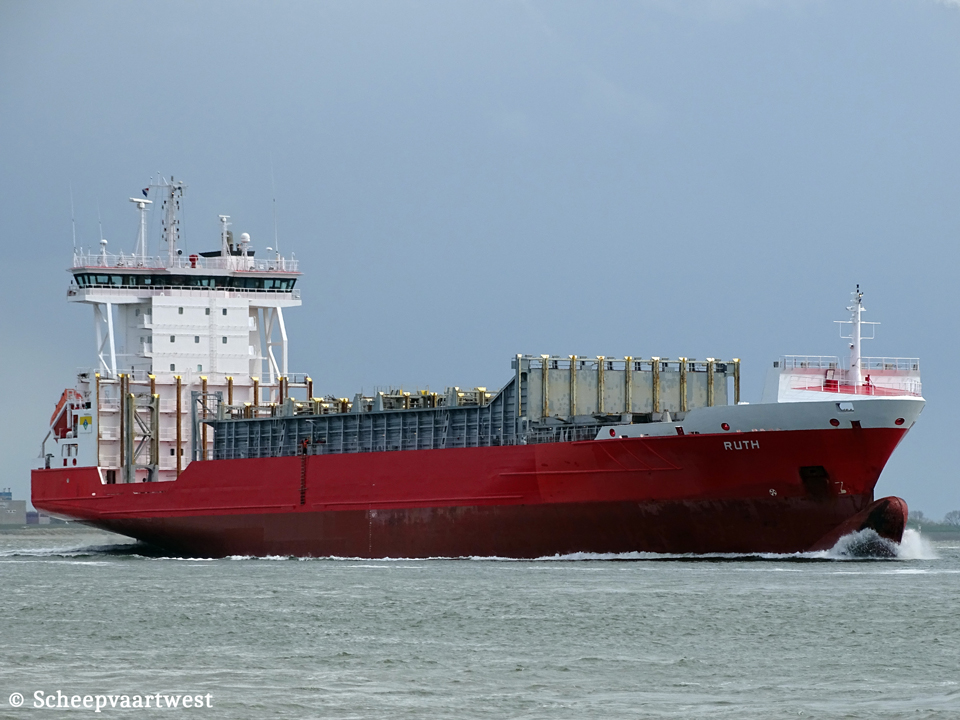

| Westerschelde 27 April 2017 |
 |
 |
 |
 |
 |
||||

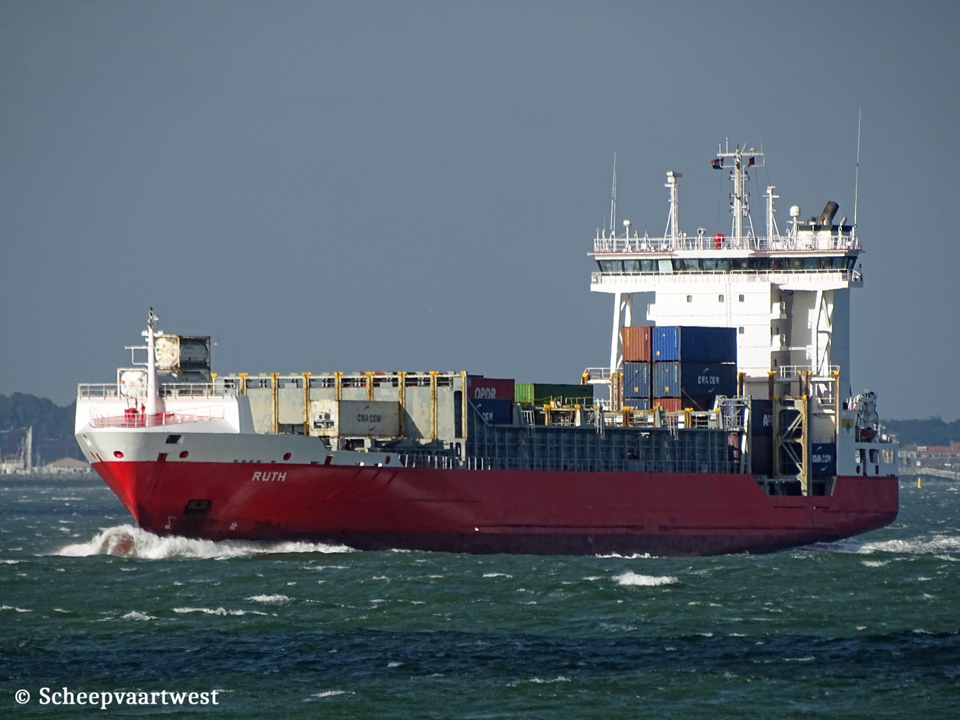

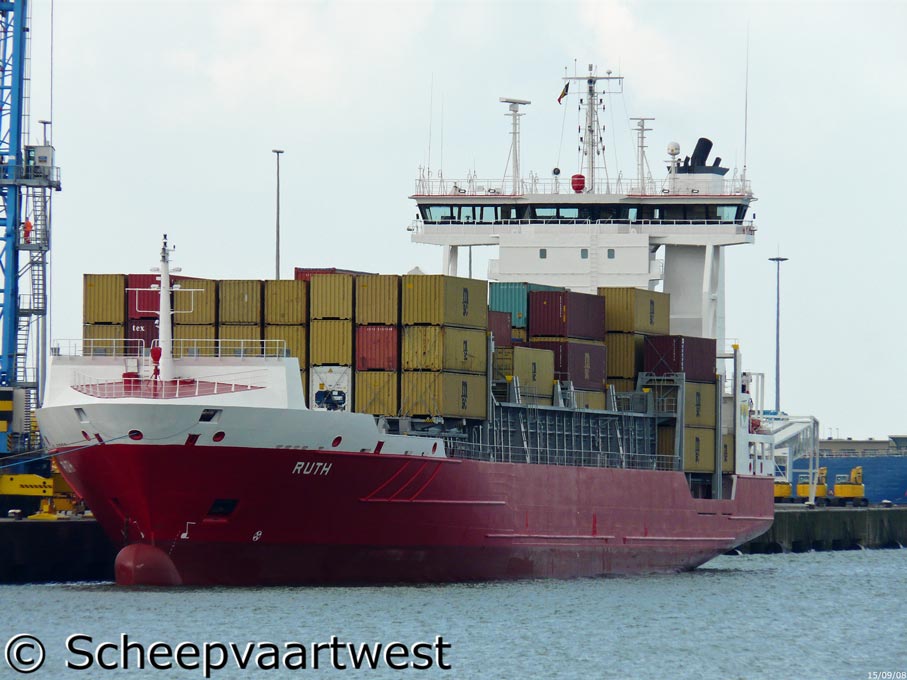

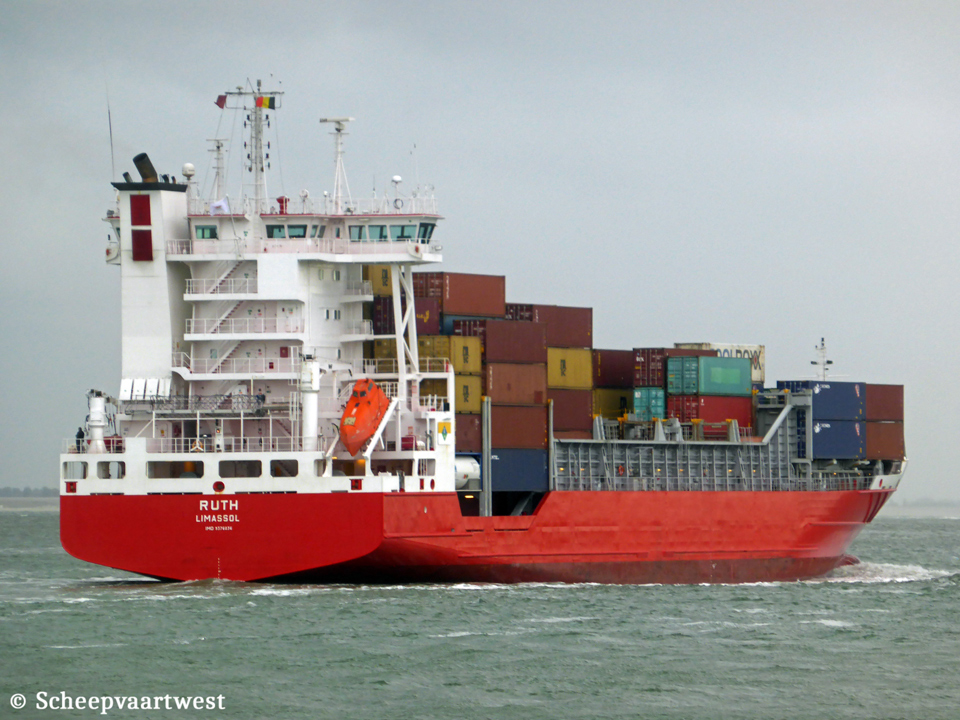

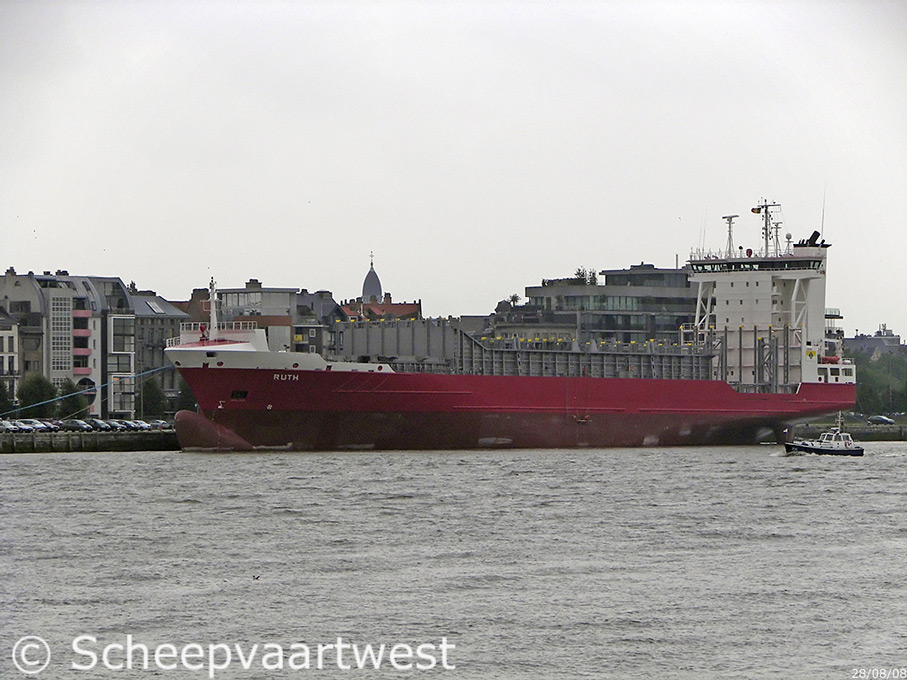

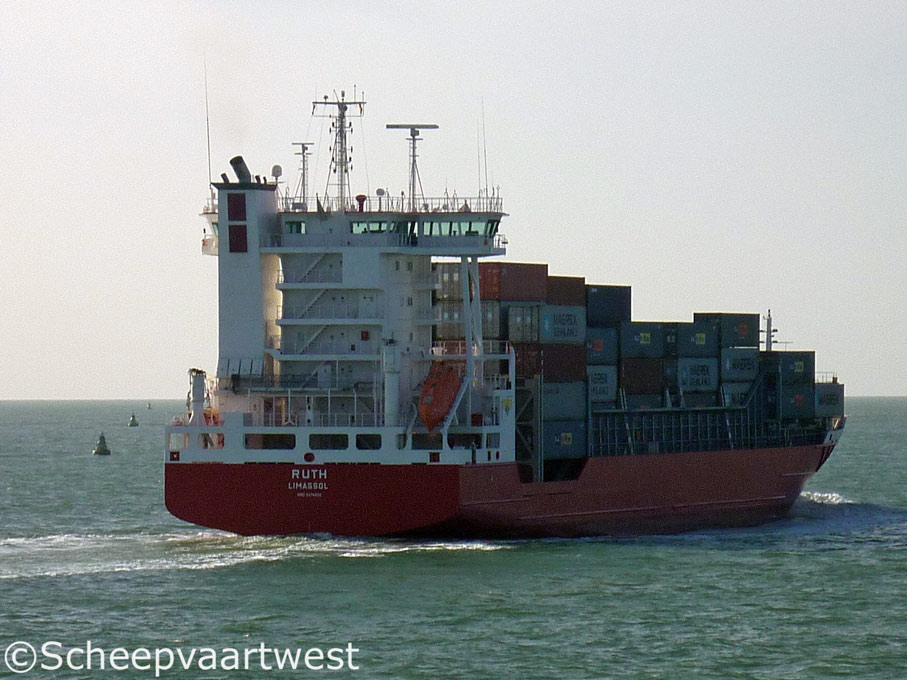

| Westerschelde 22/09/11 | Zeebrugge 15/09/08 | Antwerpen 28/08/08 | Westerschelde 22/06/15 | Westerschelde 12/06/17 | ||||
|
Name |
RUTH |
|
Type |
Cellular containership |
|
IMO-number |
9376036 |
|
Call sign |
5BEG2 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
Previous flag |
Germany |
|
GT |
9.981 t |
|
DWT |
11.253 t |
|
NT |
6.006 t |
|
Number of 20ft containers |
868 |
|
Number of 40ft containers |
392 |
|
Container capacity at 14t |
585 |
|
Reefer containers |
204 under deck / 380 Volt 50 Hz |
|
Length |
134,44 m overall 124,41 m between perpendiculars |
|
Breadth |
22,50 m registered |
|
Draught |
Summer: 8,71 m |
|
Forecastle |
91,39 m |
|
Poop |
9,45 m |
|
Freeboard |
2.609 mm |
|
Depth |
11,30 m moulded |
|
Speed |
Max: 18,5 knots |
|
Built |
2008 |
|
Keel laid |
14/12/2005 |
|
Launch date |
02/03/2008 |
|
Delivery date |
08/05/2008 |
|
Builder |
Pella Sietas KG Schiffswerft GmbH & Co. Neuenfelder Fährdeich 88 21129 Hamburg Federal Republic of Germany |
|
Yard number |
1284 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 9M43C - 4 stroke single acting 9 cylinder 430 x 610 mm combustion engine output 8.400 kW / 11.413 hp at 127 rpm Year of manufacture: 2008 Manufacturer: Caterpillar Motoren Rostock GmbH |
|
Propeller |
1x Controllable pitch propeller - aft |
|
Boiler |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 51,7 m² Year of manufacture: 2007 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 221,5 m² Year of manufacture: 2008 Manufacturer: PWT Prozess-Wärmeträgertechnik GmbH |
|
Electric installations |
1 x Plant 400 V - 1.155 kVA 1 x Plant 400 V - 1.390 kVA 1 x Plant 400 V - 1.860 kVA 1 x Plant 400 V - 400 kVA 2 x Plant 24 V - 140 Ah |
|
Shaft generator |
1x SAM SE500 - 1.488 kW / 1.860 kVA |
|
Generators |
1x Caterpillar main diesel generatorset 1.390 kVA - 1.112 kW - 1.163 hp 1x Caterpillar main diesel generatorset 924 kw / 1.155 kVA |
|
Emergency generator |
1x Caterpillar 3406 diesel generatorset 400 kVA |
|
Batteries |
2x Batteries for start emergency engine each 140 Ah |
|
Bow thruster |
1x Transverse thruster 750 kW, forward 1x Transverse thruster 450 kW, aft |
|
Number of holds |
4 |
|
Cargo hold capacity |
Grain: 4.730 m³ |
|
Number of hatches |
4 |
|
Compressed air receivers |
2x Receivers, each 750 litres - 30,0 bar 1x Receiver 10 litres - 30,0 bar 1x Receiver 500 litres - 11,0 bar |
|
Tank capacities |
Fuel oil :861 t Fresh water: 128 t Gas oil: 113 t Water ballast: 4030 t |
|
Anchor equipment |
3x Anchors weight each 5.250 kg Chain length: 577,50 m |
|
Cargo gear |
Gearless |
|
Crew size |
19 |
|
Manager |
Jens & Waller GmbH & Co. KG Borsteler Weg 12 21683 Stade Germany |
|
Owner |
MS "RUTH" Jens und Waller GmbH & Co. KG Schulsteig 4 21683 Stade Federal Republic of Germany |
|
Latest data adjustment |
25 February 2023 |
