Westerschelde 21 August 2019 |
 |
| WS 21/08/19 |
|
Name |

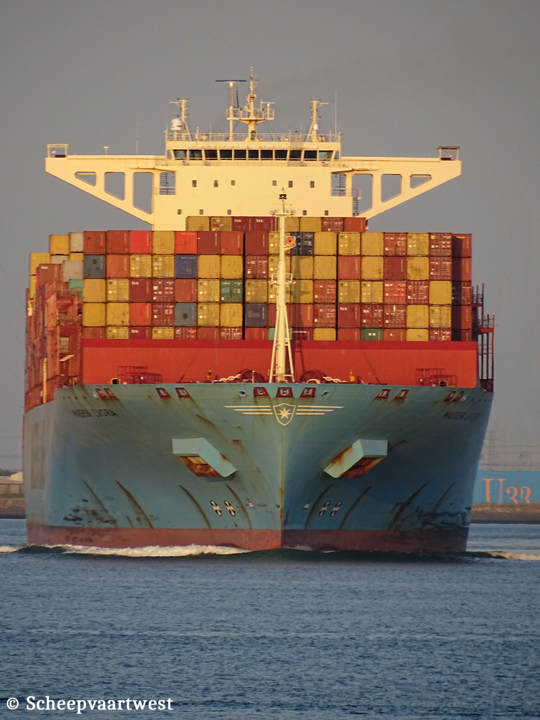

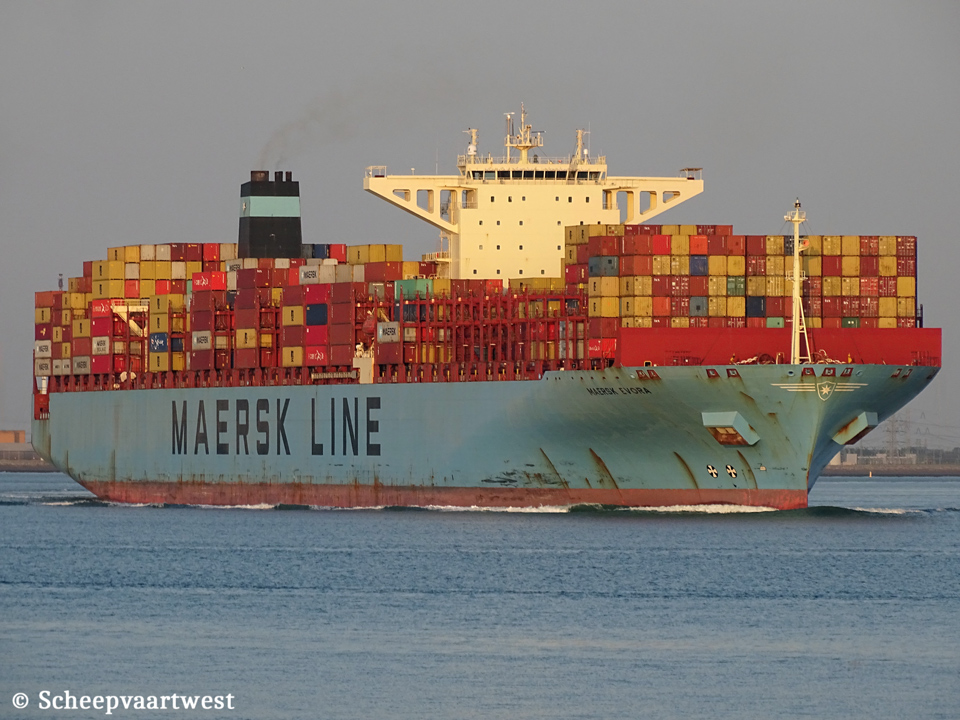

MAERSK EVORA |
|
Previous names |
2011 Build as: Tauro Rickmers |
|
Type |
Cellular Containership |
|
IMO-number |
9458080 |
|
Call sign |
OXVS2 |
|
Flag |
Denmark |
|
Port of registry |
København |
|
Previous flags |
2011 - 2017 Marshall Islands, Majuro Call sign: V7WI7 |
|
GT |
141.716 t |
|
DWT |
Summer: 142.105 t |
|
NT |
59.810 t |
|
Number of 20ft containers |
13.092 |
|
Container capacity 14t |
9.144 |
|
Reefer capacity |
800 |
|
Length |
366,43 m overall 353,64 m registered |
|
Breadth |
48,20 m registered |
|
Draught |
Summer: 15,50 m |
|
Depth |
29,85 m moulded |
|
Speed |
Max: 24,7 knots |
|
Built |
2011 |
|
Keel laid |
08/12/2010 |
|
Launch date |
01/04/2011 |
|
Date of completion |
01/06/2011 |
|
Builder |
Hyundai Heavy Industries Co. Ltd. Ulsan South Korea |
|
Yard number |
2172 |
|
Hull material |
Material Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
12 |
|
Continuous decks |
2 |
|
Main engine |
1x Wärtsilä 12RT-Flex96C-B - 2 stroke 12 Cylinder 960 x 2.500 mm combustion engine 68.640 kW at 102,0 rpm Build: 2010 Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Propellers |
1x Solid propeller (keyless) - aft at 102,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 73,4 m² 1x Steam boiler, exhaust gas heated - 12,0 bar Heating surface: 484,0 m Build: 2011 Manufacturer: KangRim Industries Co., Ltd. (3rd Factory) |
|
Electric installations |
1x Plant 6.600 V - 3.600 kW 1x Plant 6.600 V - 3.600 kW 1x Plant 6.600 V - 3.600 kW 1x Plant 6.600 V - 3.600 kW 1x Plant 6.600 V - 3.600 kW 1x Plant 450 V - 375 kVA 2x Plants each 24 V - 7 Ah 1x Plant 24 V - 12 Ah 12x Plants each 24 V - 200 Ah 12x Plants each 24 V - 300 Ah |
|
Shaft generator |
1x Diesel generatorset 375 kVA |
|
Generators |
5x HimSen 6H32/40 main diesel generatorsets each 3.600 kW |
|
Batteries |
12x Batteries for UPS navigation each 300 Ah 12x Batteries for UPS radio each 200 Ah 1x Battery for automation 12 Ah 2x Batteries for start emergency engine each 7 Ah |
|
Compressed air receivers |
2x Receivers each 16.800 litres - 32,4 bar 1x Receiver 480 litres - 32,4 bar 1x Receiver 300 litres - 8,0 bar 1x Receiver 2.000 litres - 7,8 bar |
|
Bow thruster |
2x Transverse thruster each 1.800 kW, forward |
|
Anchor equipment |
3x Anchors weight each 24.500 kg Chain Length: 770,00 m |
|
Crew |
27 |
|
Operator |
Maersk Line |
|
Owner |
Maersk A/S 1263 Esplanaden 50 København K Denmark |
|
Registered owner |
Minsheng Financial leasing Co. Ltd. C/o A.P. Miller- Maersk |
|
Latest data adjustment |
20 April 2021 |
