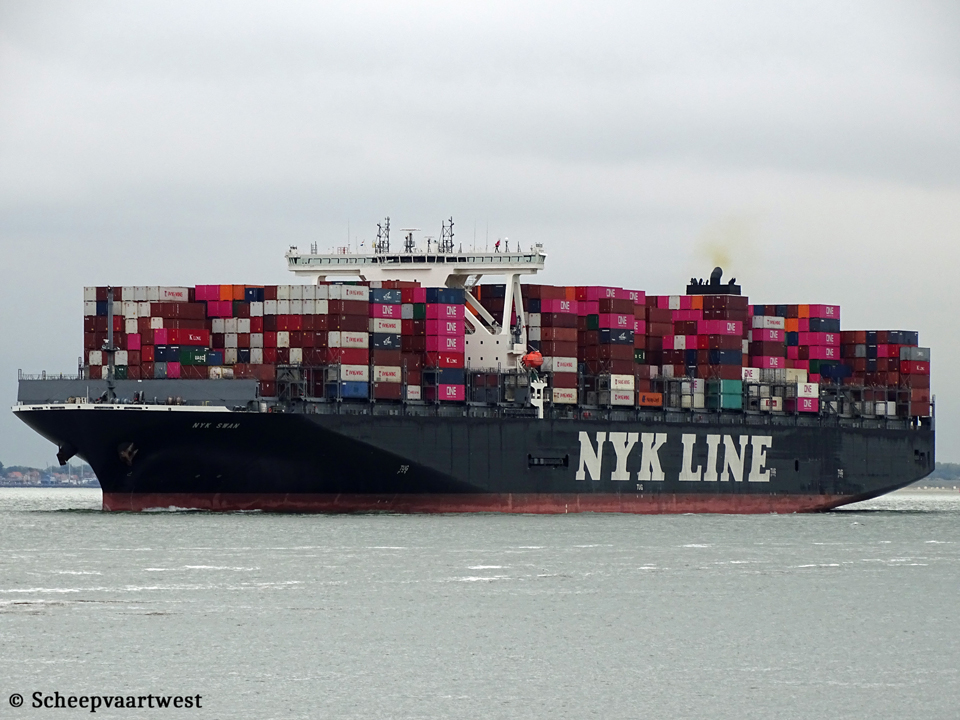

NYK Swan IMO 9741437 03

Westerschelde 16 September 2019

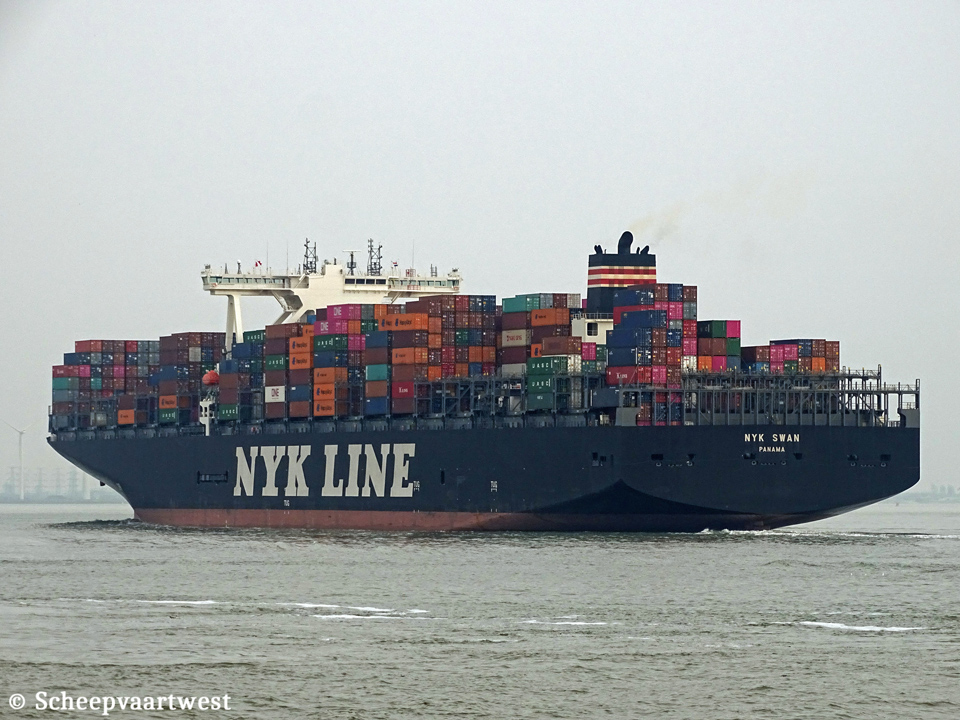

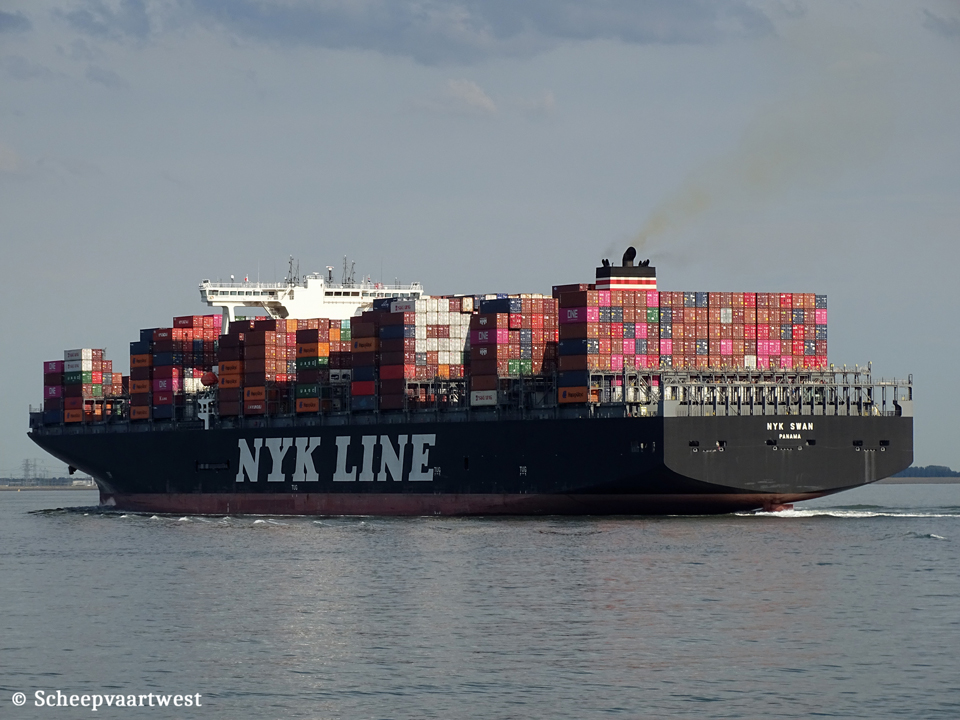

NYK Swan IMO 9741437 01   NYK Swan IMO 9741437 02
Westerschelde 06/04/19   Westerschelde 20/08/20


Name

NYK SWAN

Type

Cellular containership

IMO-number

9741437

Call sign

HOJR

Flag

Republic of Panama

Port of registry

Panama City

GT

145.407 t

DWT

138.907 t

NT

82.126 t

Number of 20ft containers

14.026

Container capacity 14t

9.150

Reefer capacity

1.120

Length

364,15 m overall

Breadth

50,60 m moulded

Draught

Summer: 15,79 m

Moulded L x B x D

349,20 x 50,60 x 23,04 m

Registered L x B x D

351,57 x 50,60 x 23,04 m

Freeboard

Summer: 7.301 mm

Depth

23,04 m moulded

Speed

Max: 24,0 knots

Service: 21,0 knots

Built

2017

Builder

Japan Marine United Corp. - Kure HS Yard

Japan

Yard number

5077

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x Wärtsilä 9X82 - 2 stroke single acting 9 cylinder 820 x 3.375 mm combustion engine 42.180 kW at 74,6 rpm

Manufacturer: Diesel United, Ltd.

Propellers

1x Fixed pitch propeller - aft at 65,0 rpm

Generators

4x Main diesel generatorsets each 3.200 ekW

Bow thruster

1x Tunnel thrusters each 1/800 kW / 2.447 bhp, forward

Tank capacities

Fuel oil: 10.515,83 m³

Fresh water: 599,34 m³

Cargo gear

Gearless

Crew size

24

Manager

NYK Line

Yusen Building, 3-2, Marunouchi 2-chome, Chiyoda-ku,

Tokyo, 100-0005

Japan

Renamed

2020 One Swan

Republic of Panama, Panama City - Call sign: HOJR

Owner: Wakaba Ship Holding SA

Manager: NYK Line- Japan

Latest data adjustment

02 September 2021
