Malaga, Spain 29 July 2021 |
|
Name |

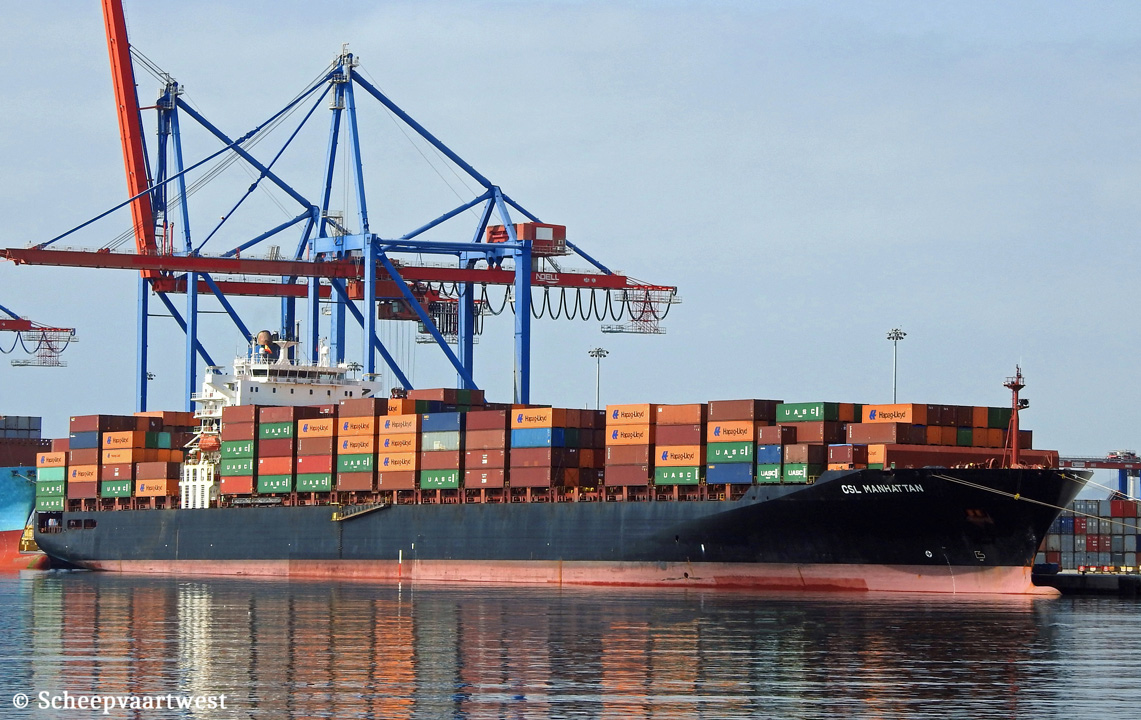

CSL MANHATTAN |
|
Previous names |
2005 - 05/2010 APL New York 05/2010 - 07/2014 Manhattan |
|
Type |
Gearless cellular container vessel - Carriage of dangerous cargoes |
|
IMO-number |
9289556 |
|
Call sign |
D5IC7 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
54.592 t |
|
DWT |
Summer: 66.633 t |
|
NT |
34.532 t Suez: 49.367 t Panama: 44.930 t |
|
Number of 20ft containers |
In hold: 2.259 On deck: 2.780 Total: 5.039 |
|
Container capacity 14t |
3.397 |
|
Reefer points |
450 |
|
Length |
294,17 m overall 283,20 m between perpendiculars |
|
Breadth |
32,23 m |
|
Draught |
Summer: 13,65 m |
|
Depth |
22,10 m |
|
Speed |
Max: 25,2 knots |
|
Built |
2005 |
|
Builder |
Hyundai Samho Heavy Industries Co., Ltd. Samho South Korea |
|
Yard number |
S221 |
|
Hull material |
Steel |
|
Main engine |
1x Wärtsilä-Sulzer 9RTA96C-B - 2 stroke 8 cylinder 960 x 2.500 mm combustion engine 51.480 kW / 69.992 hp at 102,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Generators |
4x Main diesel generatorsets each 1.790 kW |
|
Bow thruster |
1x 2.100 kW |
|
Number of holds |
6 |
|
Number of hatches |
17 |
|
Hatch type |
Pontoon type, non-sequential hatch opening |
|
Tank capacities |
Water ballast: 14.189 m³ HFO: 6.197 m³ MGO: 381 m³ Fresh water: 253 m³ |
|
Cargo gear |
Gearless |
|
ISM & commercial manager |
Universal Shipping Alliance 349, Kifisias Avenue 145 61 Athens Greece |
|
Registered owner |
Chain Maritime SA Care of Universal Shipping Alliance Ltd. 349, Kifisias Avenue 145 61 Athens Greece |
|
Latest data adjustment |
10 September 2021 |
