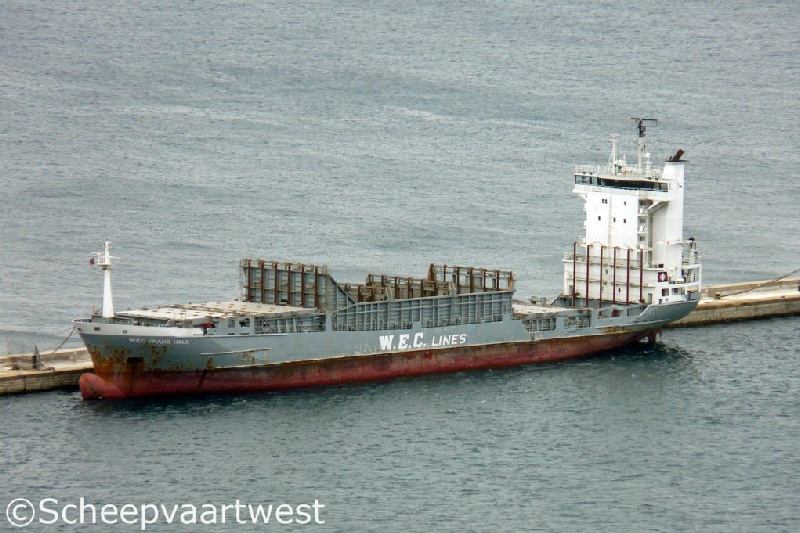

| Gibraltar 21 September 2011 |
|
Name |
WEC FRANS HALS |
|
Previous names |
1997 - 21.04.1997 Petuja 21.04.1997 - 21.11.2000 Joanna Borchard 21.11.2000 - 08.06.2010 Petuja 08.06.2010 - 12.12.2011 WEC Frans Hals |
|
Type |
Containership |
|
IMO-number |
9138367 |
|
Call sign |
DGPE |
|
Flag |
Germany |
|
Port of registry |
Hamburg |
|
GT |
6.362 t |
|
DWT |
Summer: 6.800 t |
|
NT |
3.998 t |
|
Number of 20ft containers |
700 |
|
Container capacity 14t |
400 |
|
Reefer containers |
72 |
|
Length |
121,94 m overall 115,04 m registered |
|
Breadth |
18,20 m registered |
|
Draught |
6,69 m |
|
Forecastle |
76,30 m |
|
Poop |
9,05 m |
|
Freeboard |
1.620 mm |
|
Depth |
8,30 m moulded |
|
Speed |
16,0 knots |
|
Built |
1997 |
|
Keel laid |
19.09.1995 |
|
Launch date |
17.03.1997 |
|
Date of completion |
04.1997 |
|
Builder |
J.J. Sietas KG Schiffswerft GmbH & Co. Neuenfelder Fährdeich 88 21129 Hamburg Federal Republic of Germany |
|
Yard number |
1150 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Partly double bottom |
|
Watertight bulkheads |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN B&W 8 L 40/54 - 4 Stroke 8 cylinder 400 x 540 mm diesel engine - 5.300 kW at 514 rpm Year of manufacture: 1996 Manufacturer: MAN B&W Diesel GmbH |
|
Propeller |
1x Controllable pitch propeller - aft 188 rpm |
|
Electric installations |
2x Plant 400/220 V - 400 kVA 1x Plant 400 V - 695 kVA 1x Plant 400 V - 100 kVA |
|
Shaft generator |
1x 695 kVA / 556 kW |
|
Generators |
2x Caterpillar main diesel generatorsets each 400 kVA / 320 kW |
|
Emergency generator |
1x Diesel generatorset 100 kVA |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar |
|
Bow thruster |
1x Fixed pitch propeller LIPS - 546 kW, forward |
|
Cargo gear |
None |
|
Ballast water |
2.135 m³ |
|
Anchor equipment |
3x Anchors weight each 4.050 kg Chain Length: 522,50 m |
|
Operator |
W.E.C. Lines |
|
Owner |
W.E.C. Lines B.V. |
|
Renamed |
12.2011 Taurango Liberia - Monrovia - D5AY2 |
