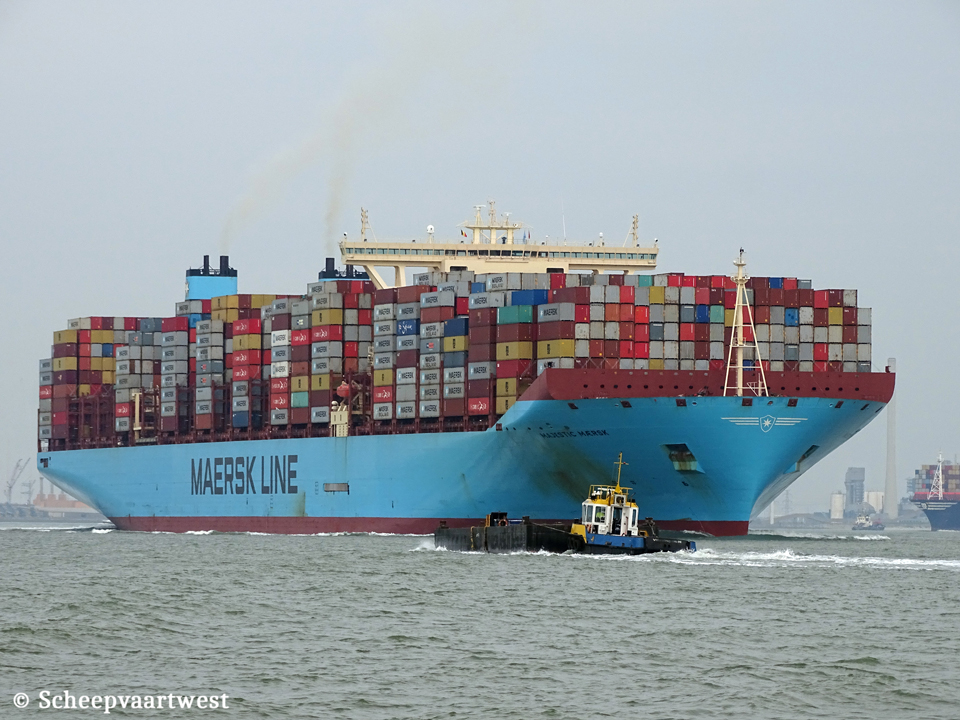

Majestic Maersk IMO 9619919 01
Westerschelde 09 April 2019

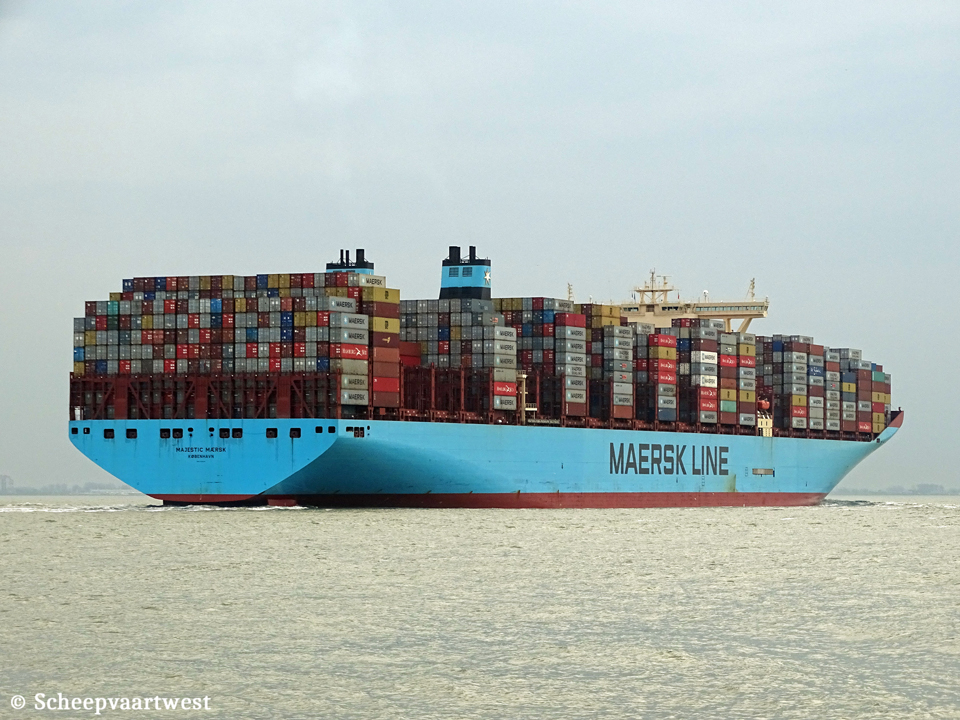

Majestic Maersk IMO 9619919 02
Westerschelde 09/04/19









Name

MAJESTIC MAERSK (MAJESTIC MÆRSK)

Type

Cellular containership- Carriage of dangerous goods

IMO-number

9619919

Call sign

OWJD2

Flag

Denmark

Port of registry

København

GT

194.849 t

Suez: 199.445,19 t

DWT

213.970,8 t

NT

89.317 t

Suez: 174.526,19 t

Displacement

277.914,6 t

Number of 20ft containers

18.270

Reefer points

1.800

Length

399,00 m overall

376,21 m between perpendiculars

Breadth

59,00 m moulded

Draught

Summer: 16,00 m

Freeboard

5.845 mm

Depth

30,30 m moulded

Speed

Max: 23,0 knots

Built

2013

Keel laid

21/01/2013

Launch date

27/03/2013

Delivery date

03/08/2013

Builder

Daewoo Shipbuilding & Marine Engineering Co., Ltd.

3370 Geojedaero, Geoje-Si, Gyeongsangnam-Do, 656-714

South Korea

Yard number

4251

Hull material

Steel

Bulkheads

16

Continuous decks

1

Main engine

2x Doosan/MAN-B&W 8S80ME-C MK9.2 - 2 stroke 8 cylinder 800 x 3.450 mm combustion engines each 29.680 kW at 73,1 rpm

Total: 59.360 kW / 80.706 hp

Propellers

2x Fixed pitch propellers

4 blades

Boilers

1x Auxiliary boiler Aalborg OS - 9,0 MPa

2x G/E Exhaust Gas Economizer Aalborg XS-TC7A - 12,5 MPa

2x H.P. Exhaust Gas Economizer Mission XW-TG(HP) - 14,0 MPa

2x L.P. Exhaust Gas Economizer Mission XW-TG(LP) - 8,0 MPa

Manufacturer: Alfa Laval Qingdao Ltd.

Shaft generator

2x Each 3.000 kW

Manufacturer: Siemens AG

Generators

2x Main Diesel Generatorsets Each 4.300 Kw

2x Main Diesel Generatorsets Each 2.800 Kw

1x Tubo/Gas generatorset 6.000 kW (Peter Brotherhood Combi Exhaust Gas/SteamTurbin Gen.

Manufacturer: HHI Electro Electric System

Emergency generator

1x Diesel generatorset 500 kW

Bow thruster

2x 2.500 kW each

Cargo hold capacity

384.683,60 m³

Tank capacities

Fresh water: 1.048,30 m³

Fuel oil: 14.018,60 m³

Diesel oil: 1.100,80 m³

Ballast: 63.173,20 m³

Lube oil: 588,60 m³

Lifting equipment

1x Engine room crane (Port) - SWL 10,0 t

1x Engine room crane (Stbd) - SWL 10,0 t

1x Monorail crane - SWL 12,5 t

1x Provision crane (Port) - SWL 2,0 t

1x Provision crane (Stbd) - SWL 5,0 t

Manufacturer: Dongnam Marine Crane Co., Ltd.

Crew

34

ISM & commercial manager

Maersk A/S

Esplanaden 50

1263 Copenhagen, K

Denmark

Registered owner

Maersk A/S

Esplanaden 50

1263 København K

Denmark

Latest data adjustment

30 April 2022
